What is the electromagnetic gate lock made of?

The VIS-SS800-G is made of heavy-duty stainless steel, which provides durability, corrosion resistance, and protection against vandalism.

Is this mag lock for gates waterproof?

Yes. The VIS-SS800-G is designed for outdoor use and built with a sealed, weather-resistant stainless steel case. All parts are sealed for water resistance, making it durable enough to withstand rain and harsh outdoor conditions.

Does gate maglock kit come with a manual?

Yes, it does. A printed user manual is included in the box, or you can download the digital version.

Does this outdoor magnetic lock have a timer?

No, it doesn’t. However, you can add an exit button with a time delay, such as the VIS-7100 or the VIS-7013.

800 lbs gate maglock kit with push to exit button - FPC-7330

800lbs Outdoor and Gate Maglock with Weatherproof Exit Button Kit for Access Control

waterproof lock for outdoor gate VIS-SS800-G, VIS-SS1500-G unboxing

Gate maglock waterproof lock for outdoor gate security systems. VIS-SS800-G VISIONIS

waterproof lock for outdoor gate 800lbs dimensions- VIS-SS800-G Visionis

waterproof lock for outdoor gate 800lbs - VIS-SS800-G Visionis

L and Z Bracket for VIS-SS800-G Outdoor 800lbs Maglock for Inswining Application

outdoor push to exit button for access control systems. VISIONIS VIS-7008

outdoor weatherproof push to exit button with blue LED indicator for access control systems. VISIONIS VIS-7008

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

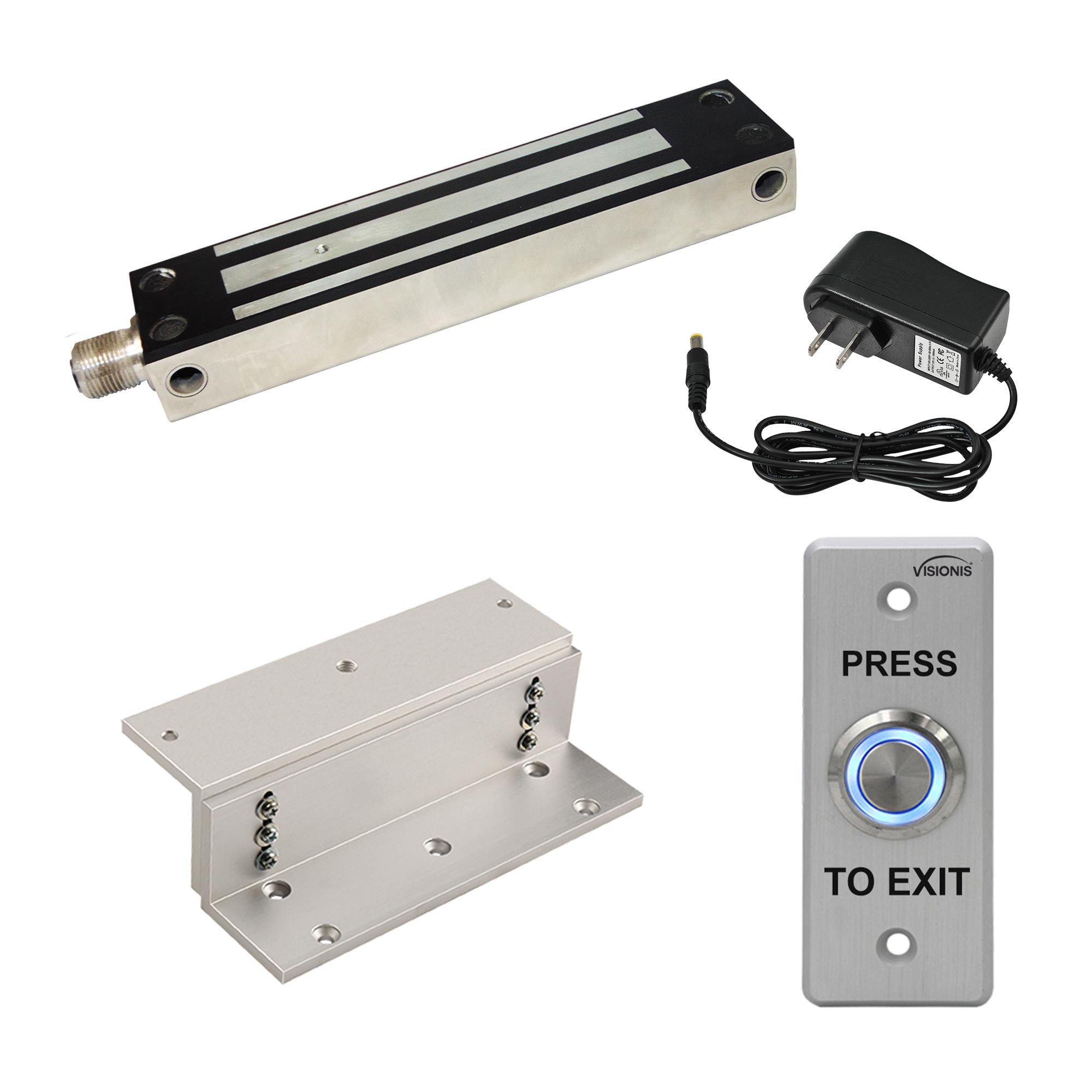

Kit Includes:

(1)

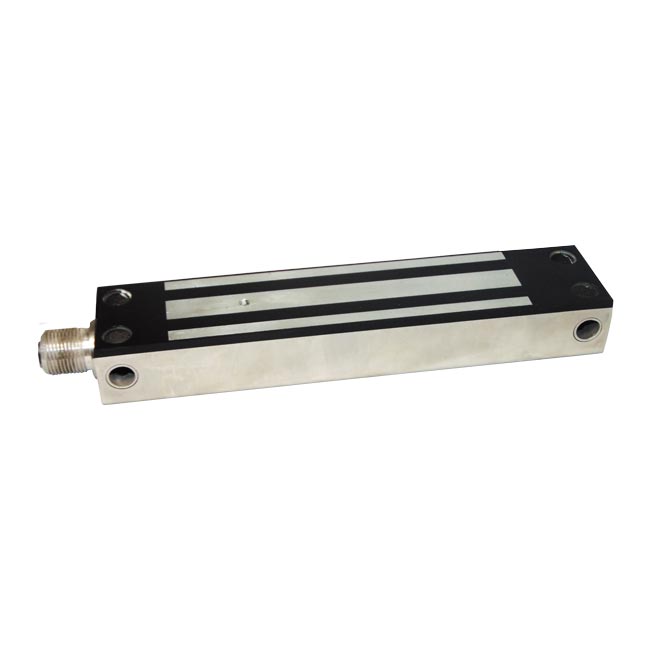

VIS-SS800-G: 800 lbs Outdoor and Gate Electromagnetic Lock

VIS-ZL-SS800: L and Z Bracket for VS-SS800-G Outdoor 800lbs Maglock for Inswining Application

VIS-7008: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request to Exit Button Slim Size for Door Access Control with LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

IMPORTANT: This kit includes a bracket, but depending on your setup, you may need to adjust it or create a custom one.

What is the holding force of this maglock?

This maglock provides 800 lbs of holding force.

What is the recommended application for this waterproof lock for outdoor gate?

This maglock is ideal for outdoor and gate applications. It provides 800 lbs of holding force to keep your door secure at all times. It’s built to handle outdoor conditions while still providing reliable security. These locks are commonly used in outdoor and industrial areas.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-SS800-G:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 480mA; 24V / 240mA (±5%)
Holding Force: Up to 800 lbs (362 kg)
Hall Effect Contact: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 1.5 kg (±1%)
Dimensions:
Magnet - (L)220x(W)46x(T)28 mm
Armature - (L)182x(W)44x(T)12 mm

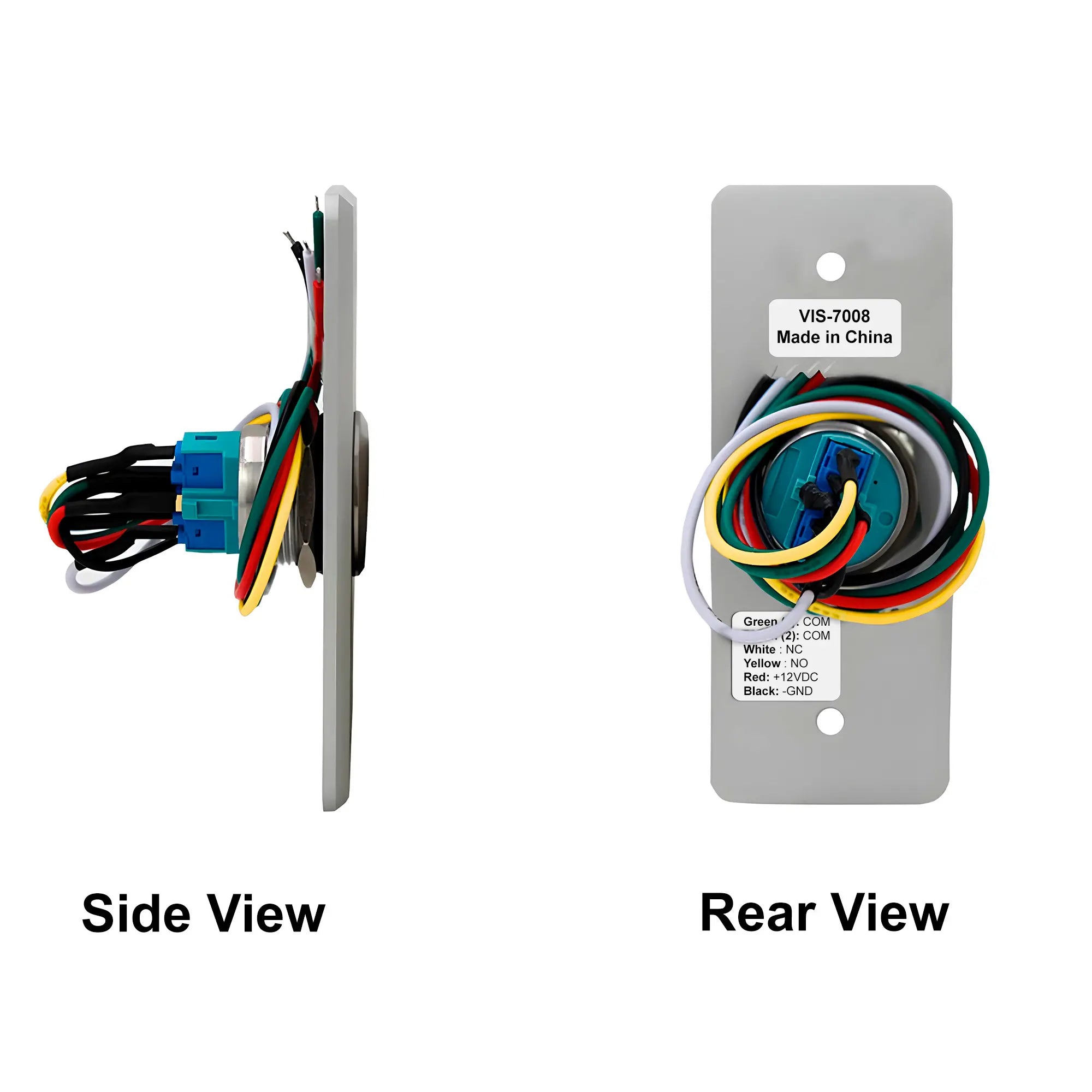

Model No. VIS-7008:

Contact Rating: 3A/125-250VAC
Output Contact: NO/NC/COM
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
LED Color: Blue
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.06in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.1kg

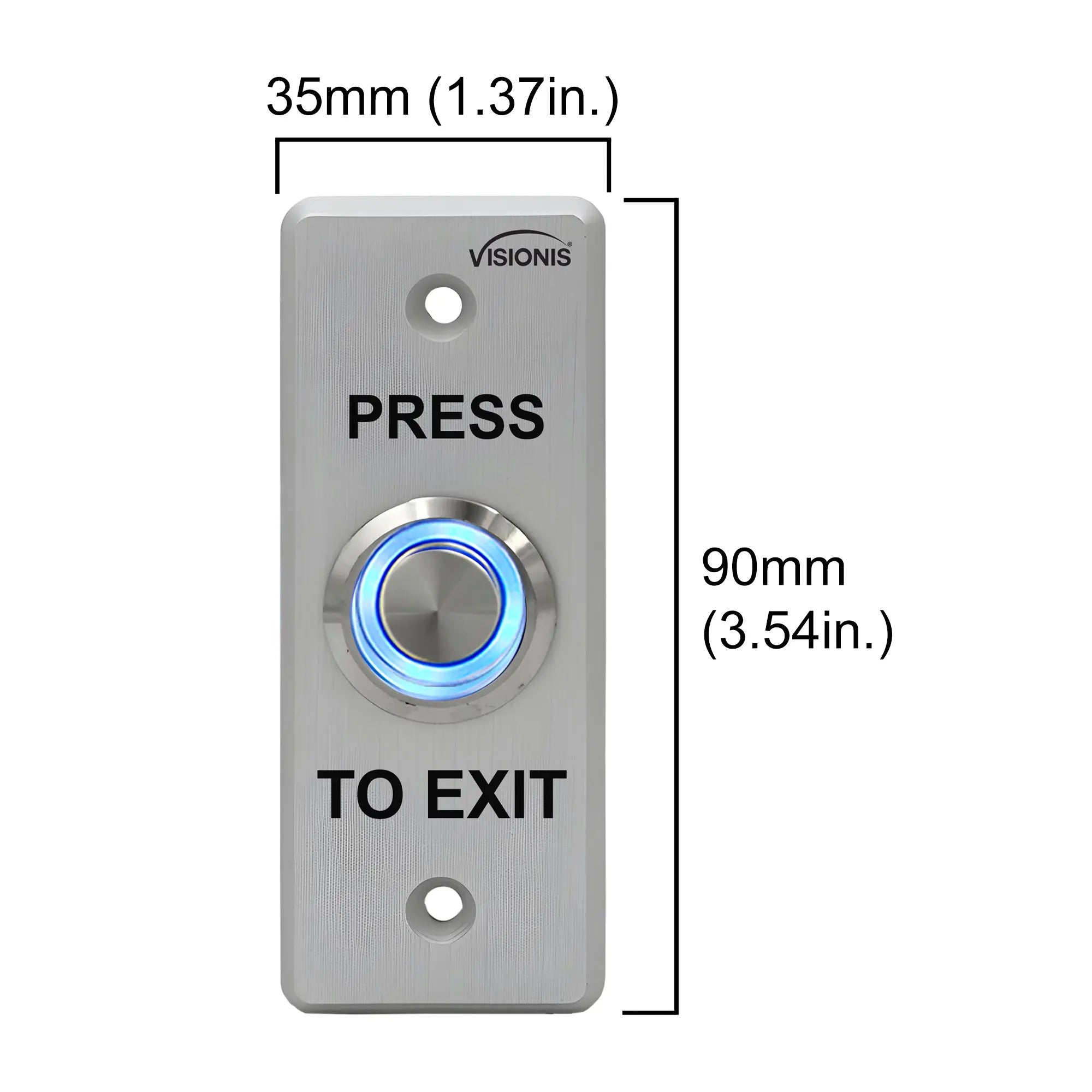

Dimensions: 90L × 35W × 40H mm – 3.54L x 1.37W x 1.57H in.

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

IMPORTANT: This kit includes a bracket, but depending on your setup, you may need to adjust it or create a custom one.

What is the holding force of this maglock?

This maglock provides 800 lbs of holding force.

What is the recommended application for this waterproof lock for outdoor gate?

This maglock is ideal for outdoor and gate applications. It provides 800 lbs of holding force to keep your door secure at all times. It’s built to handle outdoor conditions while still providing reliable security. These locks are commonly used in outdoor and industrial areas.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Product FAQs

What is the electromagnetic gate lock made of?

The VIS-SS800-G is made of heavy-duty stainless steel, which provides durability, corrosion resistance, and protection against vandalism.
Is this mag lock for gates waterproof?

Yes. The VIS-SS800-G is designed for outdoor use and built with a sealed, weather-resistant stainless steel case. All parts are sealed for water resistance, making it durable enough to withstand rain and harsh outdoor conditions.
Does gate maglock kit come with a manual?

Yes, it does. A printed user manual is included in the box, or you can download the digital version.
Does this outdoor magnetic lock have a timer?

No, it doesn’t. However, you can add an exit button with a time delay, such as the VIS-7100 or the VIS-7013.
Does it come with a power adapter?

Yes, it does come with 12 Volt 2Amp Power Supply.
What is the operating temperature range?

The operating temperature range is from 0°C to 55°C (32°F to 131°F), making it ideal for diverse outdoor environments.
Does the waterproof lock for outdoor gate come with an exit button?

Yes, it does

Download Datasheets and Manuals of this product

FPC-7328, FPC-7330, FPC-7332, FPC-7334

Installation Diagram

VIS-SS800-G

VIS-ZL-SS800

VIS-7008
