Description

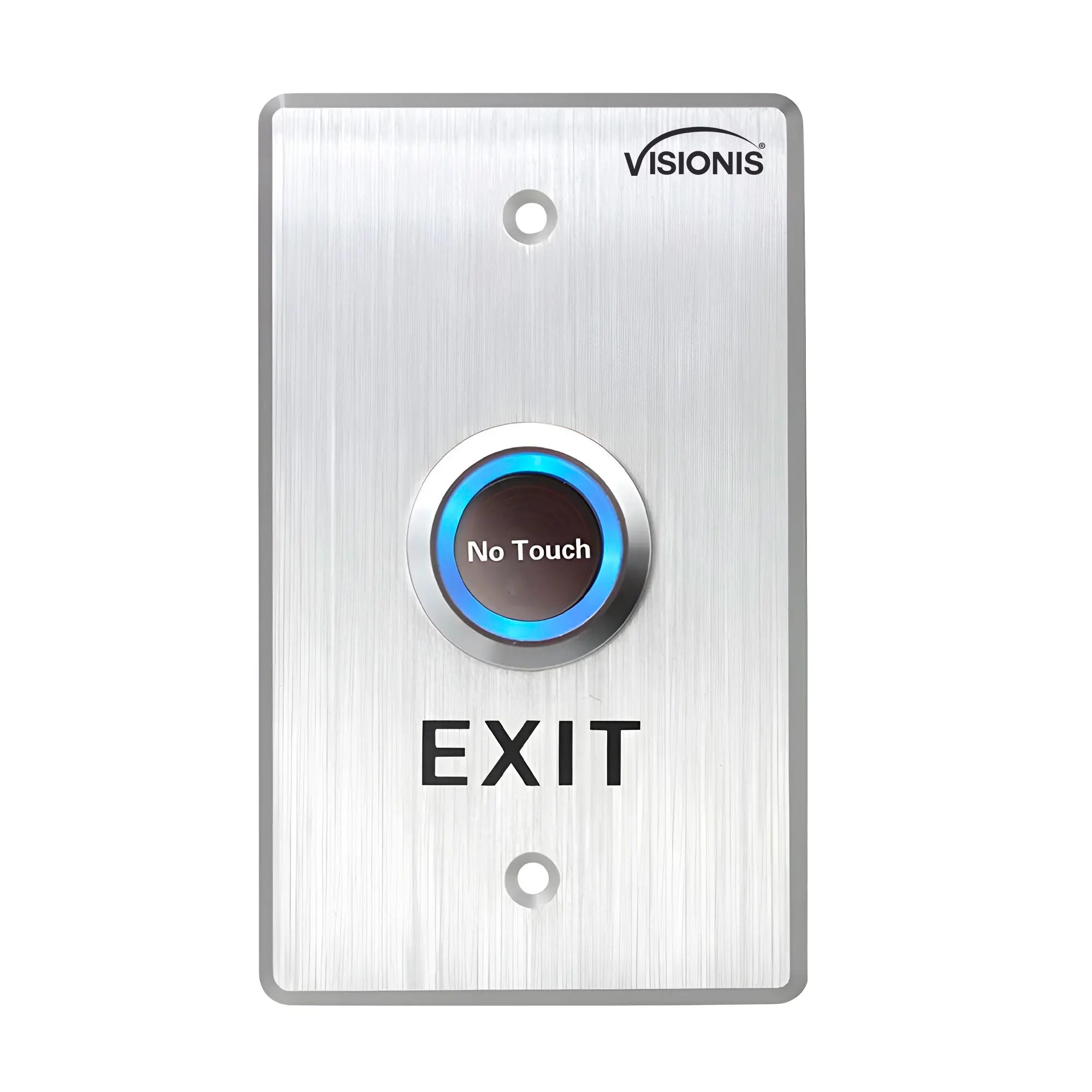

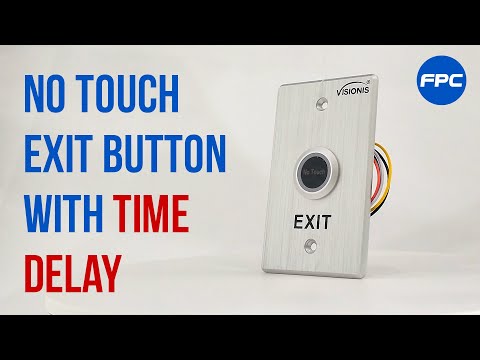

The VISIONIS VIS-7013 Indoor Stainless Steel No Touch Request to Exit Button is an innovative solution designed to make door access control more efficient and hygienic. As part of our no touch exit button line, it eliminates the need to physically push a button—simply wave your hand within its 5–15 cm detection range to open the door.

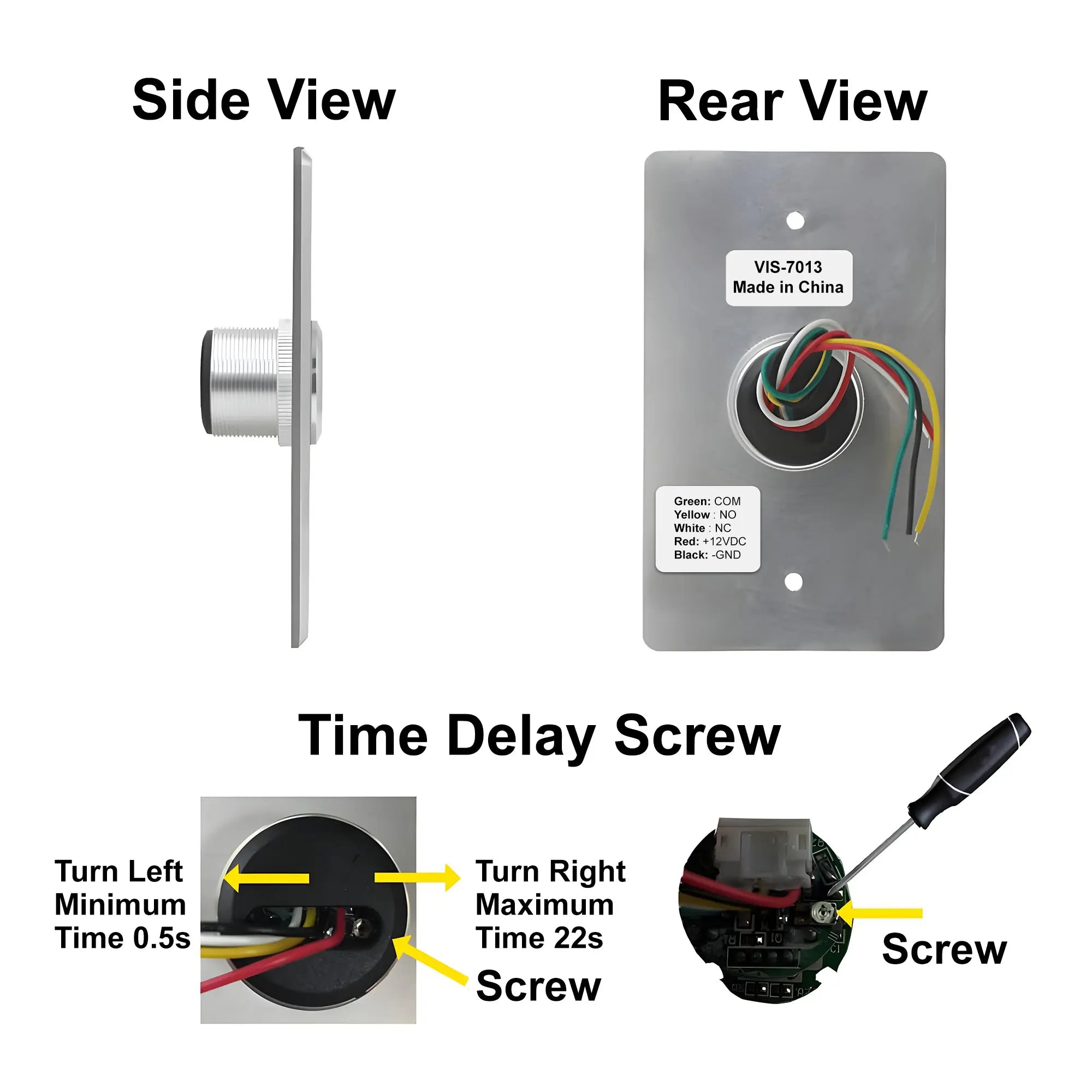

The built-in time delay, adjustable from 0.5 to 22 seconds, provides flexibility for different access requirements, making it an ideal choice for high-traffic environments.

This touchless exit button is crafted from 4mm thick aluminum alloy with a sleek stainless steel finish, ensuring durability and modern aesthetics. Its LED indicator lights up blue during standby and green when active, ensuring clear and easy operation for users.

Compatible with NC, NO, and COM outputs, it seamlessly integrates with most access control systems, including electromagnetic locks and electric strikes.

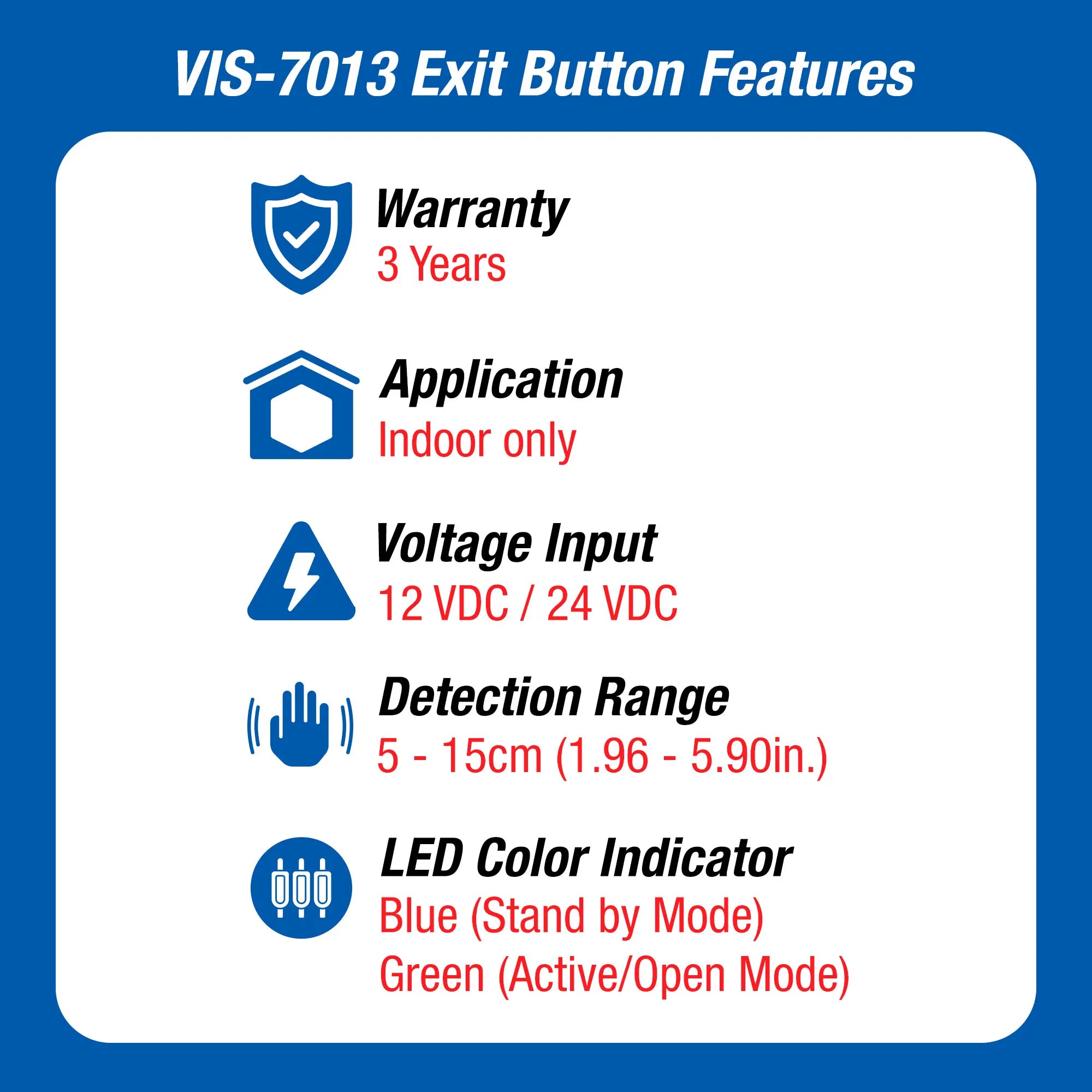

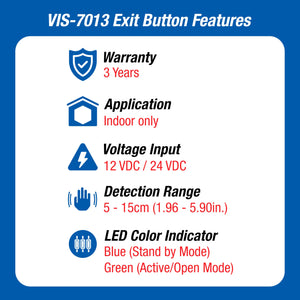

Key Features

  • No touch request to exit button: Hygienic and efficient operation with infrared sensor technology.
  • Adjustable time delay: 0.5 to 22 seconds.
  • Stainless steel design for durability and modern aesthetics.
  • Blue (standby) and green (active) LED indicators for clear user feedback.
  • Supports NC, NO, and COM outputs for versatile connectivity.

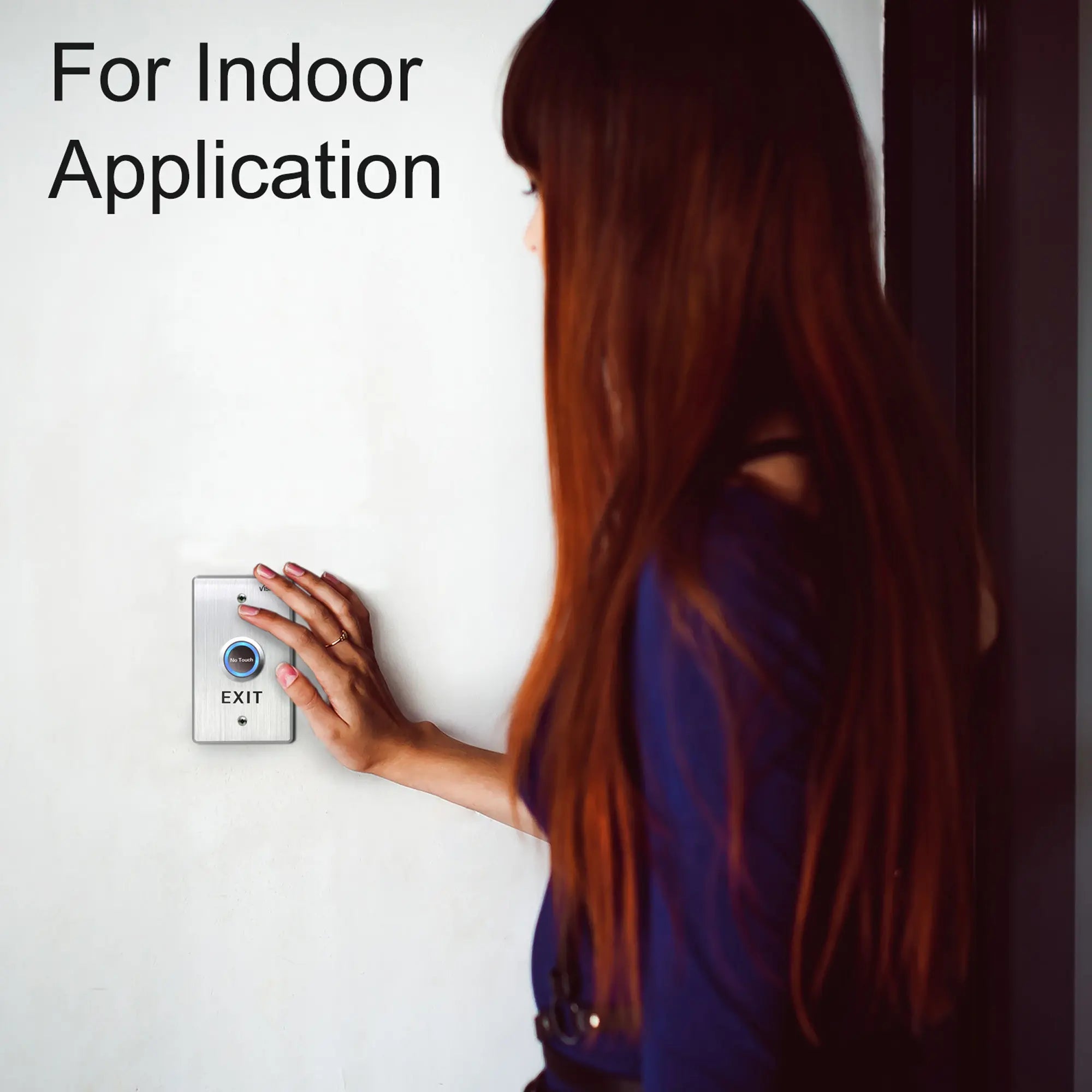

  • Suitable for a wide range of applications, including offices, banks, gas stations, and department stores.
  • Mechanical life rated for 100,000 uses.



(these products do not include a power supply)

Characteristics

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg

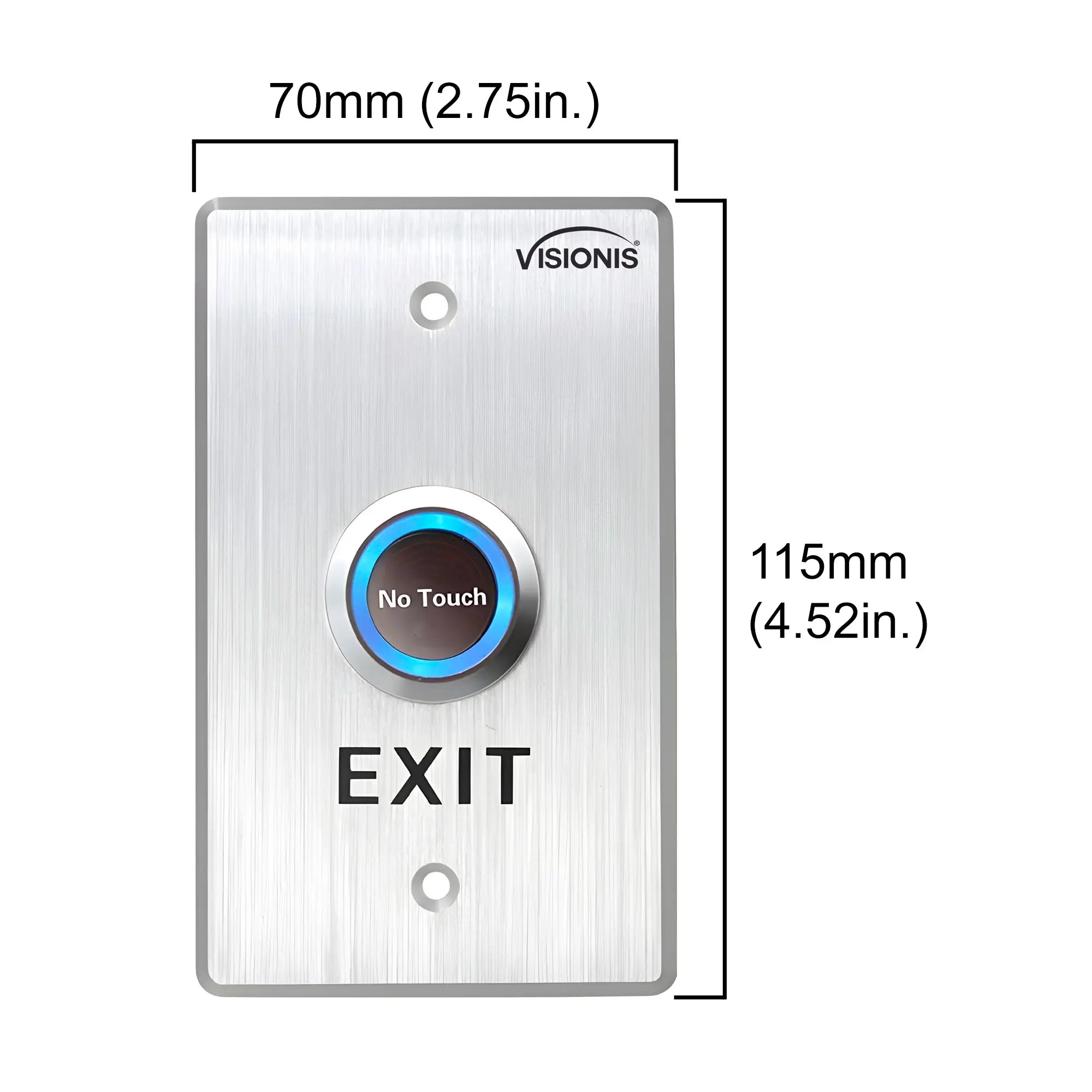

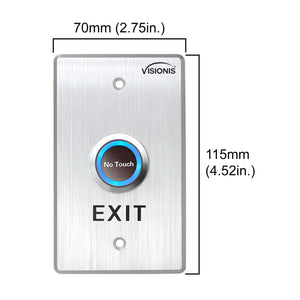

  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.

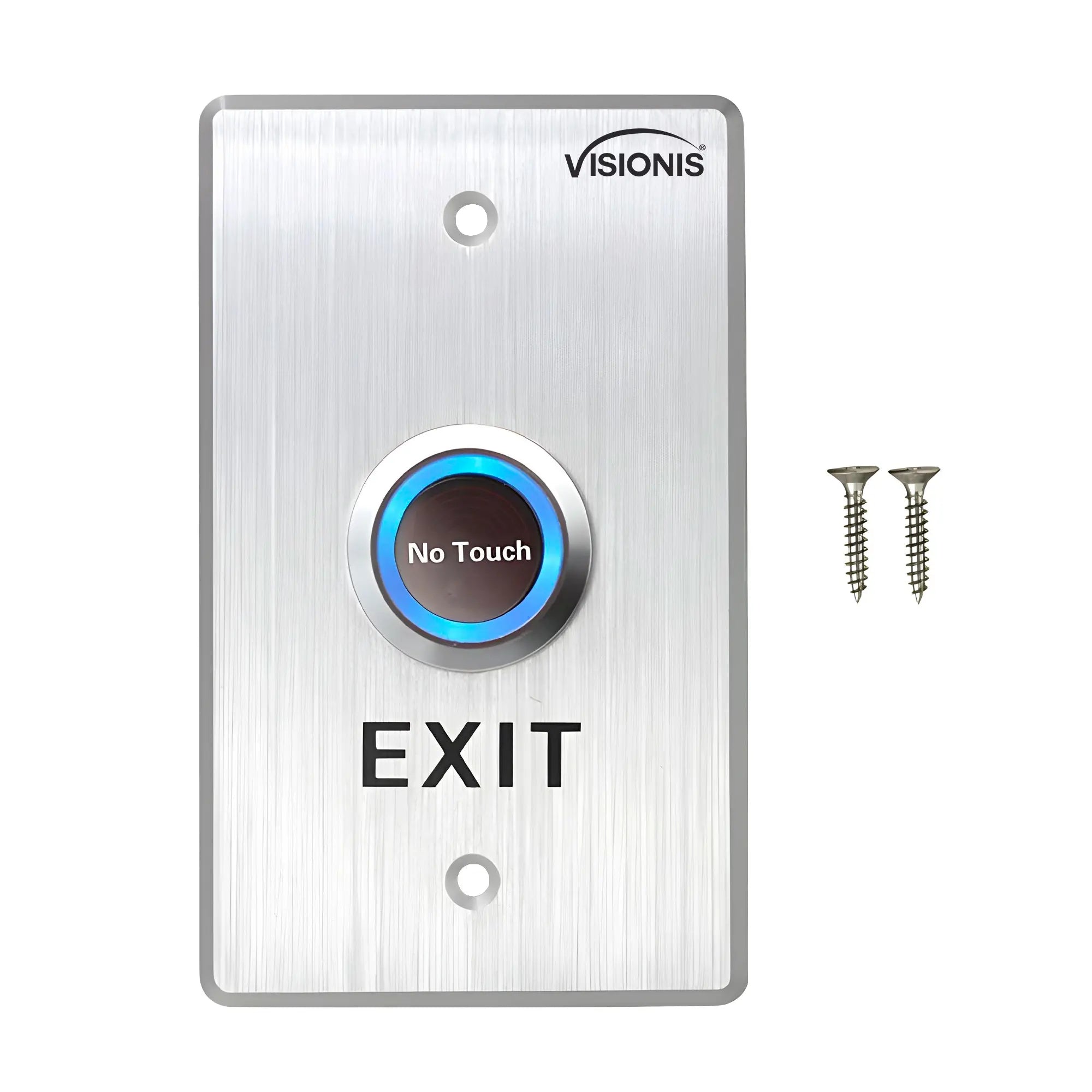

Packaging of this product

Description

The VISIONIS VIS-7013 Indoor Stainless Steel No Touch Request to Exit Button is an innovative solution designed to make door access control more efficient and hygienic. As part of our no touch exit button line, it eliminates the need to physically push a button—simply wave your hand within its 5–15 cm detection range to open the door.

The built-in time delay, adjustable from 0.5 to 22 seconds, provides flexibility for different access requirements, making it an ideal choice for high-traffic environments.

This touchless exit button is crafted from 4mm thick aluminum alloy with a sleek stainless steel finish, ensuring durability and modern aesthetics. Its LED indicator lights up blue during standby and green when active, ensuring clear and easy operation for users.

Compatible with NC, NO, and COM outputs, it seamlessly integrates with most access control systems, including electromagnetic locks and electric strikes.

Key Features

  • No touch request to exit button: Hygienic and efficient operation with infrared sensor technology.
  • Adjustable time delay: 0.5 to 22 seconds.
  • Stainless steel design for durability and modern aesthetics.
  • Blue (standby) and green (active) LED indicators for clear user feedback.
  • Supports NC, NO, and COM outputs for versatile connectivity.
  • Suitable for a wide range of applications, including offices, banks, gas stations, and department stores.
  • Mechanical life rated for 100,000 uses.



(these products do not include a power supply)

Characteristics
Packaging of this product

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
