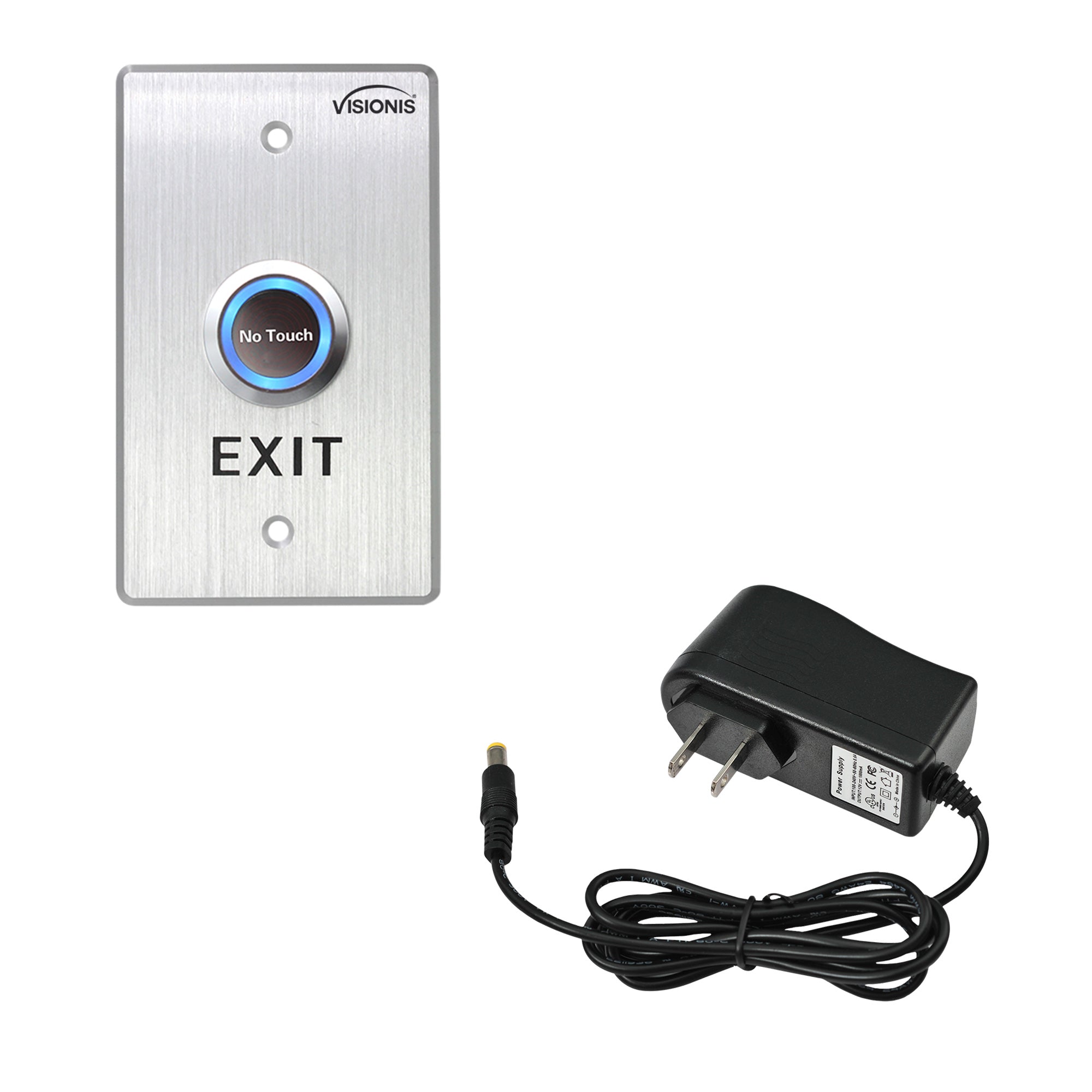

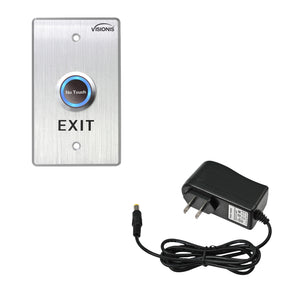

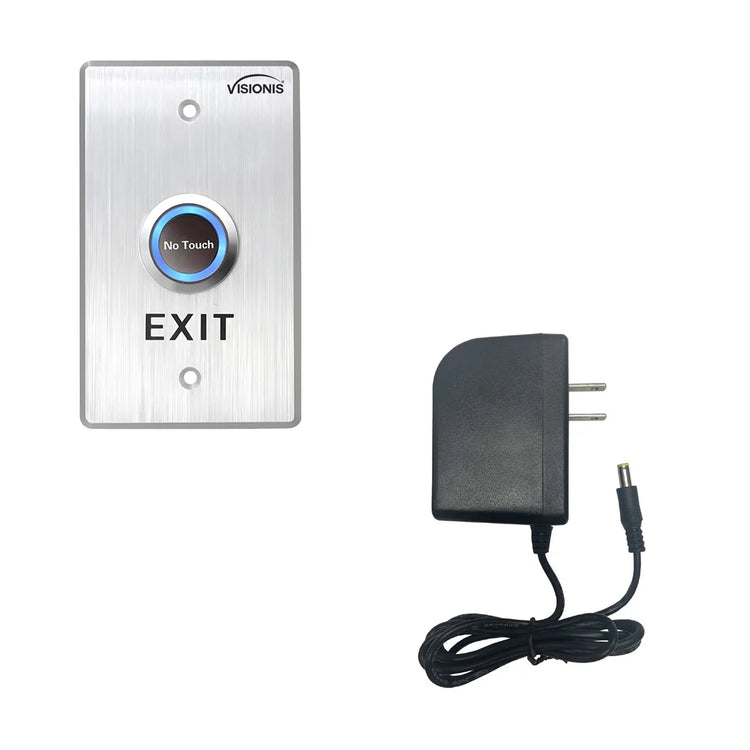

Kit Includes:

(1)

VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The 5426 kit has a Visionis 7013 standard-sized no-touch exit button for indoor use and a power supply. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5-22 seconds. This door release exit button can be used for any access control application and is commonly used in offices, banks, and many more. They can also be used for secret rooms and DIY projects. The power supply provided will allow you to hook it up right away.

Characteristics

Model No. VIS-7013:

Contact Rating: 12-24V, 3A
Output Contact: NO/NC/COM
Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5~22s
Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.105kg
Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The 5426 kit has a Visionis 7013 standard-sized no-touch exit button for indoor use and a power supply. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5-22 seconds. This door release exit button can be used for any access control application and is commonly used in offices, banks, and many more. They can also be used for secret rooms and DIY projects. The power supply provided will allow you to hook it up right away.

Download Datasheets and Manuals of this product
