Can this request to exit button be used outdoors? Is it weatherproof?

The Visionis VIS-7013 Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.

Does the no touch exit button have adjustable settings?

Yes! The Visionis VIS-7013 No Touch Exit Button has two key adjustable settings:Detection Range: Adjustable from 5–15 cm (1.96–5.90 in.) — controls how close your hand needs to be to trigger itTime Delay (integrated): Adjustable from 0.5 to 22 seconds — controls how long the door release stays active after activationYou can adjust it using a small Phillips screwdriver on a tiny potentiometer. Turn it slowly — moving too fast or too many rotations can damage the sensor.

Does the LED color change when pressed?

Yes! The Visionis VIS-7013 No Touch Exit Button does change LED color when activated:Blue — Standby mode (idle/waiting)Green — Active/Open mode (triggered when hand is detected)

What access control systems is this exit button compatible with?

The Visionis VIS-7013 No Touch Exit Button is designed to be broadly compatible with most access control systems, thanks to its NO/NC/COM outputs. Specifically, it works with:Electromagnetic locks (maglocks)Electric strikesAccess Control Systems in general (offices, banks, secure facilities)

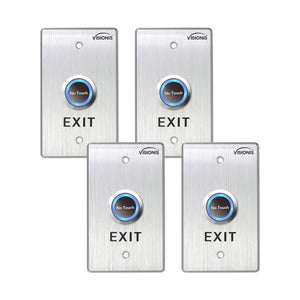

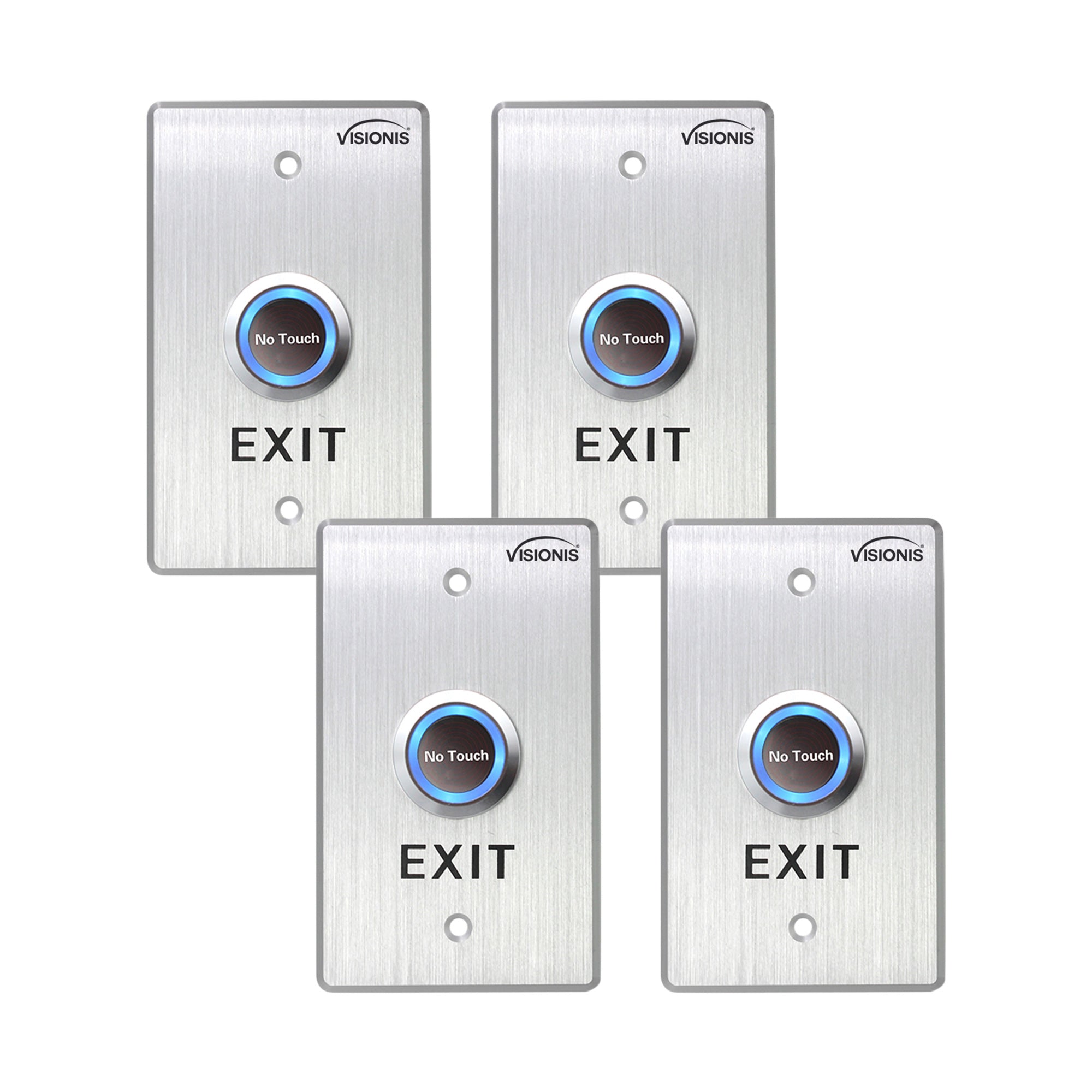

Pack of 4 No Touch Exit Buttons for Access Control

No touch request to exit button with LED indicators for hygienic access control systems. VIS-7013 VISIONIS

no touch exit button for access control systems. VIS-7013 VISIONIS

touchless exit button features - VIS-7013 VISIONIS

touchless exit button with LED indicators for access control systems. VIS-7013 VISIONIS

Time delay touchless exit button with LED indicators for access control systems. VIS-7013 VISIONIS

Kit Includes:

(4)

VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs

Description

With our line of No Touch exit button, you no longer have to physically push a button to exit. All you have to do is wave your hand and the door will open. This No Touch exit button also includes a timer feature to up to 22 seconds.

Door Release Exit Buttons are the most common part of Access Control systems. They are often used in all types of applications such as in Offices, Banks, Gas Stations, Department Stores, and much more.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or Electric strike Device.

Characteristics

Model No. VIS-7013:

Contact Rating: 12-24V, 3A
Output Contact: NO/NC/COM
Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5~22s
Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.105kg
Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.

Description

With our line of No Touch exit button, you no longer have to physically push a button to exit. All you have to do is wave your hand and the door will open. This No Touch exit button also includes a timer feature to up to 22 seconds.

Door Release Exit Buttons are the most common part of Access Control systems. They are often used in all types of applications such as in Offices, Banks, Gas Stations, Department Stores, and much more.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or Electric strike Device.

Product FAQs

Can this request to exit button be used outdoors? Is it weatherproof?

The Visionis VIS-7013 Exit Button is not weatherproof and is designed for indoor use only. You can check our outdoor/weatherproof models here.
Does the no touch exit button have adjustable settings?
Yes! The Visionis VIS-7013 No Touch Exit Button has two key adjustable settings:
- Detection Range: Adjustable from 5–15 cm (1.96–5.90 in.) — controls how close your hand needs to be to trigger it
- Time Delay (integrated): Adjustable from 0.5 to 22 seconds — controls how long the door release stays active after activation
- You can adjust it using a small Phillips screwdriver on a tiny potentiometer. Turn it slowly — moving too fast or too many rotations can damage the sensor.
Does the LED color change when pressed?

Yes! The Visionis VIS-7013 No Touch Exit Button does change LED color when activated:
Blue — Standby mode (idle/waiting)
Green — Active/Open mode (triggered when hand is detected)
What access control systems is this exit button compatible with?
The Visionis VIS-7013 No Touch Exit Button is designed to be broadly compatible with most access control systems, thanks to its NO/NC/COM outputs. Specifically, it works with:
- Electromagnetic locks (maglocks)
- Electric strikes
- Access Control Systems in general (offices, banks, secure facilities)
How does the no-touch feature work?

Wave your hand within the 5 to 15 cm (1.96 to 5.90 inches) detection range to trigger the sensor and open the door. You do not need to physically touch the plate.

Download Datasheets and Manuals of this product

VIS-7013

Visionis by Visionis

4 Pack No Touch Exit Button VIS-7013. Indoor Stainless Steel With Timer Delay and LED Light. Standard Size. NC, COM And NO Outputs - FPC-7547 Visionis

UPC Code: 793811572469

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $102.76
Sale price: $102.76
Regular price

Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
