Description

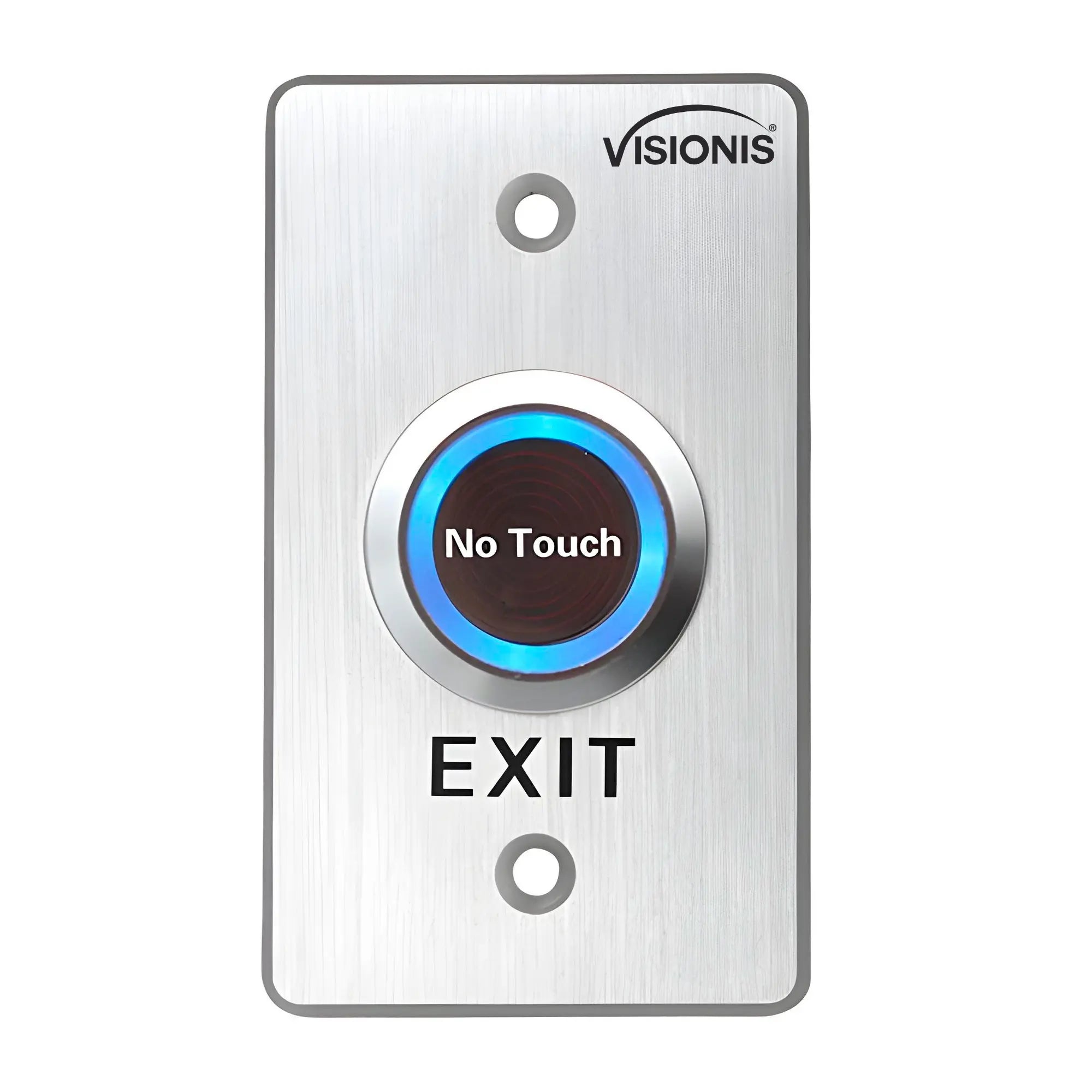

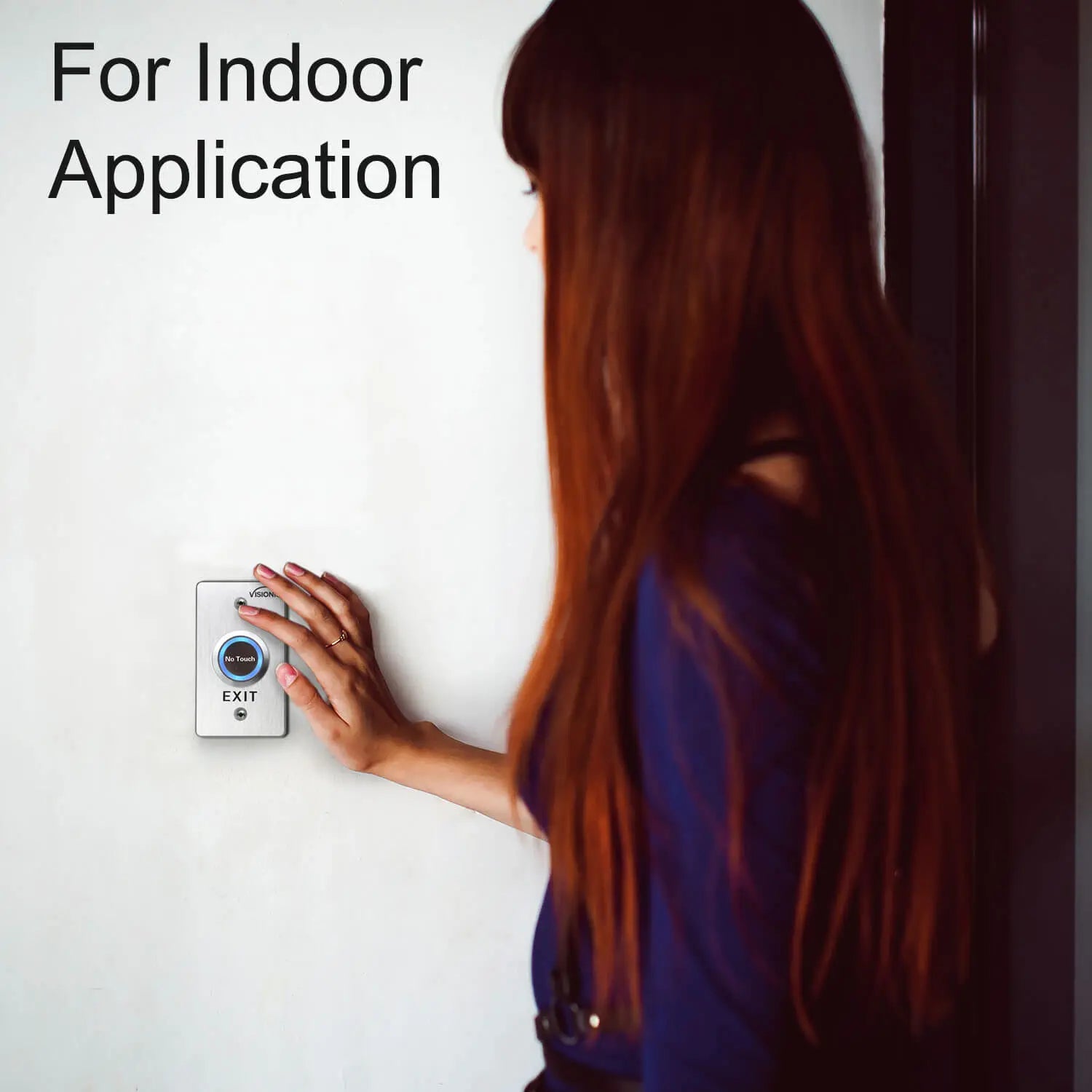

The VISIONIS VIS-7029 is a stainless steel no-touch request to exit button with time delay medium size for door access control systems. This Request-to Exit Button may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

The VISIONIS line of door release exit buttons provides a reliable source of egress access-controlled opening devices in residential, commercial, and industrial locations. They fit several applications needs such as in Offices, Banks, Gas Stations, Department Stores, and much more.

Characteristics

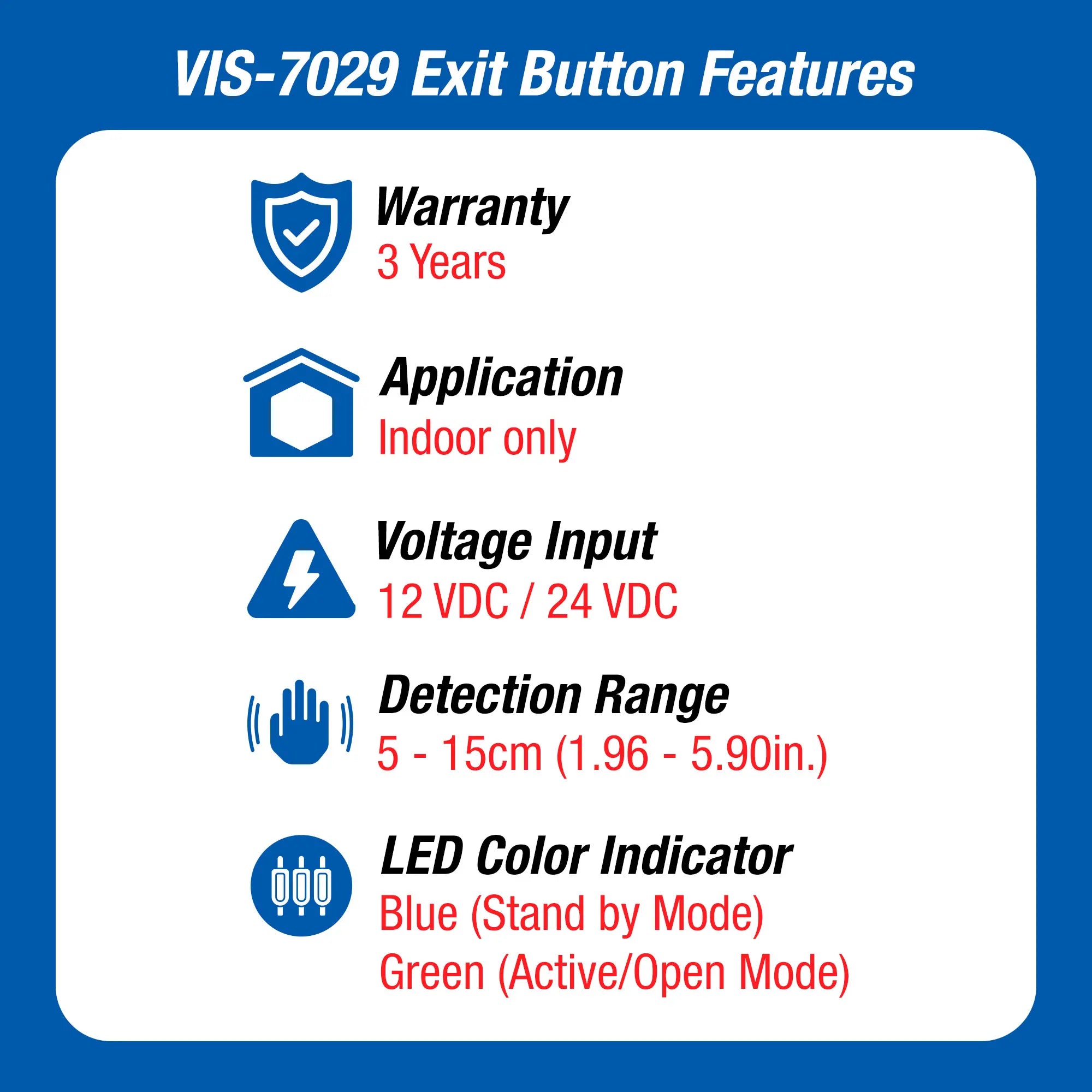

Model No. VIS-7029:

  • Contact Rating: 12VDC
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.)
  • Power: 12VDC or 24VDC

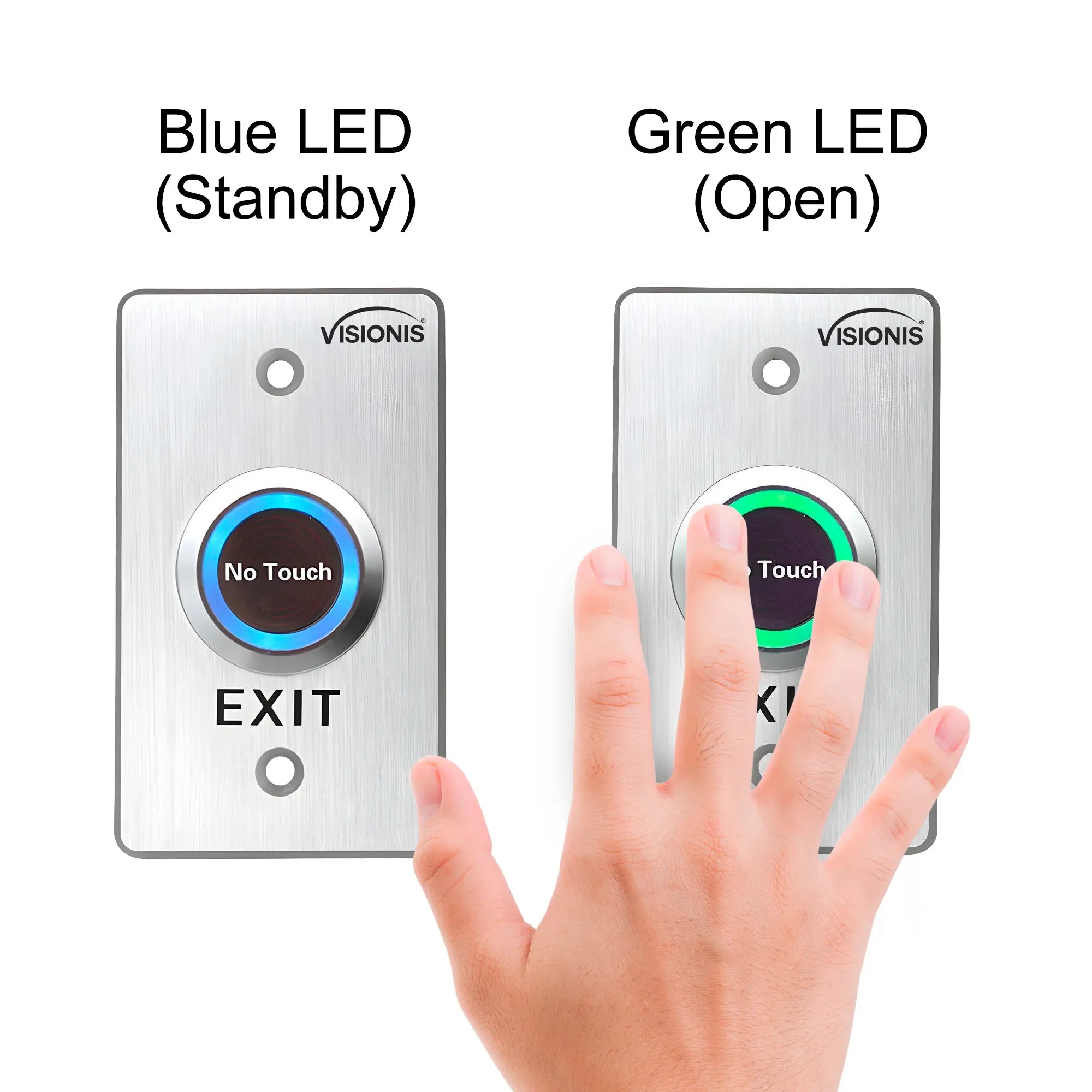

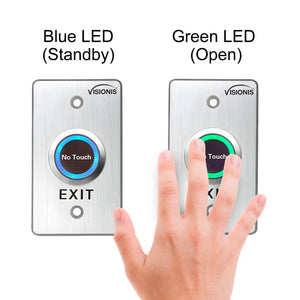

  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)

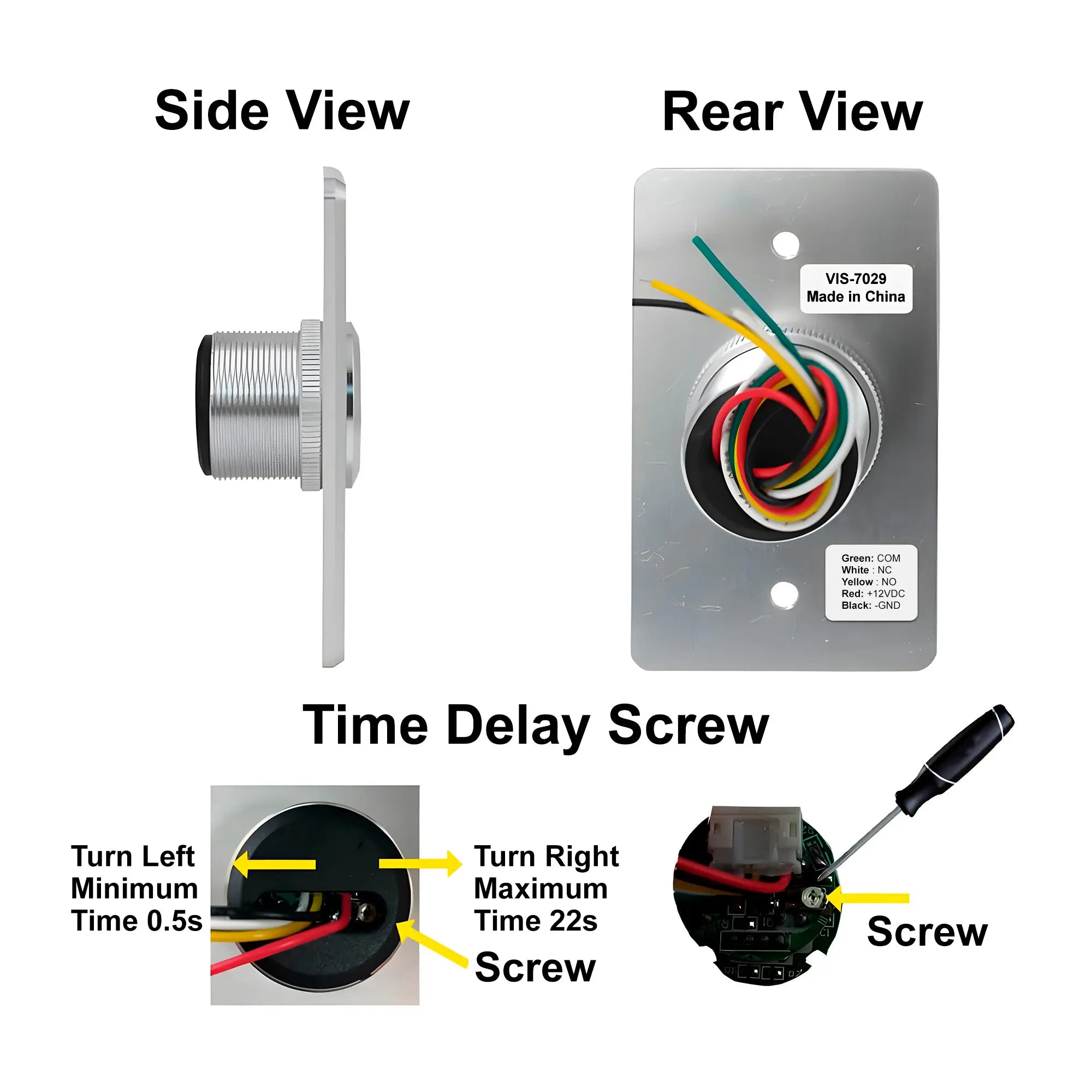

  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.066kg

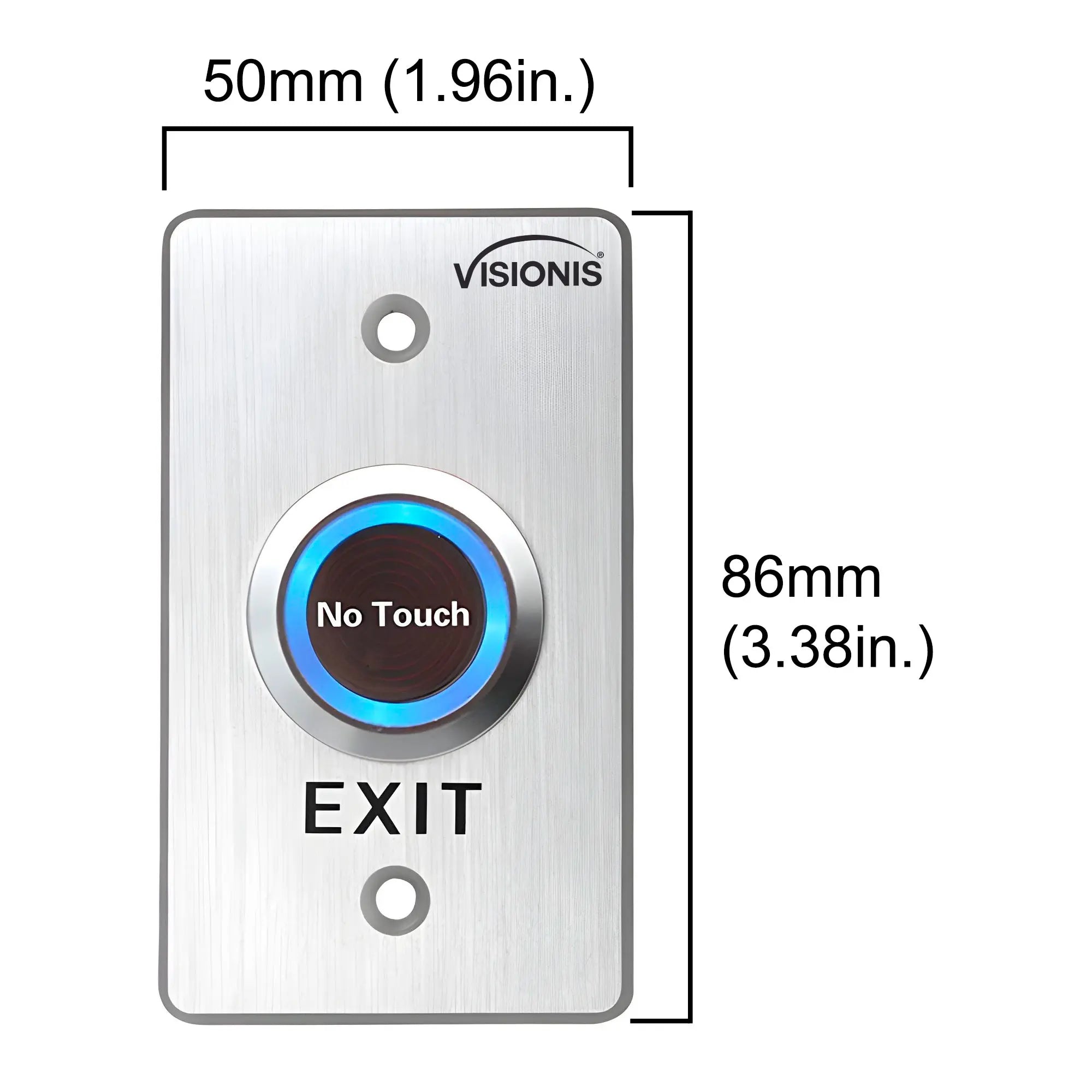

  • Dimensions: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.
Description

The VISIONIS VIS-7029 is a stainless steel no-touch request to exit button with time delay medium size for door access control systems. This Request-to Exit Button may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

The VISIONIS line of door release exit buttons provides a reliable source of egress access-controlled opening devices in residential, commercial, and industrial locations. They fit several applications needs such as in Offices, Banks, Gas Stations, Department Stores, and much more.

Characteristics

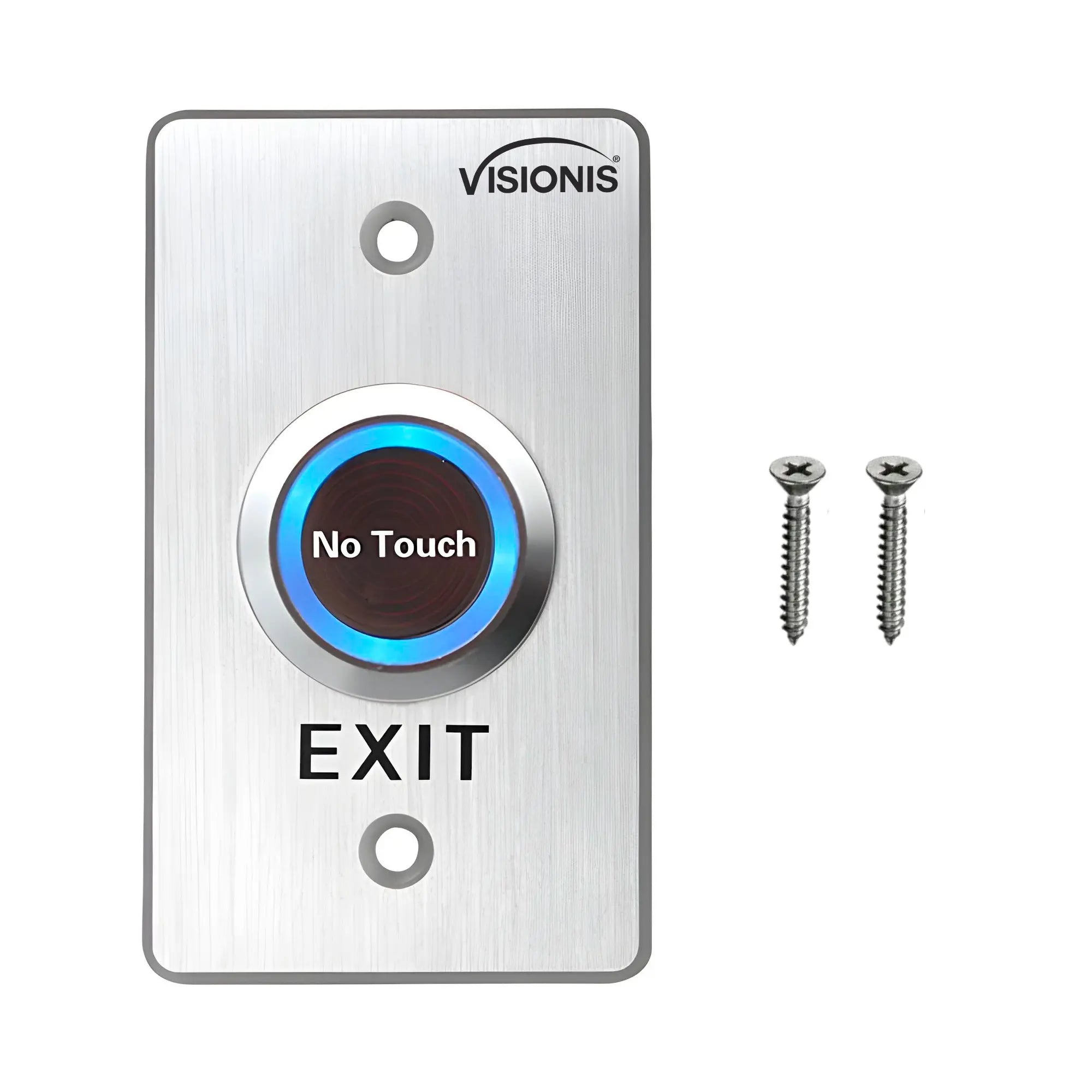

Packaging of this product

Model No. VIS-7029:

  • Contact Rating: 12VDC
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.)
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.066kg
  • Dimensions: 86L × 50W × 25H mm - 3.38L x 1.96W x 0.98H in.
Download Datasheets and Manuals of this product

VIS-7029

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

No Touch Exit Button with Timer Delay. Indoor Infrared Stainless Steel Plate, Mid Size with Blue LED Light. NC, COM and NO Outputs - VIS-7029 Visionis

UPC Code: 709445353701

Certifications:

  • CE Certificate
⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

$21.69
$21.69
Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:
Free Shipping Icon

Free US Shipping
To all 50 states

Product Warranty

3 YEAR Warranty

Return Policy Icon

30-Day Returns
No questions asked

Phone Support Icon

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
