Kit Includes:
(10)

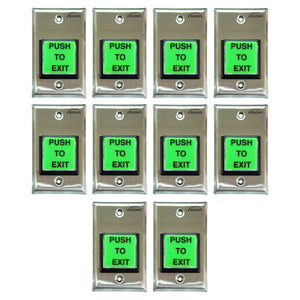

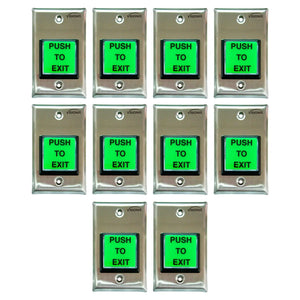

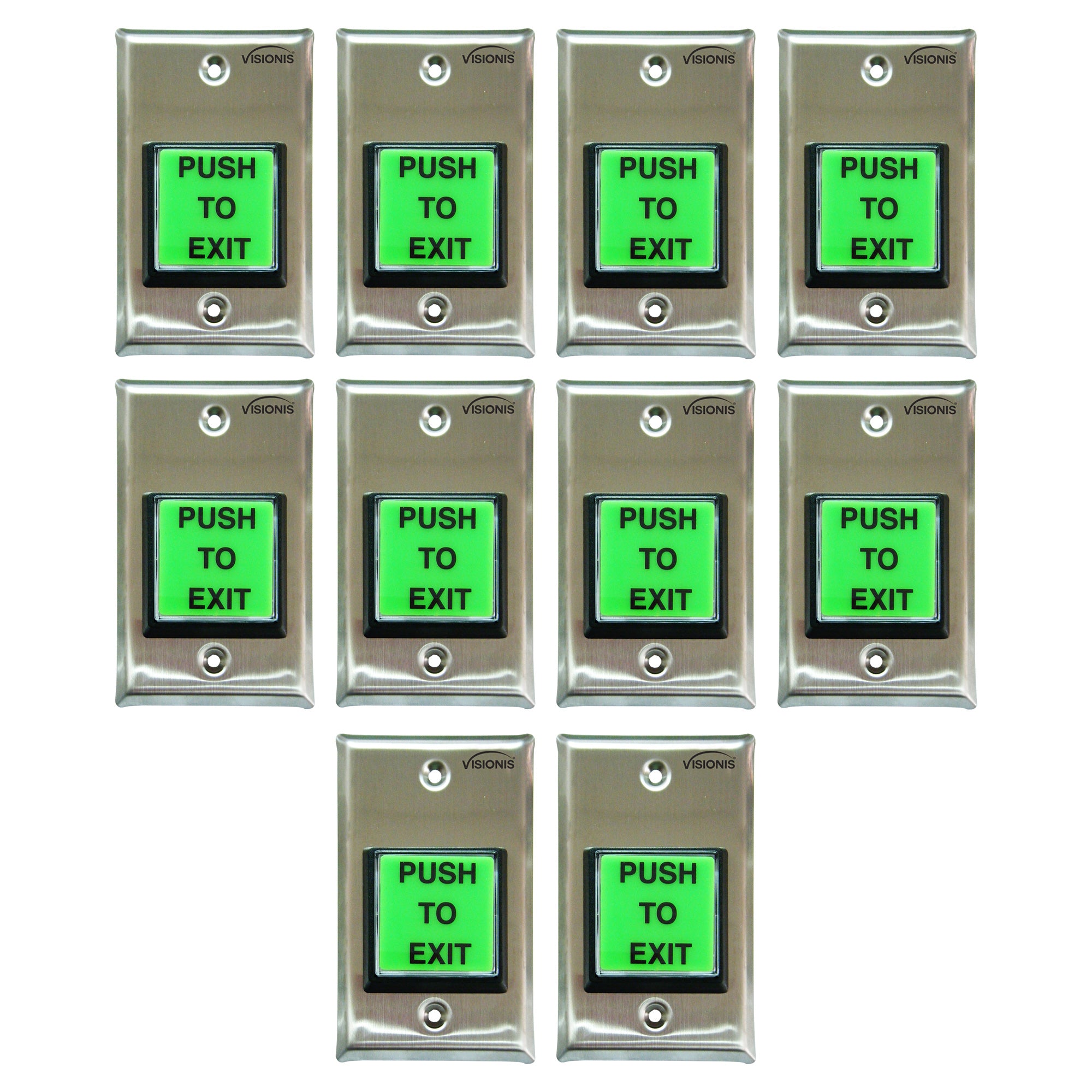

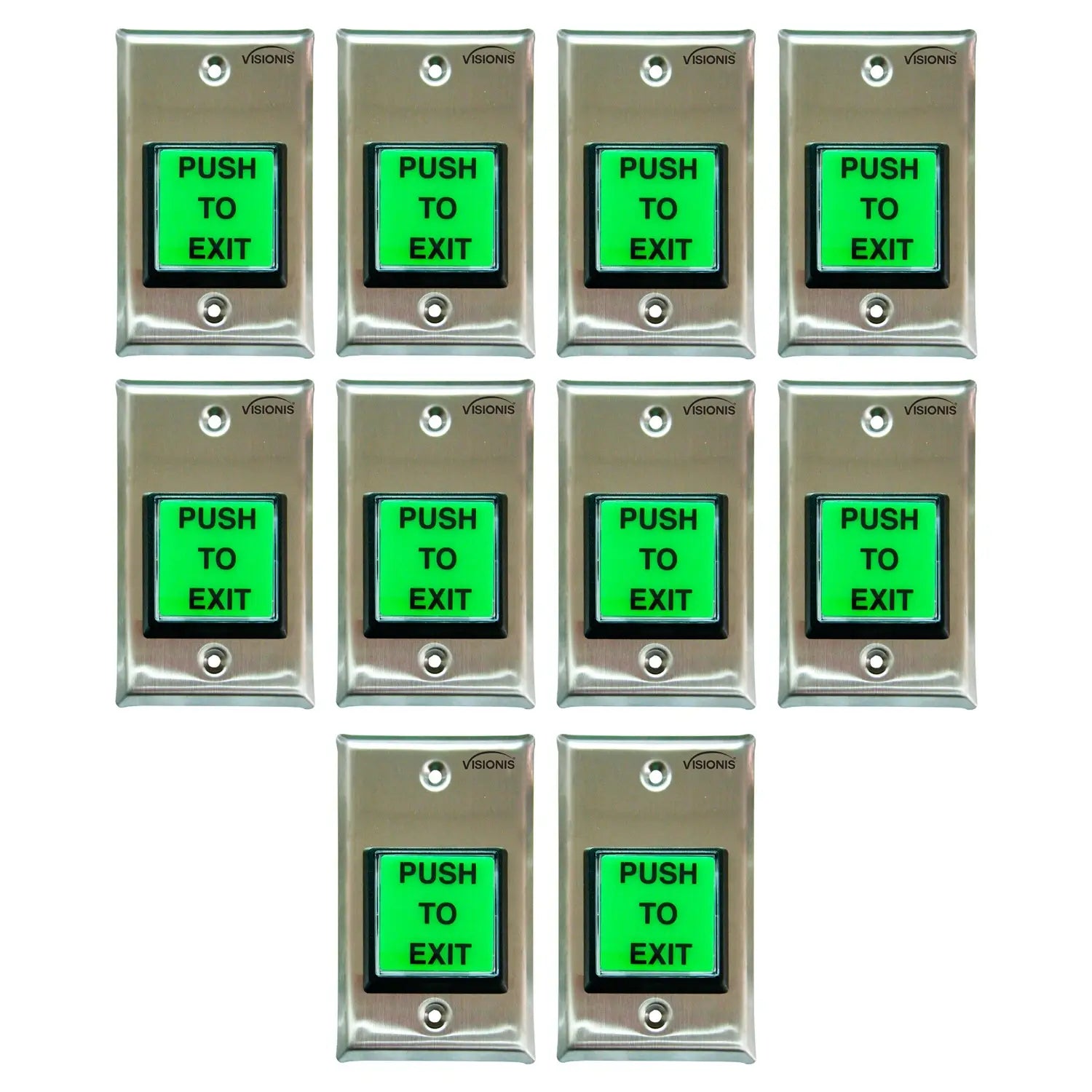

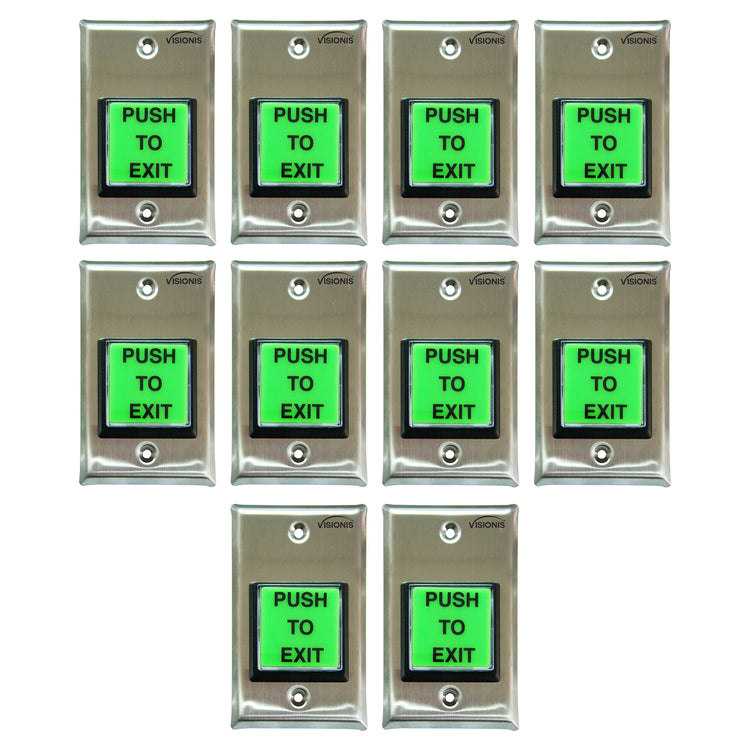

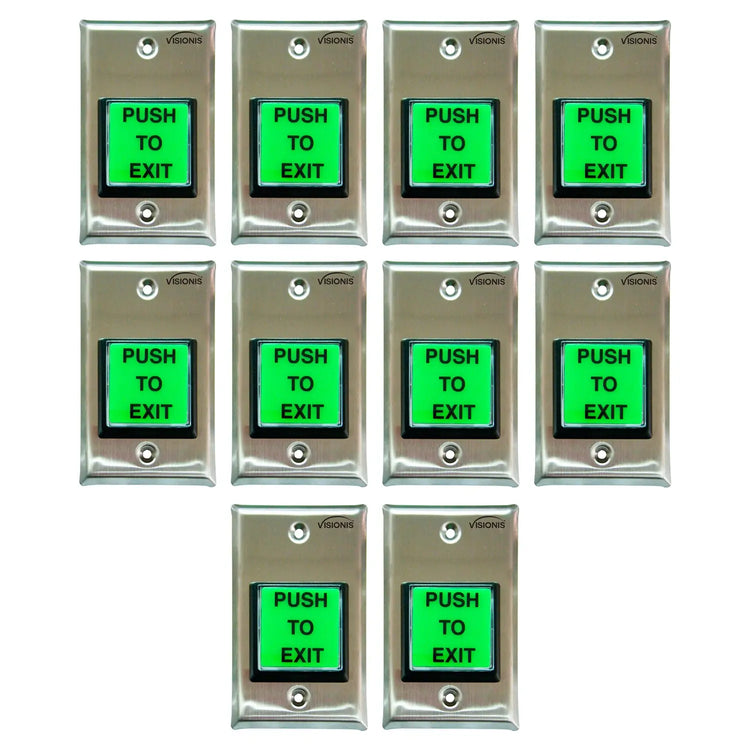

VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs
Description

This 10-pack of geen push to exit buttons offers a full-scale solution for commercial complexes or multi-exit facilities. With high visibility, long mechanical life, and quick connection to door control systems, each request to exit button ensures secure, user-friendly operation. A cost-effective way to standardize access control across your site.



Attention: This exit button is meant for indoor use. This Exit button does not have a delay

Characteristics

Model No. VIS-7000:

  • Output Contact: NC, COM, NO
  • Power: 12 VDC / 24 VDC
  • LED Indicator: Green LED (Standby)
  • Mechanical Life: 500,000 tests
  • Panel Hole Diameter: 25mm
  • Panel: Stainless steel 0.9mm thickness
  • Switch Material: Plastic
  • Operating Temperature: -20°C~+55°C (-4°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Dimension Of Plate: 115L × 70W × 70H mm - 4.52L x 2.75W x 2.75H in.
  • Weight: 0.118kg
  • Attention: This exit button is meant for indoor use. This Exit button does not have a delay.
Packaging of this product
Description

This 10-pack of geen push to exit buttons offers a full-scale solution for commercial complexes or multi-exit facilities. With high visibility, long mechanical life, and quick connection to door control systems, each request to exit button ensures secure, user-friendly operation. A cost-effective way to standardize access control across your site.



Attention: This exit button is meant for indoor use. This Exit button does not have a delay

  • Can I use this request to exit button as a garage door opener?

    Yes, by connecting the C and NO connections to the opener wires. The LED light requires a 12 - 24 VDC power source. If you don't need the light, then the switch should work fine.

  • Does it have a time delay or timer function?

    No, it doesn't. We do have the model VIS-7100 with time delay.

  • Does the VIS-7000 require batteries?

    No, the Visionis VIS-7000 Push to Exit Button does not require batteries. It is a hardwired device that gets its power from your access control system or from a power supply:

    • LED indicator: Powered by 12–24V DC from your access control panel or power supply
    • Switch mechanism: Purely mechanical — no power needed for the button itself to function
    • Wire leads: Comes with 12-inch AWG 18 wire leads for direct connection to your system

  • Can it be used outdoors? Is it weatherproof?

    The Visionis VIS-7000 Push to Exit Button is not weatherproof and is designed for indoor use only. The plastic switch material and stainless steel faceplate are not sealed for outdoor exposure.
    You can check our outdoor/weatherproof models here.

  • How much current does the LED pull?

    The LED light requires a 12 - 24 VDC power source.

  • Do you sell the gang box?

    No, we don't.

Download Datasheets and Manuals of this product

VIS-7000
