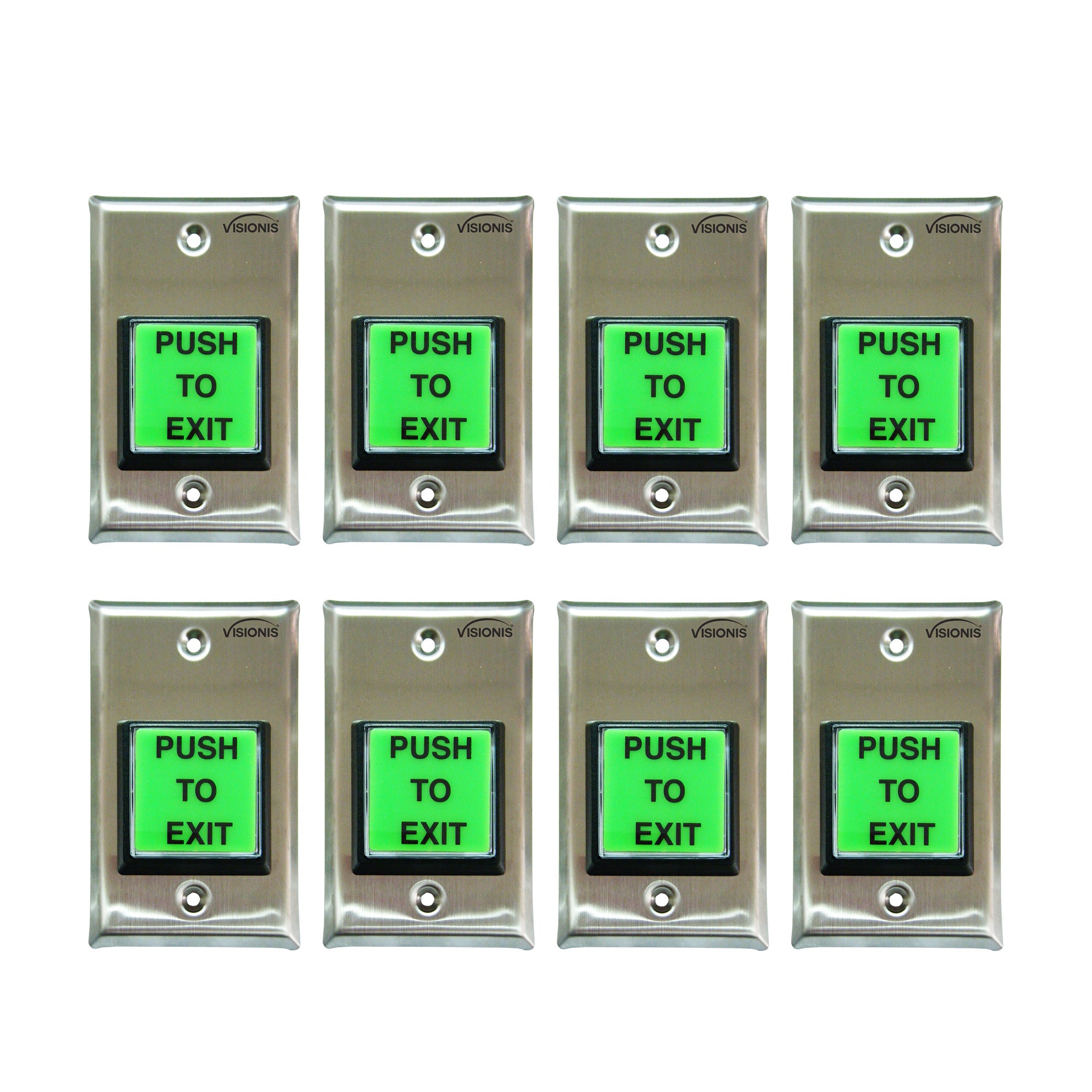

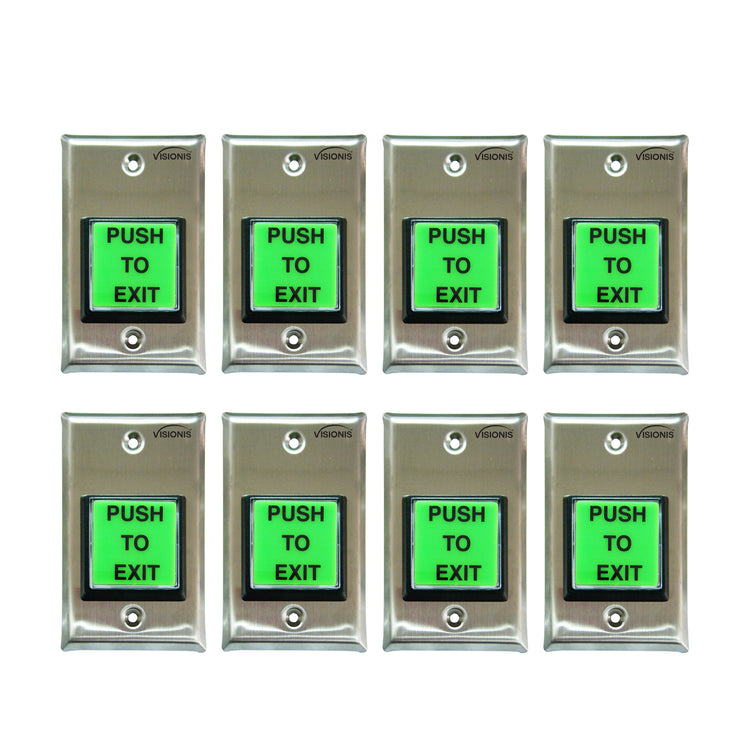

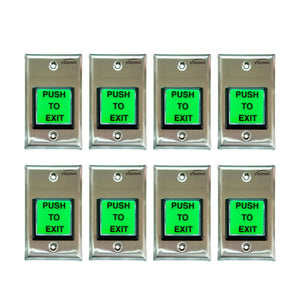

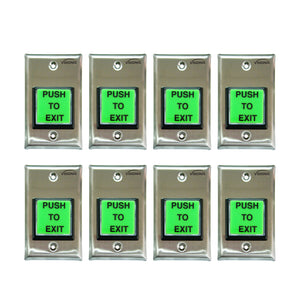

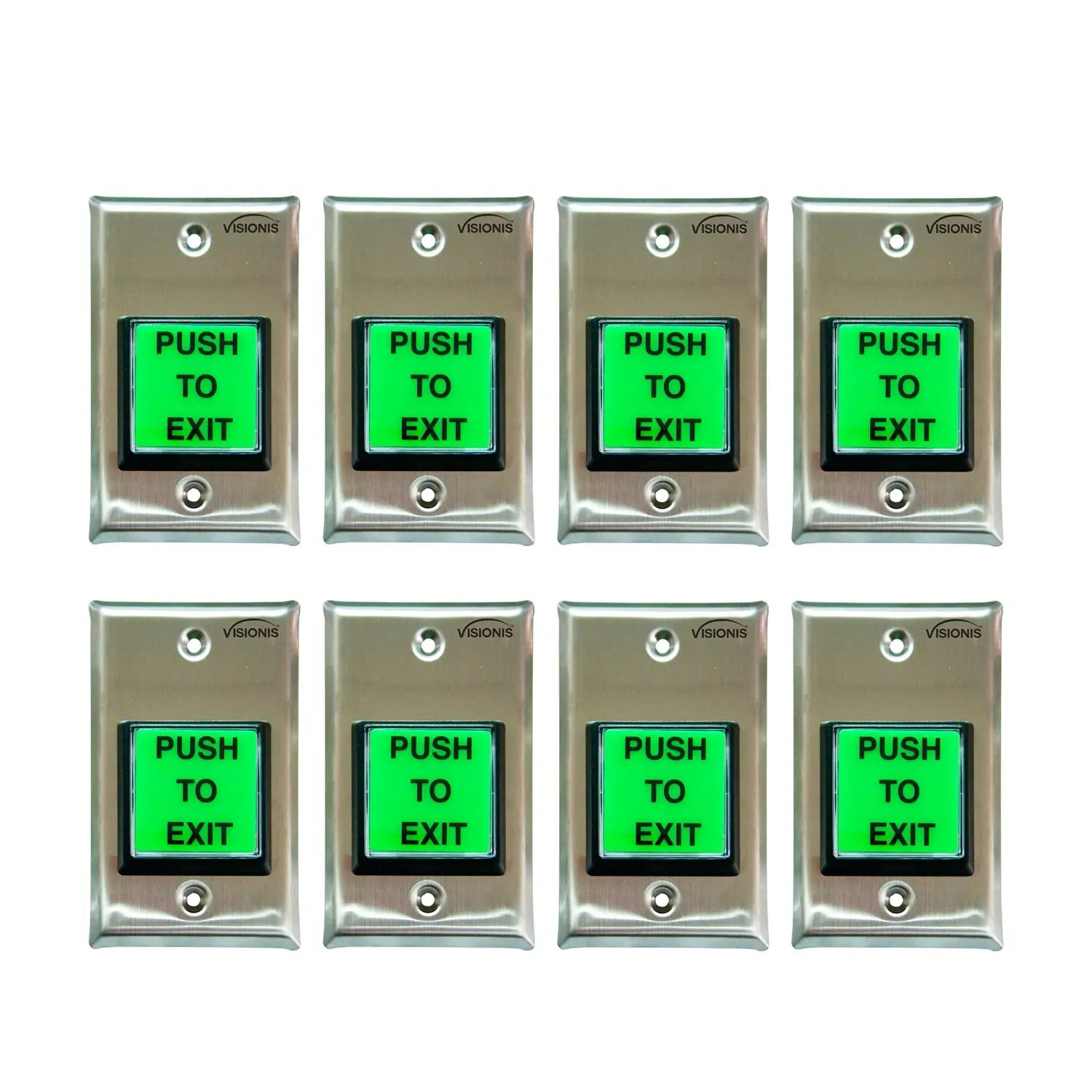

Pack of 8 green request to exit buttons - VIS-7000 Visionis

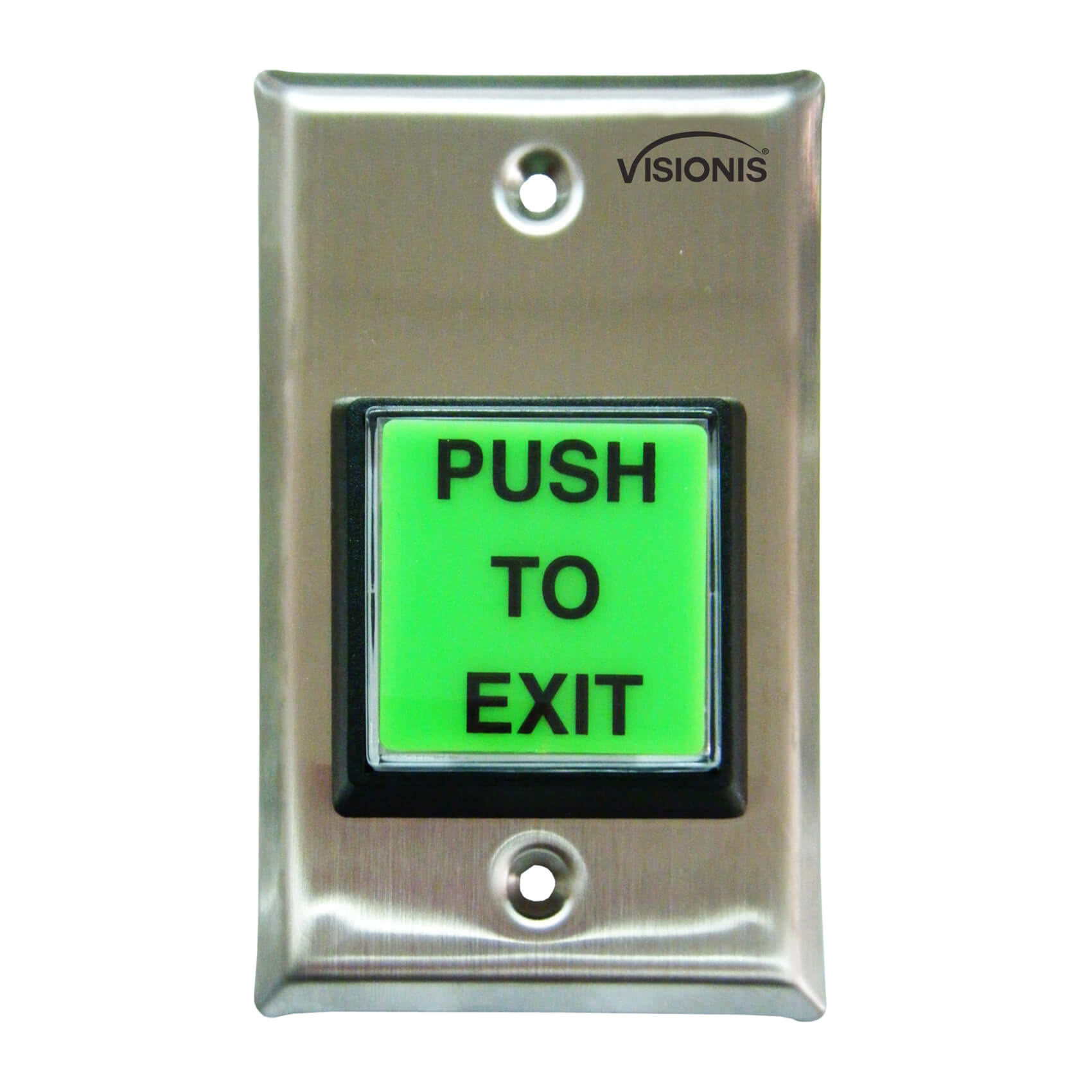

Green Square Push to Exit Button for Door Access Control with LED Light
FPC-7494 green square stainless steel push-to-exit button with LED, 8-pack

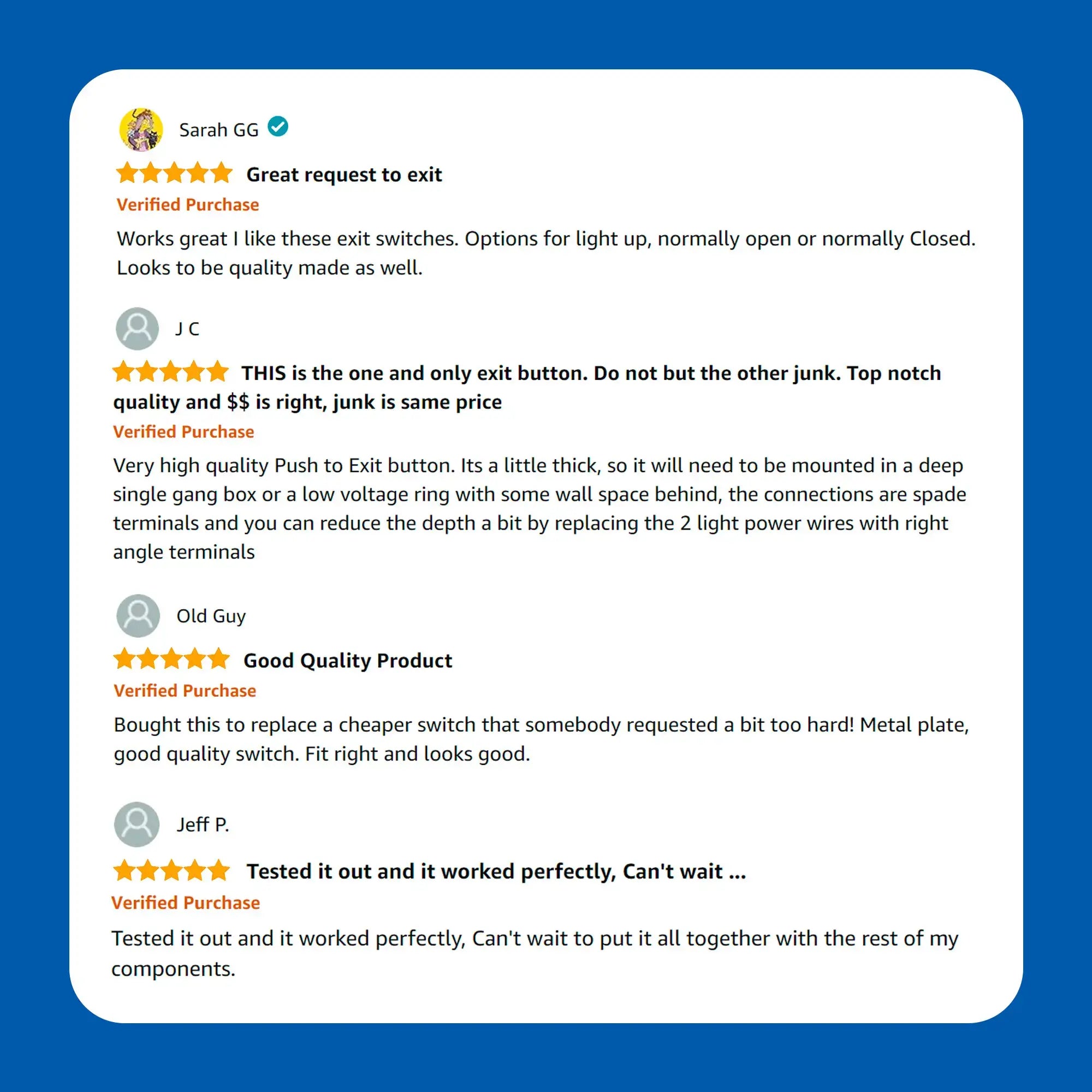

Push to exit button reviews - VIS-7000 Visionis
Indoor Application Green Exit Button for Door Access Control - VIS-7000 Visionis
Features Green Request to Exit Button Features - VIS-7000
Dimensions of Green Push to Exit Button with LED Light - VIS-7000 Visionis
Wire diagram of push to exit button with magnetic lock - VIS-7000
Type of Uses for Green Push to Exit Button for Access Control - VIS-7000
    Pack of 8 green request to exit buttons - VIS-7000 Visionis
    Green Square Push to Exit Button for Door Access Control with LED Light
    FPC-7494 green square stainless steel push-to-exit button with LED, 8-pack
    Push to exit button reviews - VIS-7000 Visionis
    Indoor Application Green Exit Button for Door Access Control - VIS-7000 Visionis
    Features Green Request to Exit Button Features - VIS-7000
    Dimensions of Green Push to Exit Button with LED Light - VIS-7000 Visionis
    Wire diagram of push to exit button with magnetic lock - VIS-7000
    Type of Uses for Green Push to Exit Button for Access Control - VIS-7000
Pack of 8 green request to exit buttons - VIS-7000 Visionis
Green Square Push to Exit Button for Door Access Control with LED Light
FPC-7494 green square stainless steel push-to-exit button with LED, 8-pack
Push to exit button reviews - VIS-7000 Visionis
Indoor Application Green Exit Button for Door Access Control - VIS-7000 Visionis
Features Green Request to Exit Button Features - VIS-7000
Dimensions of Green Push to Exit Button with LED Light - VIS-7000 Visionis
Wire diagram of push to exit button with magnetic lock - VIS-7000
Type of Uses for Green Push to Exit Button for Access Control - VIS-7000
Pack of 8 green request to exit buttons - VIS-7000 Visionis
Green Square Push to Exit Button for Door Access Control with LED Light
FPC-7494 green square stainless steel push-to-exit button with LED, 8-pack
Push to exit button reviews - VIS-7000 Visionis
Indoor Application Green Exit Button for Door Access Control - VIS-7000 Visionis
Features Green Request to Exit Button Features - VIS-7000
Dimensions of Green Push to Exit Button with LED Light - VIS-7000 Visionis
Wire diagram of push to exit button with magnetic lock - VIS-7000
Type of Uses for Green Push to Exit Button for Access Control - VIS-7000
    Pack of 8 green request to exit buttons - VIS-7000 Visionis
    Green Square Push to Exit Button for Door Access Control with LED Light
    FPC-7494 green square stainless steel push-to-exit button with LED, 8-pack
    Push to exit button reviews - VIS-7000 Visionis
    Indoor Application Green Exit Button for Door Access Control - VIS-7000 Visionis
    Features Green Request to Exit Button Features - VIS-7000
    Dimensions of Green Push to Exit Button with LED Light - VIS-7000 Visionis
    Wire diagram of push to exit button with magnetic lock - VIS-7000
    Type of Uses for Green Push to Exit Button for Access Control - VIS-7000
Pack of 8 green request to exit buttons - VIS-7000 Visionis
Green Square Push to Exit Button for Door Access Control with LED Light
FPC-7494 green square stainless steel push-to-exit button with LED, 8-pack
Push to exit button reviews - VIS-7000 Visionis
Indoor Application Green Exit Button for Door Access Control - VIS-7000 Visionis
Features Green Request to Exit Button Features - VIS-7000
Dimensions of Green Push to Exit Button with LED Light - VIS-7000 Visionis
Wire diagram of push to exit button with magnetic lock - VIS-7000
Type of Uses for Green Push to Exit Button for Access Control - VIS-7000
Kit Includes:
(8)
VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs
Description

Secure eight access points with this 8-pack of Visionis green push to exit buttons, designed for indoor use in high-traffic environments.

Each request to exit button features a vivid green LED, square ergonomic button, and rugged stainless steel faceplate. Perfect for larger properties where uniformity and reliability are key.



Attention: This exit button is meant for indoor use. This Exit button does not have a delay

Characteristics

Model No. VIS-7000:

  • Output Contact: NC, COM, NO
  • Power: 12 VDC / 24 VDC
  • LED Indicator: Green LED (Standby)
  • Mechanical Life: 500,000 tests
  • Panel Hole Diameter: 25mm
  • Panel: Stainless steel 0.9mm thickness
  • Switch Material: Plastic
  • Operating Temperature: -20°C~+55°C (-4°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Dimension Of Plate: 115L × 70W × 70H mm - 4.52L x 2.75W x 2.75H in.
  • Weight: 0.118kg
  • Attention: This exit button is meant for indoor use. This Exit button does not have a delay.
Packaging of this product
Description

Secure eight access points with this 8-pack of Visionis green push to exit buttons, designed for indoor use in high-traffic environments.

Each request to exit button features a vivid green LED, square ergonomic button, and rugged stainless steel faceplate. Perfect for larger properties where uniformity and reliability are key.



Attention: This exit button is meant for indoor use. This Exit button does not have a delay

  • Can I use this request to exit button as a garage door opener?

    Yes, by connecting the C and NO connections to the opener wires. The LED light requires a 12 - 24 VDC power source. If you don't need the light, then the switch should work fine.

  • Does it have a time delay or timer function?

    No, it doesn't. We do have the model VIS-7100 with time delay.

  • Does the VIS-7000 require batteries?

    No, the Visionis VIS-7000 Push to Exit Button does not require batteries. It is a hardwired device that gets its power from your access control system or from a power supply:

    • LED indicator: Powered by 12–24V DC from your access control panel or power supply
    • Switch mechanism: Purely mechanical — no power needed for the button itself to function
    • Wire leads: Comes with 12-inch AWG 18 wire leads for direct connection to your system

  • Can it be used outdoors? Is it weatherproof?

    The Visionis VIS-7000 Push to Exit Button is not weatherproof and is designed for indoor use only. The plastic switch material and stainless steel faceplate are not sealed for outdoor exposure.
    You can check our outdoor/weatherproof models here.

  • How much current does the LED pull?

    The LED light requires a 12 - 24 VDC power source.

  • Do you sell the gang box?

    No, we don't.

Download Datasheets and Manuals of this product

VIS-7000
