Kit Includes:
(2)

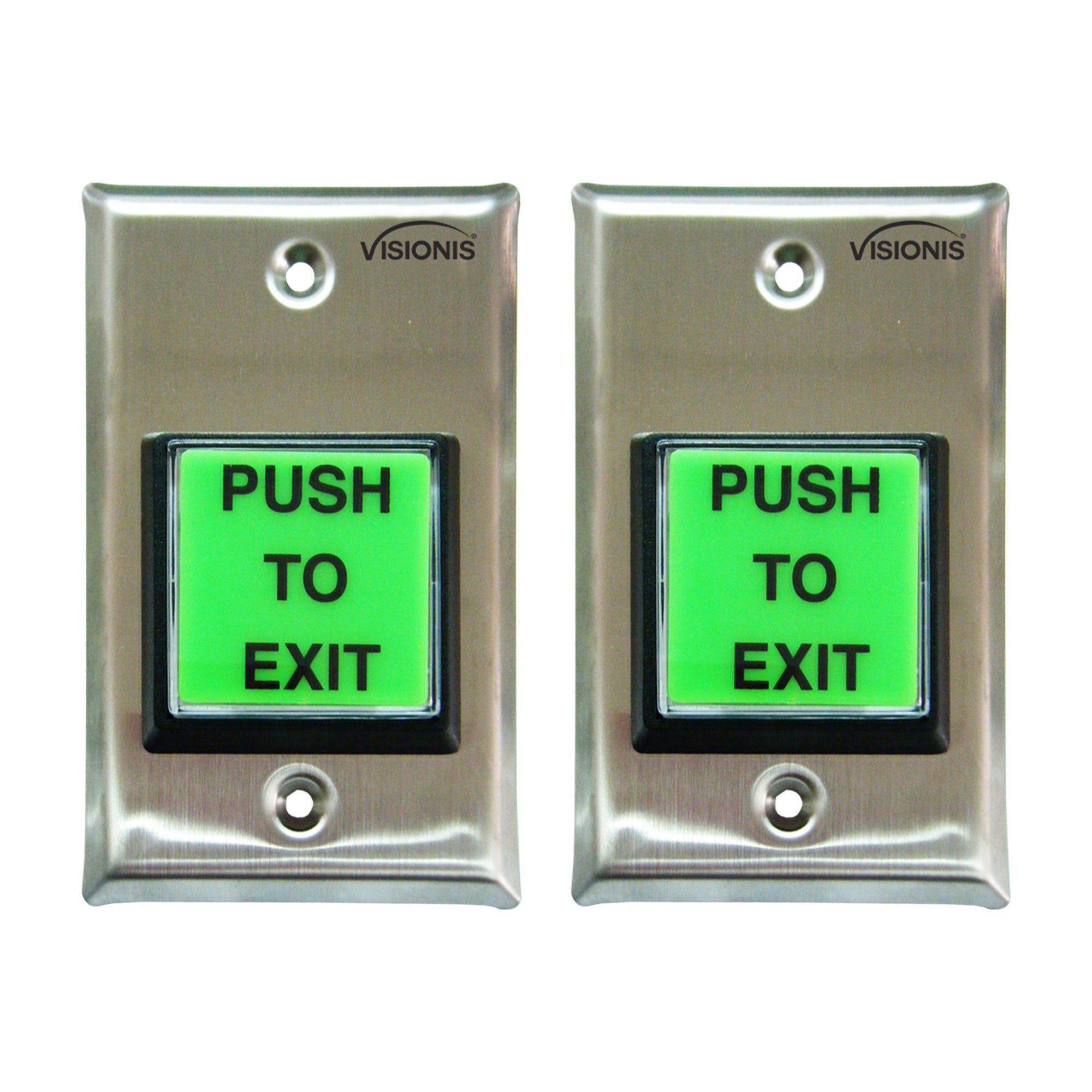

VIS-7100: Green with LED Square Request to Exit Button with Timer Delay for Door Access Control, NC, COM and NO Outputs
Description

This 2-pack of push to exit buttons is perfect for small installations needing simple and effective access control. Each request to exit button features a large green square button with LED backlighting and a built-in timer delay (1–180 seconds). Ideal for residential entries or two-door office setups, this set combines sleek design with dependable function.

Characteristics

Model No. VIS-7100:

  • With Timer Delay Function (1~180 seconds).
  • "PUSH TO EXIT" & "PRESIONE PARA SALIR" inserts included
  • Fits into standard single-gang box, Large square green color push button.
  • 12-inch, AWG 18 wire leads
  • Degree of Protection: IP-40
  • LED: Yes
  • LED Life: 20.000 hours
  • Switch Material: Plastic
  • Switch Plate Material: Stainless Steel
  • Attention: This exit button is meant for indoor use.
Packaging of this product
Description

This 2-pack of push to exit buttons is perfect for small installations needing simple and effective access control. Each request to exit button features a large green square button with LED backlighting and a built-in timer delay (1–180 seconds). Ideal for residential entries or two-door office setups, this set combines sleek design with dependable function.

  • Does it have a time delay or timer function?

    Yes, it does (1~180 seconds).

  • Does it require batteries?

    No, the Visionis VIS-7100 Push to Exit Button does not require batteries. It is a hardwired device that gets its power from your access control system:

    • LED indicator: Powered by 12–24V DC from your access control panel or power supply
    • Switch mechanism: Purely mechanical — no power needed for the button itself to function
    • Wire leads: Comes with 12-inch AWG 18 wire leads for direct connection to your system

  • Can it be used outdoors? Is it weatherproof?

    The Visionis VIS-7040 Push to Exit Button is not weatherproof and is designed for indoor use only. The plastic switch material and stainless steel faceplate are not sealed for outdoor exposure.
    You can check our outdoor/weatherproof models here.

  • How much current does the LED pull?

    The LED light requires a 12 - 24 VDC power source.

  • What kind of electrical box does it fit?

    It is designed to fit into a standard single-gang box.

Download Datasheets and Manuals of this product

VIS-7100
