Is this request to exit button suitable for outdoor installations? Is it weatherproof?

Yes, the VIS-7001 Push to Exit Button is IP65-rated.Can withstand: Heavy rain, accidental splashes, hose-directed washdowns, and blowing dust.Cannot withstand: Full submersion under water. For a device that can handle being underwater, higher ratings like IP67 or IP68 are required.

Does the VIS-7001 push button require any special wiring?

No special wiring is required for it — it uses standard low-voltage wiring that's common in most access control setups:Wiring Overview:Power: 12V or 24V DC via red (+) and black (-) wires — connects to your access control power supplySwitch outputs: Comes with NO (Normally Open), NC (Normally Closed), and COM (Common) terminals — just pick the one your system usesLED indicator: Powered through the same red/black power wires (lights blue when connected)Wire gauge: Standard low-voltage wiring is sufficient — no special cable required, although we recommend a 4 Wire 18 Gauge (18/4).

What power supply do I need?

The Visionis VIS-7001 Push to Exit Button supports two power options:12V DC — most common in residential and small commercial access control systems24V DC — used in larger or commercial-grade systems

What magnetic locks work with this button?

The VIS-7001 works with virtually any magnetic lock that operates on 12V or 24V DC with standard NO/NC/COM connections. Here are some great compatible options:Electromagnetic Door Lock, 600 lbs, Indoor, 272 kg Holding ForceElectromagnetic Door Lock, 1200 lbs, Indoor, 272 kg Holding ForceOutdoor and Gate Maglock with 1500 lbs (682 kg) Holding Force

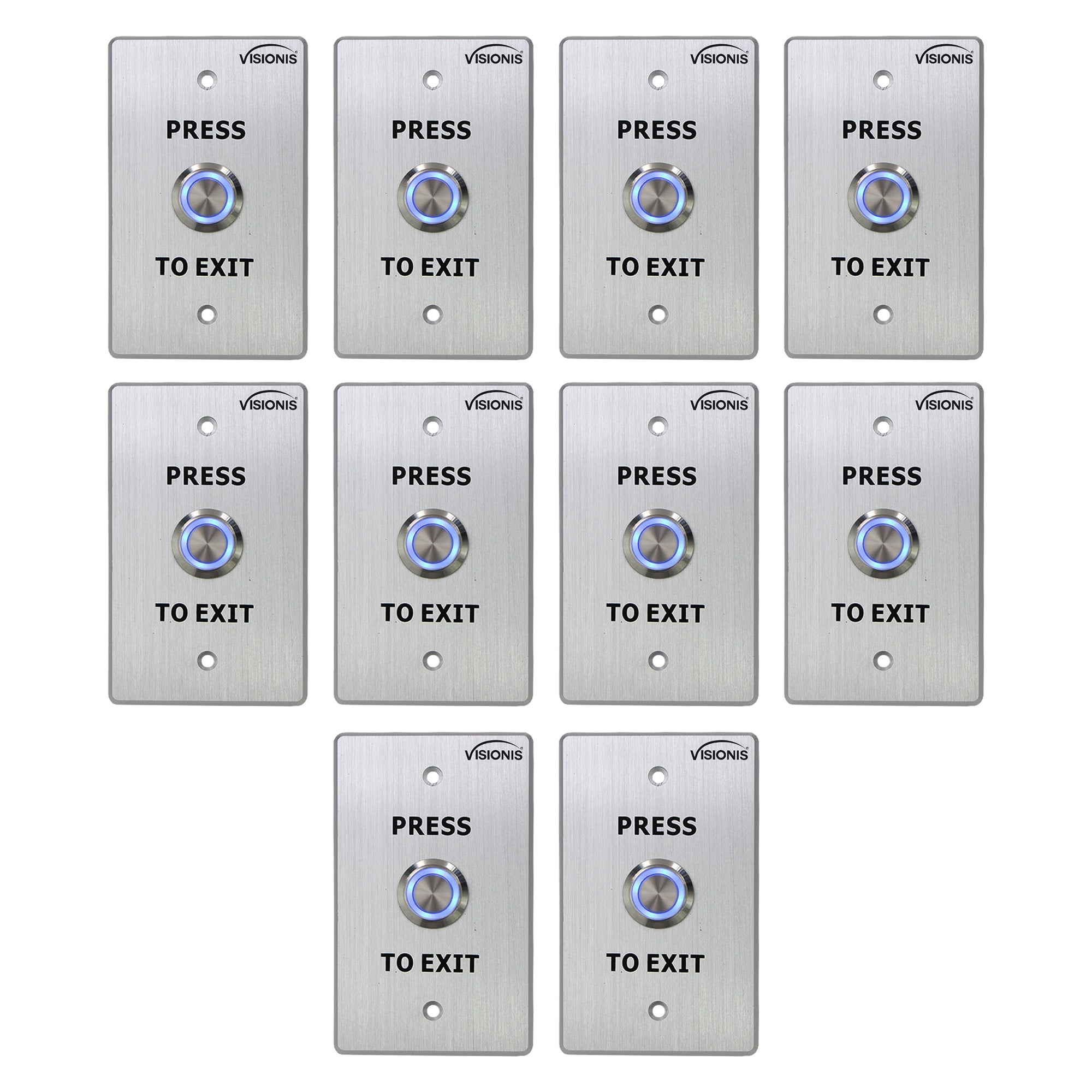

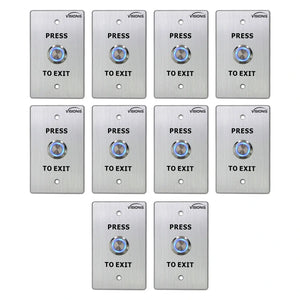

Pack of 10 waterproof push to exit buttons - Visionis VIS-7001

Visionis VIS-7001 weatherproof request to exit button with stainless steel and LED indicator

Push to exit button features - VIS-7001 Visionis

Push to exit button reviews - VIS-7001 Visionis

Dimensions VIS-7001 outdoor push to exit button with stainless steel and LED indicator

outdoor push to exit button with stainless steel and LED indicator - VIS-7001 Visionis

weatherproof request to exit button with stainless steel and LED indicator - VIS-7001 Visionis

Kit Includes:

(10)

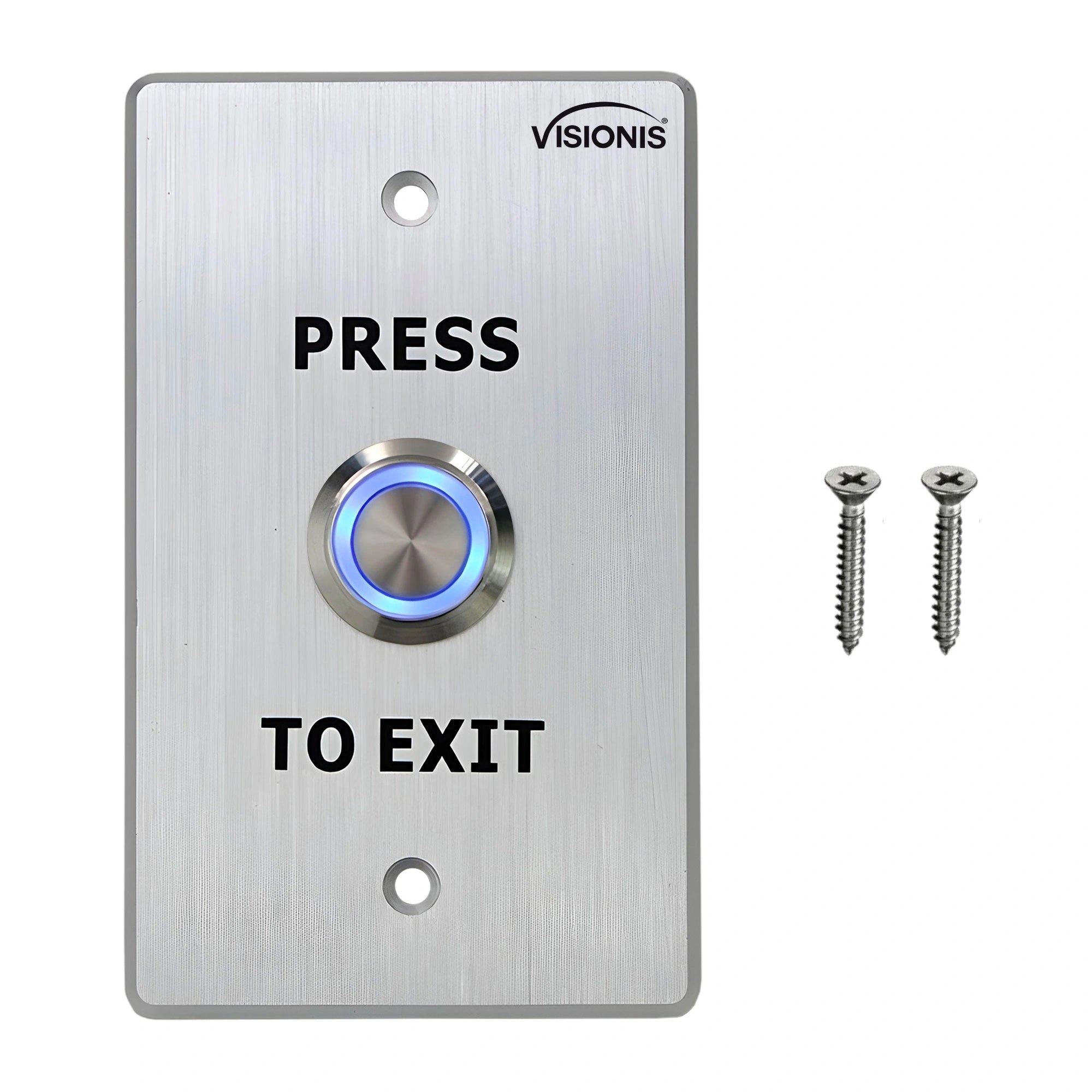

VIS-7001: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request To Exit Button Standard Size w/ LED Light

Description

Equip your entire property or facility with this 10-pack of Visionis push to exit buttons, built to withstand the elements. Whether it's an industrial complex, school campus, or large outdoor facility, each request to exit button offers dependable function, weatherproof durability, and sleek stainless steel aesthetics across all access points.

Characteristics

Model No. VIS-7001:

Contact Rating: 3A/125-250VAC
Output Contact: NC, COM, NO
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.12kg
Dimension Of Plate: 115L × 70W × 40H mm - 4.52L x 2.75W x 1.57H in.
LED Color Indicator: Blue

Description

Equip your entire property or facility with this 10-pack of Visionis push to exit buttons, built to withstand the elements. Whether it's an industrial complex, school campus, or large outdoor facility, each request to exit button offers dependable function, weatherproof durability, and sleek stainless steel aesthetics across all access points.

Product FAQs

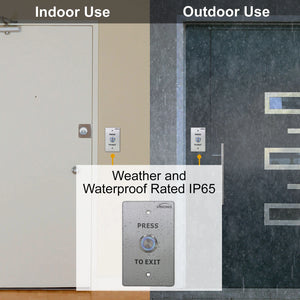

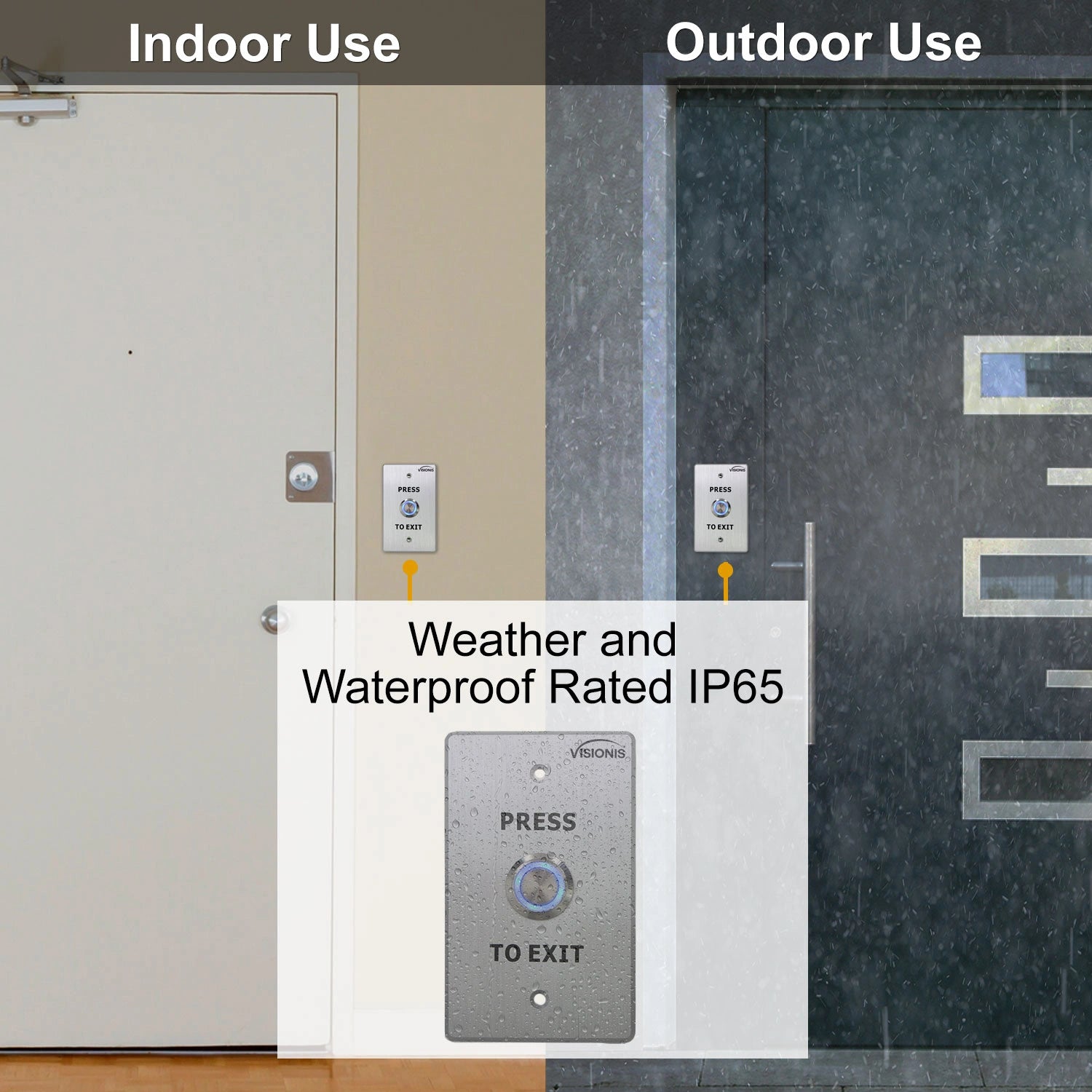

Is this request to exit button suitable for outdoor installations? Is it weatherproof?

Yes, the VIS-7001 Push to Exit Button is IP65-rated.
Can withstand: Heavy rain, accidental splashes, hose-directed washdowns, and blowing dust.
Cannot withstand: Full submersion under water. For a device that can handle being underwater, higher ratings like IP67 or IP68 are required.
Does the VIS-7001 push button require any special wiring?
No special wiring is required for it — it uses standard low-voltage wiring that's common in most access control setups:

Wiring Overview:
- Power: 12V or 24V DC via red (+) and black (-) wires — connects to your access control power supply
- Switch outputs: Comes with NO (Normally Open), NC (Normally Closed), and COM (Common) terminals — just pick the one your system uses

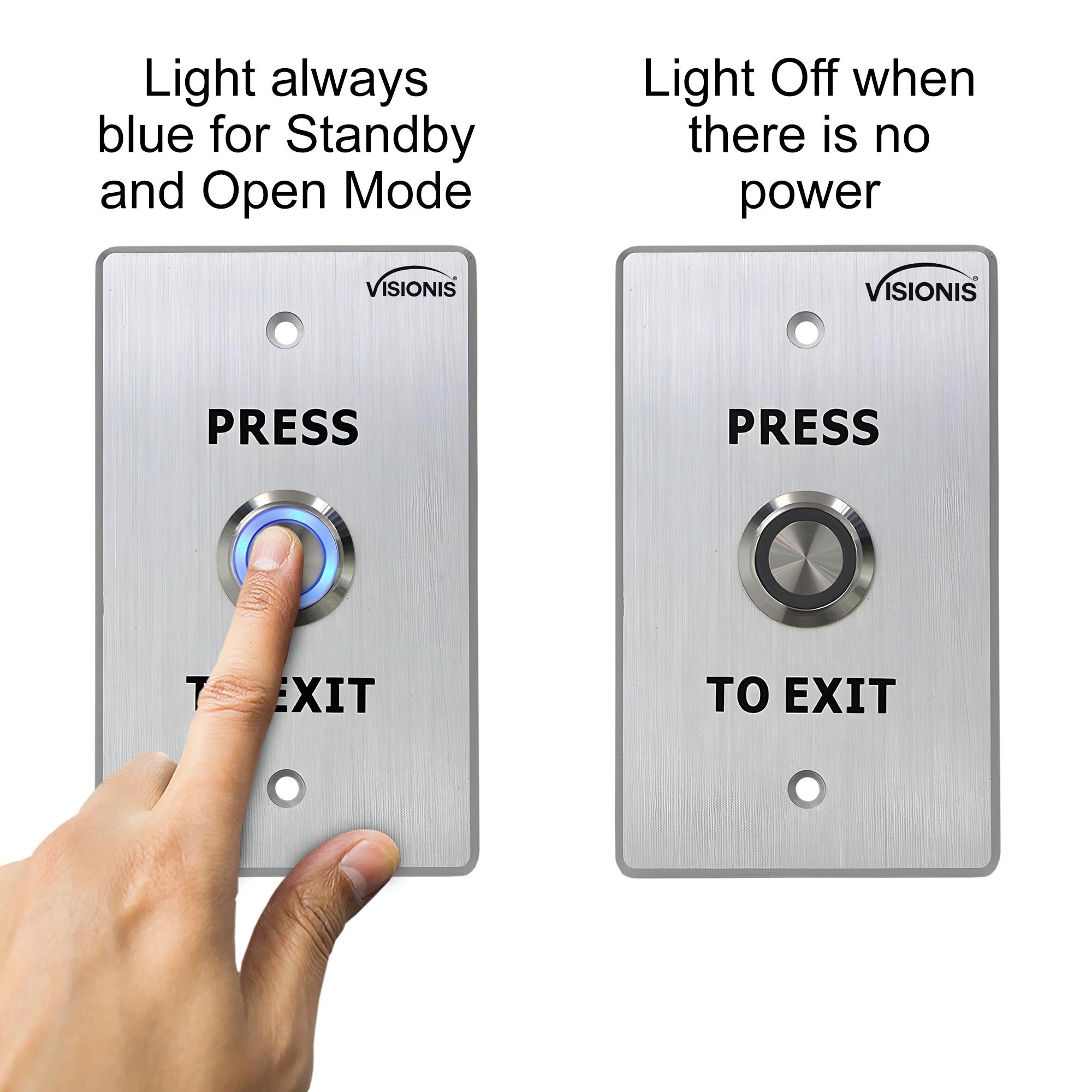

- LED indicator: Powered through the same red/black power wires (lights blue when connected)
- Wire gauge: Standard low-voltage wiring is sufficient — no special cable required, although we recommend a 4 Wire 18 Gauge (18/4).
What power supply do I need?

The Visionis VIS-7001 Push to Exit Button supports two power options:

12V DC — most common in residential and small commercial access control systems
24V DC — used in larger or commercial-grade systems
What magnetic locks work with this button?
The VIS-7001 works with virtually any magnetic lock that operates on 12V or 24V DC with standard NO/NC/COM connections. Here are some great compatible options:
Can this exit button be wired to a gate opener to open the gate when the button is pushed?

Yes, It has normally open and normally closed connections and separate lighting wires.
Do you sell the gang box?

No, we don't.

Download Datasheets and Manuals of this product

VIS-7001

Visionis by Visionis

10 Pack Push To Exit Button VIS-7001 Indoor + Outdoor Weather And Waterproof Rated IP65 Stainless Steel Standard Size For Door Access Control With LED Light + NC, COM And NO Outputs - FPC-7500

UPC Code: 793811571998

Certifications:

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $213.16
Sale price: $213.16
Regular price

Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
