Description

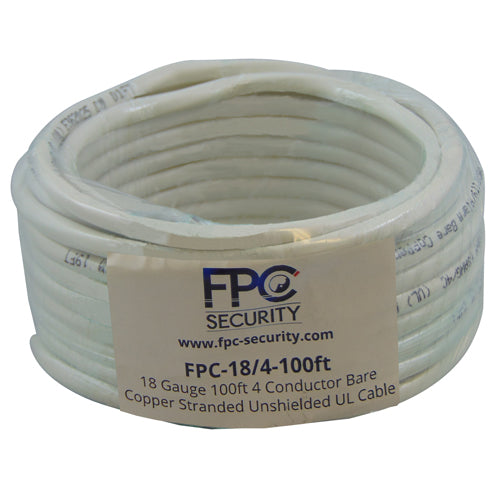

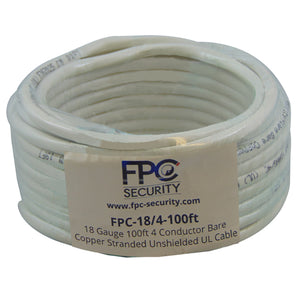

The FPC-18/4-100FT is an 18 gauge, 4 conductor bare copper general electric wire. This unshielded and UL listed wire can be used for multiple low voltage electrical applications. This can be used for maglocks, exit buttons, electric strikes, dropbolts, and much more.

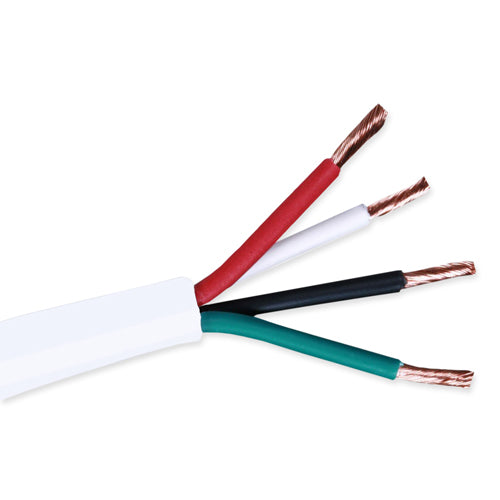

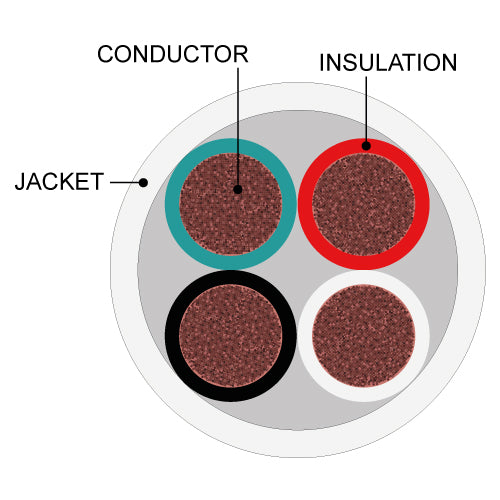

The white coating on the outside provides the Jacket portion to protect the 4 conductor wires. The color coding for each wire provides the necessary insulation. Then under the color coding is your conductor used for the installation process. Color codes are black, red, white, and green.



Characteristics

Model No. FPC-18/4-100FT:

  • Cable Construction: 18 AWG SBC 4C
  • Insulation Material: PVC
  • Ripcord: Nylon
  • Jacket OD: 5.0mm
  • Jacket Material Type: CM/CL2
  • Jacket Color: White
  • Operating Temp Rating: 60°C
  • Impedence: 100 Ω
  • Voltage Rating: 300 V
  • Applications: HVAC Systems, Doorbell Systems, Control Circuits, Commercial/Residential
  • Compliances: ETL/UL Listed CM/CL2, RoHS Compliant
  • Features: Sunlight Resistant PVC, Footage Markers On Cable Jacket, 100FT Roll
Description

The FPC-18/4-100FT is an 18 gauge, 4 conductor bare copper general electric wire. This unshielded and UL listed wire can be used for multiple low voltage electrical applications. This can be used for maglocks, exit buttons, electric strikes, dropbolts, and much more.

The white coating on the outside provides the Jacket portion to protect the 4 conductor wires. The color coding for each wire provides the necessary insulation. Then under the color coding is your conductor used for the installation process. Color codes are black, red, white, and green.



Characteristics
Packaging of this product

Model No. FPC-18/4-100FT:

  • Cable Construction: 18 AWG SBC 4C
  • Insulation Material: PVC
  • Ripcord: Nylon
  • Jacket OD: 5.0mm
  • Jacket Material Type: CM/CL2
  • Jacket Color: White
  • Operating Temp Rating: 60°C
  • Impedence: 100 Ω
  • Voltage Rating: 300 V
  • Applications: HVAC Systems, Doorbell Systems, Control Circuits, Commercial/Residential
  • Compliances: ETL/UL Listed CM/CL2, RoHS Compliant
  • Features: Sunlight Resistant PVC, Footage Markers On Cable Jacket, 100FT Roll

  • What wire gauge do I need for maglocks?

    The FPC 18/4 Stranded Conductor Cable you're viewing is actually specifically listed as compatible with maglocks.

  • What is the maximum voltage it can handle?

    It is a low voltage wire, designed for applications like maglocks, exit buttons, electric strikes, and alarm systems. For most access control and maglock installations running at 12V or 24V DC, this wire is well within its safe operating range.

  • Can this wire be used outdoors?

    No, the FPC 18/4 is intended for indoor use only.

Download Datasheets and Manuals of this product
