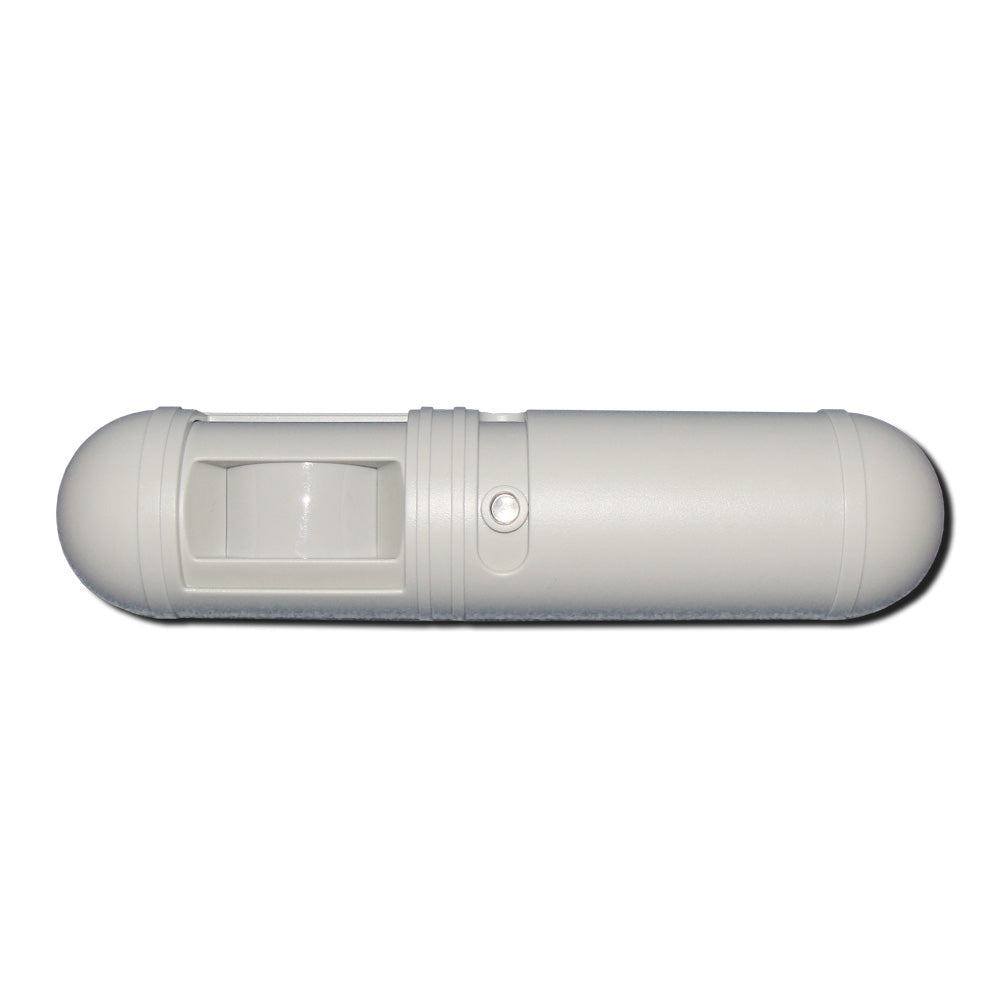

Description

The OD-22 passive infrared sensor is specifically designed for request to-exit applications, includes qualified motion analysis. The sensor may be mounted to frame header, wall or ceiling. Intended for indoor use only.



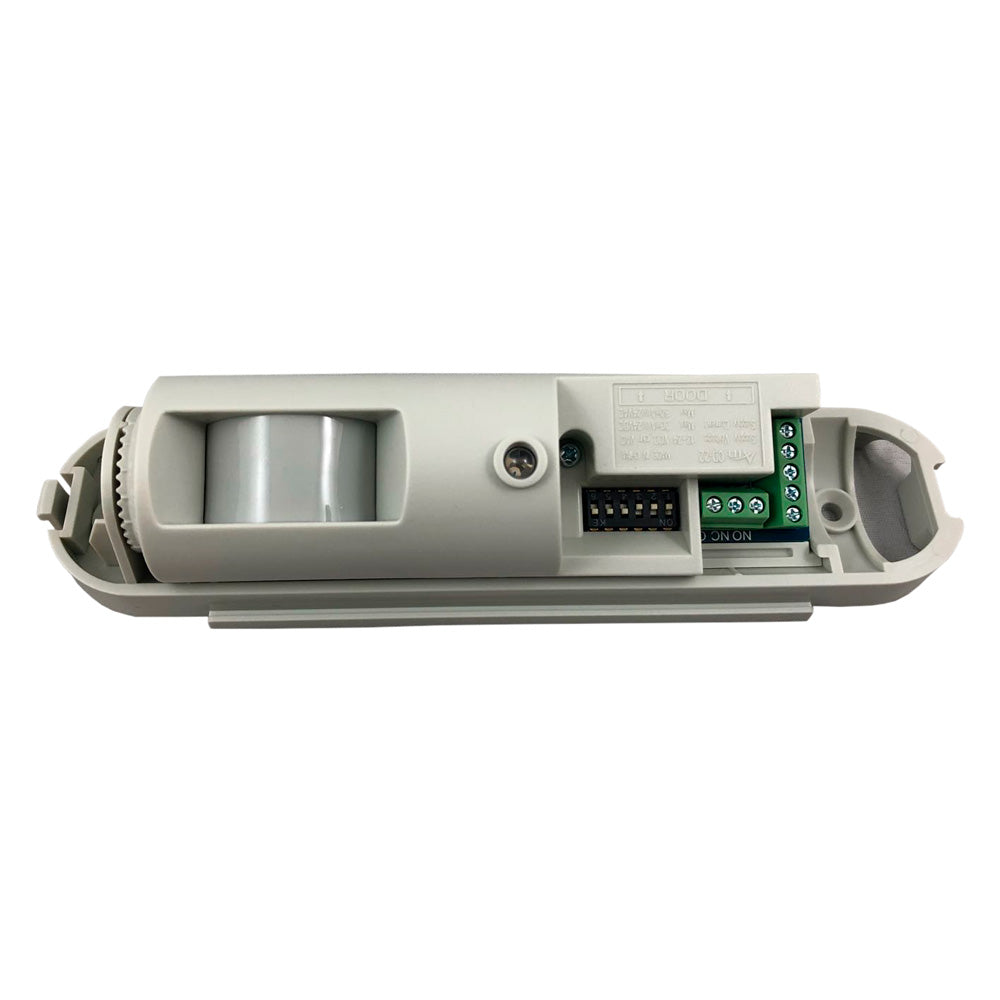

  • Relay Output
  • Adjustable Relay 0.5-64 second
  • time delay
  • Micro-based signal processing
  • 2 Form C Relay Output
  • Dual voltage
Characteristics

Model No. AL-OD22 :

  • Supply Voltage: 12-24VDC or VAC
  • Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
  • Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
  • Detection Type: Passive infrared
  • Relay Hold Time: 0.5-64 seconds
  • LED Indication: Red
  • Operating Temp: -14° F to 131° F(-10° Cto55°C)
  • Weight: 0. 4Ib (0. 18kg)
  • Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
  • Humidity: 0-95% non-condensing

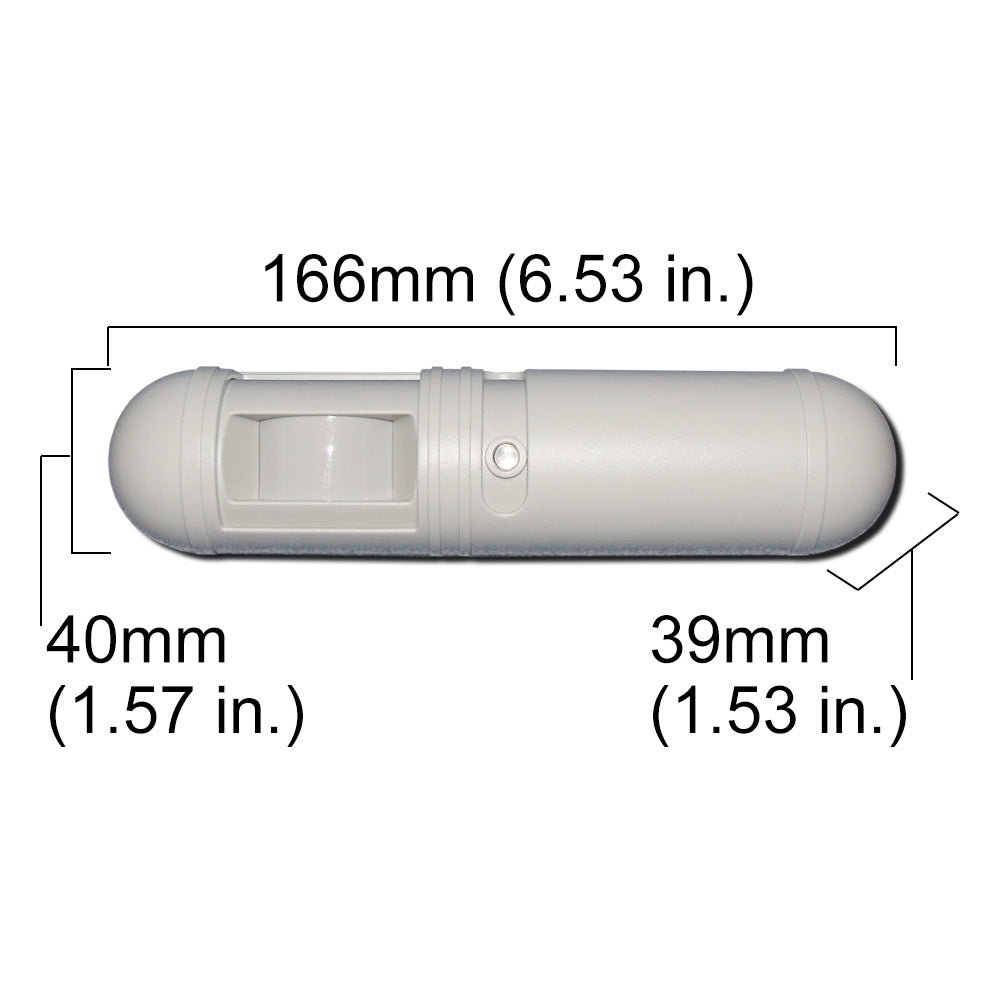

  • Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)
Description

The OD-22 passive infrared sensor is specifically designed for request to-exit applications, includes qualified motion analysis. The sensor may be mounted to frame header, wall or ceiling. Intended for indoor use only.



  • Relay Output
  • Adjustable Relay 0.5-64 second
  • time delay
  • Micro-based signal processing
  • 2 Form C Relay Output
  • Dual voltage
Characteristics
Packaging of this product

Model No. AL-OD22 :

  • Supply Voltage: 12-24VDC or VAC
  • Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
  • Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
  • Detection Type: Passive infrared
  • Relay Hold Time: 0.5-64 seconds
  • LED Indication: Red
  • Operating Temp: -14° F to 131° F(-10° Cto55°C)
  • Weight: 0. 4Ib (0. 18kg)
  • Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
  • Humidity: 0-95% non-condensing
  • Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

  • What is the sensor's range?

    This PIR motion detector coverage is 12x5 ft at 7ft high, 30x12 ft at 15 ft high (Adjustable).

  • What's the difference between NO and NC output?

    The AI Next OD22 Request to Exit Motion Sensor supports both NO (Normally Open) and NC (Normally Closed) output:

    • NO – Normally Open
    • Circuit is open (no current) by default
    • When motion is detected, the circuit closes and triggers the door release
    • Most common for access control exit triggers
    • Best for: standard door unlock-on-detect applications

    NC – Normally Closed
    Circuit is closed (current flowing) by default

  • What is the adjustable time relay feature?

    The adjustable time relay feature on the AI Next OD22 Request to Exit Motion Sensor is 0.5-64 seconds.

  • What power supply do I need for motion sensor?

    The AI Next OD22 PIR Motion Sensor runs on 12V DC power, which is standard for most access control systems.

  • What access controller works with this sensor?

    The AI Next OD22 is compatible with virtually any standard access control panel that accepts a REX (Request to Exit) input with NO or NC output.

Download Datasheets and Manuals of this product

AL-OD22

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Aleph by Aleph

AI Next OD22 White Request To Exit Motion Sensor PIR For Access Control With Adjustable Time Relay

UPC Code: 750958782915
⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

$57.99
$57.99
Shipping calculated at checkout.
Free Shipping Icon

Free US Shipping
To all 50 states

Product Warranty

1 YEAR Warranty

Return Policy Icon

30-Day Returns
No questions asked

Phone Support Icon

Lifetime Phone Support
Mon–Fri 9am–6pm EST
