What type of doors is the maglock compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).

Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.

Does this lock have an LED indicator?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

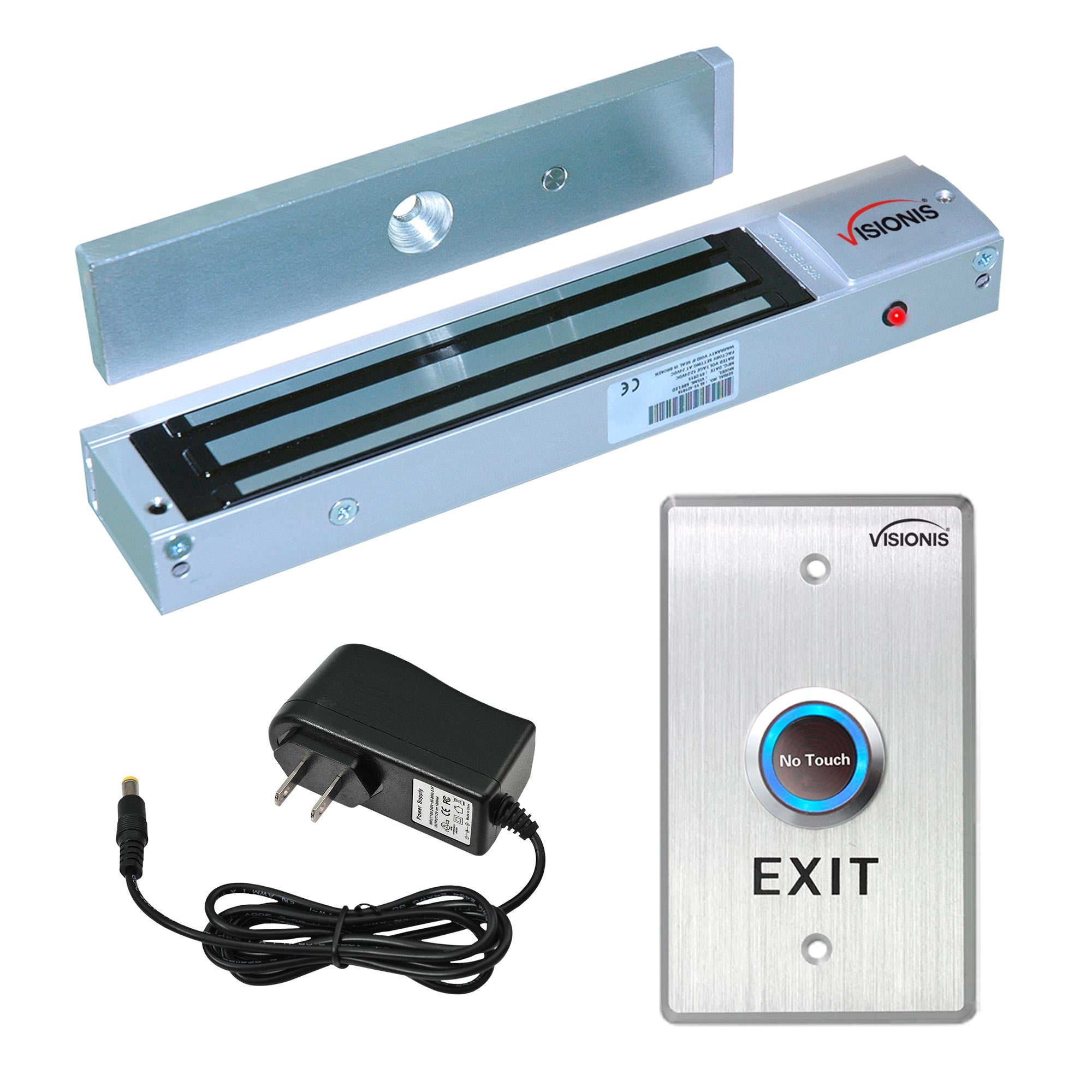

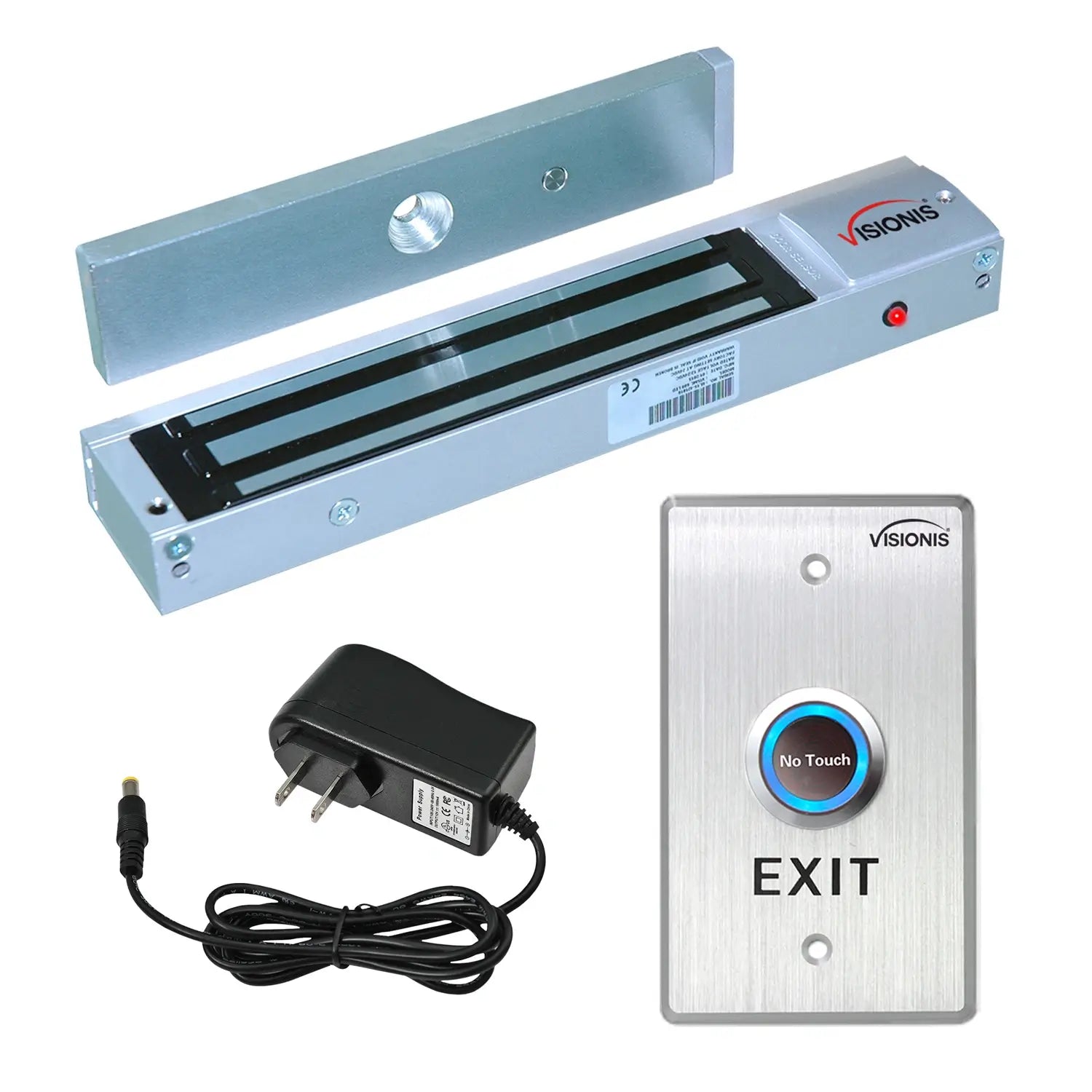

600 lbs Maglocks kit with push to exit button - FPC-7318

600lbs Magnetic Door Locks with Push to Exit Button Kit for Access Control

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

touchless exit button with LED indicators for access control systems. VIS-7013 VISIONIS

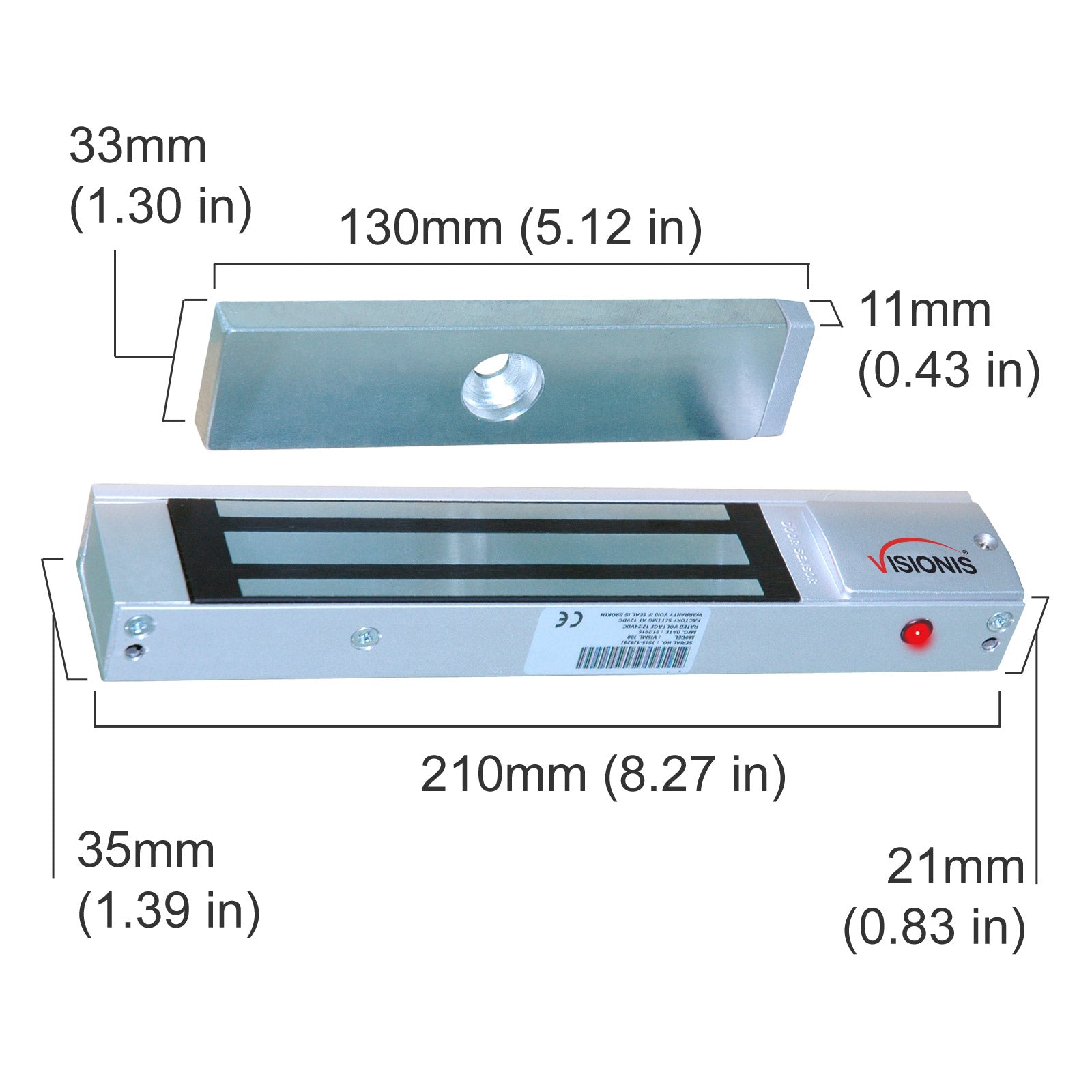

300lb magnetic door lock with LED Sensor VIS-ML300LED

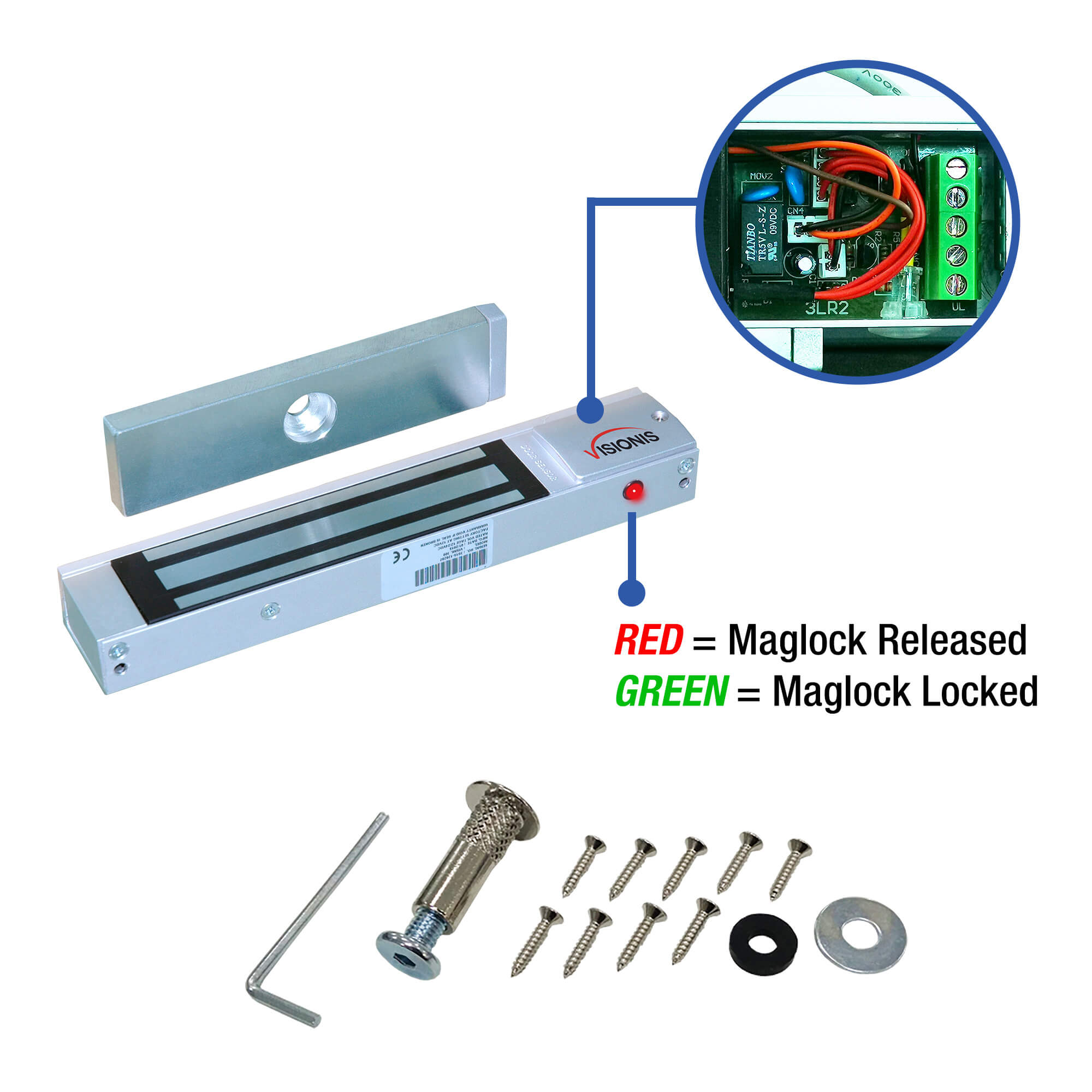

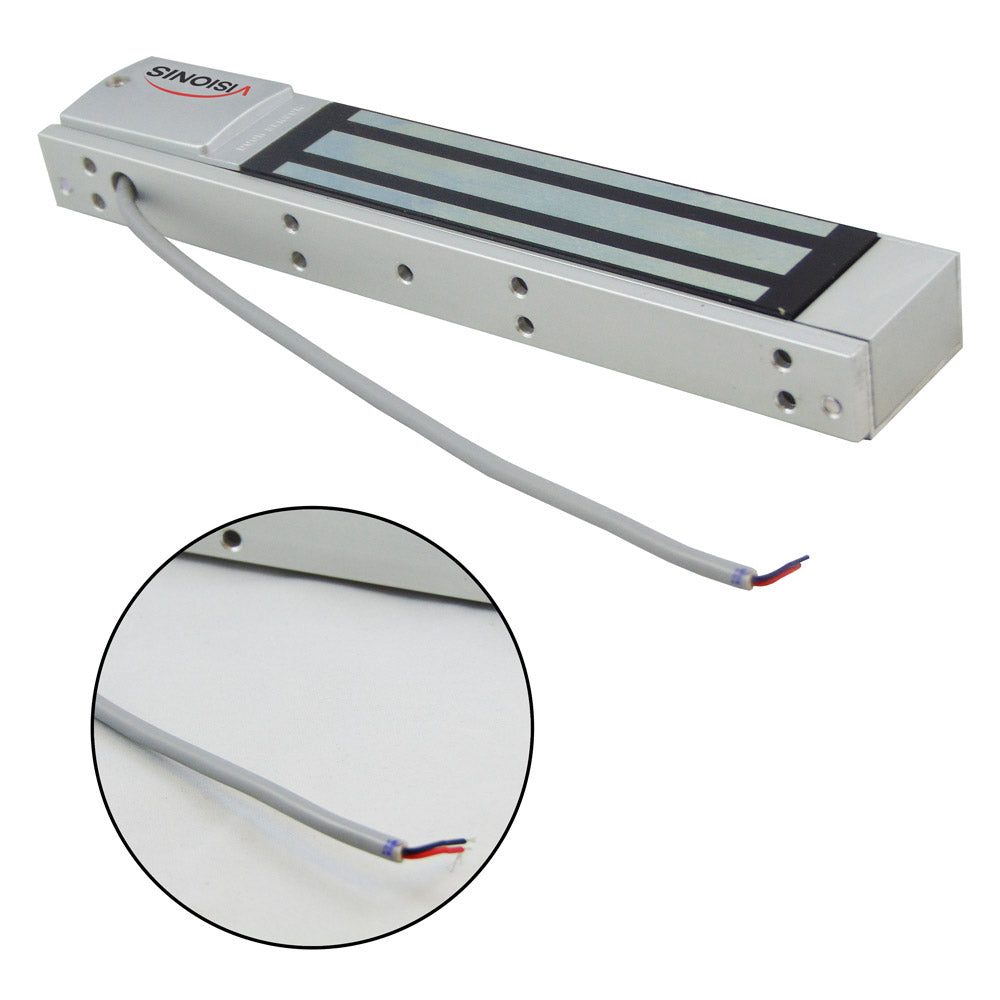

indoor magnetic lock with LED status indicators, for access control systems VIS-ML300LED

Time delay touchless exit button with LED indicators for access control systems. VIS-7013 VISIONIS

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Kit Includes:

(1)

VIS-ML600LED: 600lbs Indoor Electromagnetic Lock with LED Sensor

VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Can this maglock be used with inswing doors?

No, this specific kit is designed for outswing doors. However, you can check out our kits made for inswing doors: FPC-7319, FPC-7320, FPC-7321.

What is the holding force of this maglock?

This maglock provides 600 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model VIS-ML600LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)
Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-7013:

Contact Rating: 12-24V, 3A
Output Contact: NO/NC/COM
Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5~22s
Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.105kg
Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Can this maglock be used with inswing doors?

No, this specific kit is designed for outswing doors. However, you can check out our kits made for inswing doors: FPC-7319, FPC-7320, FPC-7321.

What is the holding force of this maglock?

This maglock provides 600 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Product FAQs

What type of doors is the maglock compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).
Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.
Does this lock have an LED indicator?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can this electromagnetic lock used for a sliding door?

Yes, it can.
Does the maglock make an audible sound when unlocked? Does it open the door slightly? How will customers know the door has been unlocked?

The lock makes a sound when unlocking, but it may not be very noticeable in noisy areas. It also has an LED indicator: the light turns off when unlocked and green when locked. Some users add a buzzer for a clearer sound.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does this kit come with a remote?

No, it doesn't. Check out our Wireless Remote “Buzz In” Kits.

Download Datasheets and Manuals of this product

FPC-7312, FPC-7315, FPC-7318, FPC-7321, FPC-7324, FPC-7327

Installation Diagram

VIS-ML600LED

VIS-7013

Visionis by Visionis

Indoor Magnetic Lock VIS-ML600LED 600lbs For Out Swinging Door With VIS-7013 No Touch Push To Exit Button With Timer NC, COM, NO Outputs For Access Control, 2 Amp Power Supply - FPC-7318 Visionis

UPC Code: 750958783431

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $98.16
Sale price: $98.16
Regular price

Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
