600lb Indoor Electromagnetic Lock with LED Sensor VIS-ML600LED

Dimensions 600lb Indoor Electromagnetic Lock with LED Sensor VIS-ML600LED

L and Z Bracket For 600lbs Electromagnetic Lock VIS-ZL600

Dimensions Visionis VIS-7000 push to exit button

Visionis VIS-7000 push to exit button with stainless-steel faceplate and illuminated square design

Below are more variations of this product:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

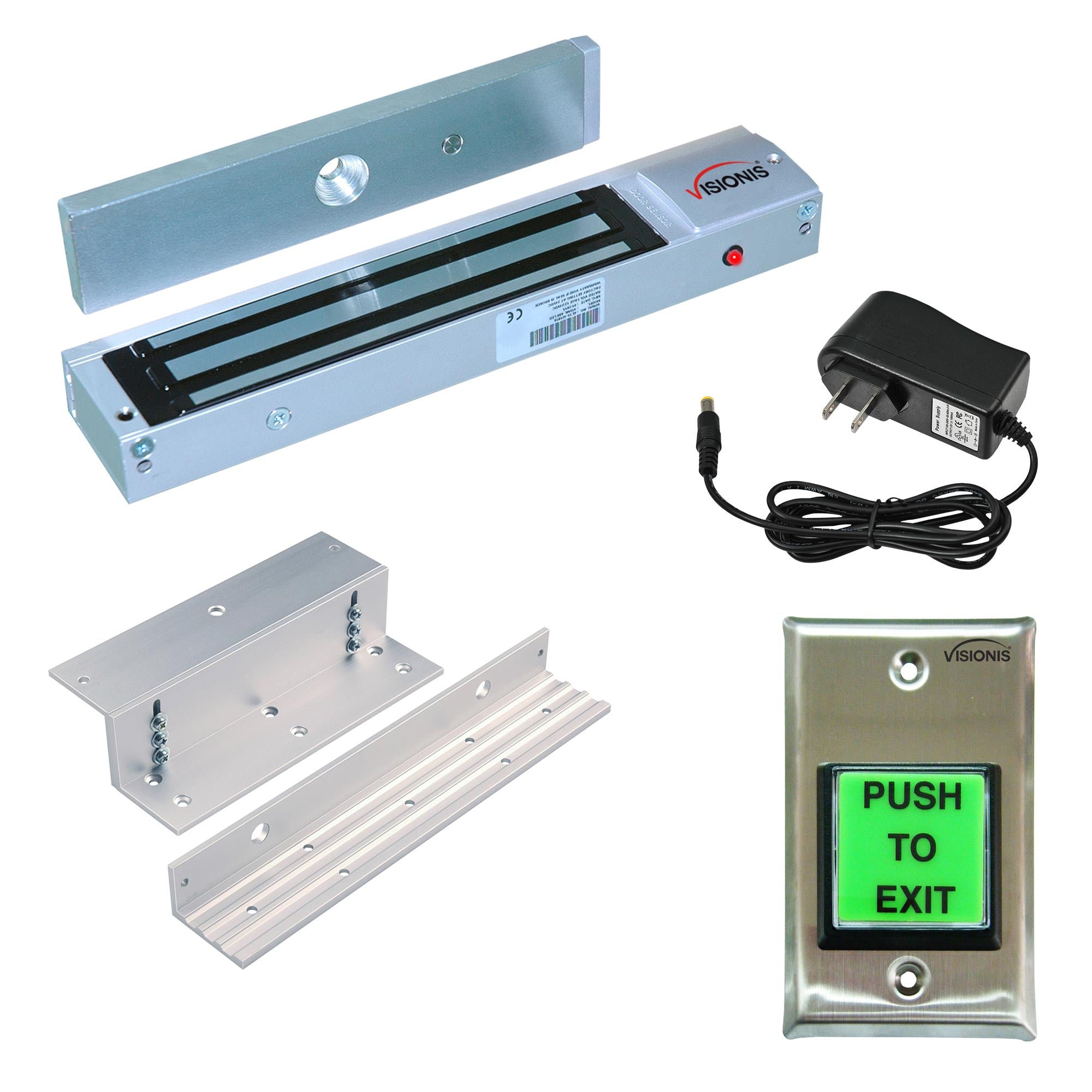

Kit Includes:

(1)

VIS-ML600LED: 600lbs Indoor Electromagnetic Lock with LED Sensor

VIS-ZL600: L and Z Bracket For 600lbs Electromagnetic Lock

VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model VIS-ML600LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)
Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL600:

L and Z bracket for 600lbs electromagnetic lock

Model No. VIS-7000:

Stainless-steel face-plate
"PUSH TO EXIT" & "PRESIONE PARA SALIR" inserts included
Fits into standard single-gang box,Large square green color push button.
12-inch, AWG 18 wire leads
Degree of Protection: IP-40
LED: Yes
LED Life: 20.000 hours
Switch Material: Plastic
Switch Plate Material: Stainless Steel
Attention: This exit button is meant for indoor use. This Exit button does not have a delay.

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Download Datasheets and Manuals of this product

Visionis by Visionis

Visionis FPC-7319 VIS-ML600LED Indoor Electromagnetic Lock 600lbs For In Swinging Door With VIS-7000 Green LED Push To Exit Button NC, COM, NO Outputs For Access Control, 2 Amp Power Supply

Name: Visionis FPC-7319 VIS-ML600LED Indoor Electromagnetic Lock 600lbs For In Swinging Door With VIS-7000 Green LED Push To Exit Button NC, COM, NO Outputs For Access Control, 2 Amp Power Supply
Brand: Visionis
SKU: FPC-7319
Price: 93.78 USD
Availability: InStock

Translation missing: en.products.product.sku:FPC-7319

UPC Code: 750958783448

Product Weight: 8.0 lb

Regular price: $93.78
Sale price: $93.78
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
