What type of doors is the maglock compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).

Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.

Does this lock have an LED indicator?

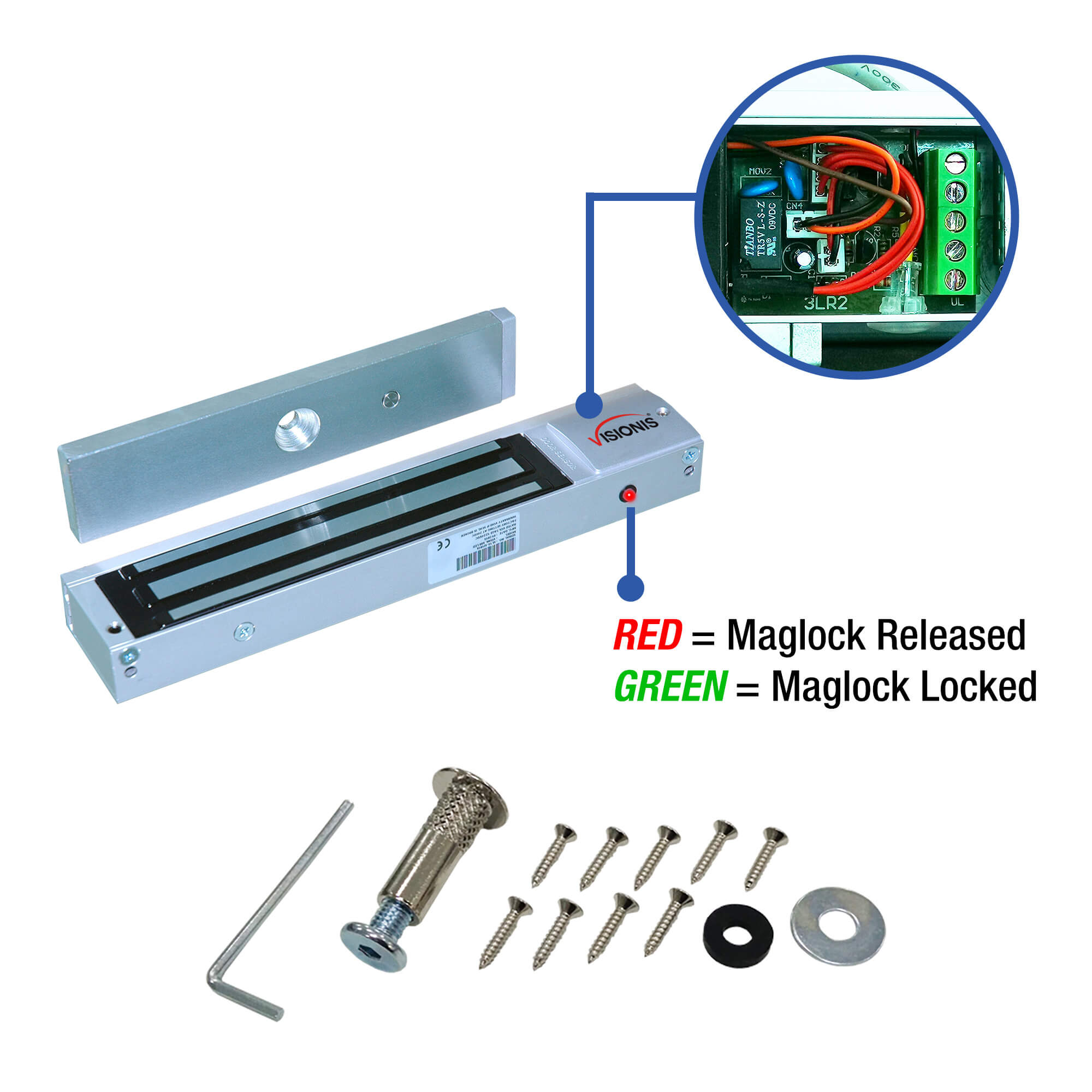

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

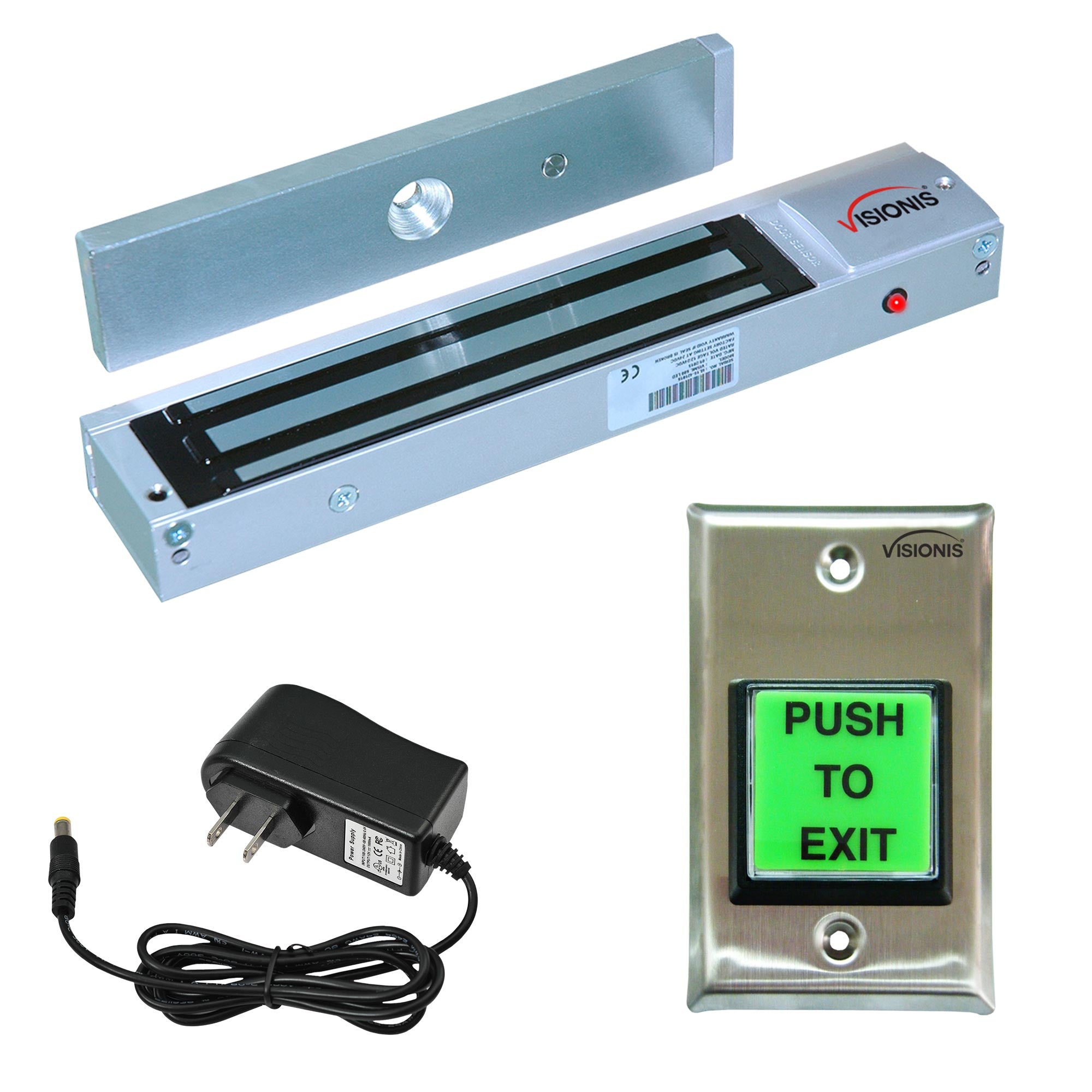

600 lbs Maglocks kit with push to exit button - FPC-7316

600lbs Magnetic Door Locks with Push to Exit Button Kit for Access Control

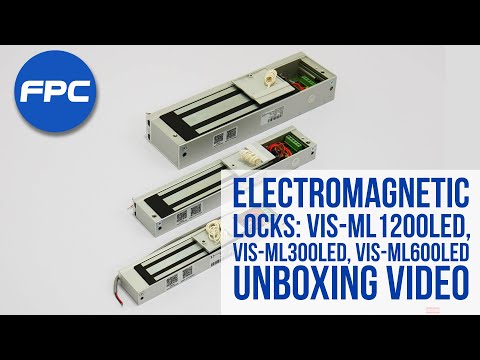

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

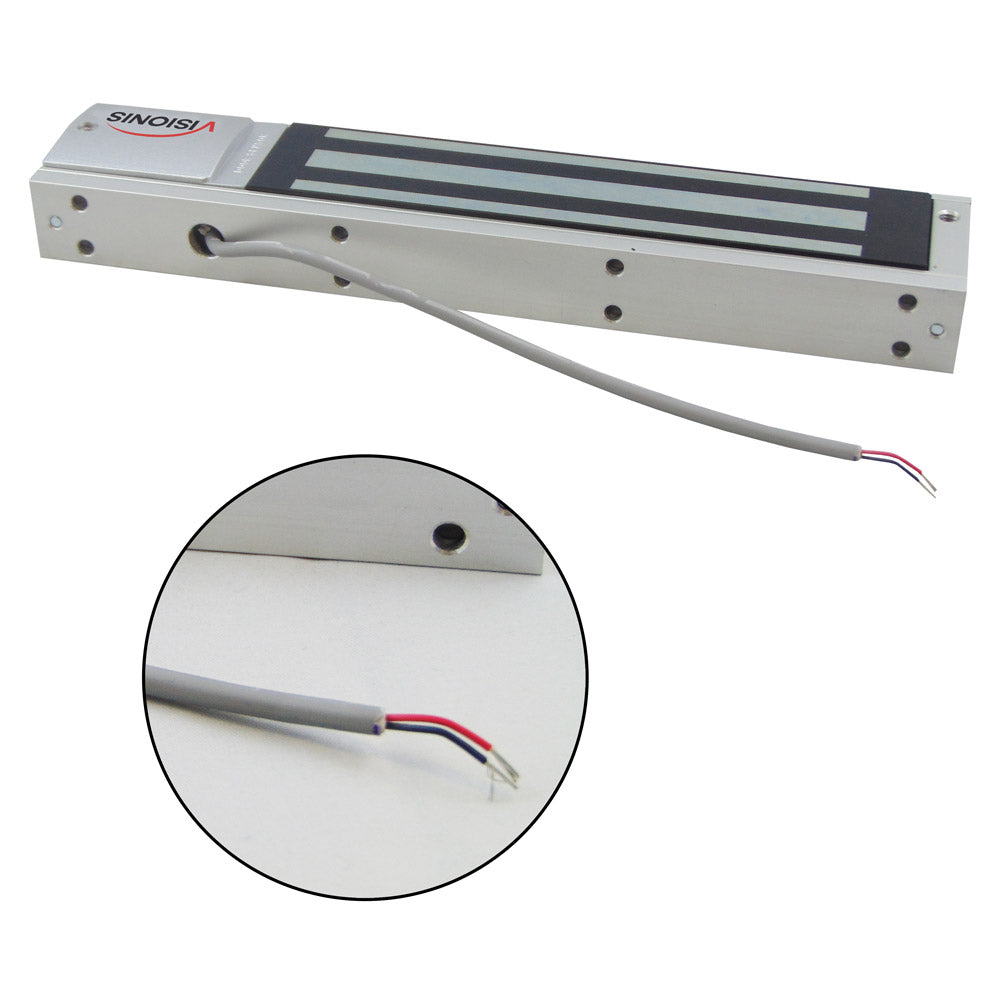

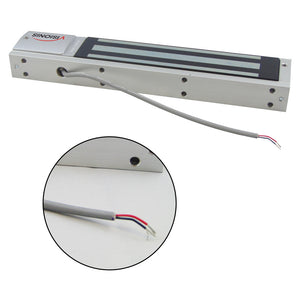

600 lbs magnetic door locks with LED Sensor VIS-ML600LED

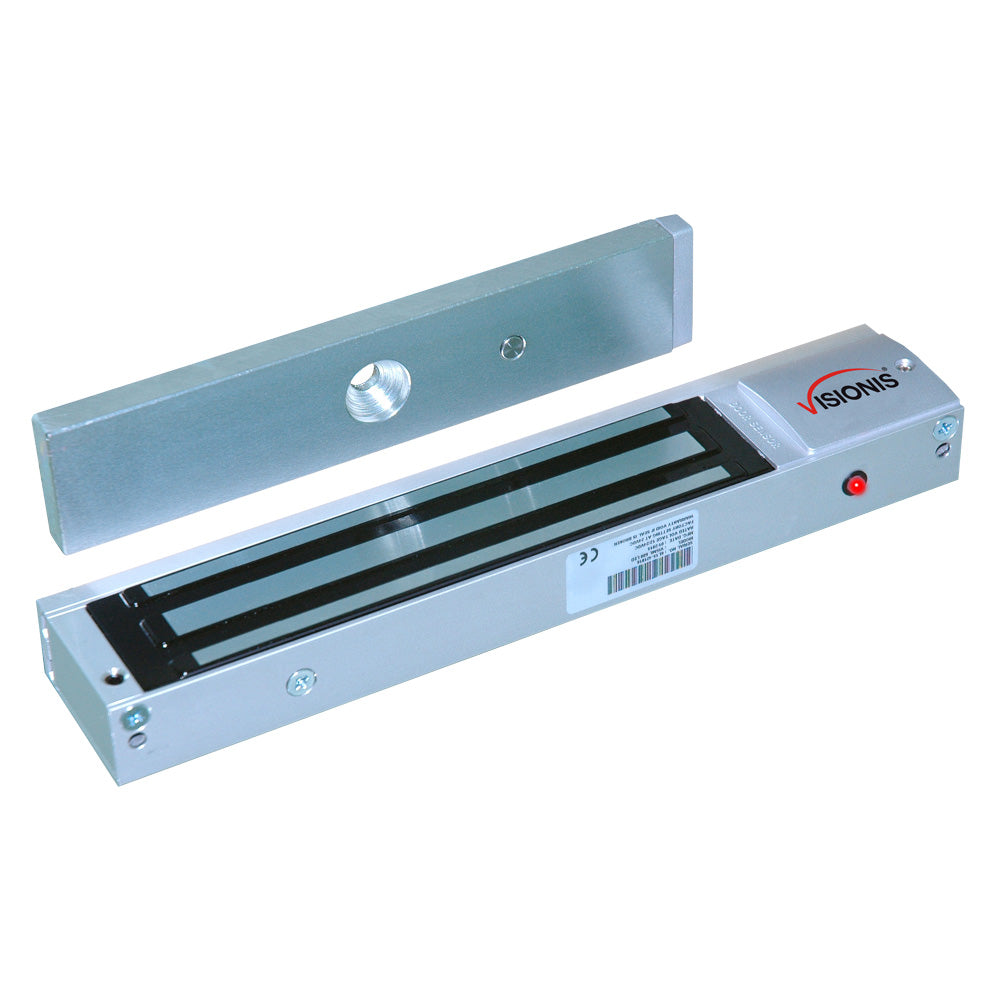

600lb Indoor Magnetic Lock with LED Sensor VIS-ML600LED

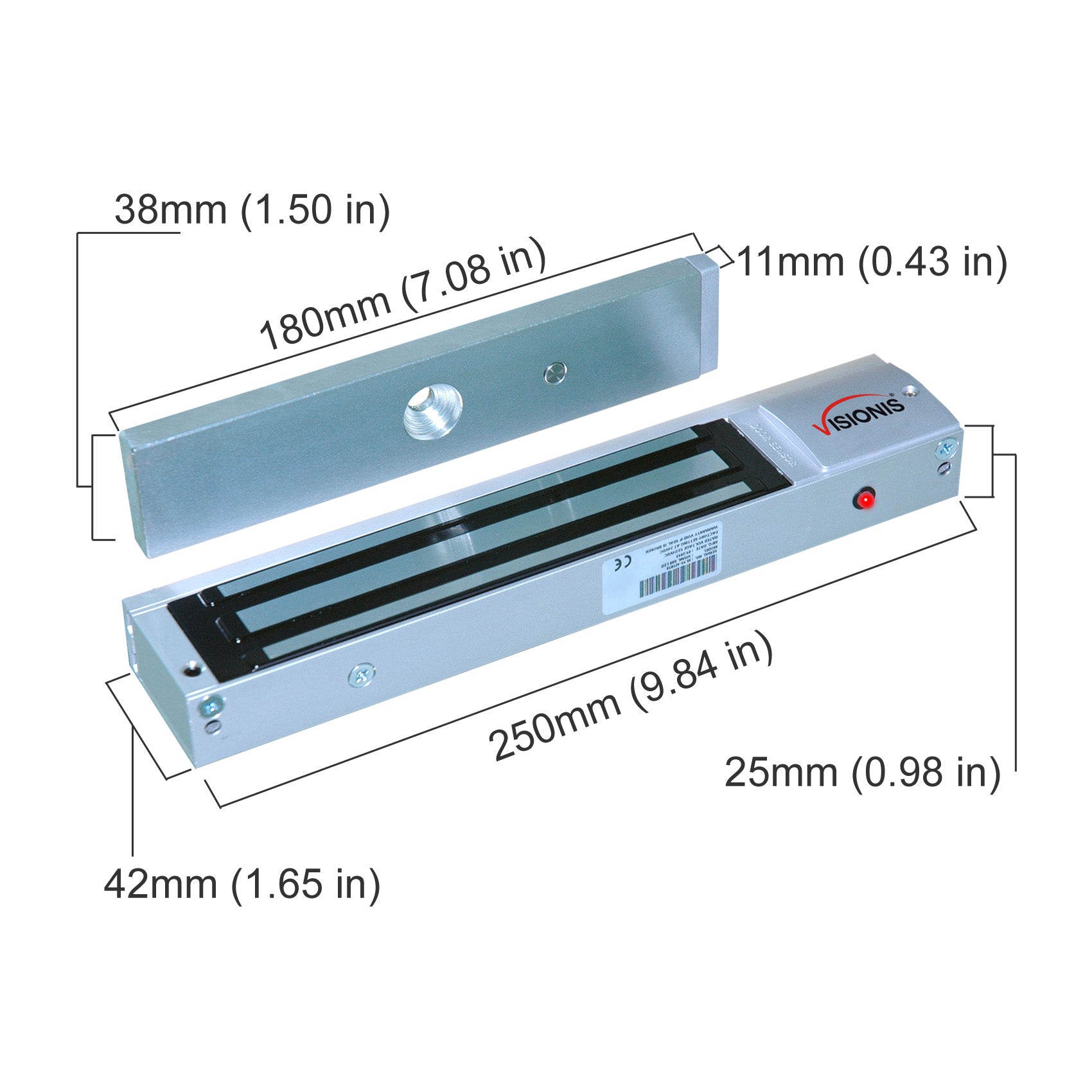

Dimensions 600lb Indoor Magnetic Lock with LED Sensor VIS-ML600LED

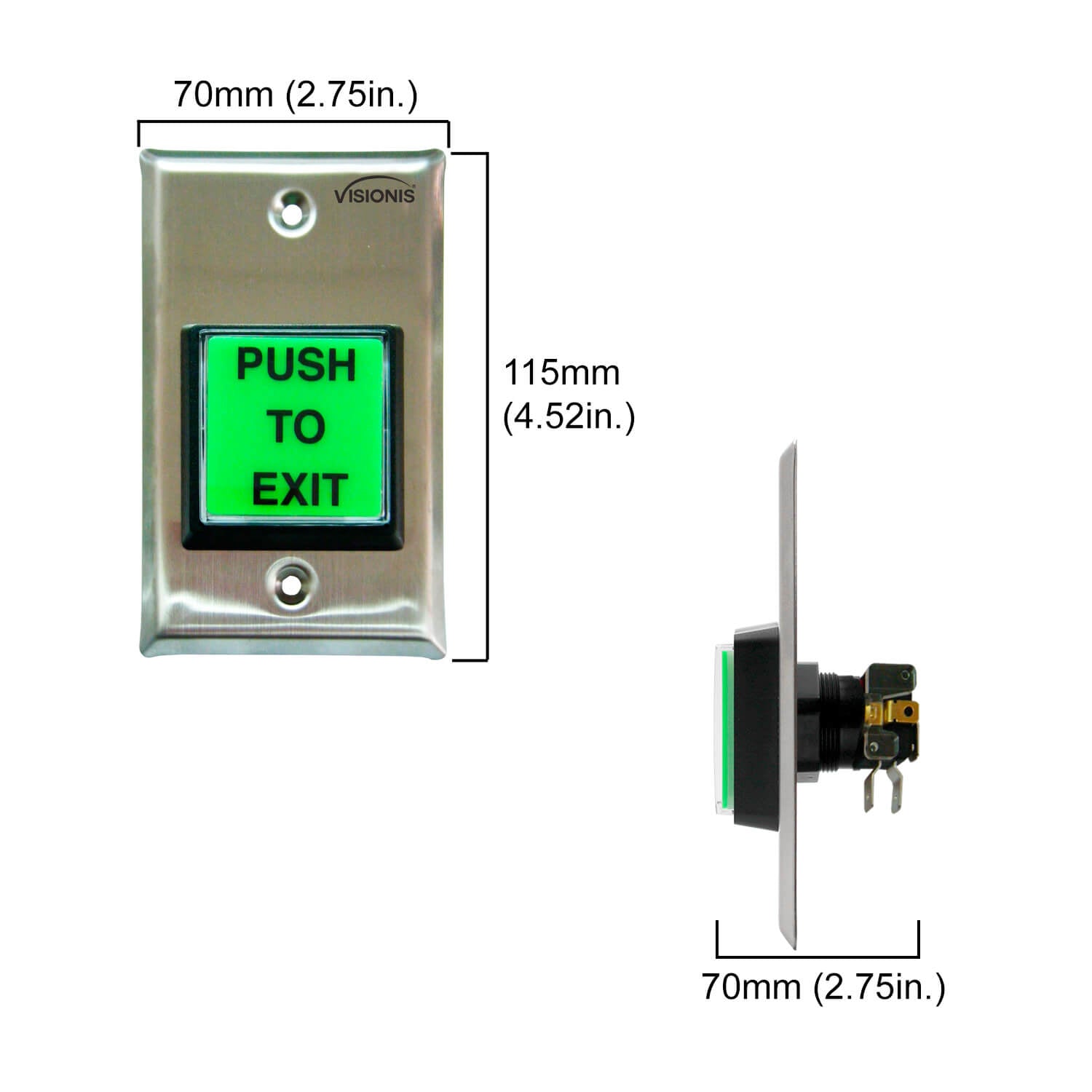

Dimensions green push to exit button - Visionis VIS-7000

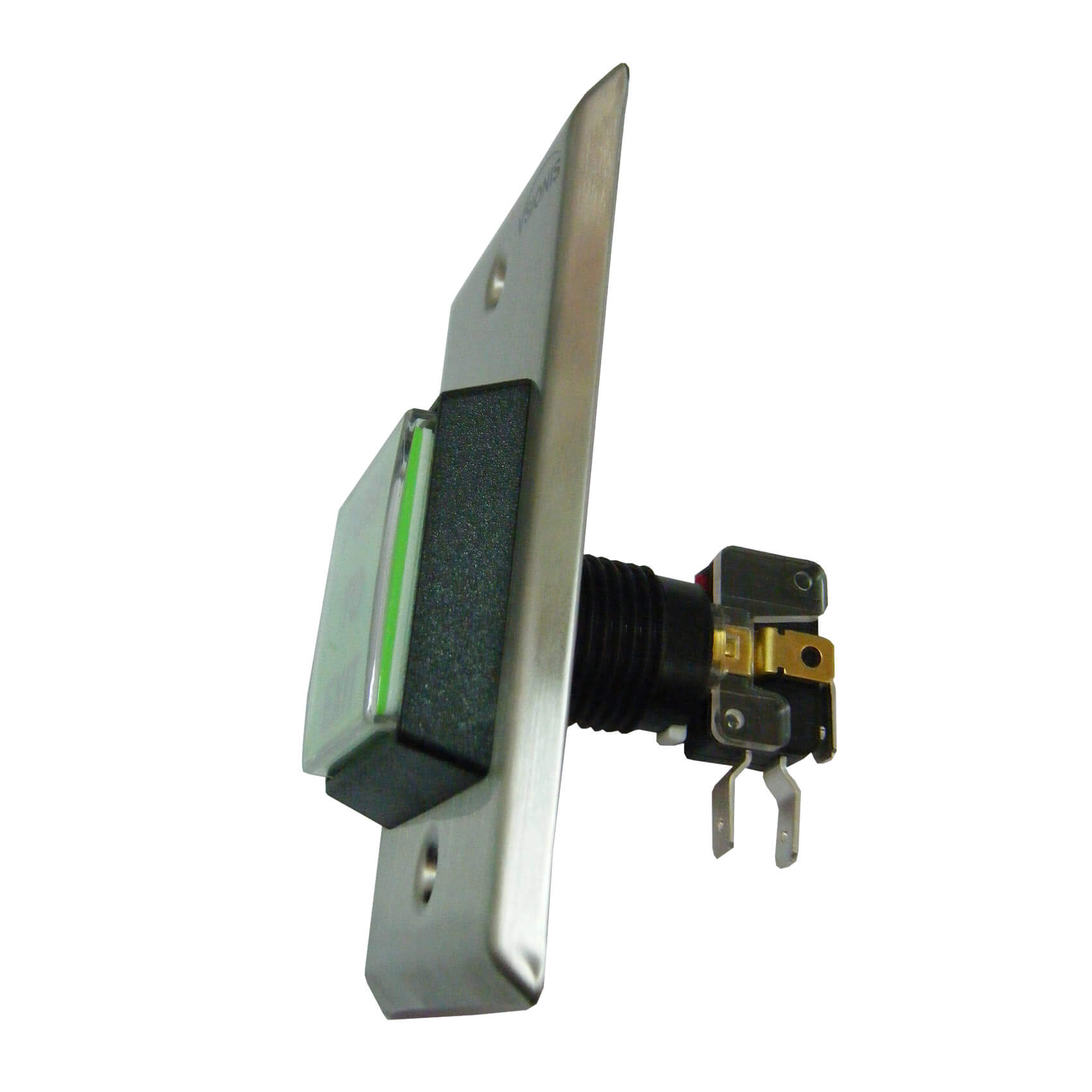

Green push to exit button SIDE VIEW - Visionis VIS-7000

Kit Includes:

(1)

VIS-ML600LED: 600lbs Indoor Electromagnetic Lock with LED Sensor

VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Can this maglock be used with inswing doors?

No, this specific kit is designed for outswing doors. However, you can check out our kits made for inswing doors: FPC-7319, FPC-7320, FPC-7321.

What is the holding force of this maglock?

This maglock provides 600 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model VIS-ML600LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)
Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-7000:

Output Contact: NC, COM, NO
Power: 12 VDC / 24 VDC
LED Indicator: Green LED (Standby)
Mechanical Life: 500,000 tests
Panel Hole Diameter: 25mm
Panel: Stainless steel 0.9mm thickness
Switch Material: Plastic
Operating Temperature: -20°C~+55°C (-4°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Dimension Of Plate: 115L × 70W × 70H mm - 4.52L x 2.75W x 2.75H in.
Weight: 0.118kg
Attention: This exit button is meant for indoor use. This Exit button does not have a delay.

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH

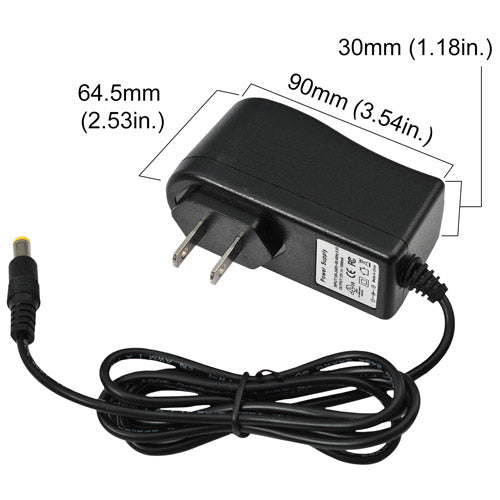

Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Can this maglock be used with inswing doors?

No, this specific kit is designed for outswing doors. However, you can check out our kits made for inswing doors: FPC-7319, FPC-7320, FPC-7321.

What is the holding force of this maglock?

This maglock provides 600 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Product FAQs

What type of doors is the maglock compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).
Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.
Does this lock have an LED indicator?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can this electromagnetic lock used for a sliding door?

Yes, it can.
Does the maglock make an audible sound when unlocked? Does it open the door slightly? How will customers know the door has been unlocked?

The lock makes a sound when unlocking, but it may not be very noticeable in noisy areas. It also has an LED indicator: the light turns off when unlocked and green when locked. Some users add a buzzer for a clearer sound.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does this kit come with a remote?

No, it doesn't. Check out our Wireless Remote “Buzz In” Kits.

Download Datasheets and Manuals of this product

FPC-7310, FPC-7313, FPC-7316, FPC-7319, FPC-7322, FPC-7325

Installation Diagram

VIS-ML600LED

VIS-7000

Visionis by Visionis

Indoor Magnetic Lock VIS-ML600LED 600lbs For Out Swinging Door With VIS-7000 Green LED Push To Exit Button NC, COM And NO Outputs For Access Control, 2 Amp Power Supply Included - FPC-7316 Visionis

UPC Code: 750958783417
