What type of doors is the maglock compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).

Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.

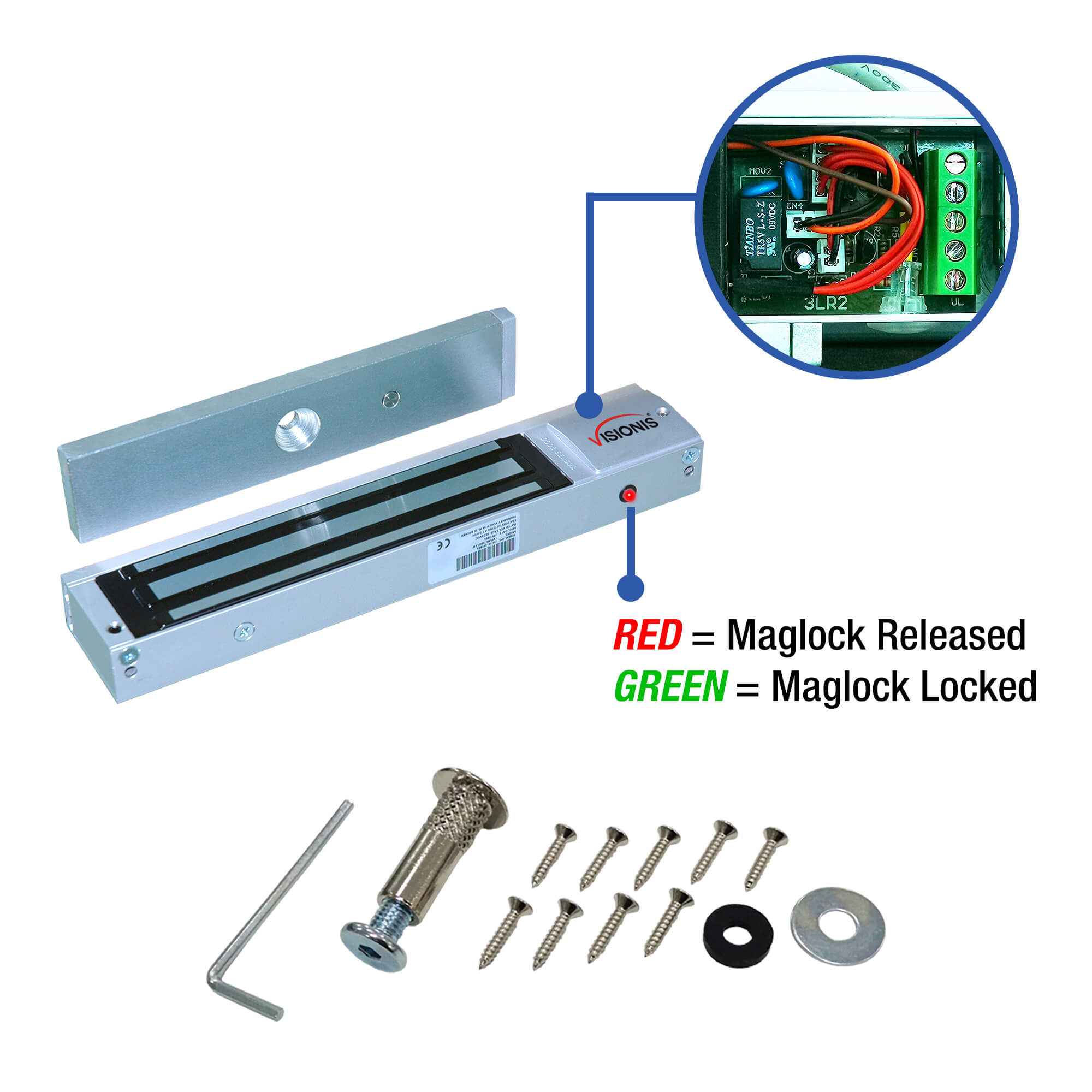

Does this lock have an LED indicator?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

Maglock with Door Release Button - FPC-7317

600lbs Magnetic Door Locks with Push to Exit Button Kit for Access Control

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

600 lbs magnetic door locks with LED Sensor VIS-ML600LED

600lb Indoor Magnetic Lock with LED Sensor VIS-ML600LED

Dimensions 600lb Indoor Magnetic Lock with LED Sensor VIS-ML600LED

Dimensions VIS-7001 outdoor push to exit button with stainless steel and LED indicator

outdoor push to exit button with stainless steel and LED indicator - VIS-7001 Visionis

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

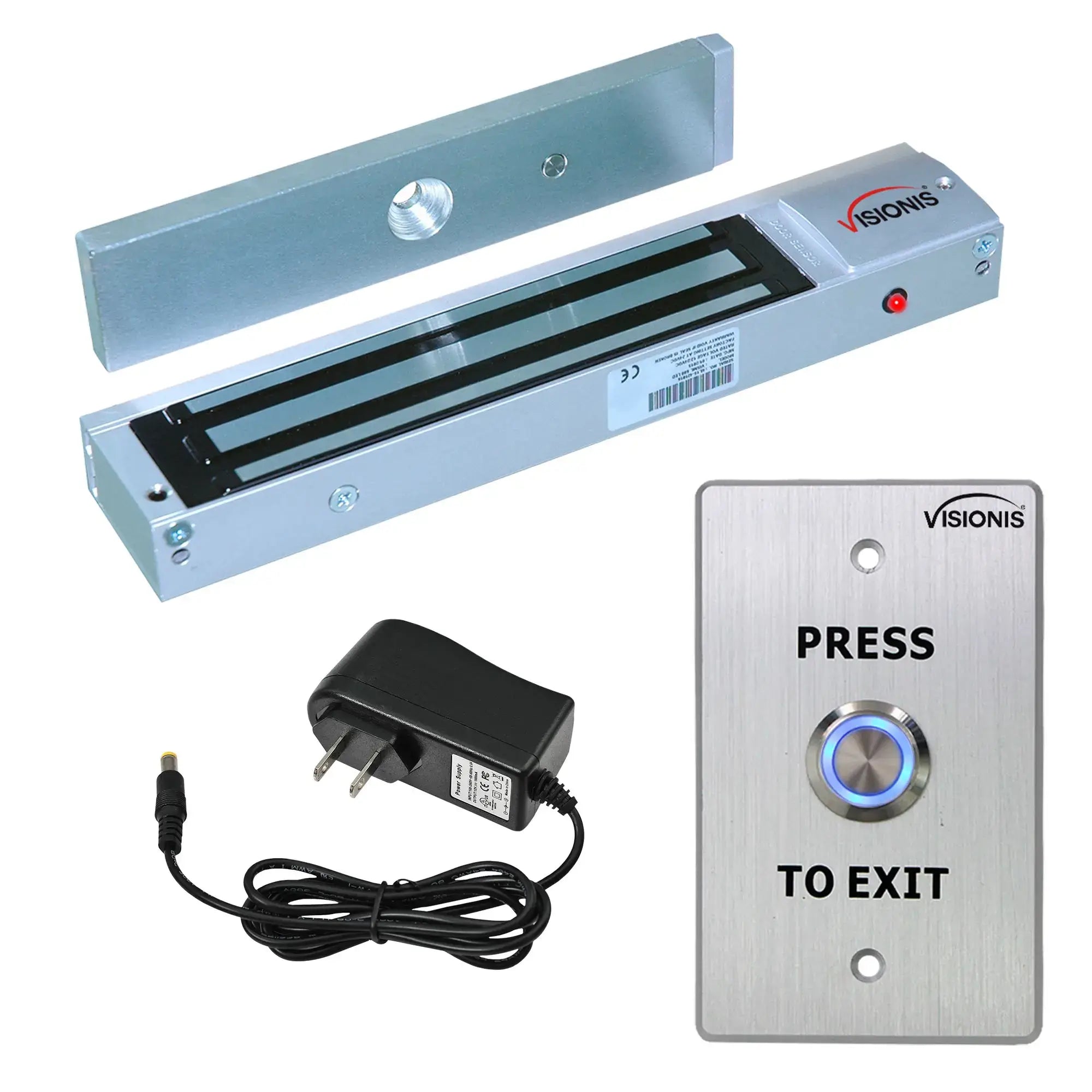

Kit Includes:

(1)

VIS-ML600LED: 600lbs Indoor Electromagnetic Lock with LED Sensor

VIS-7001: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request To Exit Button Standard Size w/ LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Can this maglock be used with inswing doors?

No, this specific kit is designed for outswing doors. However, you can check out our kits made for inswing doors: FPC-7319, FPC-7320, FPC-7321.

What is the holding force of this maglock?

This maglock provides 600 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model VIS-ML600LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)

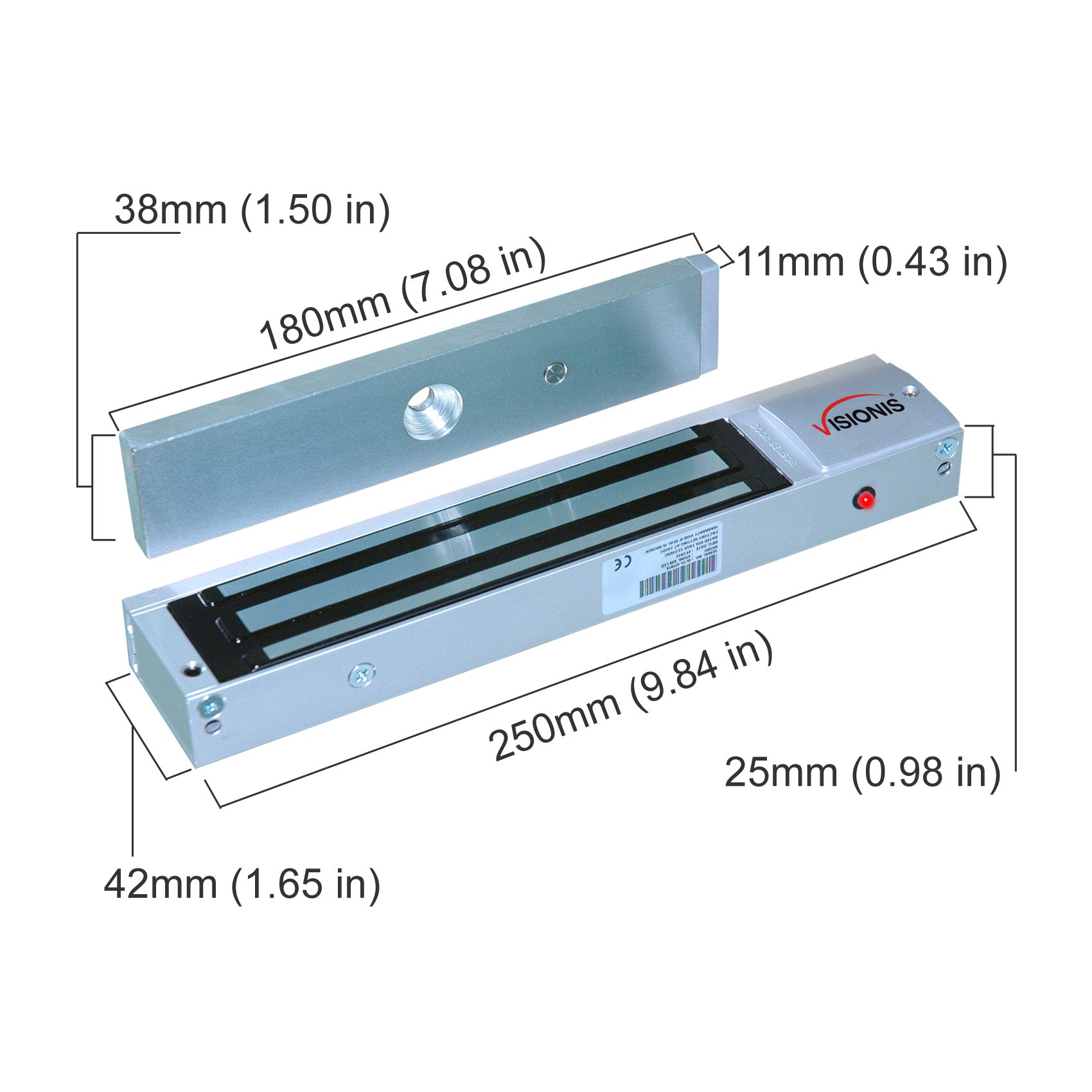

Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-7001:

Contact Rating: 3A/125-250VAC
Output Contact: NC, COM, NO
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.12kg
Dimension Of Plate: 115L × 70W × 40H mm - 4.52L x 2.75W x 1.57H in.
LED Color Indicator: Blue

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Can this maglock be used with inswing doors?

No, this specific kit is designed for outswing doors. However, you can check out our kits made for inswing doors: FPC-7319, FPC-7320, FPC-7321.

What is the holding force of this maglock?

This maglock provides 600 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Product FAQs

What type of doors is the maglock compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).
Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.
Does this lock have an LED indicator?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can this electromagnetic lock used for a sliding door?

Yes, it can.
Does the maglock make an audible sound when unlocked? Does it open the door slightly? How will customers know the door has been unlocked?

The lock makes a sound when unlocking, but it may not be very noticeable in noisy areas. It also has an LED indicator: the light turns off when unlocked and green when locked. Some users add a buzzer for a clearer sound.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does this kit come with a remote?

No, it doesn't. Check out our Wireless Remote “Buzz In” Kits.

Download Datasheets and Manuals of this product

FPC-7311, FPC-7314, FPC-7317, FPC-7320, FPC-7323, FPC-7326

Installation Diagram

VIS-ML600LED

VIS-7001
