300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED

indoor magnetic lock with LED status indicators, for access control systems VIS-ML300LED

VIS-LS300 - LS Bracket 300lbs VIS-ML300LED Maglock for Outswinging Narrow Door

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

VIS-ML300LED: 300lbs Indoor Electromagnetic Lock

VIS-LS300:

Description

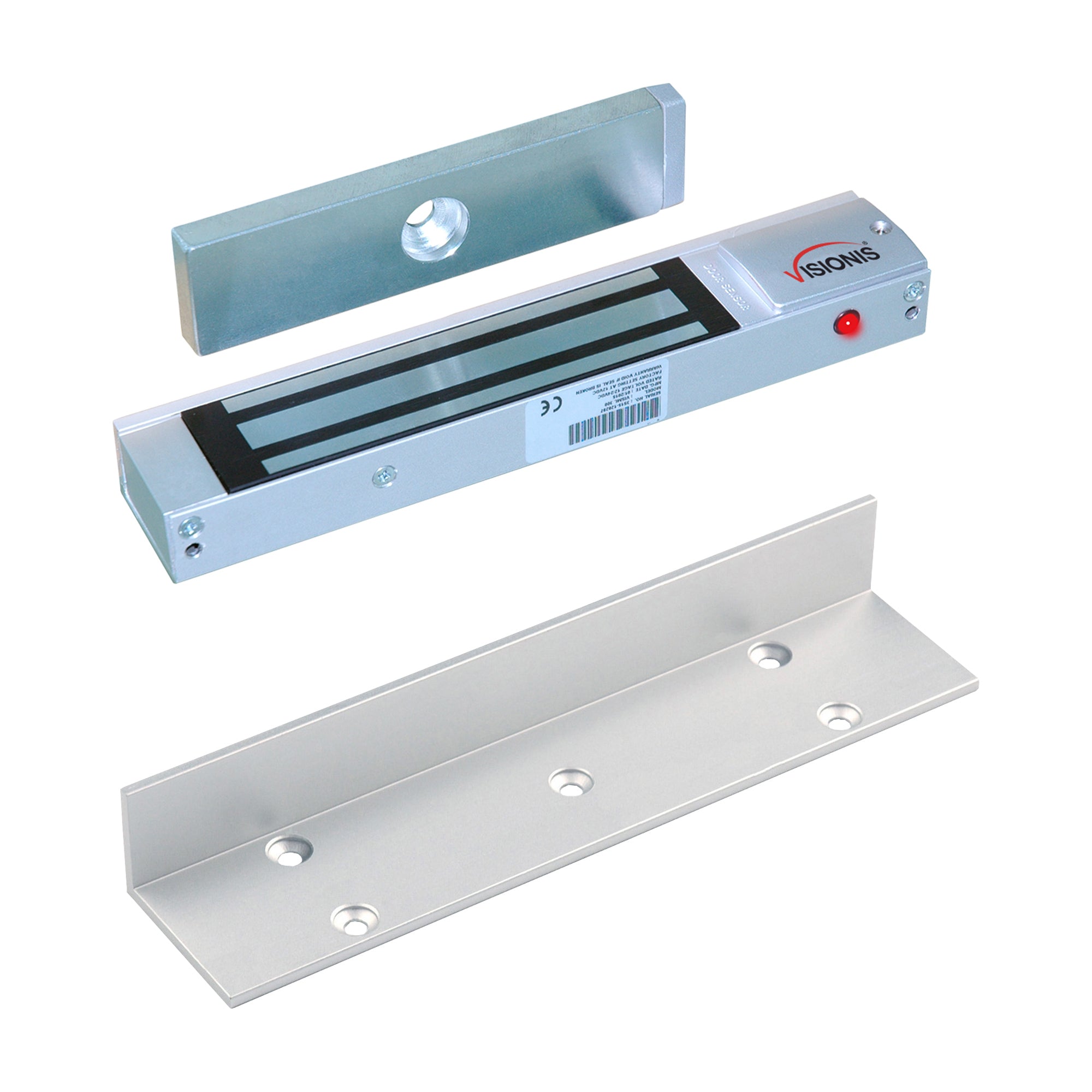

The FPC-5698 kit is a reliable security solution for narrow outswinging doors, featuring a 300lbs magnetic door lock (VIS-ML300LED) and an VIS-LS300 mounting bracket.

The VIS-ML300LED maglock delivers up to 300lbs of holding force, helping to secure doors against unauthorized entry. Installed beneath the top of the door frame, it keeps the door firmly closed and locked. The built-in LED indicator makes it easy to check the lock's status: red means locked, and green means unlocked.

The included VIS-LS300 bracket is specifically designed for narrow outswinging doors, ensuring proper alignment and optimal performance.

Ideal for residential, office, and light commercial applications, the FPC-5698 kit offers a durable and straightforward magnetic locking solution for enhanced door security.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model VIS-ML300LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Description

The FPC-5698 kit is a reliable security solution for narrow outswinging doors, featuring a 300lbs magnetic door lock (VIS-ML300LED) and an VIS-LS300 mounting bracket.

The VIS-ML300LED maglock delivers up to 300lbs of holding force, helping to secure doors against unauthorized entry. Installed beneath the top of the door frame, it keeps the door firmly closed and locked. The built-in LED indicator makes it easy to check the lock's status: red means locked, and green means unlocked.

The included VIS-LS300 bracket is specifically designed for narrow outswinging doors, ensuring proper alignment and optimal performance.

Ideal for residential, office, and light commercial applications, the FPC-5698 kit offers a durable and straightforward magnetic locking solution for enhanced door security.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Download Datasheets and Manuals of this product

VIS-ML300LED

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Indoor Magnetic Door Lock VIS-ML300LED. Up to 300 lbs (136 kg) of Holding Force. 12 VDC / 24 VDC + LS Bracket for Narrow Doors - FPC-5698 Visionis

Translation missing: en.products.product.sku:FPC-5698

UPC Code: 614961171855 Weight: 6.0 lb

Regular price: $43.92
Sale price: $43.92
Regular price

Shipping calculated at checkout.

Out of Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
