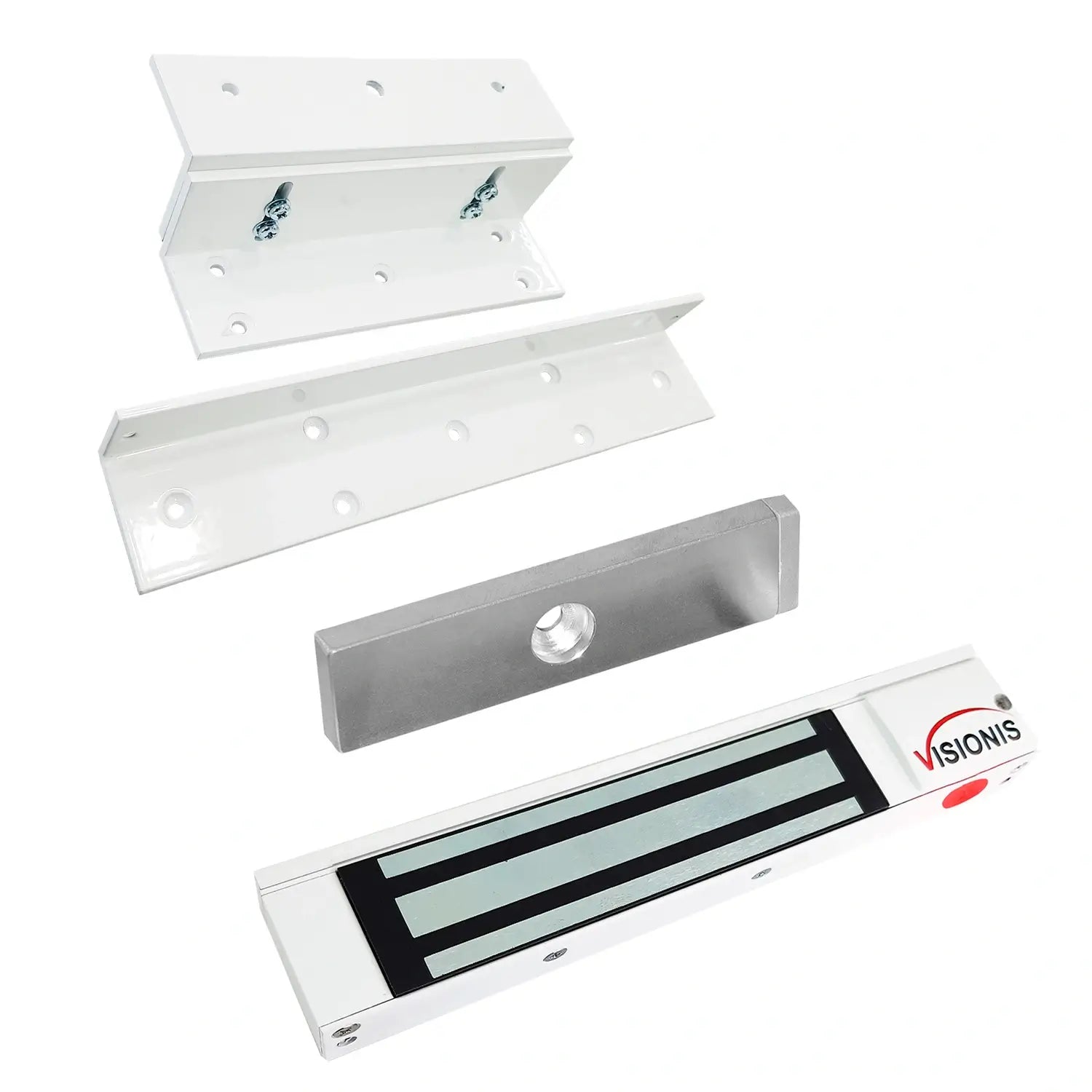

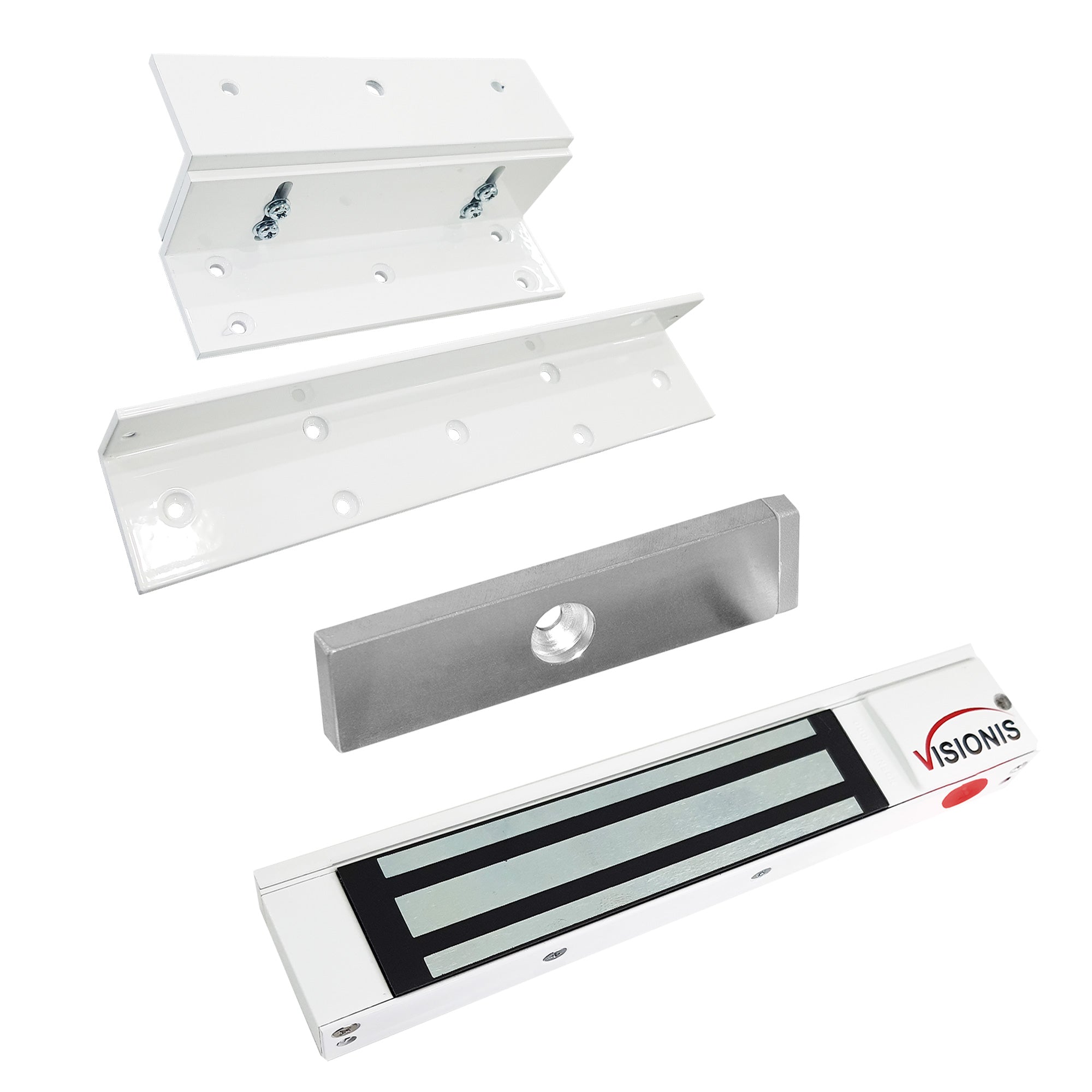

White magnetic door lock kit with 300lb electromagnetic lock and ZL bracket for inswing doors. VIS-ML300LED-WH - FPC-5191-WH VISIONIS

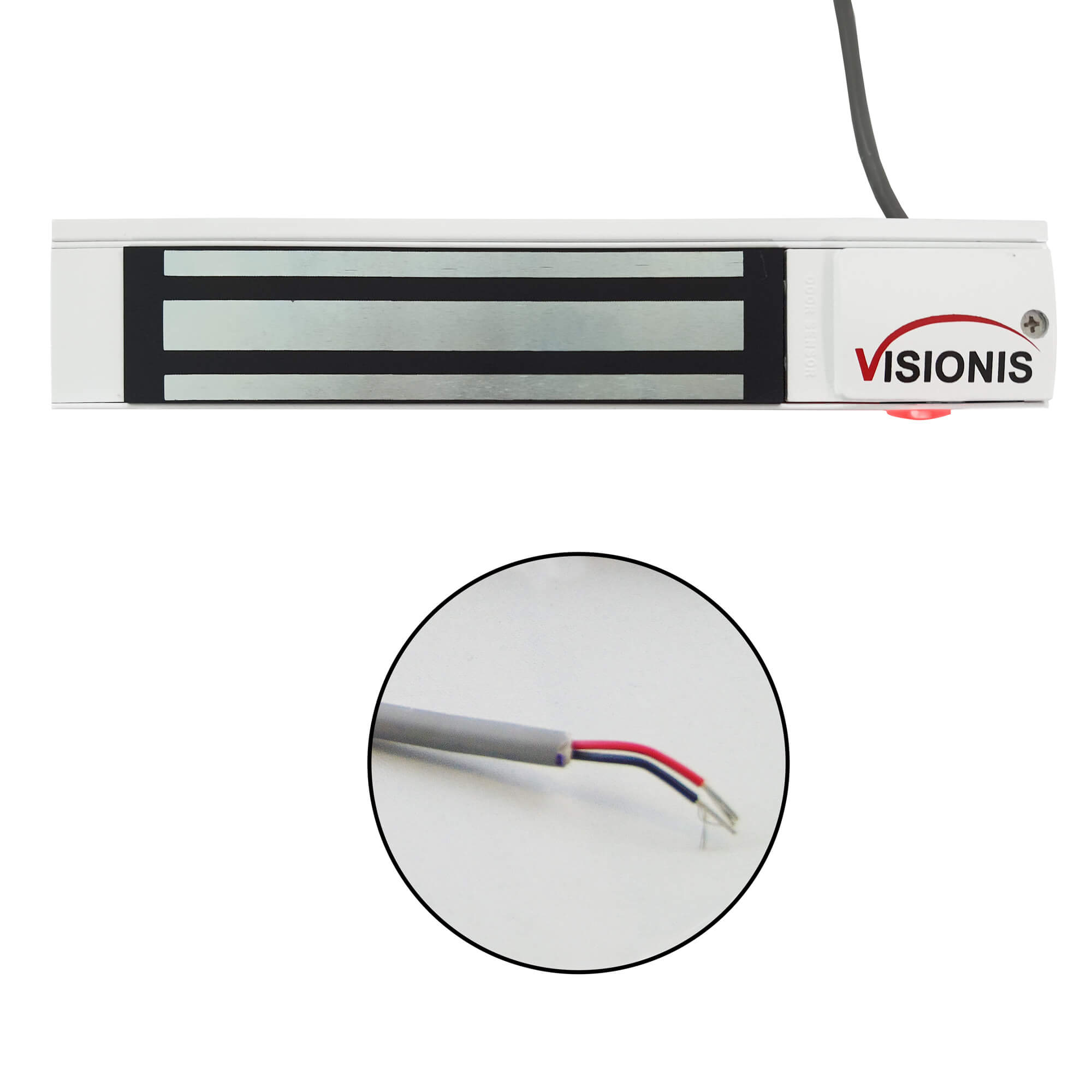

Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
Magnetic Lock 300 lbs for Door Access Control

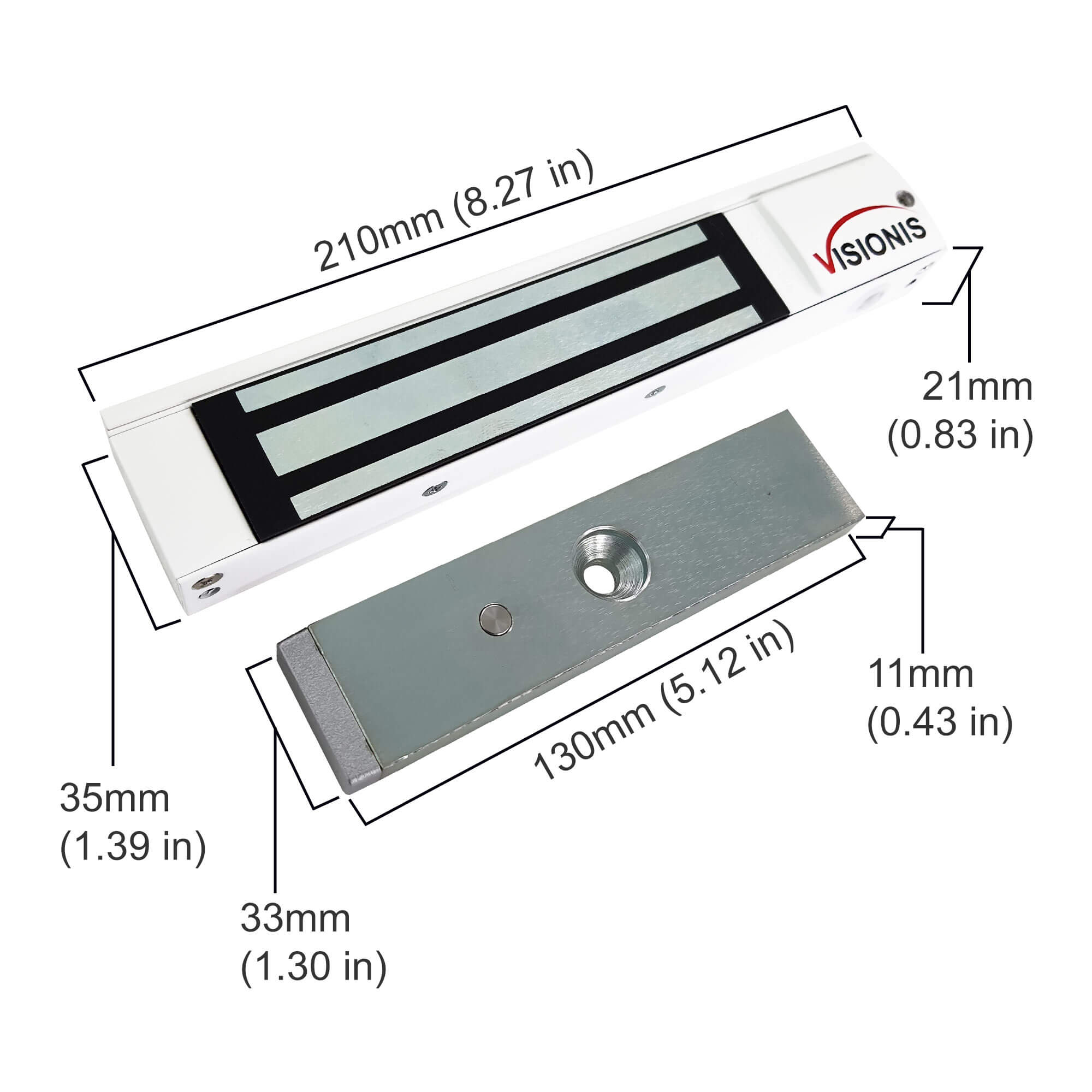

Indoor Magnetic Lock 300 lbs Dimensions VIS-ML300LED-WH Visionis

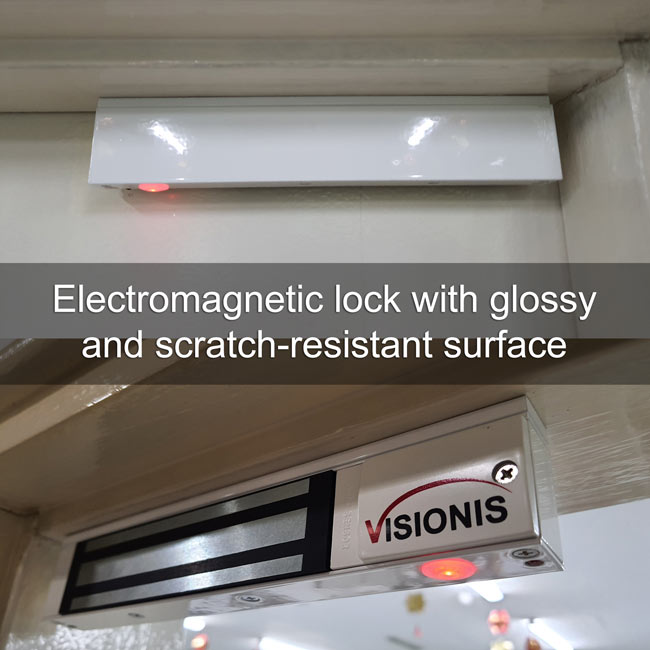

Indoor Magnetic Lock 300 lbs with LED Status VIS-ML300LED-WH Visionis
Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis

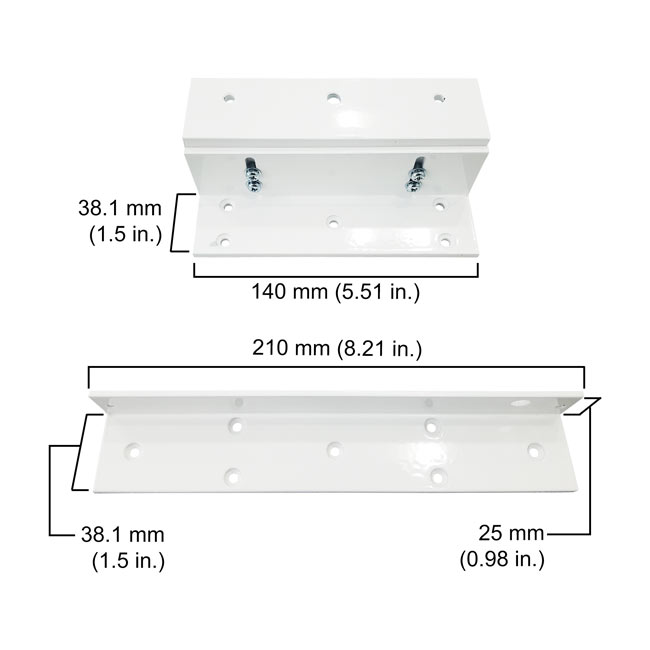

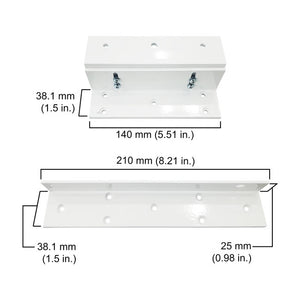

Z and L bracket for 300 lbs magnetic door lock dimensions - VIS-ZL300-WH

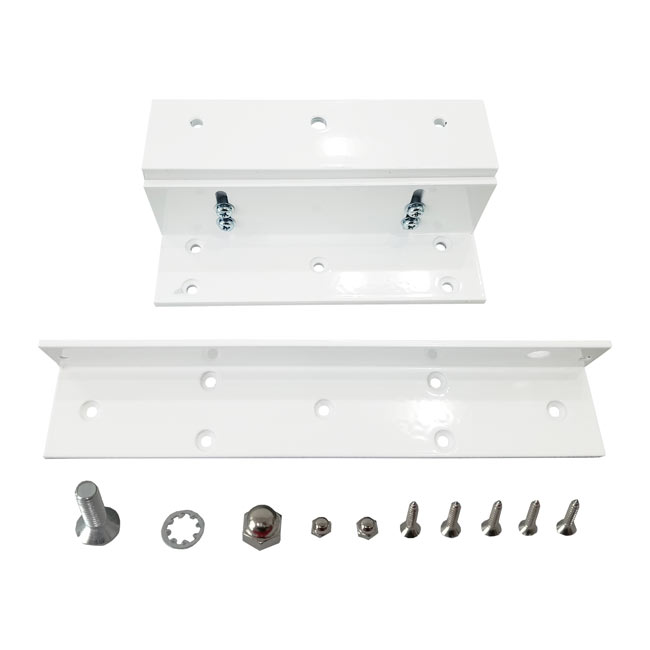

Z and L bracket for 300 lbs electromagnetic lock. White color - VIS-ZL300-WH
    White magnetic door lock kit with 300lb electromagnetic lock and ZL bracket for inswing doors. VIS-ML300LED-WH - FPC-5191-WH VISIONIS
    Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
    Magnetic Lock 300 lbs for Door Access Control
    Indoor Magnetic Lock 300 lbs Dimensions VIS-ML300LED-WH Visionis
    Indoor Magnetic Lock 300 lbs with LED Status VIS-ML300LED-WH Visionis
    Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
    Z and L bracket for 300 lbs magnetic door lock dimensions - VIS-ZL300-WH
    Z and L bracket for 300 lbs electromagnetic lock. White color - VIS-ZL300-WH
White magnetic door lock kit with 300lb electromagnetic lock and ZL bracket for inswing doors. VIS-ML300LED-WH - FPC-5191-WH VISIONIS
Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
Magnetic Lock 300 lbs for Door Access Control
Indoor Magnetic Lock 300 lbs Dimensions VIS-ML300LED-WH Visionis
Indoor Magnetic Lock 300 lbs with LED Status VIS-ML300LED-WH Visionis
Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
Z and L bracket for 300 lbs magnetic door lock dimensions - VIS-ZL300-WH
Z and L bracket for 300 lbs electromagnetic lock. White color - VIS-ZL300-WH
White magnetic door lock kit with 300lb electromagnetic lock and ZL bracket for inswing doors. VIS-ML300LED-WH - FPC-5191-WH VISIONIS
Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
Magnetic Lock 300 lbs for Door Access Control
Indoor Magnetic Lock 300 lbs Dimensions VIS-ML300LED-WH Visionis
Indoor Magnetic Lock 300 lbs with LED Status VIS-ML300LED-WH Visionis
Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
Z and L bracket for 300 lbs magnetic door lock dimensions - VIS-ZL300-WH
Z and L bracket for 300 lbs electromagnetic lock. White color - VIS-ZL300-WH
    White magnetic door lock kit with 300lb electromagnetic lock and ZL bracket for inswing doors. VIS-ML300LED-WH - FPC-5191-WH VISIONIS
    Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
    Magnetic Lock 300 lbs for Door Access Control
    Indoor Magnetic Lock 300 lbs Dimensions VIS-ML300LED-WH Visionis
    Indoor Magnetic Lock 300 lbs with LED Status VIS-ML300LED-WH Visionis
    Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
    Z and L bracket for 300 lbs magnetic door lock dimensions - VIS-ZL300-WH
    Z and L bracket for 300 lbs electromagnetic lock. White color - VIS-ZL300-WH
White magnetic door lock kit with 300lb electromagnetic lock and ZL bracket for inswing doors. VIS-ML300LED-WH - FPC-5191-WH VISIONIS
Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
Magnetic Lock 300 lbs for Door Access Control
Indoor Magnetic Lock 300 lbs Dimensions VIS-ML300LED-WH Visionis
Indoor Magnetic Lock 300 lbs with LED Status VIS-ML300LED-WH Visionis
Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis
Z and L bracket for 300 lbs magnetic door lock dimensions - VIS-ZL300-WH
Z and L bracket for 300 lbs electromagnetic lock. White color - VIS-ZL300-WH

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

The VISIONIS FPC-5191-WH Magnetic Door Lock Kit is a clean and effective access control solution for inswinging doors. It includes a 300 lb electromagnetic door lock (VIS-ML300LED-WH) in white and a matching white ZL bracket (VIS-ZL300-WH), both designed for secure, professional indoor installations.

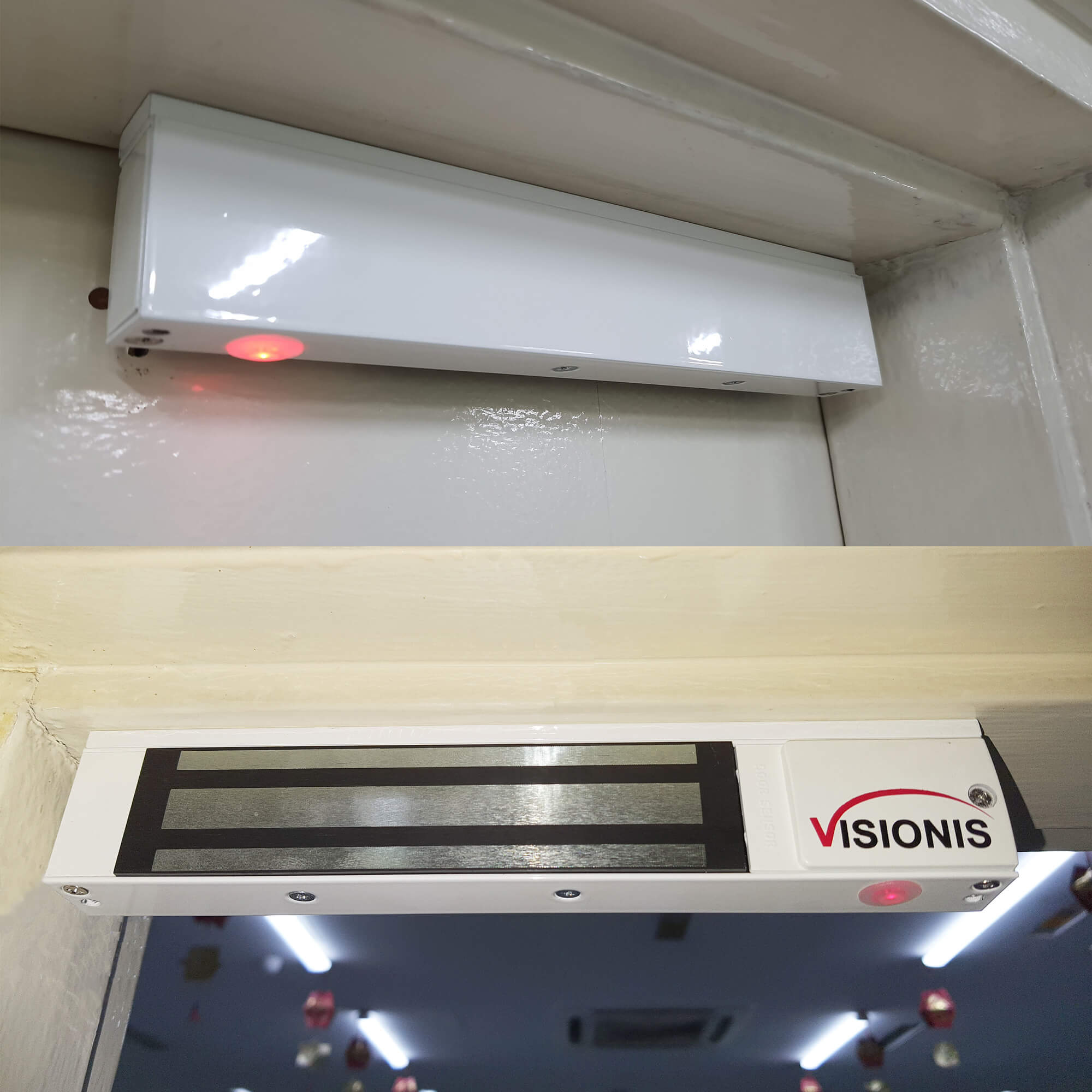

The VIS-ML300LED-WH mounts at the top of the door frame and provides 300 lbs of holding force to prevent forced entry. The lock features a built-in LED status light that turns red when locked and green when unlocked, allowing for quick visual confirmation.

The included ZL bracket ensures proper alignment and stability when mounting the lock on inswinging doors, making this magnetic door lock kit ideal for residential, office, and light commercial spaces where safety and aesthetics matter.

Key Features:

  • Complete magnetic door lock kit for inswinging doors
  • Includes 300 lb white maglock (VIS-ML300LED-WH) and white ZL bracket
  • LED indicator: Red = Locked, Green = Unlocked
  • Dual voltage input: 12VDC / 24VDC
  • Sleek white finish for clean integration into interior designs
  • Blue zinc-plated anti-rust surface treatment
  • Ideal for access control locks in homes, offices, and small businesses

This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model No. VIS-ML300LED-WH:

  • Color: White
  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL300-WH:

  • L and Z bracket for 300lbs electromagnetic lock
Description

The VISIONIS FPC-5191-WH Magnetic Door Lock Kit is a clean and effective access control solution for inswinging doors. It includes a 300 lb electromagnetic door lock (VIS-ML300LED-WH) in white and a matching white ZL bracket (VIS-ZL300-WH), both designed for secure, professional indoor installations.

The VIS-ML300LED-WH mounts at the top of the door frame and provides 300 lbs of holding force to prevent forced entry. The lock features a built-in LED status light that turns red when locked and green when unlocked, allowing for quick visual confirmation.

The included ZL bracket ensures proper alignment and stability when mounting the lock on inswinging doors, making this magnetic door lock kit ideal for residential, office, and light commercial spaces where safety and aesthetics matter.

Key Features:

  • Complete magnetic door lock kit for inswinging doors
  • Includes 300 lb white maglock (VIS-ML300LED-WH) and white ZL bracket
  • LED indicator: Red = Locked, Green = Unlocked
  • Dual voltage input: 12VDC / 24VDC
  • Sleek white finish for clean integration into interior designs
  • Blue zinc-plated anti-rust surface treatment
  • Ideal for access control locks in homes, offices, and small businesses

This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

  • Do these locks work with both 12V and 24V power supplies?

    Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

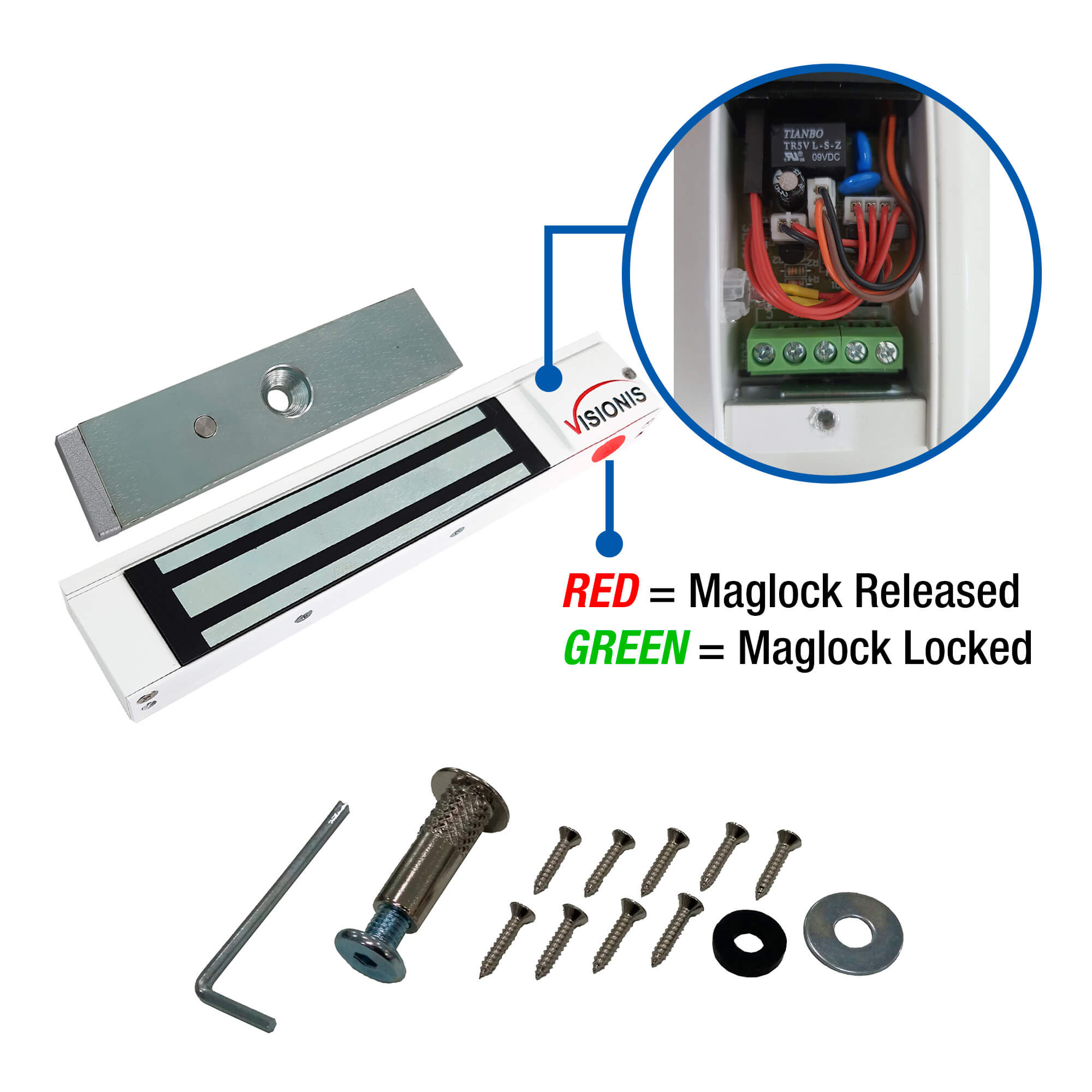

  • Will I be able to tell if the magnetic lock is working by looking at it?

    Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

    Green = Locked
    Red = Released
    Off = No input

  • Can these magnetic locks be installed on glass/sliding doors?

    Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

  • What happens to the maglock when the power goes out?

    This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

  • Does the magnetic lock make a noise when unlocking?

    The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.

  • Does it have a time delay or timer function?

    No, it doesn't.

  • Is this magnetic door lock kit weatherproof?

    This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.

Download Datasheets and Manuals of this product

VIS-ZL300-WH

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Indoor Magnetic Door Lock with 300 lbs (136 kg) of Holding Force VIS-ML300LED-WH. WHITE Color + L and Z Bracket - FPC-5191-WH Visionis

Translation missing: en.products.product.sku:FPC-5191-WH

UPC Code: 718910359858 Weight: 5.0 lb
