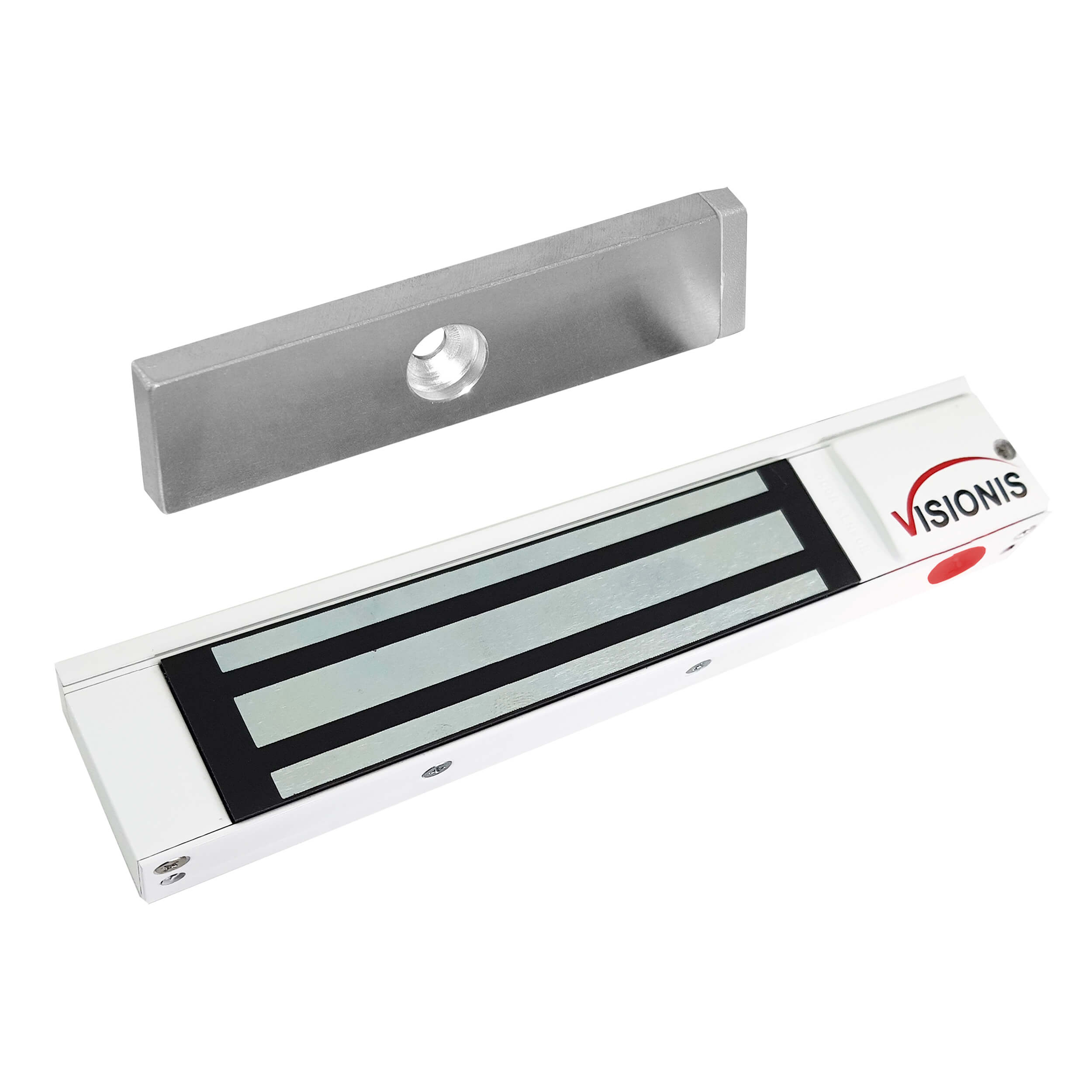

Indoor Magnetic Lock 300 lbs VIS-ML300LED-WH Visionis

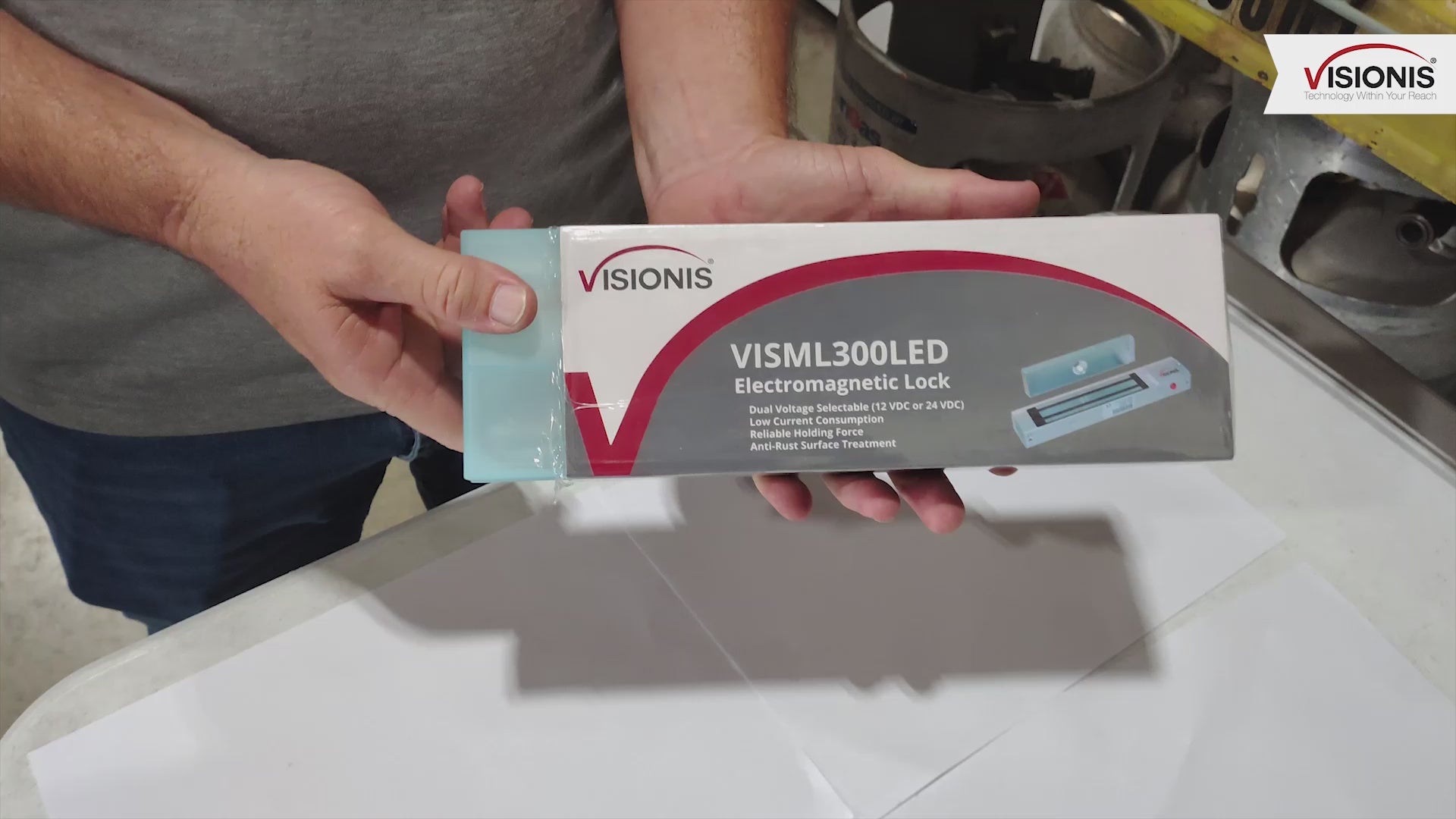

White Indoor Magnetic Door Lock. Up to 300 lbs (136 kg) Holding Force. Visionis (Unboxing)

Magnetic Lock 300 lbs Features VIS-ML300LED Visionis

Magnetic Lock 300 lbs for Door Access Control

Indoor Magnetic Lock 300 lbs with LED Status VIS-ML300LED-WH Visionis

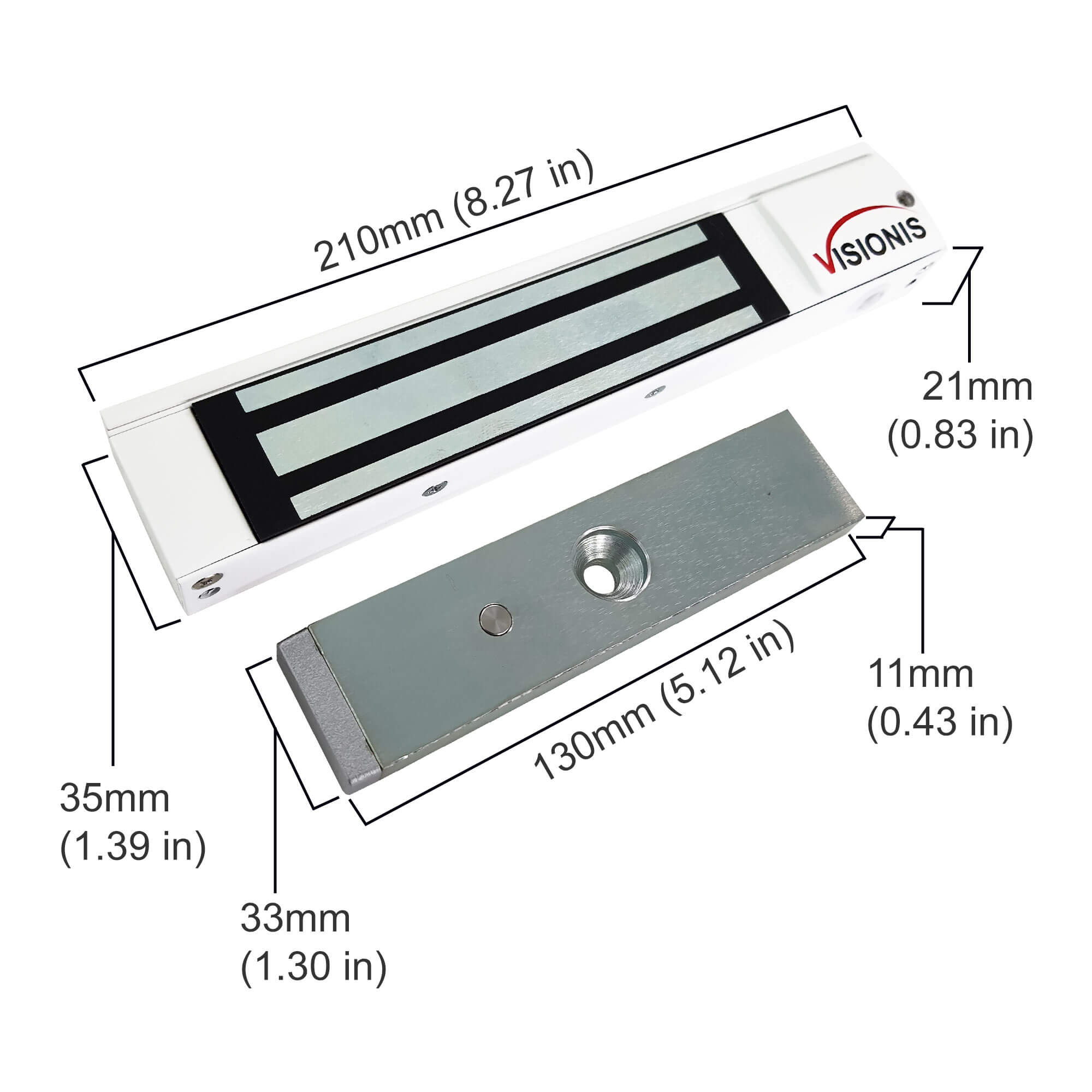

Indoor Magnetic Lock 300 lbs Dimensions VIS-ML300LED-WH Visionis

Electromagnetic Lock 300 lbs VIS-ML300LED-WH Visionis White Color

Description

IMPORTANT: This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Main Features

Holding Force

Up to 300 lbs (136 kg)

Voltage Input

12 VDC / 24 VDC

Applications

Indoor Only

Single Door Magnetic Lock

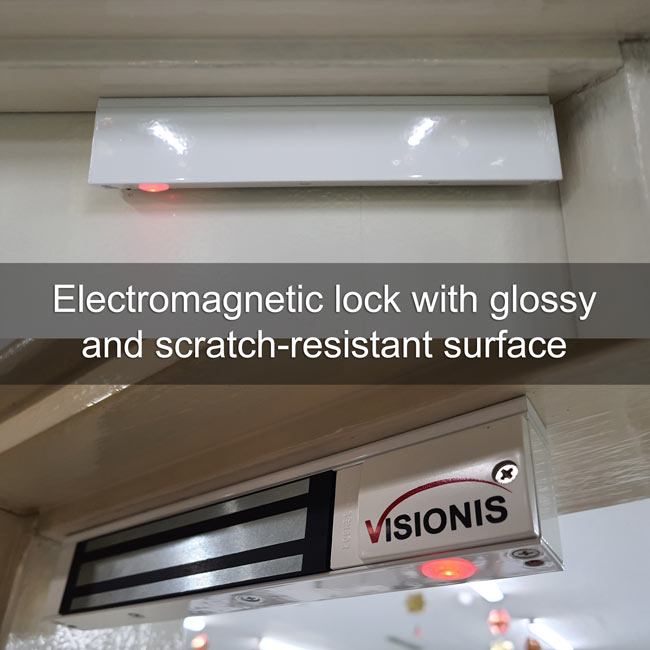

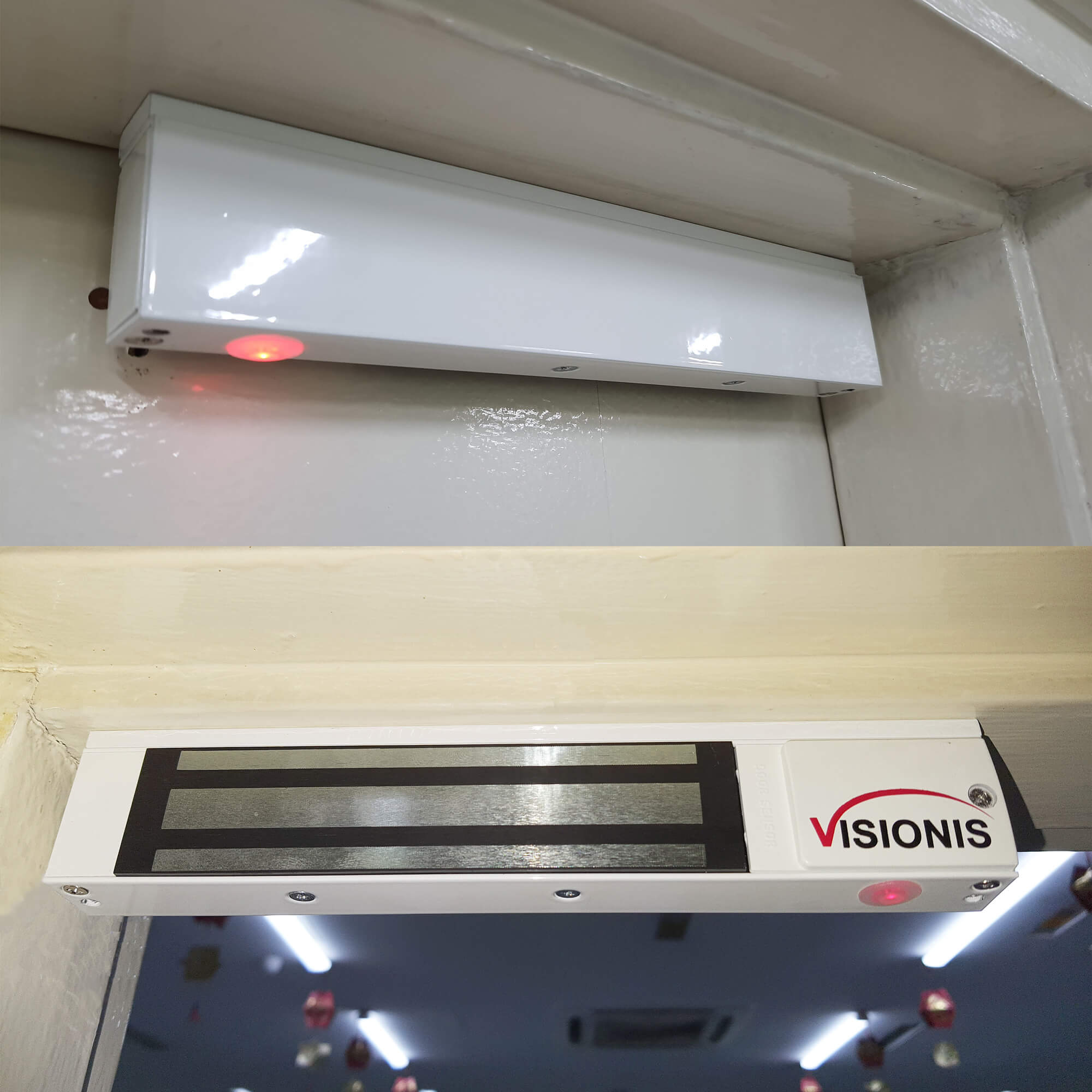

Maglocks are typically installed on the top corner of the door frame, with the magnet mounted on the frame and the armature plate attached to the door. This setup ensures a secure hold when the door is closed.

Color Magnetic Locks: Silver, Black, White

Multiple Color Options to Match Your Design

Our maglocks are available in silver, black, and white, allowing you to choose the perfect color to complement your door and overall decor.

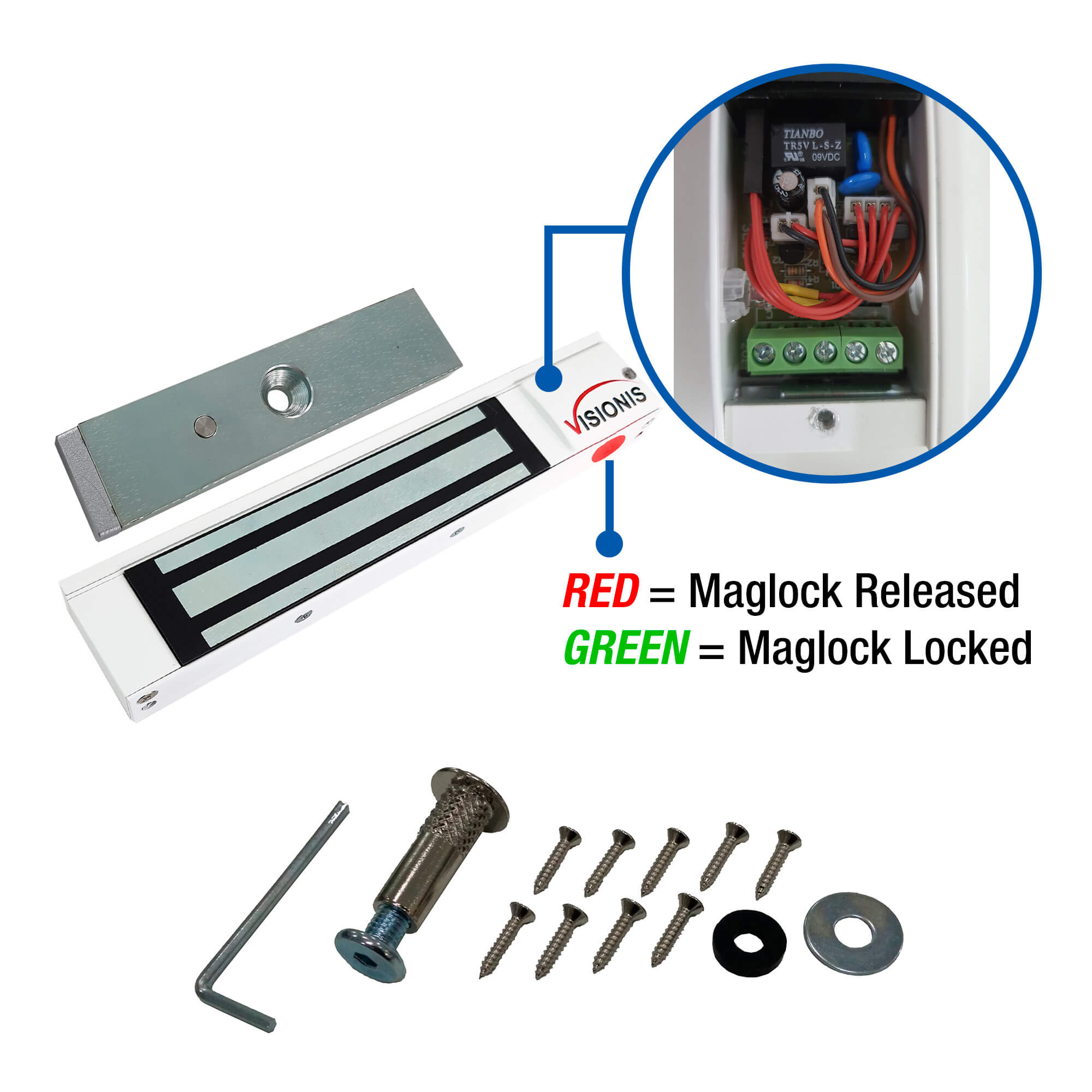

LED Indicators

Built-in LED indicators provide real-time lock status, adding an extra layer of control and convenience.

RED = Maglock Released

GREEN = Maglock Locked

Installation Walkthrough

Characteristics

Model No. VIS-ML300LED-WH:

Color: White
Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Description

IMPORTANT: This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model No. VIS-ML300LED-WH:

Color: White
Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Download Datasheets and Manuals of this product

VIS-ML300LED-WH

Visionis by Visionis

Indoor Magnetic Door Lock White Color. Up to 300 lbs (136 kg) of Holding Force. 12 VDC / 24 VDC - VIS-ML300LED-WH Visionis

Name: Indoor Magnetic Door Lock White Color. Up to 300 lbs (136 kg) of Holding Force. 12 VDC / 24 VDC - VIS-ML300LED-WH Visionis
Brand: Visionis
SKU: VIS-ML300LED-WH
Price: 48.2 USD
Availability: InStock

UPC Code: 718910359735

Certifications:

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $48.20
Sale price: $48.20
Regular price

Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:

Holding Force: Up to 300 lbs (136 kg)
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Green/Red LED Indication for EM Lock Status
This is a Fail Safe or Normally Close lock, meaning it will unlock without power.

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
