This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

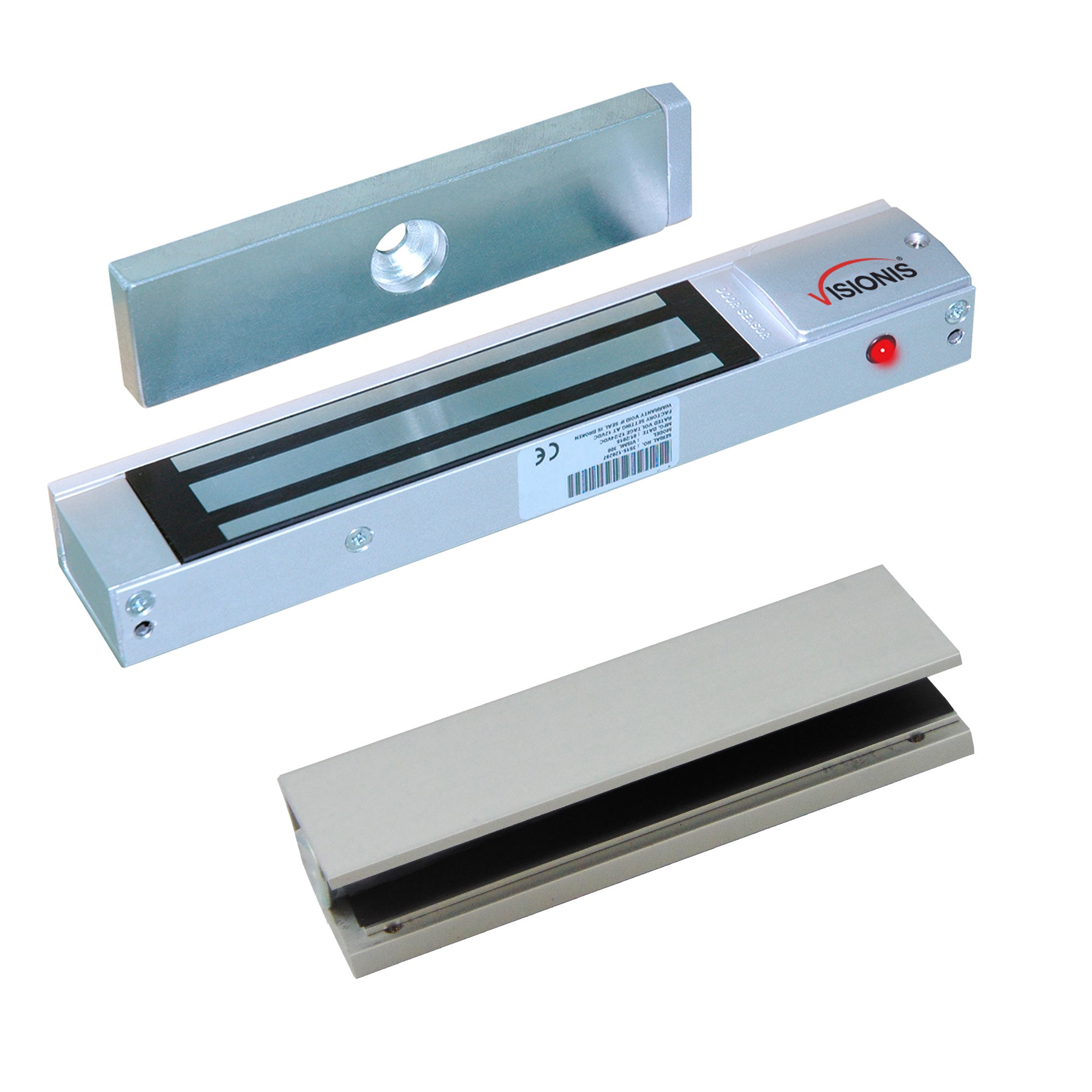

The VISIONIS FPC-5224 Magnetic Door Lock Kit is designed specifically for glass doors, offering a compact and secure solution with a 300 lb electromagnetic lock and a U-bracket for proper glass mounting. This kit features the VIS-ML300LED maglock, which provides a dependable level of security for interior commercial, office, or storefront access points.

Installed at the top of the door frame, the door magnetic lock holds the door firmly shut when powered. Its built-in LED indicator makes lock status easy to monitor—red means locked, green means unlocked. The included VIS-U1-300 bracket is designed to support mounting on frameless glass doors, ensuring both security and a clean, professional appearance.

With anti-rust blue zinc plating, dual voltage input, and a lightweight build, the FPC-5224 magnetic door lock kit is ideal for securing glass entryways with minimal visual impact.

Key Features:

  • 300 lb electromagnetic door lock with LED status light (VIS-ML300LED)
  • Includes U-bracket (VIS-U1-300) for frameless glass door installation
  • Red/Green LED indicator shows lock status clearly
  • Dual voltage: 12VDC or 24VDC
  • Blue zinc-plated anti-rust finish
  • Ideal for office glass doors, retail spaces, and indoor access control
  • Easy to install, compact, and clean design



NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model VIS-ML300LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VS-U1-300:

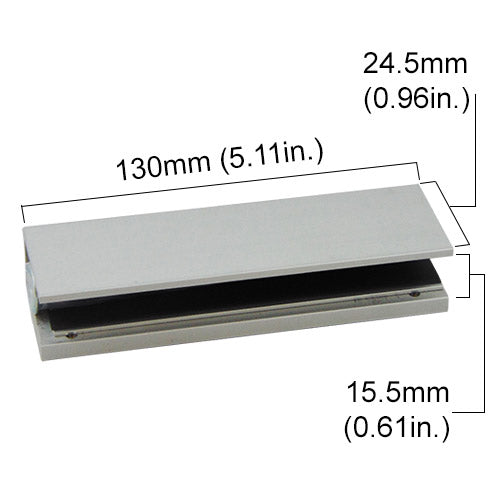

  • Visionis U1-300 bracket for 300lb Electromagnetic lock for Glass Doors

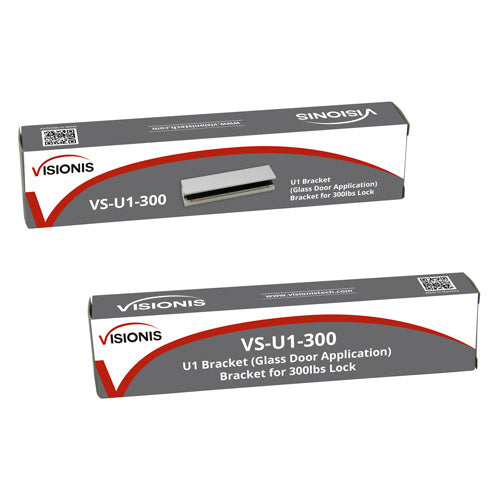

Packaging of this product
Description

The VISIONIS FPC-5224 Magnetic Door Lock Kit is designed specifically for glass doors, offering a compact and secure solution with a 300 lb electromagnetic lock and a U-bracket for proper glass mounting. This kit features the VIS-ML300LED maglock, which provides a dependable level of security for interior commercial, office, or storefront access points.

Installed at the top of the door frame, the door magnetic lock holds the door firmly shut when powered. Its built-in LED indicator makes lock status easy to monitor—red means locked, green means unlocked. The included VIS-U1-300 bracket is designed to support mounting on frameless glass doors, ensuring both security and a clean, professional appearance.

With anti-rust blue zinc plating, dual voltage input, and a lightweight build, the FPC-5224 magnetic door lock kit is ideal for securing glass entryways with minimal visual impact.

Key Features:

  • 300 lb electromagnetic door lock with LED status light (VIS-ML300LED)
  • Includes U-bracket (VIS-U1-300) for frameless glass door installation
  • Red/Green LED indicator shows lock status clearly
  • Dual voltage: 12VDC or 24VDC
  • Blue zinc-plated anti-rust finish
  • Ideal for office glass doors, retail spaces, and indoor access control
  • Easy to install, compact, and clean design



NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

  • Can this magnetic lock be installed on a glass door?

    Yes, the included VIS-U1-300 U-bracket is designed for mounting on frameless glass doors.

  • Is this kit strong enough for daily use?

    Yes, with 300 lbs of holding force, it’s ideal for interior doors with moderate traffic.

  • Does it come with a power supply?

    No, this kit includes the maglock and bracket only. A power supply must be purchased separately.

  • Is this lock weatherproof?

    No, it’s intended for indoor use only, specifically on glass doors.

  • Can I use it with both 12V and 24V systems?

    Yes, it supports both 12VDC and 24VDC for flexible system integration.

Download Datasheets and Manuals of this product

VIS-U1-300

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Indoor Magnetic Door Lock with 300 lbs (136 kg) of Holding Force VIS-ML300LED + U Bracket For Glass Door - FPC-5224 Visionis

Translation missing: en.products.product.sku:FPC-5224

UPC Code: 701772944072 Weight: 5.0 lb
Regular price
$52.86
Sale price
$52.86
Regular price
Shipping calculated at checkout.

Out of Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
