300lb magnetic door lock kit with LED indicator and power supply for outswinging doors. VIS-ML300LED FPC-5360 VISIONIS

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED

indoor magnetic lock with LED status indicators, for access control systems VIS-ML300LED

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

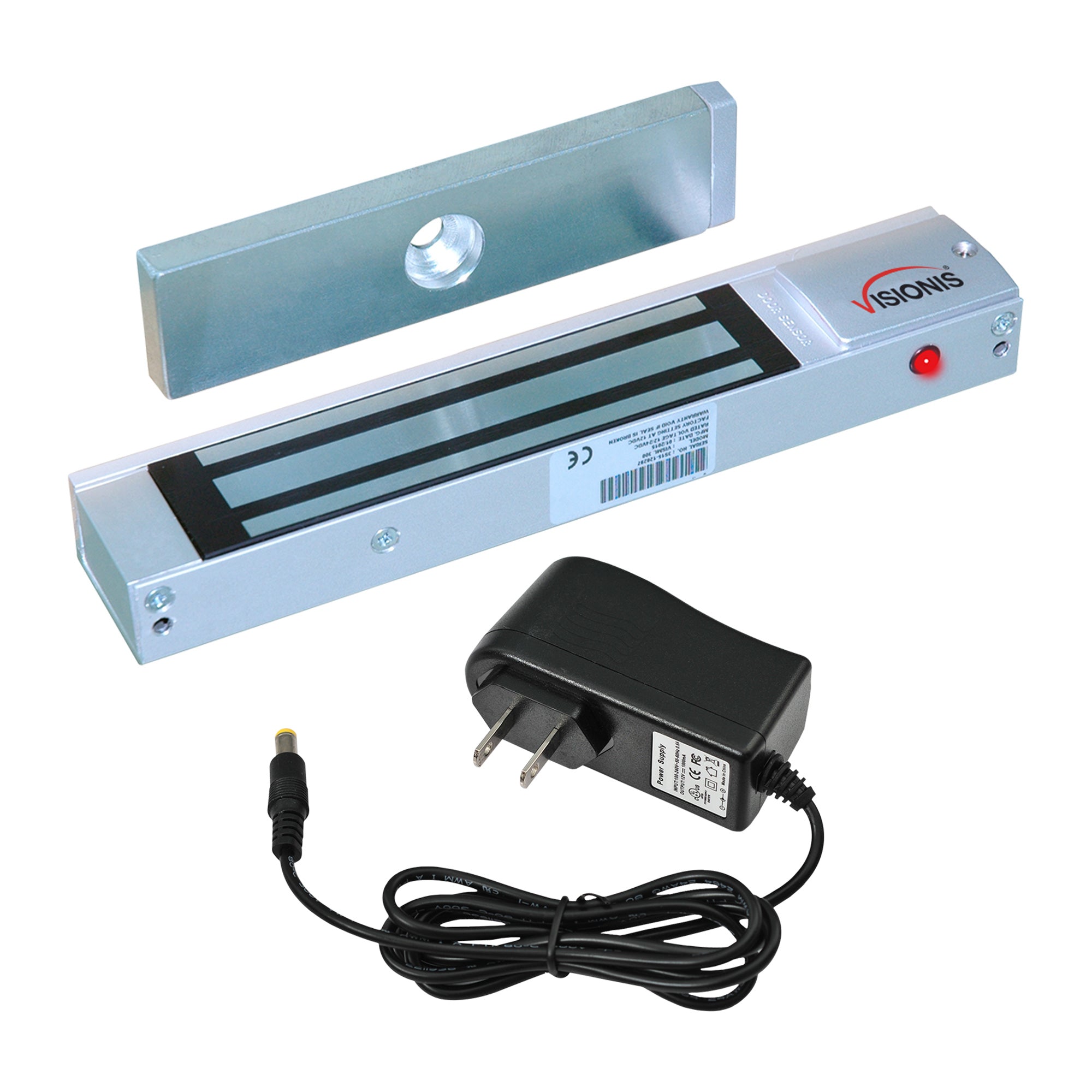

Kit Includes:

(1)

VIS-ML300LED: 300lbs Indoor Electromagnetic Lock

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The VISIONIS FPC-5360 Magnetic Door Lock Kit is a compact and efficient solution for outswinging doors. This entry-level kit includes the VIS-ML300LED electromagnetic door lock with 300 lbs of holding force, plus a 12V 1A power supply, allowing for quick and easy installation right out of the box.

Designed to be mounted at the top of the door frame, the door magnetic lock secures the door when powered. The built-in LED status indicator offers visual feedback—red means locked, green means unlocked—making it ideal for offices, small access points, or low-traffic doors that still require reliable security.

With anti-rust blue zinc plating, dual voltage support (12VDC or 24VDC), and compact size, this magnetic door lock kit delivers value, safety, and ease of use for light-duty access control applications.

Key Features:

300 lb electromagnetic door lock with LED indicator (VIS-ML300LED)
Designed for outswinging doors in office or residential use
LED light: Red = Locked, Green = Unlocked
Includes 12VDC 1A power supply—no extra hardware required
Dual voltage: 12VDC or 24VDC compatible
Blue zinc anti-rust finish for lasting performance
Compact and easy to install—great for light-security zones

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model VIS-ML300LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The VISIONIS FPC-5360 Magnetic Door Lock Kit is a compact and efficient solution for outswinging doors. This entry-level kit includes the VIS-ML300LED electromagnetic door lock with 300 lbs of holding force, plus a 12V 1A power supply, allowing for quick and easy installation right out of the box.

Designed to be mounted at the top of the door frame, the door magnetic lock secures the door when powered. The built-in LED status indicator offers visual feedback—red means locked, green means unlocked—making it ideal for offices, small access points, or low-traffic doors that still require reliable security.

With anti-rust blue zinc plating, dual voltage support (12VDC or 24VDC), and compact size, this magnetic door lock kit delivers value, safety, and ease of use for light-duty access control applications.

Key Features:

300 lb electromagnetic door lock with LED indicator (VIS-ML300LED)
Designed for outswinging doors in office or residential use
LED light: Red = Locked, Green = Unlocked
Includes 12VDC 1A power supply—no extra hardware required
Dual voltage: 12VDC or 24VDC compatible
Blue zinc anti-rust finish for lasting performance
Compact and easy to install—great for light-security zones

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.
Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.
Does it have a time delay or timer function?

No, it doesn't.
Is this magnetic door lock kit weatherproof?

This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.
