Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

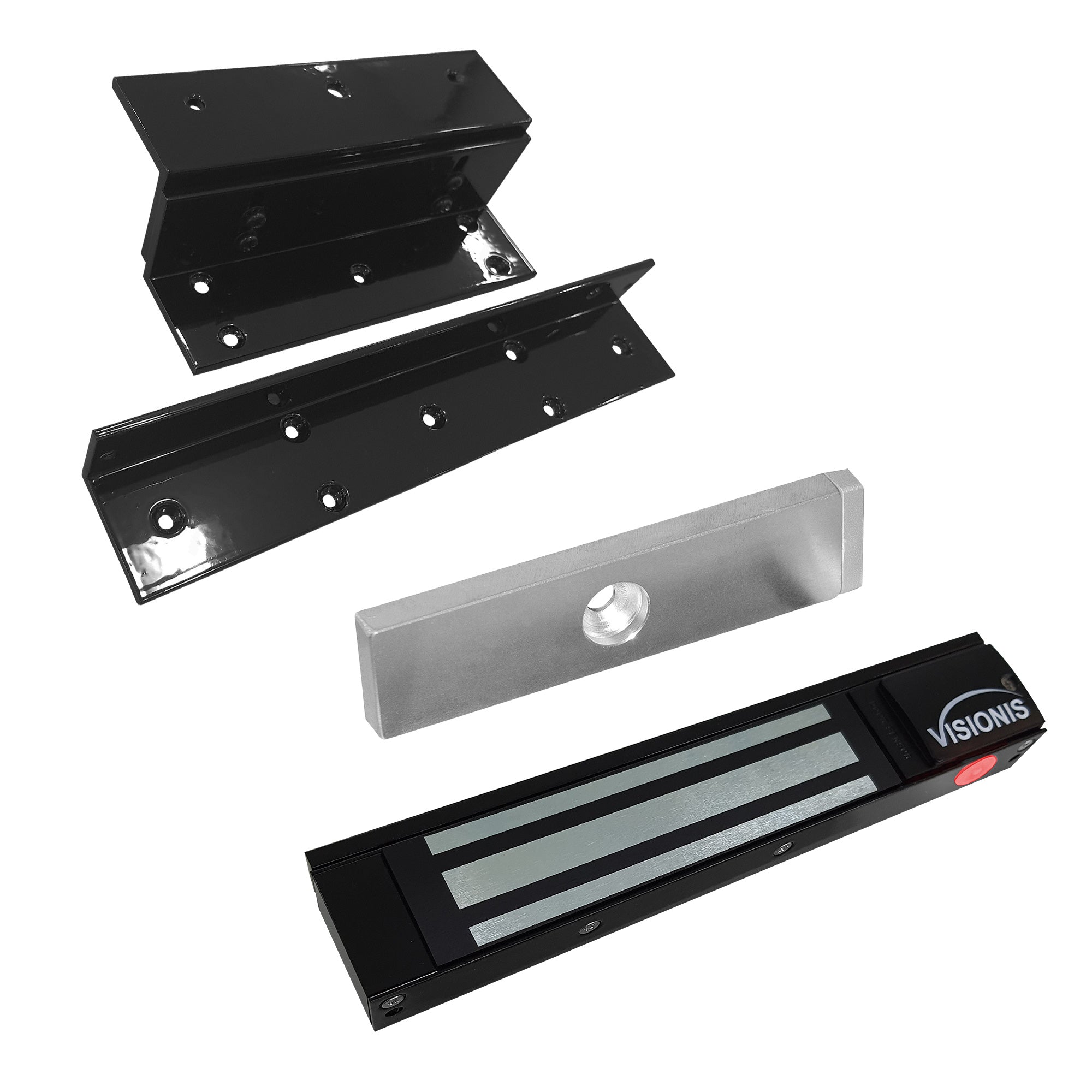

Black magnetic door lock kit with 300lb maglock and ZL bracket for inswing doors. VIS-ML300LED-BL - FPC-5191-BL VISIONIS

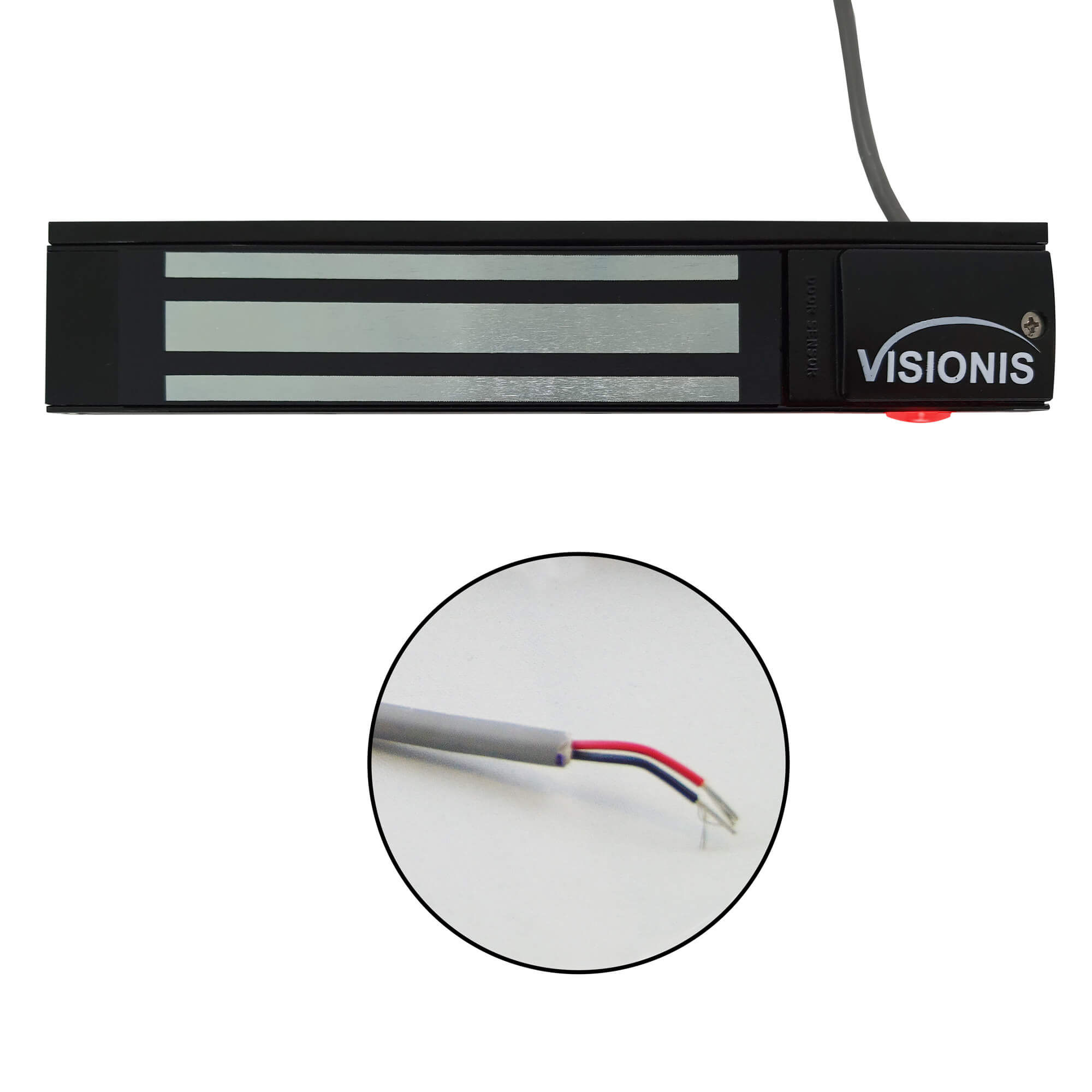

Electromagnetic Lock 300 lbs VIS-ML300LED Visionis Black Color

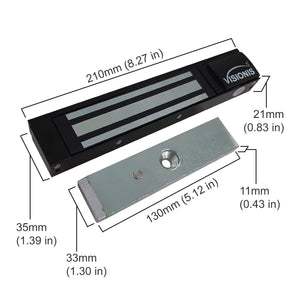

Indoor Magnetic Lock 300 lbs Dimensions VIS-ML300LED Visionis

Indoor Magnetic Lock 300 lbs with LED Status VIS-ML300LED Visionis

Magnetic Lock 300 lbs for Door Access Control Black Color

Magnetic Lock 300 lbs for Door Access Control

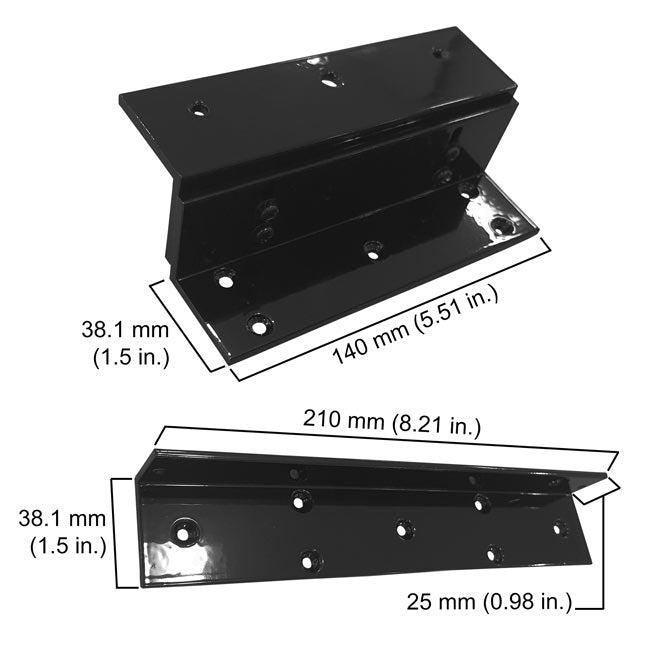

Z and L bracket for 300 lbs magnetic door lock dimensions - VIS-ZL300-BL

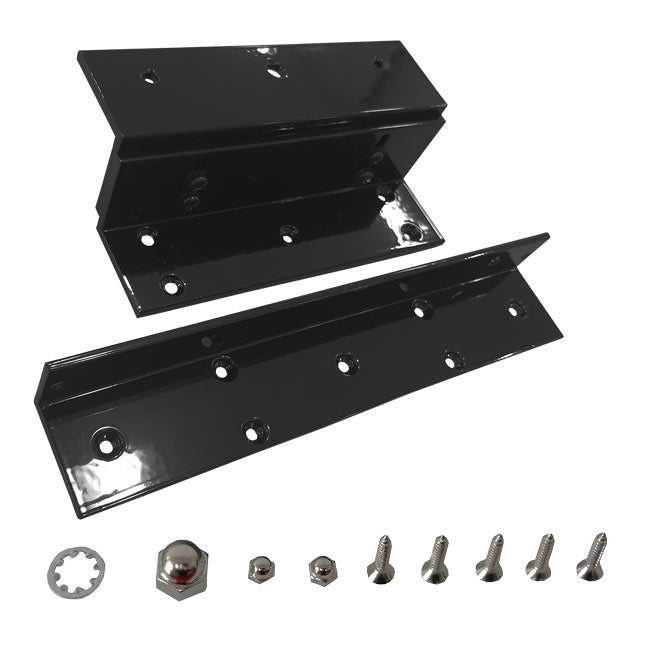

Z and L bracket for 300 lbs magnetic door lock. Black color - VIS-ZL300-BL

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

VIS-ML300LED-BL: Black 300LBS Indoor Electromagnetic Lock with LED Sensor

VIS-ZL300-BL: L and Z Bracket for 300lbs Electromagnetic Lock

Description

The VISIONIS FPC-5191-BL Magnetic Door Lock Kit is a secure, stylish solution for inswinging doors, combining a sleek black 300 lb electromagnetic door lock (VIS-ML300LED-BL) and a black ZL bracket (VIS-ZL300-BL) for proper alignment and installation. Ideal for residential, office, and light commercial environments, this kit ensures dependable door locking with a clean, modern appearance.

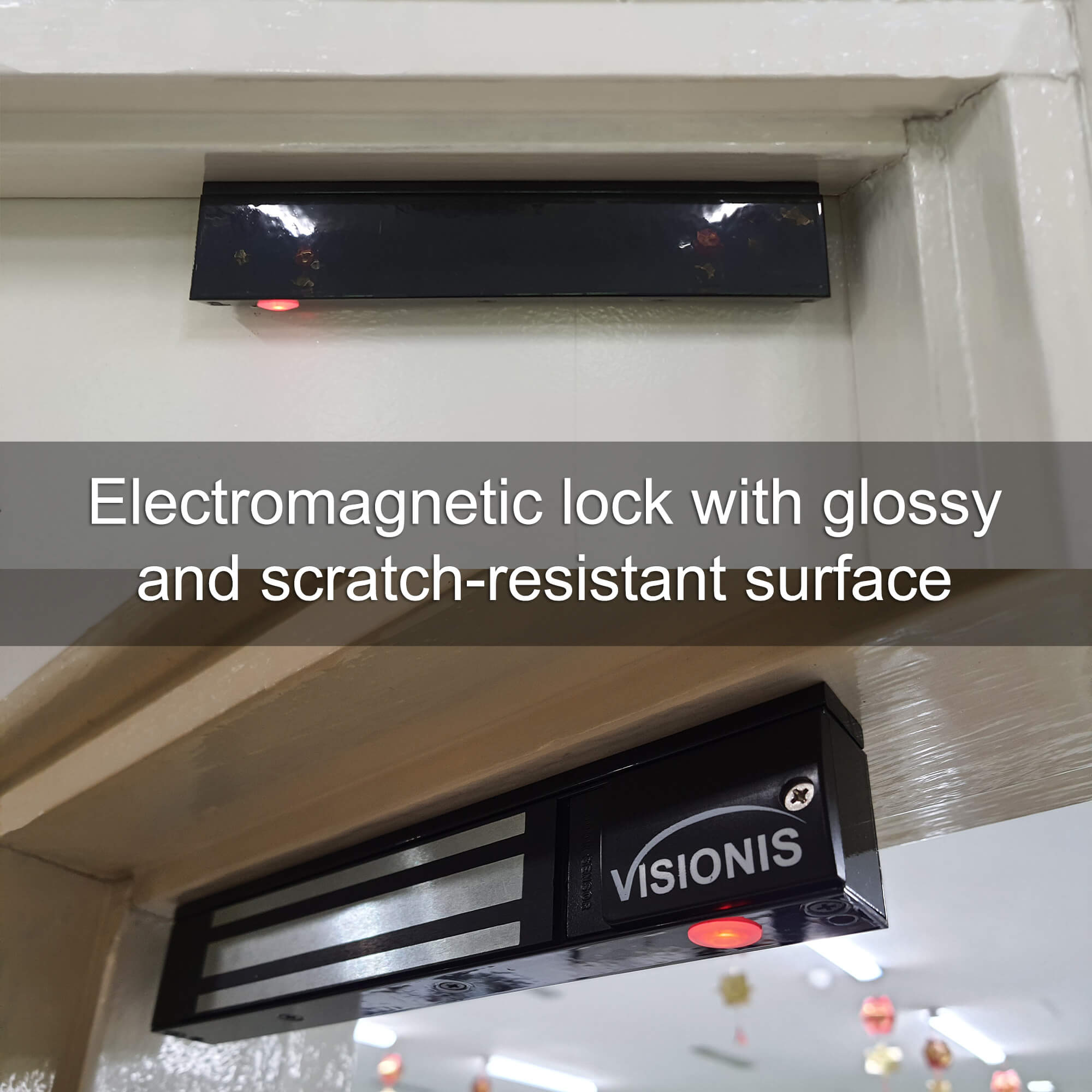

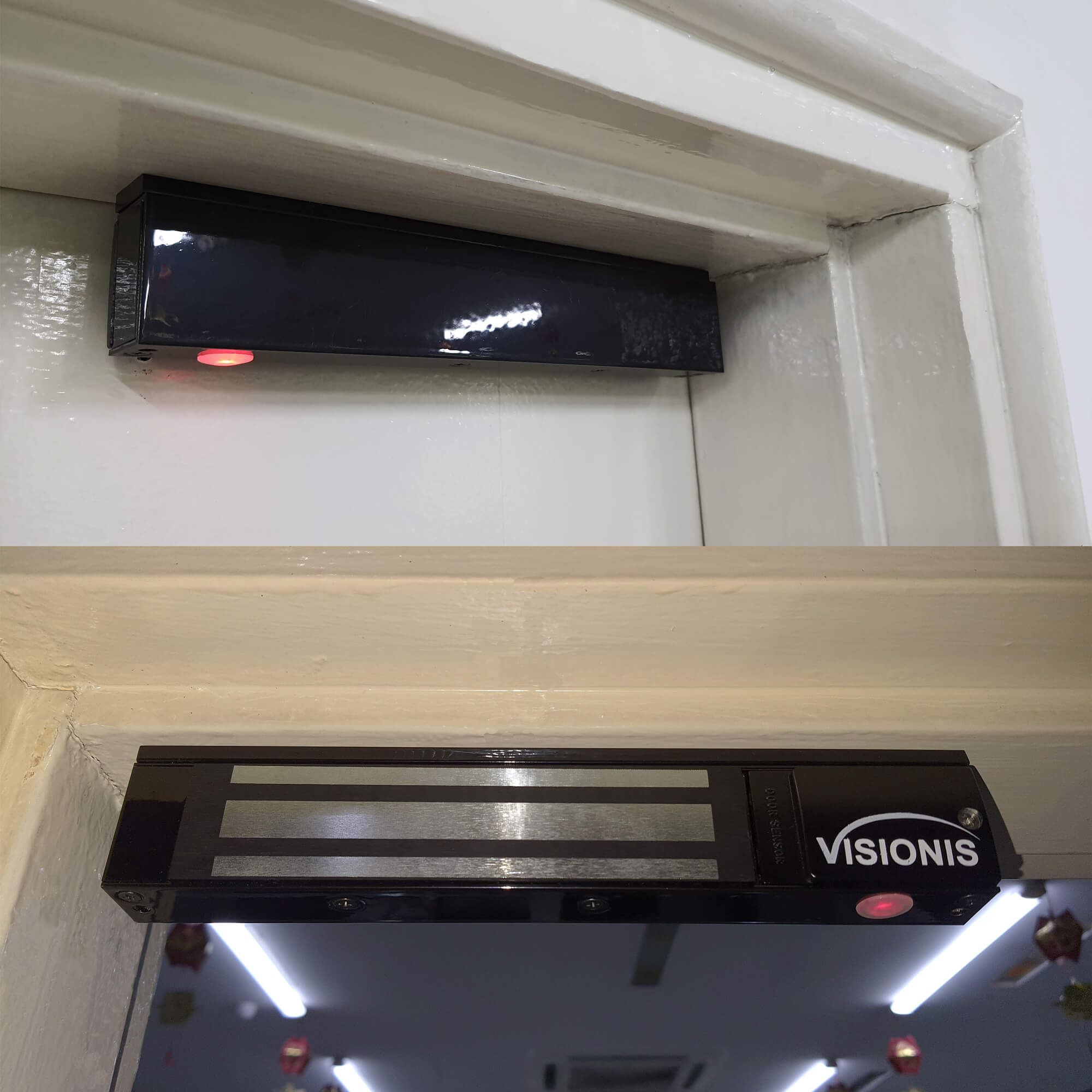

The VIS-ML300LED-BL maglock mounts beneath the top of the door frame and provides up to 300 lbs of holding force, offering solid protection against unauthorized entry. The integrated LED indicator allows for quick visual status: red = locked, green = unlocked.

The included L and Z bracket is tailored for inswinging door configurations, ensuring proper positioning for optimal performance of the door magnetic lock.

Key Features:

300 lb magnetic door lock kit in black finish
Includes VIS-ML300LED-BL maglock and VIS-ZL300-BL bracket
LED lock status light: Red = Locked, Green = Unlocked
Works with 12VDC and 24VDC systems
Ideal for access control locks in homes, offices, or indoor entries
Durable anti-rust blue zinc plating
Designed for inswinging door applications

This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model No. VIS-ML300LED-BL

Color: Black
Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)

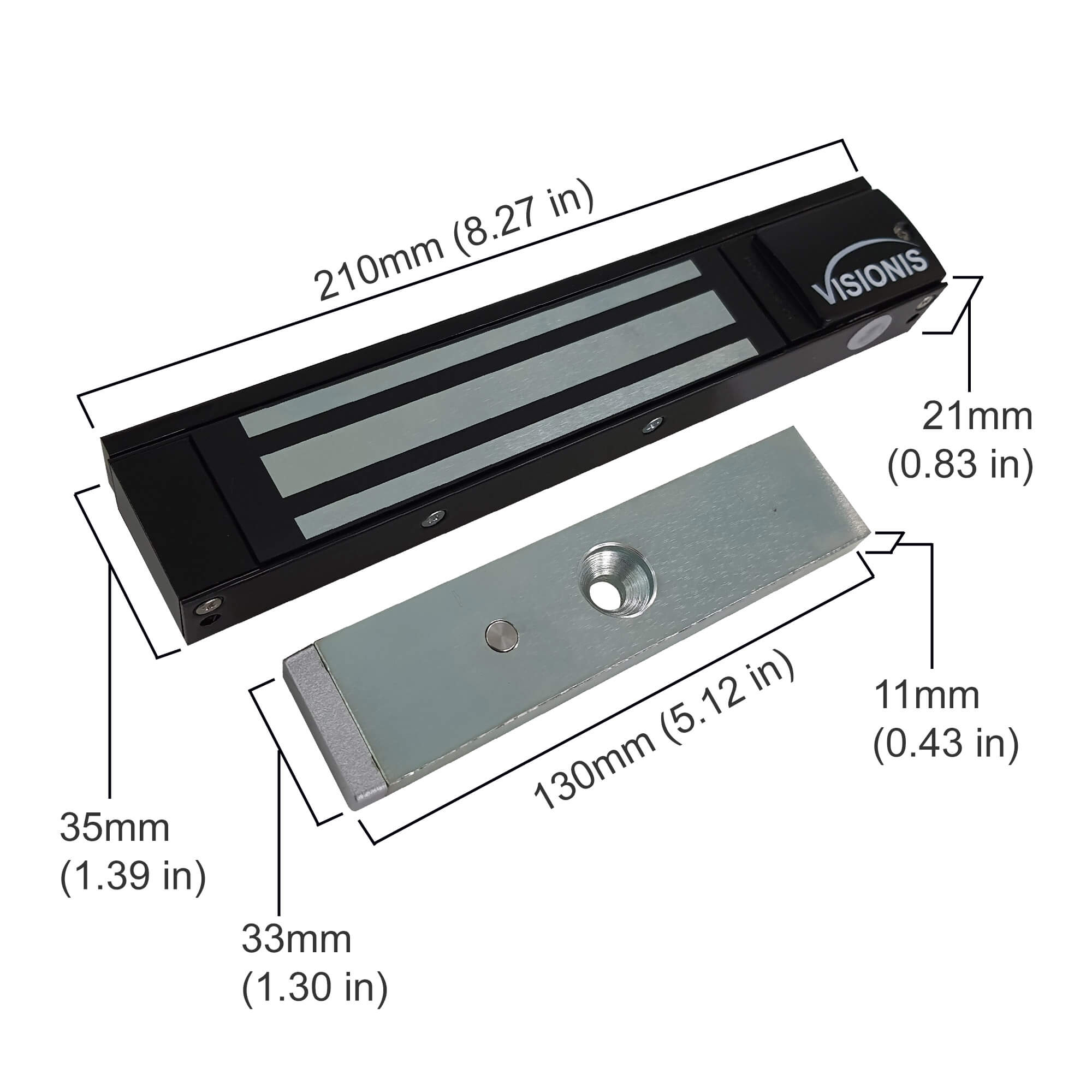

Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL300-BL:

L and Z bracket for 300lbs electromagnetic lock

Description

The VISIONIS FPC-5191-BL Magnetic Door Lock Kit is a secure, stylish solution for inswinging doors, combining a sleek black 300 lb electromagnetic door lock (VIS-ML300LED-BL) and a black ZL bracket (VIS-ZL300-BL) for proper alignment and installation. Ideal for residential, office, and light commercial environments, this kit ensures dependable door locking with a clean, modern appearance.

The VIS-ML300LED-BL maglock mounts beneath the top of the door frame and provides up to 300 lbs of holding force, offering solid protection against unauthorized entry. The integrated LED indicator allows for quick visual status: red = locked, green = unlocked.

The included L and Z bracket is tailored for inswinging door configurations, ensuring proper positioning for optimal performance of the door magnetic lock.

Key Features:

300 lb magnetic door lock kit in black finish
Includes VIS-ML300LED-BL maglock and VIS-ZL300-BL bracket
LED lock status light: Red = Locked, Green = Unlocked
Works with 12VDC and 24VDC systems
Ideal for access control locks in homes, offices, or indoor entries
Durable anti-rust blue zinc plating
Designed for inswinging door applications

This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.
Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.
Does it have a time delay or timer function?

No, it doesn't.
Is this magnetic door lock kit weatherproof?

This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.

Download Datasheets and Manuals of this product

VIS-ML300LED-BL

VIS-ZL300-BL

Datasheet

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Indoor Magnetic Door Lock with 300 lbs (136 kg) of Holding Force VIS-ML300LED-BL. BLACK Color + L and Z Bracket - FPC-5191-BL Visionis

Translation missing: en.products.product.sku:FPC-5191-BL

UPC Code: 718910359841 Weight: 5.0 lb

Regular price: $49.46
Sale price: $49.46
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
