This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

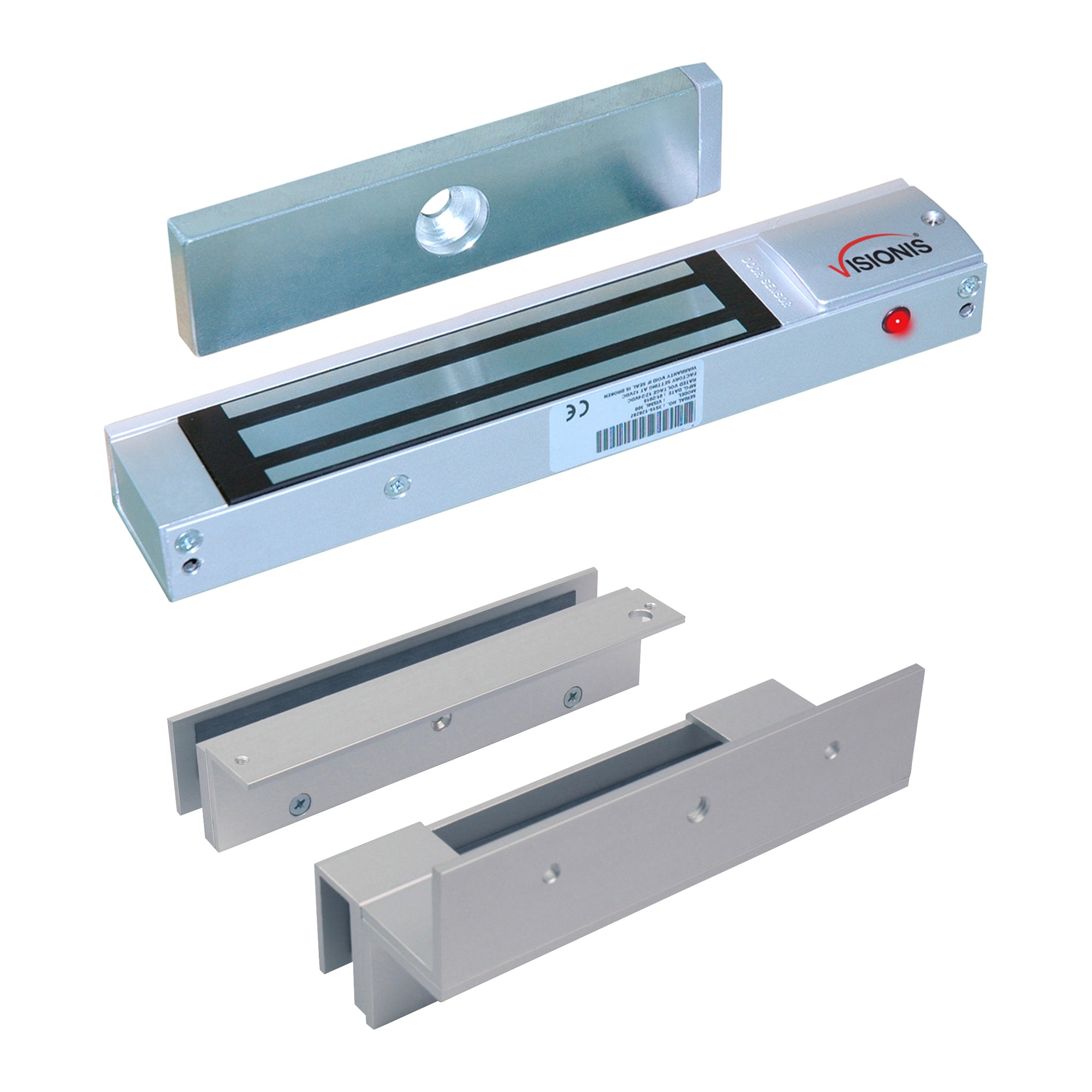

The 5695 is a standard package with a 300lbs maglock and a DSU Bracket. The kit is for glass doors with glass frames. The VISML300LED magnetic door lock provides a strong sense of security with its outstanding holding force and significant features.

The maglock is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML300LED, you have up to 300lbs of force protecting the door, which means it would take above 300lbs of force to open the door if someone wanted to force entry into the door.

The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When light is green, the maglock is unlocked. The DSU300 bracket allows for the maglock to properly work on glass doors with glass frames.

Characteristics

Model VIS-ML300LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product
Description

The 5695 is a standard package with a 300lbs maglock and a DSU Bracket. The kit is for glass doors with glass frames. The VISML300LED magnetic door lock provides a strong sense of security with its outstanding holding force and significant features.

The maglock is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML300LED, you have up to 300lbs of force protecting the door, which means it would take above 300lbs of force to open the door if someone wanted to force entry into the door.

The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When light is green, the maglock is unlocked. The DSU300 bracket allows for the maglock to properly work on glass doors with glass frames.

Download Datasheets and Manuals of this product

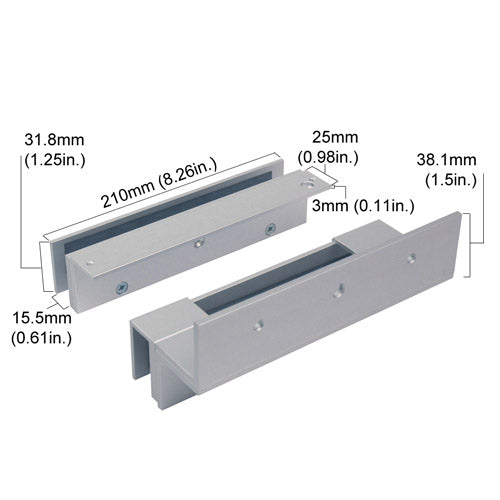

VIS-DSU300

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Visionis FPC-5695 300lbs VIS-ML300 Electric Maglock With Glass Door And Glass Frame Bracket

Translation missing: en.products.product.sku:FPC-5695

UPC Code: 614961171800
Product Weight: 6.0 lb
Regular price
$73.76
Sale price
$73.76
Regular price
Shipping calculated at checkout.

In Stock

Phone Support Icon

Phone Life-Time Technical Support

Return Policy Icon

30-Day No Questions Return Policy

Free Shipping Icon

*Free Shipping within the USA

Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
*Free shipping within the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
