This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Characteristics

Model VIS-ML600LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
  • Holding Force: Up to 600 lbs (272 kg)
  • Hall Effect Contact: SPDT rated 2A at 24 VDC
  • Magnetic Contact Rating: 28 VDC, 0.5A, 10W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Weight (Magnet): 1.1 kg (±1%)
  • Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-ZL600:

  • L and Z bracket for 600lbs electromagnetic lock
Packaging of this product

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Warranty: 1 Year
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
Packaging of this product

Model No. IrexPlus:

  • Voltage: 12-30 Volts DC or AC
  • Current Consumption: 8 mA standby, 25 mA (Relay+LED), 44 mA maximum (Buzzer+Relay+LED) at 12/24 VDC
  • Relay Output: 1A @ 30 VDC or VAC, two form “C” contacts
  • Tamper Output: 50 mA @ 30 volts DC or AC
  • Detection System
  • Mounting Height: 2.3m - 4.6m (7.5' - 15')
  • Detection Range: Up to 2.4m (8')
  • Dimensions (LxHxD): 177mm x 50mm x 45mm (7'' x 2'' x 1.8'')
  • Weight: 0.15Kg (0.3lb)
  • Colour: White or Black
  • Environmental
  • RFI Immunity: 30 V/m from 10MHz to 2GHz
  • Operating & Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Model No. VISCP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC

Download Datasheets and Manuals of this product

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

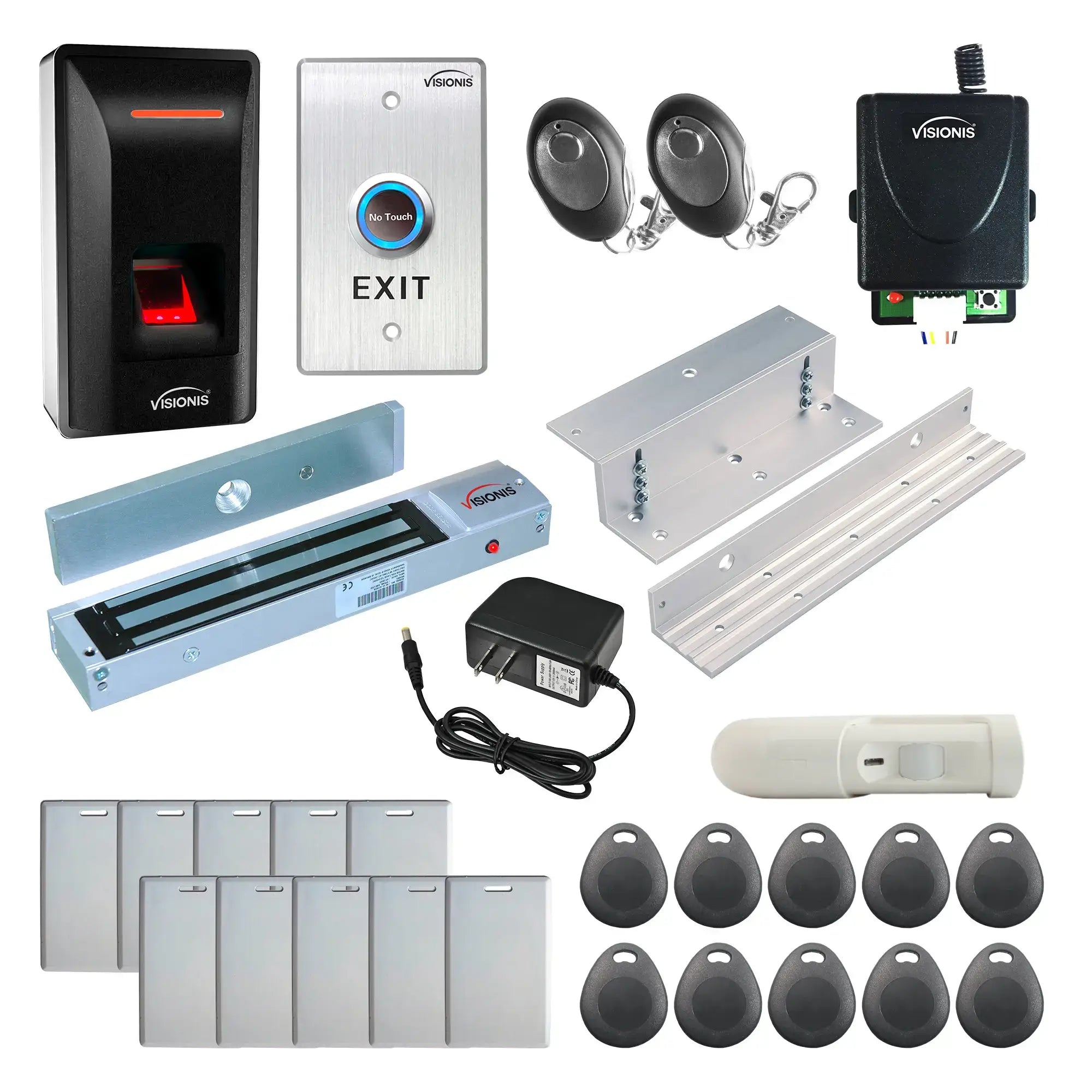

FPC-9256 1 Door Access Control In Swinging Door 600lbs Maglock + Indoor Biometric Fingerprint Reader Standalone + Wiegand 26, No Software, 3000 EM Cards and Fingerprints + Wireless Receiver + PIR

Translation missing: en.products.product.sku:FPC-9256

UPC Code: 734598807238
Product Weight: 8.0 lb
Regular price
$416.14
Sale price
$416.14
Regular price
Shipping calculated at checkout.
Contact an Expert
Return Policy
NOTE
Order Before 3:00pm EST on a week day and your order will be shipped out the same day
Free Shipping
Free shipping with in the USA
Including Puerto Rico, Hawaii and Alaska
ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
