VIS-3031: Standalone biometric fingerprint and card reader with time & attendance tracking

Dimensions VIS-3031: Standalone biometric fingerprint and card reader

Package includes: Biometric fingerprint reader, wires, screws

300lb Indoor Electromagnetic Lock with LED Sensor VIS-ML300LED

indoor magnetic lock with LED status indicators, for access control systems VIS-ML300LED

touchless exit button with LED indicators for access control systems. VIS-7013 VISIONIS

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

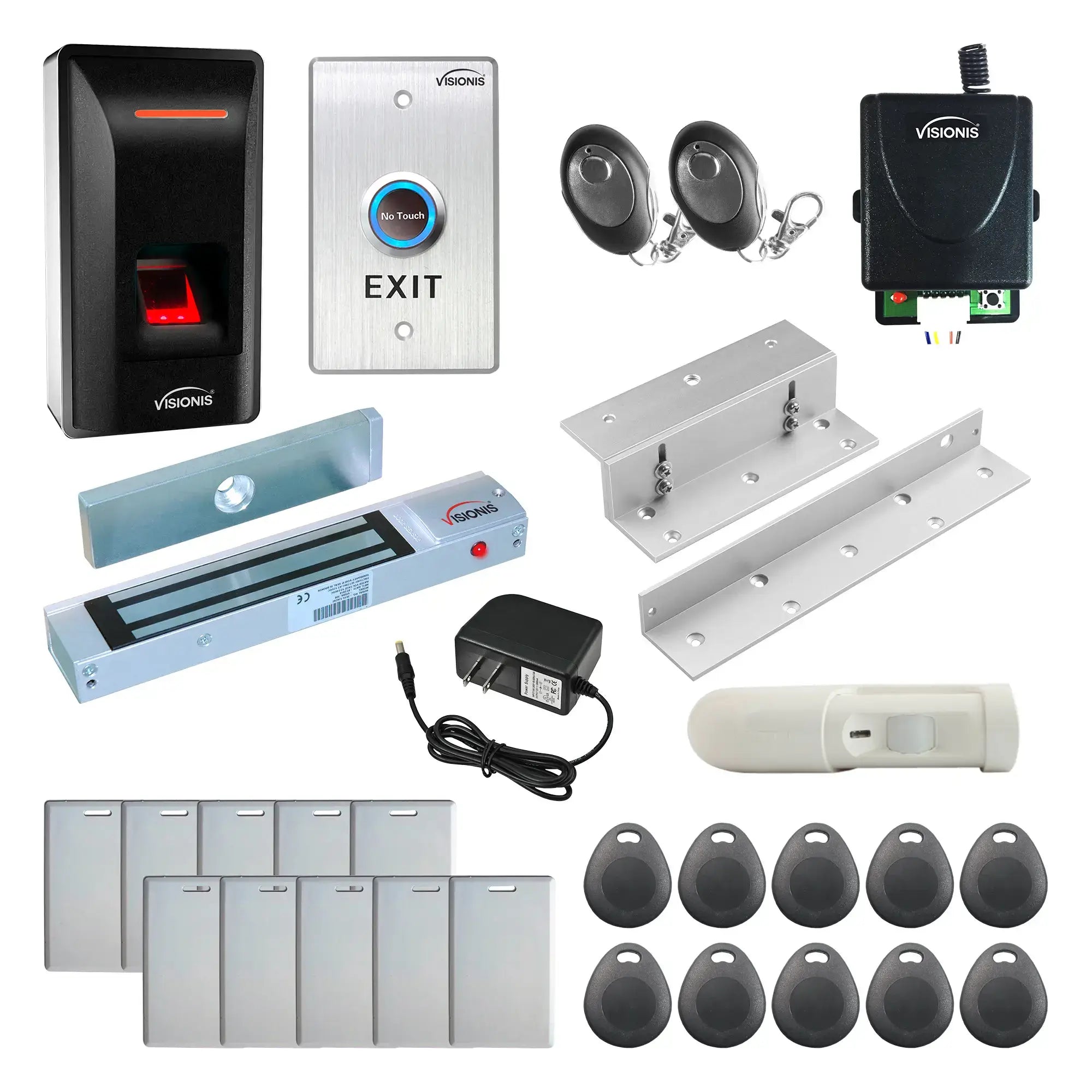

Kit Includes:

(1)

(2)

(1)

(10)

(1)

VIS-ML300LED: 300lbs Indoor Electromagnetic Lock

VIS-ZL300: L and Z Bracket for 300lbs Electromagnetic Lock

VIS-3031: Indoor Access Control Biometric Fingerprint Reader Standalone + TCP/IP + Wiegand 26 + 3000 EM Cards or Fingerprints + Time and Attendance

VIS-8004: 1 Channel RF Receiver 315MHz

VIS-8005: 1 Channel RF 315mhz Transmitter Remote Control

VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs

AL-OD22: Request To Exit Motion Sensor PIR With Adjustable Time Relay

FPC-5267: Pack of Proximity Cards, 125kHz, 26-Bit

FPC-5274: Pack of RFID Proximity Key Fobs, 125kHz, 26-Bit

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Upgrade your security with the FPC-9255 access control kit—an all-in-one solution for managing entry to a single in-swinging door using advanced fingerprint reader and card reader technology. This professional-grade kit includes everything you need for secure, streamlined access control in offices, restricted areas, labs, and commercial facilities.

Key Features:

Indoor Biometric Fingerprint Reader
The included VIS-3031 device functions as a standalone fingerprint reader and biometric reader, supporting both fingerprint and RFID card access. Store up to 3,000 users and 70,000 event logs for advanced time and attendance tracking.
Powerful Magnetic Lock (300lbs Holding Force)
The VIS-ML300LED electromagnetic lock ensures strong, reliable door locking with green/red LED status indicators and durable blue zinc plating for rust resistance.
Wave-to-Exit Infrared Sensor
The VIS-7013 allows for touch-free door release, improving hygiene and convenience. Adjustable range and delay make it ideal for high-traffic access points.
PIR Motion Sensor
The AL-OD22 passive infrared sensor adds an extra layer of automated control, triggering access upon motion detection within a configurable range.

Wireless Receiver and Remote Control
The VIS-8004 and VIS-8005 combo offers long-range wireless door control—perfect for remote entry or emergency overrides. Supports up to 50 remotes and multiple output modes (momentary, toggle, latch).

Ideal For:

Offices and commercial buildings
IT/server rooms
Private labs and research facilities
Industrial security zones

Characteristics

Model VIS-ML300LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
Holding Force: Up to 300 lbs (136 kg)
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight ( Magnet): 0.6 kg (±1%)
Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL300:

L and Z bracket for 300 lbs electromagnetic lock

Model No. VIS-3031:

Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
Communication: TCP/IP
Working Voltage: DC12V±10%/1A
Users / Records: 3.000 / 70.000
Recognition Mode: RFID Fingerprint
Wiegand Input: 1
Wiegand: 26 - 34
Exit Button Input: 1
Door-magnet Input: 1
Alarm Output / Input: 1 / 1
Lock Control Output: 1
Refusal Rate: < 0.01%
Fales Rate: < 0.0001%
Working Humidity: 20% ~ 60%
Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model No. VIS-8004:

Operating Frequency: 315mhz
Number of Codes: 1,048,576
Data Format: PWM
Operating Voltage: +12V 24V
Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Operating Temperature: 0-70°C or 32 - 158°F
Current Draw: 19mA
Compatible Transmitter: VIS-8005
RF channels: One
No. of Remotes that are able to connect to one Receiver: Up to 50
Receiver Output: C dry contact (NO/NC/COM)
Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
Connectors: 5 screw Terminal (NO, COM, NC + -)
Case Construction: ABS Plastic
Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
Weight: 43g or 1.52 Ounces
Certifications: FCC
Antenna: Wire lead
Mounting Screws: Comes with two mounting screws
Wire Harness: Included
Power supply: Not included (only included in the form of kits.)

Model No. VIS-8005:

Frequency: 315mhz
Chip: 1527
Input Voltage: 6V
Button Quantity: 1 button
Input Power: 0.06W
Input Current: 0.01A
Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. VIS-7013:

Contact Rating: 12-24V, 3A
Output Contact: NO/NC/COM
Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5~22s
Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.105kg
Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.

Model No. AL-OD22 :

Supply Voltage: 12-24VDC or VAC
Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
Detection Type: Passive infrared
Relay Hold Time: 0.5-64 seconds
LED Indication: Red
Operating Temp: -14° F to 131° F(-10° Cto55°C)
Weight: 0. 4Ib (0. 18kg)
Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
Humidity: 0-95% non-condensing
Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Key Features:

Indoor Biometric Fingerprint Reader
The included VIS-3031 device functions as a standalone fingerprint reader and biometric reader, supporting both fingerprint and RFID card access. Store up to 3,000 users and 70,000 event logs for advanced time and attendance tracking.
Powerful Magnetic Lock (300lbs Holding Force)
The VIS-ML300LED electromagnetic lock ensures strong, reliable door locking with green/red LED status indicators and durable blue zinc plating for rust resistance.
Wave-to-Exit Infrared Sensor
The VIS-7013 allows for touch-free door release, improving hygiene and convenience. Adjustable range and delay make it ideal for high-traffic access points.
PIR Motion Sensor
The AL-OD22 passive infrared sensor adds an extra layer of automated control, triggering access upon motion detection within a configurable range.

Wireless Receiver and Remote Control
The VIS-8004 and VIS-8005 combo offers long-range wireless door control—perfect for remote entry or emergency overrides. Supports up to 50 remotes and multiple output modes (momentary, toggle, latch).

Ideal For:

Offices and commercial buildings
IT/server rooms
Private labs and research facilities
Industrial security zones

Download Datasheets and Manuals of this product

VIS-ML300LED

VIS-ZL300

Datasheet

VIS-3031

VIS-7013

AL-OD22

VIS-8004

VIS-8005

Datasheet

VIS-PROXCARD

Datasheet

VIS-KEYTAG / VIS-KEYTAG-BLUE

Datasheet
