This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

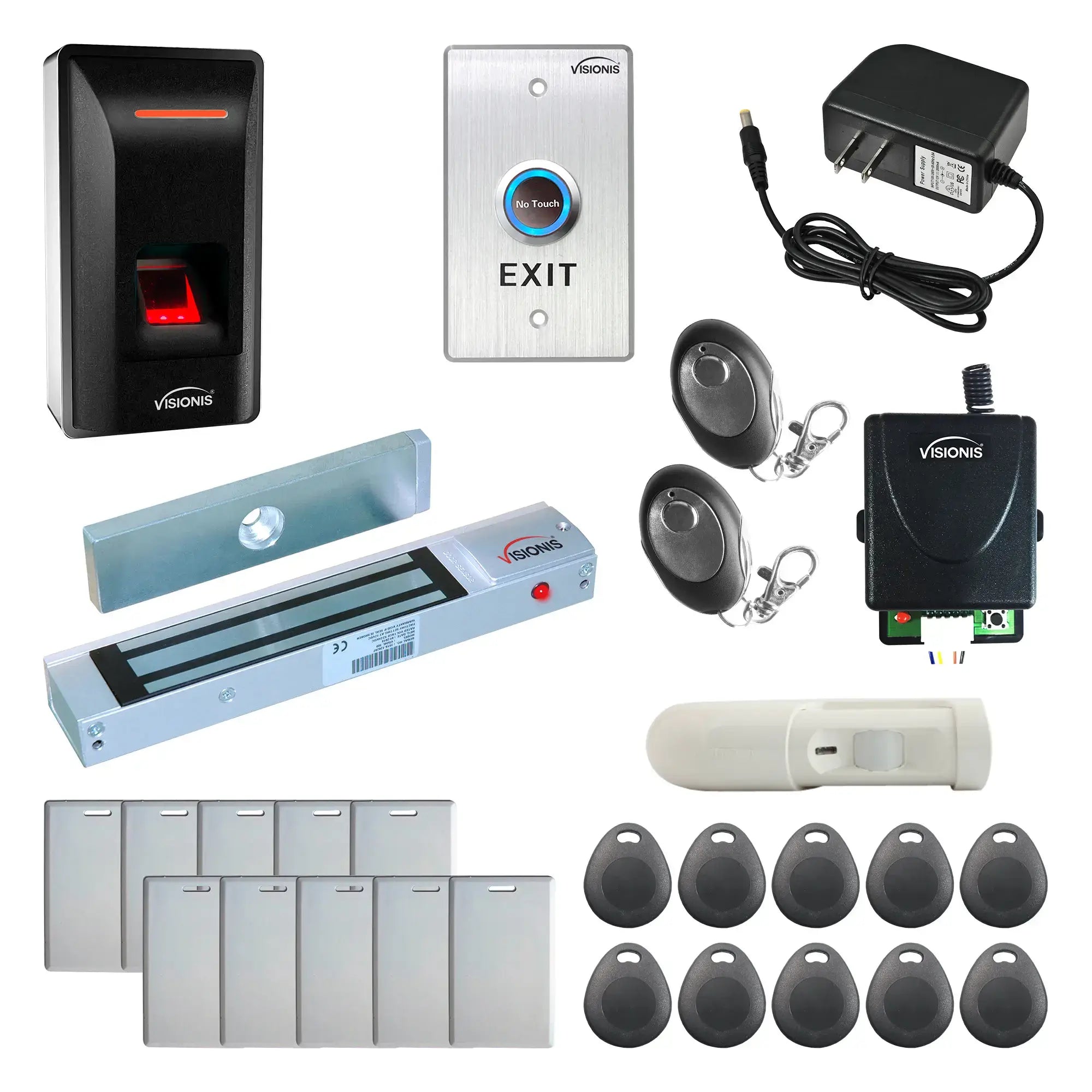

Kit Includes:

(1)
(1)
(1)
(1)
(2)
(1)
(10)
(10)
(1)
VIS-3031: Indoor Access Control Biometric Fingerprint Reader Standalone + TCP/IP + Wiegand 26 + 3000 EM Cards or Fingerprints + Time and Attendance
VIS-ML300LED: 300lbs Indoor Electromagnetic Lock
VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs
VIS-8004: 1 Channel RF Receiver 315MHz
VIS-8005: 1 Channel RF 315mhz Transmitter Remote Control
AL-OD22: Request To Exit Motion Sensor PIR With Adjustable Time Relay
FPC-5267: Pack of Proximity Cards, 125kHz, 26-Bit
FPC-5274: Pack of RFID Proximity Key Fobs, 125kHz, 26-Bit
VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
Description

Upgrade your security with the FPC-9252 access control kit—an all-in-one solution for managing entry to a single out-swinging door using advanced fingerprint reader and card reader technology. This professional-grade kit includes everything you need for secure, streamlined access control in offices, restricted areas, labs, and commercial facilities.

Key Features:

  • Indoor Biometric Fingerprint Reader
    The included VIS-3031 device functions as a standalone fingerprint reader and biometric reader, supporting both fingerprint and RFID card access. Store up to 3,000 users and 70,000 event logs for advanced time and attendance tracking.

  • Powerful Magnetic Lock (300lbs Holding Force)
    The VIS-ML300LED electromagnetic lock ensures strong, reliable door locking with green/red LED status indicators and durable blue zinc plating for rust resistance.

  • Wave-to-Exit Infrared Sensor
    The VIS-7013 allows for touch-free door release, improving hygiene and convenience. Adjustable range and delay make it ideal for high-traffic access points.

  • Wireless Receiver and Remote Control
    The VIS-8004 and VIS-8005 combo offers long-range wireless door control—perfect for remote entry or emergency overrides. Supports up to 50 remotes and multiple output modes (momentary, toggle, latch).

  • PIR Motion Sensor
    The AL-OD22 passive infrared sensor adds an extra layer of automated control, triggering access upon motion detection within a configurable range.

Ideal For:

  • Offices and commercial buildings

  • IT/server rooms

  • Private labs and research facilities

  • Industrial security zones

Characteristics

Model No. VIS-3031:

  • Standalone Application: The unit needs to be connected to the ethernet so you can use the software and add fingerprints.
  • Communication: TCP/IP
  • Working Voltage: DC12V±10%/1A
  • Users / Records: 3.000 / 70.000
  • Recognition Mode: RFID Fingerprint
  • Wiegand Input: 1
  • Wiegand: 26 - 34
  • Exit Button Input: 1
  • Door-magnet Input: 1
  • Alarm Output / Input: 1 / 1
  • Lock Control Output: 1
  • Refusal Rate: < 0.01%
  • Fales Rate: < 0.0001%
  • Working Humidity: 20% ~ 60%
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  • Size: 122Lx77Wx45H (mm) - 4.80Lx3.03Wx1.77H (in.)

Model VIS-ML300LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
  • Holding Force: Up to 300 lbs (136 kg)
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C ( 32~131° F)
  • Operating Humidity: 0~95% ( non condensing)
  • Weight ( Magnet): 0.6 kg (±1%)
  • Dimensions: Magnet - (L)210x(W)35x(T)21 mm Armature - (L)130x(W)33x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-7013:

  • Contact Rating: 12-24V, 3A
  • Output Contact: NO/NC/COM
  • Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
  • Power: 12VDC or 24VDC
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Time Delay: 0.5~22s
  • Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.105kg
  • Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.
Packaging of this product

Model No. VIS-8004:

  • Operating Frequency: 315mhz
  • Number of Codes: 1,048,576
  • Data Format: PWM
  • Operating Voltage: +12V 24V
  • Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
  • Operating Temperature: 0-70°C or 32 - 158°F
  • Current Draw: 19mA
  • Compatible Transmitter: VIS-8005
  • RF channels: One
  • No. of Remotes that are able to connect to one Receiver: Up to 50
  • Receiver Output: C dry contact (NO/NC/COM)
  • Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
  • Connectors: 5 screw Terminal (NO, COM, NC + -)
  • Case Construction: ABS Plastic
  • Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
  • Weight: 43g or 1.52 Ounces
  • Certifications: FCC
  • Antenna: Wire lead
  • Mounting Screws: Comes with two mounting screws
  • Wire Harness: Included
  • Power supply: Not included (only included in the form of kits.)
Packaging of this product

Model No. VIS-8005:

  • Frequency: 315mhz
  • Chip: 1527
  • Input Voltage: 6V
  • Button Quantity: 1 button
  • Input Power: 0.06W
  • Input Current: 0.01A
  • Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Packaging of this product

Model No. AL-OD22 :

  • Supply Voltage: 12-24VDC or VAC
  • Supply Current: 18-30mA@12-24VDC,45-80mA@12-24VAC
  • Relay Output: 2C Contact(N.C/N.O), 24VDC 1A Max.
  • Detection Type: Passive infrared
  • Relay Hold Time: 0.5-64 seconds
  • LED Indication: Red
  • Operating Temp: -14° F to 131° F(-10° Cto55°C)
  • Weight: 0. 4Ib (0. 18kg)
  • Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
  • Humidity: 0-95% non-condensing
  • Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

Upgrade your security with the FPC-9252 access control kit—an all-in-one solution for managing entry to a single out-swinging door using advanced fingerprint reader and card reader technology. This professional-grade kit includes everything you need for secure, streamlined access control in offices, restricted areas, labs, and commercial facilities.

Key Features:

  • Indoor Biometric Fingerprint Reader
    The included VIS-3031 device functions as a standalone fingerprint reader and biometric reader, supporting both fingerprint and RFID card access. Store up to 3,000 users and 70,000 event logs for advanced time and attendance tracking.

  • Powerful Magnetic Lock (300lbs Holding Force)
    The VIS-ML300LED electromagnetic lock ensures strong, reliable door locking with green/red LED status indicators and durable blue zinc plating for rust resistance.

  • Wave-to-Exit Infrared Sensor
    The VIS-7013 allows for touch-free door release, improving hygiene and convenience. Adjustable range and delay make it ideal for high-traffic access points.

  • Wireless Receiver and Remote Control
    The VIS-8004 and VIS-8005 combo offers long-range wireless door control—perfect for remote entry or emergency overrides. Supports up to 50 remotes and multiple output modes (momentary, toggle, latch).

  • PIR Motion Sensor
    The AL-OD22 passive infrared sensor adds an extra layer of automated control, triggering access upon motion detection within a configurable range.

Ideal For:

  • Offices and commercial buildings

  • IT/server rooms

  • Private labs and research facilities

  • Industrial security zones

Download Datasheets and Manuals of this product

VIS-ML300LED

VIS-3031

VIS-7013

AL-OD22

VIS-8004

VIS-8005

VIS-PROXCARD

VIS-KEYTAG / VIS-KEYTAG-BLUE
