Does this remote control come with a battery?

Yes! The Visionis VIS-8005 Remote does come with batteries included — it includes 2 x CR2016 3V coin cell batteries right in the package, so it's ready to use right out of the box.Battery details:Type: CR2016 (3V coin cell)Quantity included: 2 piecesTo replace, look for the seam between the front and back of the remote and open from there

Why did my VIS-8005 remote control arrive with a dead or low battery?

Sorry about that! It's a common quirk with coin cell batteries (CR2016) — they can lose charge from sitting in storage/transit. Just swap in a fresh CR2016 battery and your remote should work perfectly. Still having issues after a battery change? Reach out and we'll help right away.

How do I pair the remote to the receiver?

Before programming this function, make sure you have one of your remotes on hand.1. Press the "Learning Button" once and release it immediately.2. Immediately press the button on the remote once and release it.Once this is done, the LED light on the receiver will flash quickly, indicating that the remote has been programmed.The receiver can hold up to 50 remotes simultaneously.

Can the VIS-8005 transmitter control multiple gates?

No, this remote control is a 1-channel remote, meaning it can only control one output at a time — so it cannot independently control multiple gates simultaneously. Need independent control of multiple gates? — you would need a multi-channel remote and receiver system instead. Check our two-channel wireless receiver and remote kit.

Remote Control Transmitter 1 Channel 315MHz VIS-8005 Visionis

Transmitter Remote Control for one channel wireless receiver inside board - VIS-8005

Description

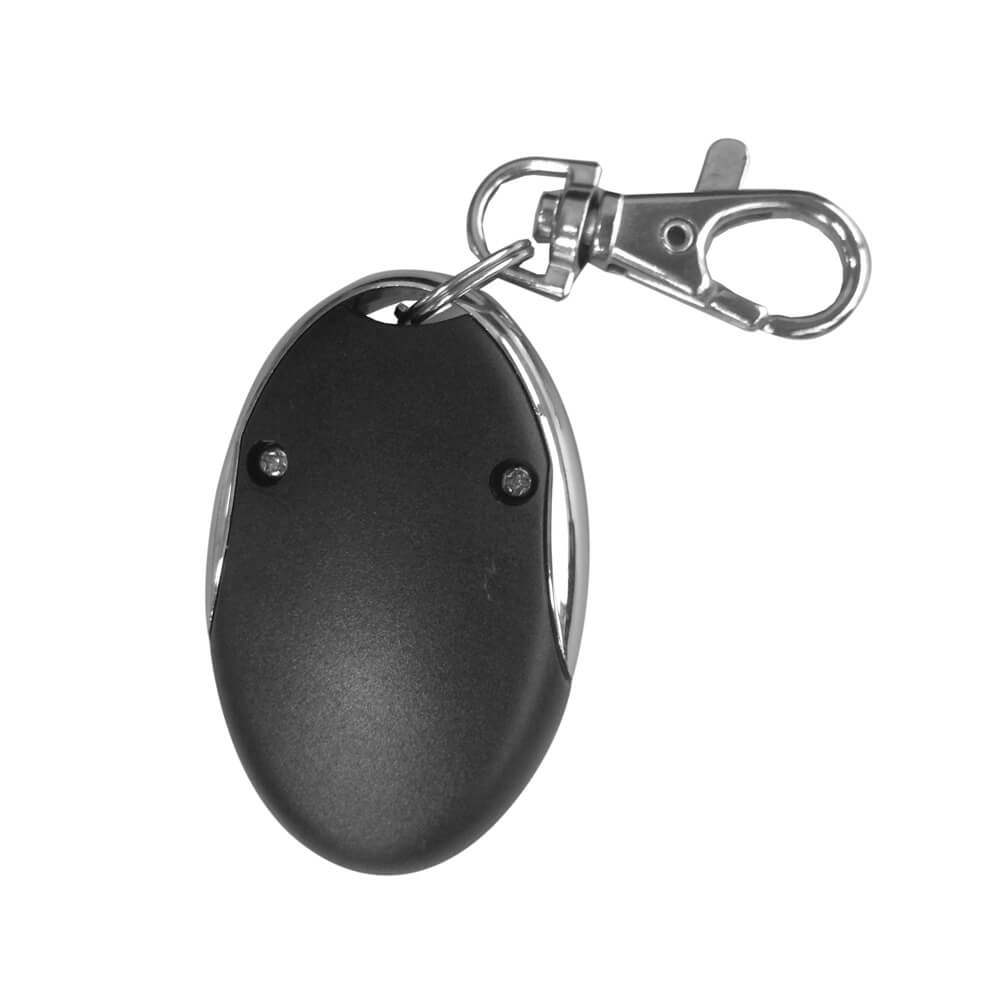

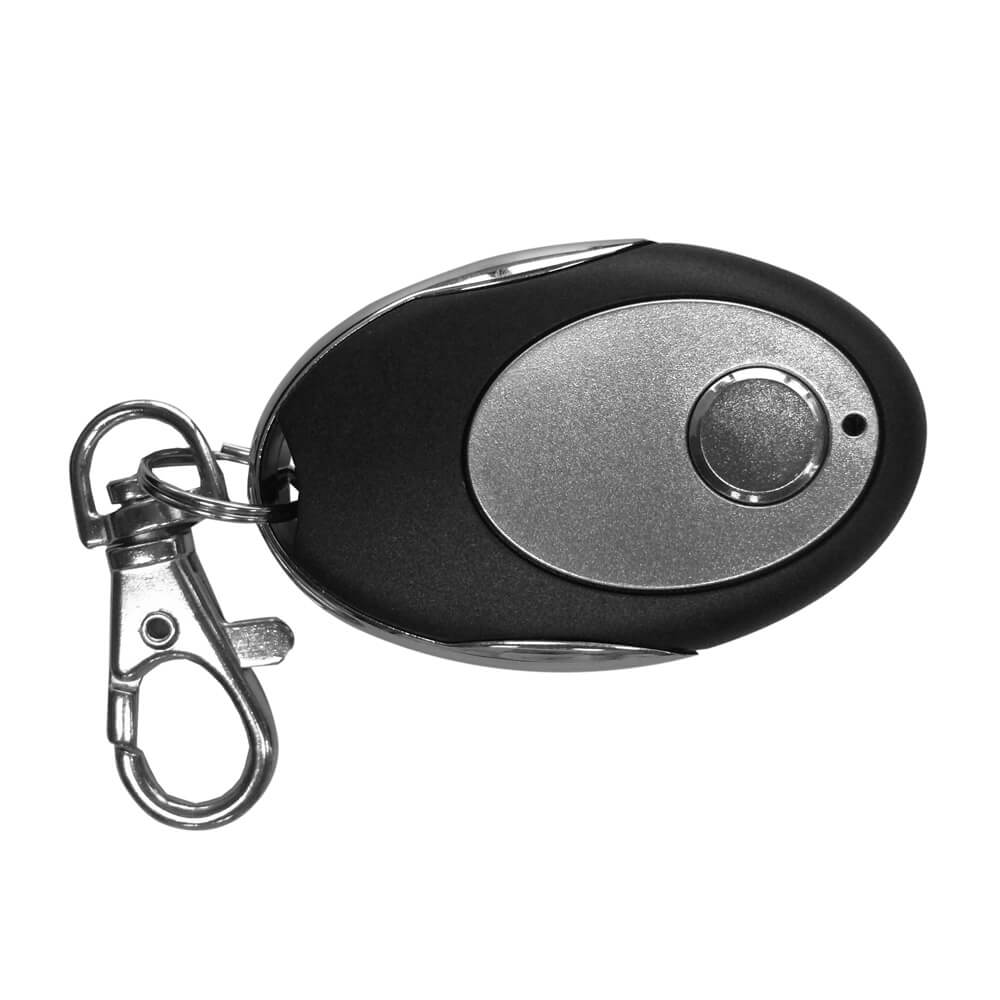

The model VIS-8005 is a 1-Channel 315 MHz charcoal and silver remote supplied with a quick-disconnect key ring. This transmitter (remote) is designed for use with the VISIONIS VIS-8004 1 channel receiver. The 1 channel RF remote operates for opening doors, garage doors, and gates. The receiver programs each specific code; no unauthorized person can gain access to the system by reprogramming or duplicating the Transmitter (remote). This transmitter (remote) can be programmed locally into the memory of the receiver (VIS-8004).

Attention: This Remote is only compatible with the VIS-8004 Receiver.

Characteristics

Model No. VIS-8005:

Frequency: 315mhz
Chip: 1527
Input Voltage: 6V
Button Quantity: 1 button
Input Power: 0.06W
Input Current: 0.01A
Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Description

Attention: This Remote is only compatible with the VIS-8004 Receiver.

Characteristics

Model No. VIS-8005:

Frequency: 315mhz
Chip: 1527
Input Voltage: 6V
Button Quantity: 1 button
Input Power: 0.06W
Input Current: 0.01A
Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Product FAQs

Does this remote control come with a battery?

Yes! The Visionis VIS-8005 Remote does come with batteries included — it includes 2 x CR2016 3V coin cell batteries right in the package, so it's ready to use right out of the box.

Battery details:

Type: CR2016 (3V coin cell)
Quantity included: 2 pieces
To replace, look for the seam between the front and back of the remote and open from there
Why did my VIS-8005 remote control arrive with a dead or low battery?

Sorry about that! It's a common quirk with coin cell batteries (CR2016) — they can lose charge from sitting in storage/transit. Just swap in a fresh CR2016 battery and your remote should work perfectly. Still having issues after a battery change? Reach out and we'll help right away.
How do I pair the remote to the receiver?

Before programming this function, make sure you have one of your remotes on hand.
1. Press the "Learning Button" once and release it immediately.
2. Immediately press the button on the remote once and release it.
Once this is done, the LED light on the receiver will flash quickly, indicating that the remote has been programmed.

The receiver can hold up to 50 remotes simultaneously.
Can the VIS-8005 transmitter control multiple gates?

No, this remote control is a 1-channel remote, meaning it can only control one output at a time — so it cannot independently control multiple gates simultaneously.
Need independent control of multiple gates? — you would need a multi-channel remote and receiver system instead. Check our two-channel wireless receiver and remote kit.
Is this compatible with any receiver?

No, the Visionis VIS-8005 Remote is exclusively compatible with the Visionis VIS-8004 receiver only. It will not work with other receivers, even those operating on the same 315 MHz frequency.
This is because the VIS-8005 uses a fixed code encoding system unique to the Visionis ecosystem — so the code format won't be recognized by other brands' receivers.
