Below are more variations of this product:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

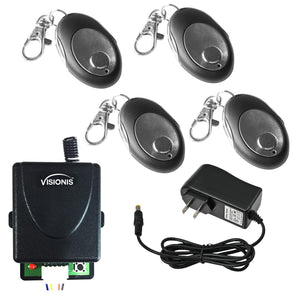

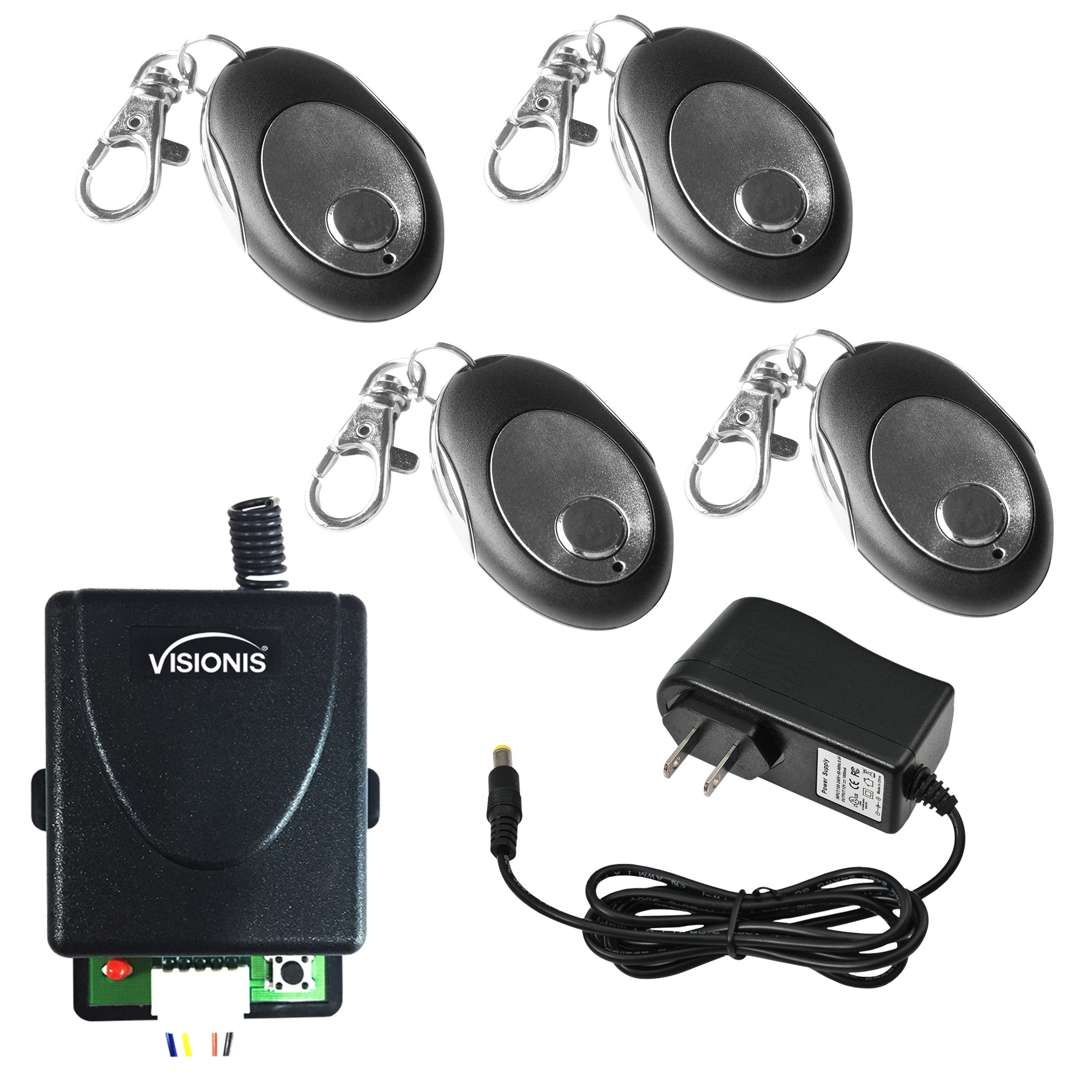

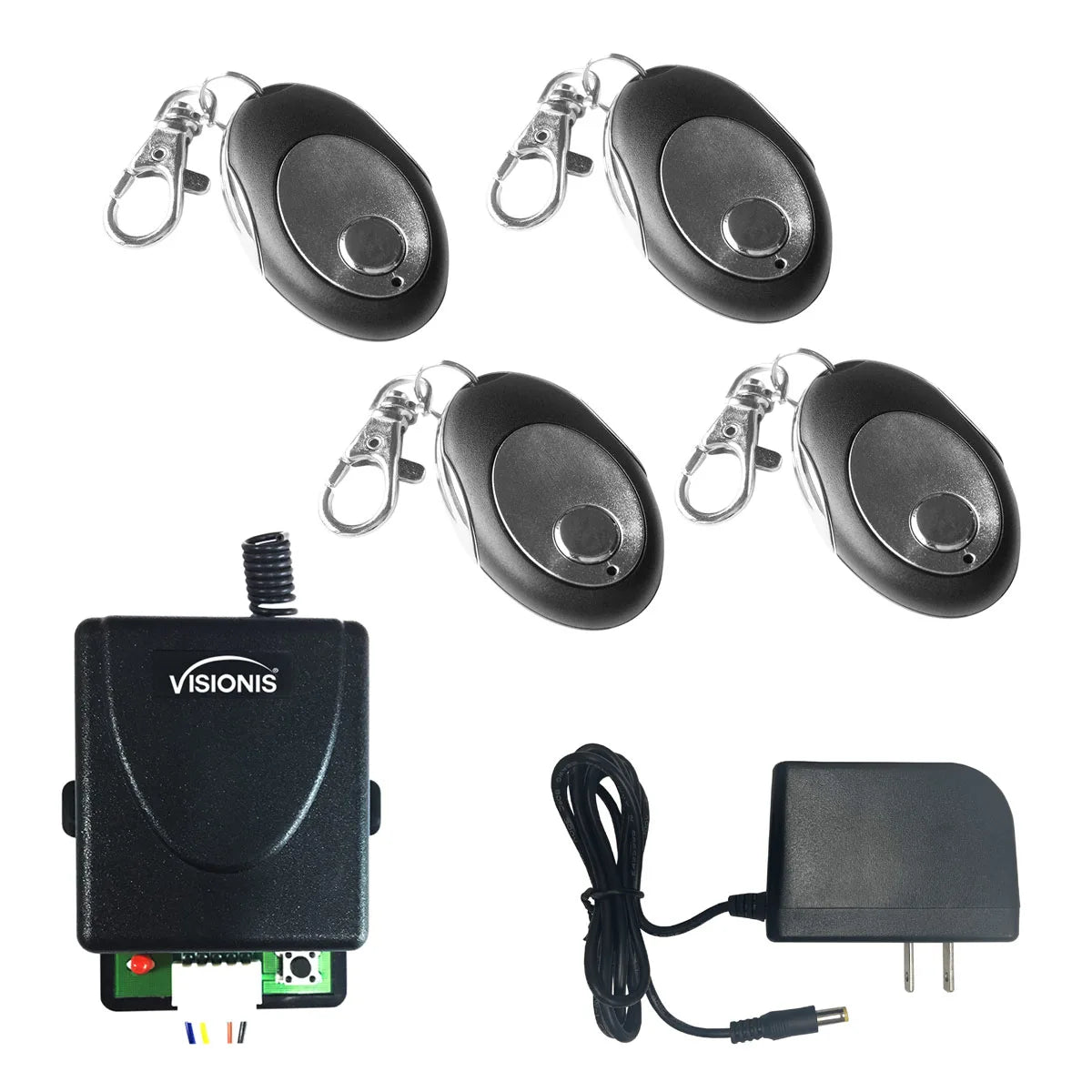

Kit Includes:

(1)

VIS-8004: 1 Channel RF Receiver 315MHz

VIS-8005: 1 Channel RF 315mhz Transmitter Remote Control

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The 5229 kit is a wireless remote and receiver kit.This kit, that brings 4 VIS-8005 wireless remotes, allows you to use for any project that you need that requires anything to be turned on or off. Some examples are access control, garage doors, lights, jacuzzi’s, etc.

Using this simple system, you will be able to control whatever application you choose to use this for by the click of a button. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160 feet.

There are two main features on the receiver that will allow you to program the wireless receiver in two different ways.

Characteristics

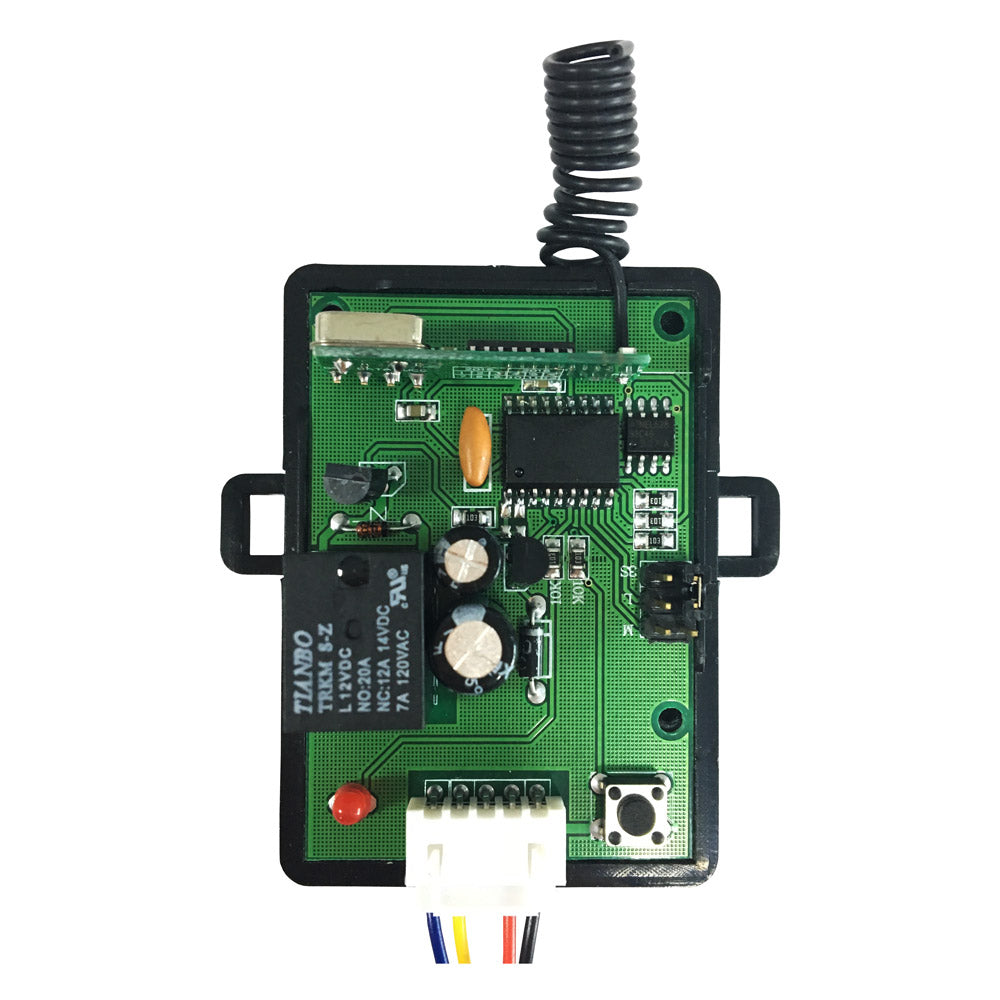

Model No. VIS-8004:

Operating Frequency: 315mhz
Number of Codes: 1,048,576
Data Format: PWM
Operating Voltage: +12V 24V
Operating Distance: Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.
Operating Temperature: 0-70°C or 32 - 158°F
Current Draw: 19mA
Compatible Transmitter: VIS-8005
RF channels: One
No. of Remotes that are able to connect to one Receiver: Up to 50
Receiver Output: C dry contact (NO/NC/COM)
Receiver Output Functions: 4 (Default) 4 second momentary, latch, toggle (On/Off), press on function
Connectors: 5 screw Terminal (NO, COM, NC + -)
Case Construction: ABS Plastic
Dimensions: 62*43.5*30mm (2.44* 1.71*1.18 Inches)
Weight: 43g or 1.52 Ounces
Certifications: FCC
Antenna: Wire lead
Mounting Screws: Comes with two mounting screws
Warranty: 1 Year
Wire Harness: Included
Power supply: Not included (only included in the form of kits.)

Model No. VIS-8005:

Frequency: 315mhz
Chip: 1527
Input Voltage: 6V
Button Quantity: 1 button
Input Power: 0.06W
Input Current: 0.01A
Up to 160ft (50m) - The maximum range needs to be used in an open area. The distance will start to diminish based on some type of interference such as metal, concrete and others.

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The 5229 kit is a wireless remote and receiver kit.This kit, that brings 4 VIS-8005 wireless remotes, allows you to use for any project that you need that requires anything to be turned on or off. Some examples are access control, garage doors, lights, jacuzzi’s, etc.

Using this simple system, you will be able to control whatever application you choose to use this for by the click of a button. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160 feet.

There are two main features on the receiver that will allow you to program the wireless receiver in two different ways.

Download Datasheets and Manuals of this product

VIS-8004

VIS-8005

Datasheet

Visionis by Visionis

Visionis FPC-5229 4 Mini 315mhz Wireless Fixed Code Remote With One Channel RF Receiver And Power Supply Kit

Name: Visionis FPC-5229 4 Mini 315mhz Wireless Fixed Code Remote With One Channel RF Receiver And Power Supply Kit
Brand: Visionis
SKU: FPC-5229
Price: 57.1 USD
Availability: InStock

Translation missing: en.products.product.sku:FPC-5229

UPC Code: 701772943747

Product Weight: 1.0 lb

Regular price: $57.10
Sale price: $57.10
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
