What is the electromagnetic gate lock made of?

The VIS-SS800-G is made of heavy-duty stainless steel, which provides durability, corrosion resistance, and protection against vandalism.

Is this mag lock for gates waterproof?

Yes. The VIS-SS800-G is designed for outdoor use and built with a sealed, weather-resistant stainless steel case. All parts are sealed for water resistance, making it durable enough to withstand rain and harsh outdoor conditions.

Does gate maglock kit come with a manual?

Yes, it does. A printed user manual is included in the box, or you can download the digital version.

Does this outdoor magnetic lock have a timer?

No, it doesn’t. However, you can add an exit button with a time delay, such as the VIS-7100 or the VIS-7013.

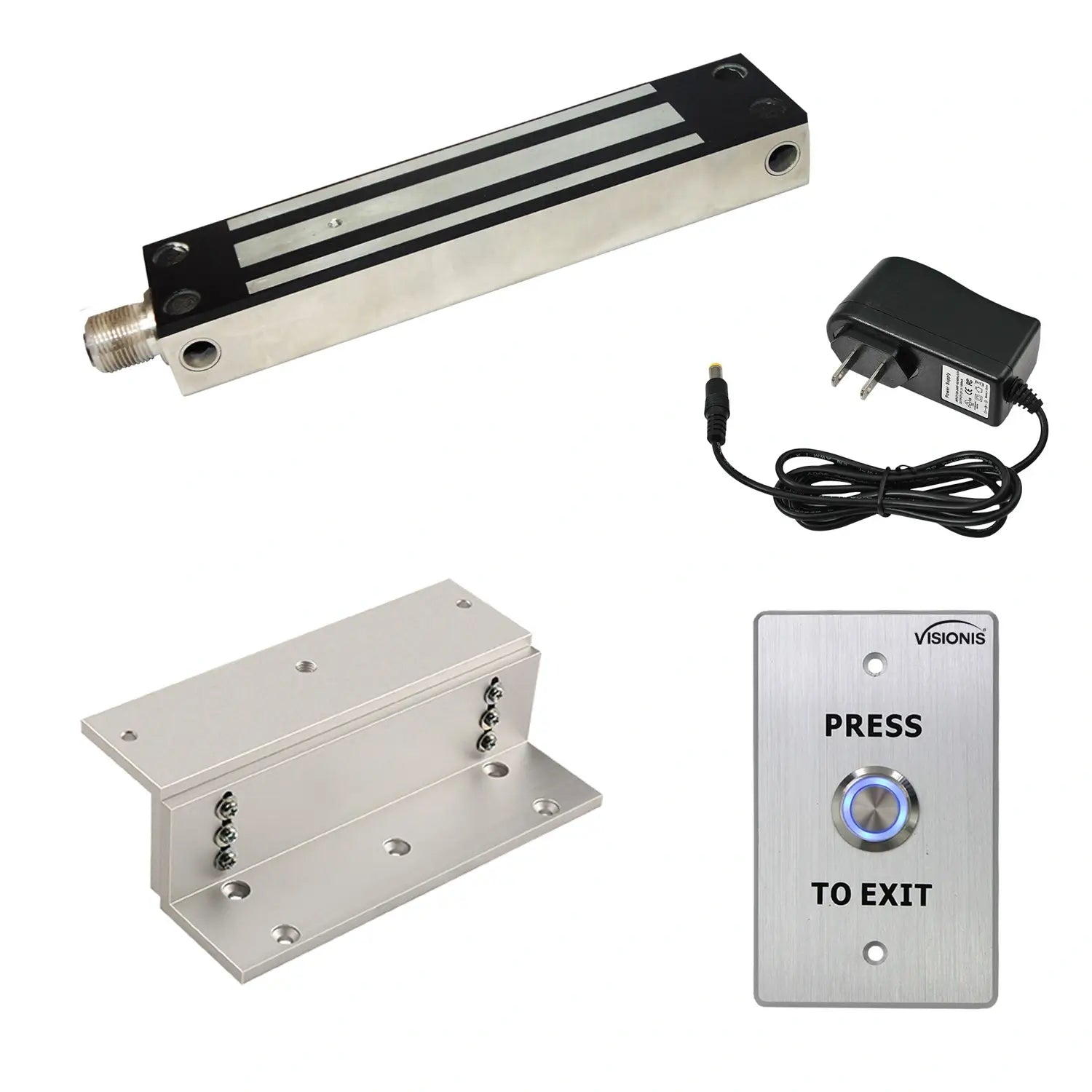

800 lbs gate maglock kit with push to exit button - FPC-7331

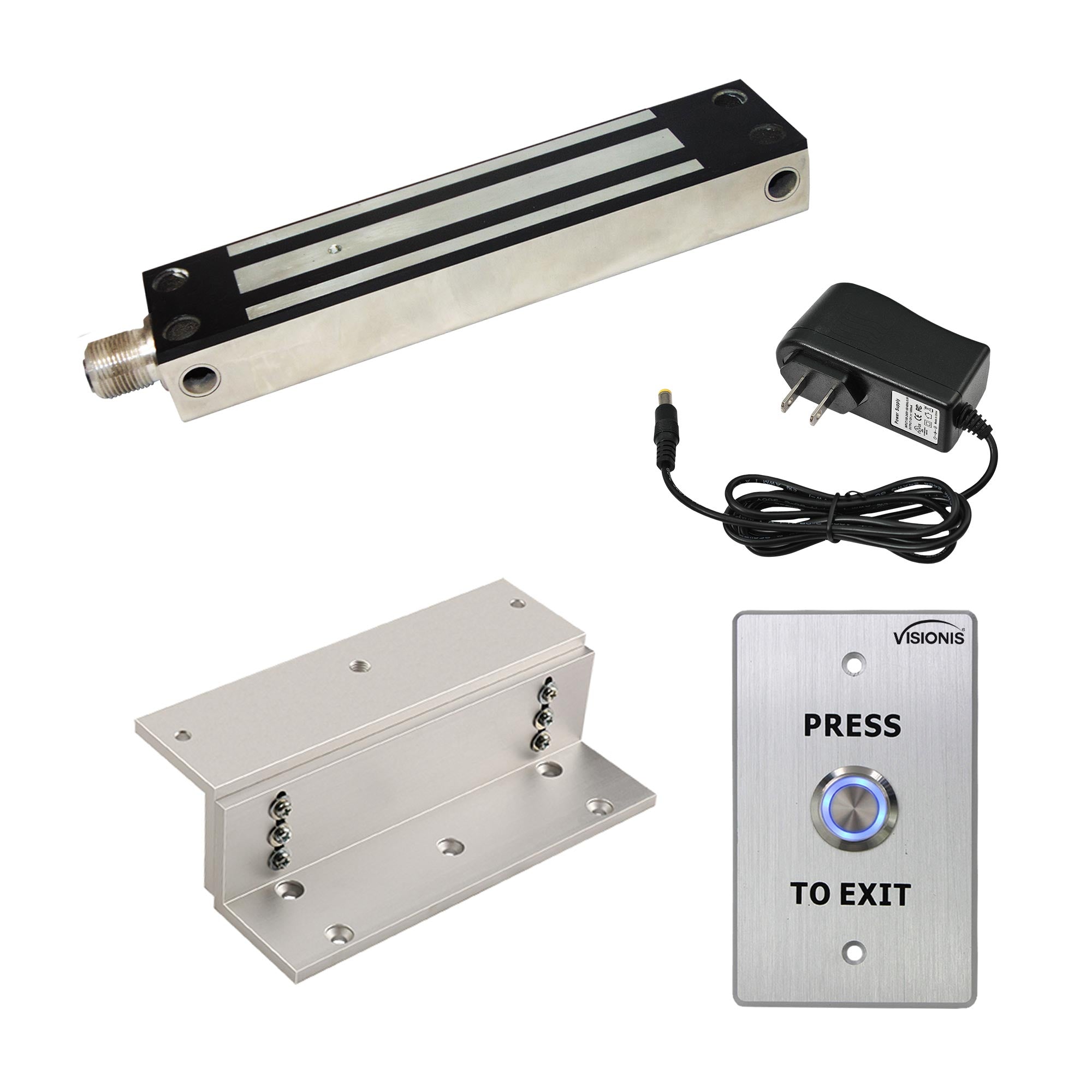

800lbs Outdoor and Gate Maglock with Weatherproof Exit Button Kit for Access Control

waterproof lock for outdoor gate VIS-SS800-G, VIS-SS1500-G unboxing

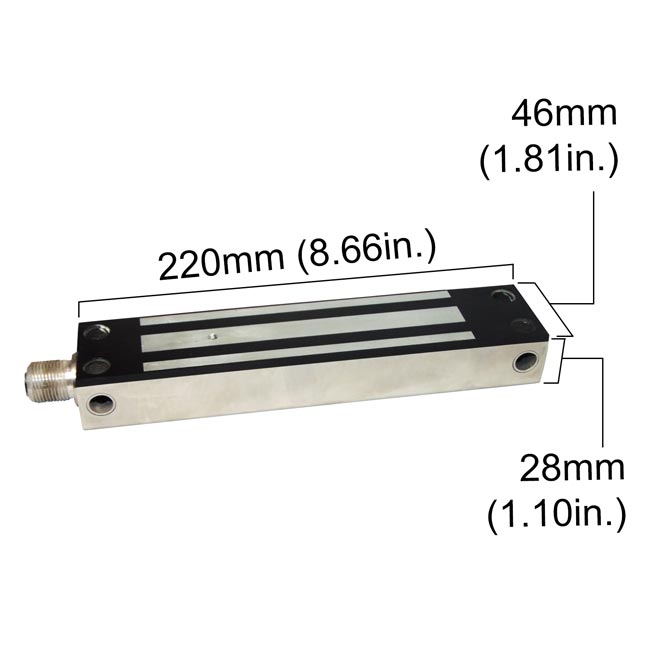

waterproof lock for outdoor gate 800lbs dimensions- VIS-SS800-G Visionis

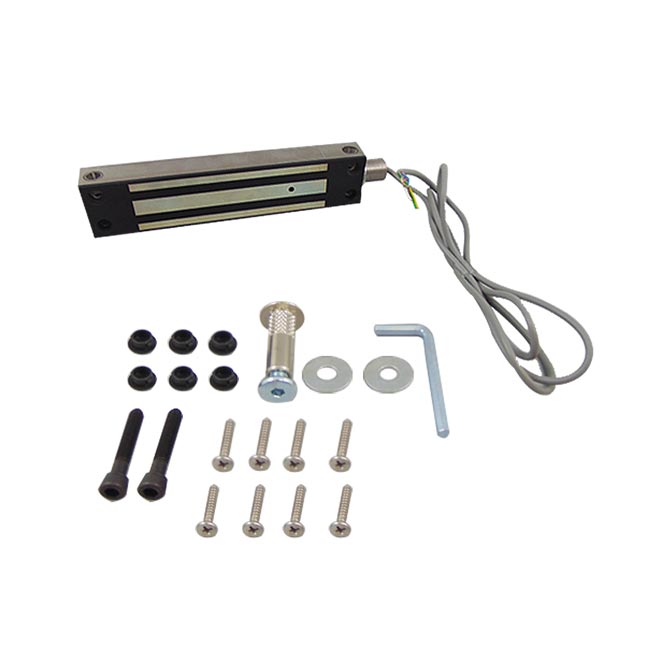

waterproof lock for outdoor gate 800lbs - VIS-SS800-G Visionis

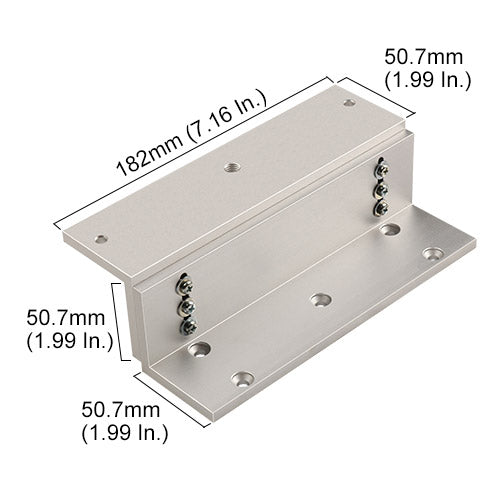

L and Z Bracket for VIS-SS800-G Outdoor 800lbs Maglock for Inswining Application

Dimensions VIS-7001 outdoor push to exit button with stainless steel and LED indicator

outdoor push to exit button with stainless steel and LED indicator - VIS-7001 Visionis

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

VIS-SS800-G: 800 lbs Outdoor and Gate Electromagnetic Lock

VIS-ZL-SS800: L and Z Bracket for VS-SS800-G Outdoor 800lbs Maglock for Inswining Application

VIS-7001: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request To Exit Button Standard Size w/ LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

IMPORTANT: This kit includes a bracket, but depending on your setup, you may need to adjust it or create a custom one.

What is the holding force of this maglock?

This maglock provides 800 lbs of holding force.

What is the recommended application for this waterproof lock for outdoor gate?

This maglock is ideal for outdoor and gate applications. It provides 800 lbs of holding force to keep your door secure at all times. It’s built to handle outdoor conditions while still providing reliable security. These locks are commonly used in outdoor and industrial areas.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-SS800-G:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 480mA; 24V / 240mA (±5%)
Holding Force: Up to 800 lbs (362 kg)
Hall Effect Contact: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 1.5 kg (±1%)
Dimensions:
Magnet - (L)220x(W)46x(T)28 mm
Armature - (L)182x(W)44x(T)12 mm

Model No. VIS-7001:

Contact Rating: 3A/125-250VAC
Output Contact: NC, COM, NO
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.12kg
Dimension Of Plate: 115L × 70W × 40H mm - 4.52L x 2.75W x 1.57H in.
LED Color Indicator: Blue

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

IMPORTANT: This kit includes a bracket, but depending on your setup, you may need to adjust it or create a custom one.

What is the holding force of this maglock?

This maglock provides 800 lbs of holding force.

What is the recommended application for this waterproof lock for outdoor gate?

This maglock is ideal for outdoor and gate applications. It provides 800 lbs of holding force to keep your door secure at all times. It’s built to handle outdoor conditions while still providing reliable security. These locks are commonly used in outdoor and industrial areas.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Product FAQs

What is the electromagnetic gate lock made of?

The VIS-SS800-G is made of heavy-duty stainless steel, which provides durability, corrosion resistance, and protection against vandalism.
Is this mag lock for gates waterproof?

Yes. The VIS-SS800-G is designed for outdoor use and built with a sealed, weather-resistant stainless steel case. All parts are sealed for water resistance, making it durable enough to withstand rain and harsh outdoor conditions.
Does gate maglock kit come with a manual?

Yes, it does. A printed user manual is included in the box, or you can download the digital version.
Does this outdoor magnetic lock have a timer?

No, it doesn’t. However, you can add an exit button with a time delay, such as the VIS-7100 or the VIS-7013.
Does it come with a power adapter?

Yes, it does come with 12 Volt 2Amp Power Supply.
What is the operating temperature range?

The operating temperature range is from 0°C to 55°C (32°F to 131°F), making it ideal for diverse outdoor environments.
Does the waterproof lock for outdoor gate come with an exit button?

Yes, it does

Download Datasheets and Manuals of this product

FPC-7329, FPC-7331, FPC-7333, FPC-7335

Installation Diagram

VIS-SS800-G

VIS-ZL-SS800

VIS-7001

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Outdoor Magnetic Lock VIS-SS800-G 800lbs (362 kg) Holding Force + L And Z Bracket + VIS-7001 Weatherproof With LED Push To Exit Button NO, NC, COM Outputs For Access Control, Power Supply - FPC-7331

Translation missing: en.products.product.sku:FPC-7331

UPC Code: 750958783561 Weight: 10.0 lb

Regular price: $172.64
Sale price: $172.64
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
