600lb Indoor Magnetic Lock with LED Sensor VIS-ML600LED

Dimensions 600lb Indoor Magnetic Lock with LED Sensor VIS-ML600LED

VIS-LS600 - LS Bracket 600lbs VIS-ML600LED Maglock for Outswinging Narrow Door

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

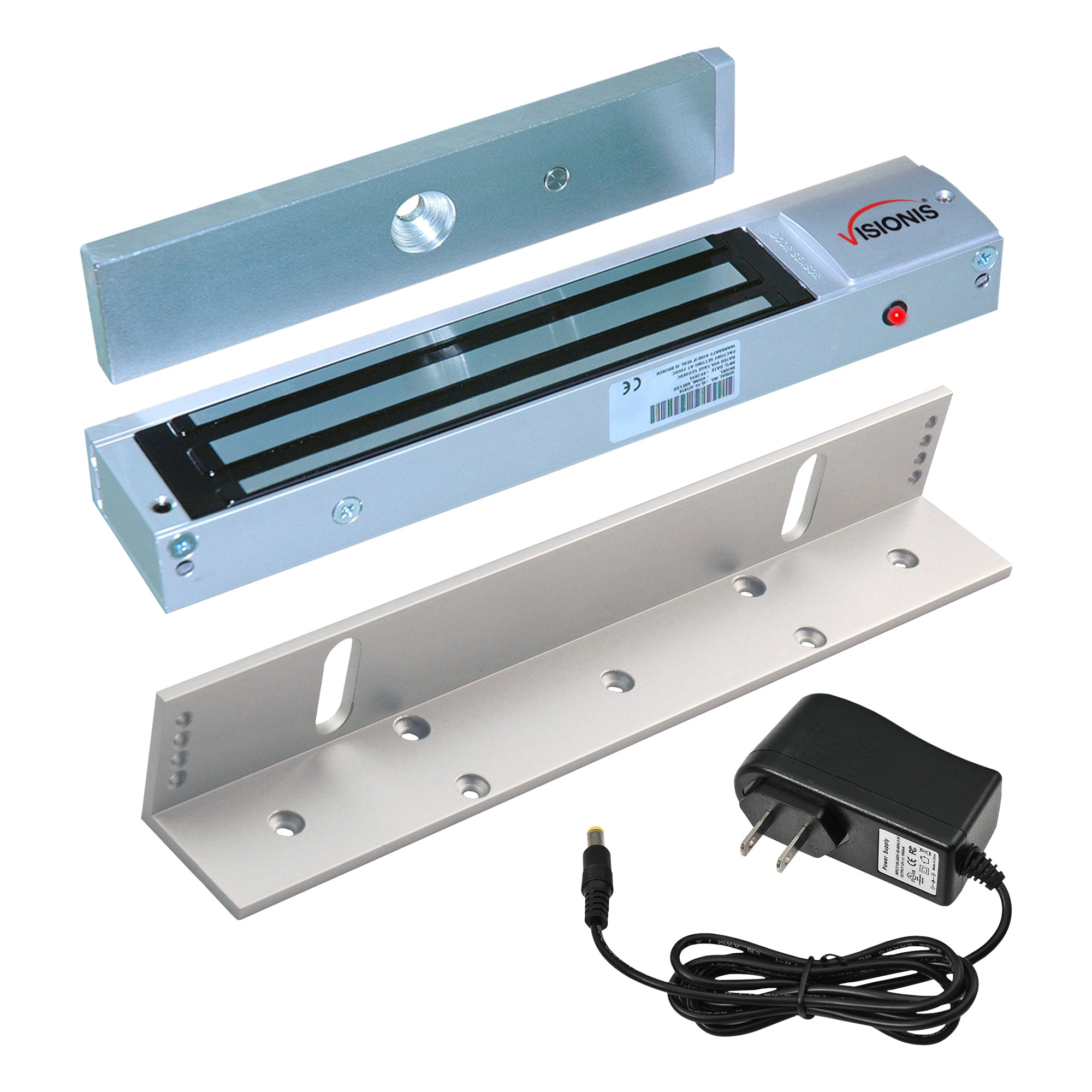

Kit Includes:

(1)

VIS-ML600LED: 600lbs Indoor Electromagnetic Lock with LED Sensor

VIS-LS600: LS Bracket 600lbs VIS-ML600LED Maglock for Outswinging Narrow Door

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

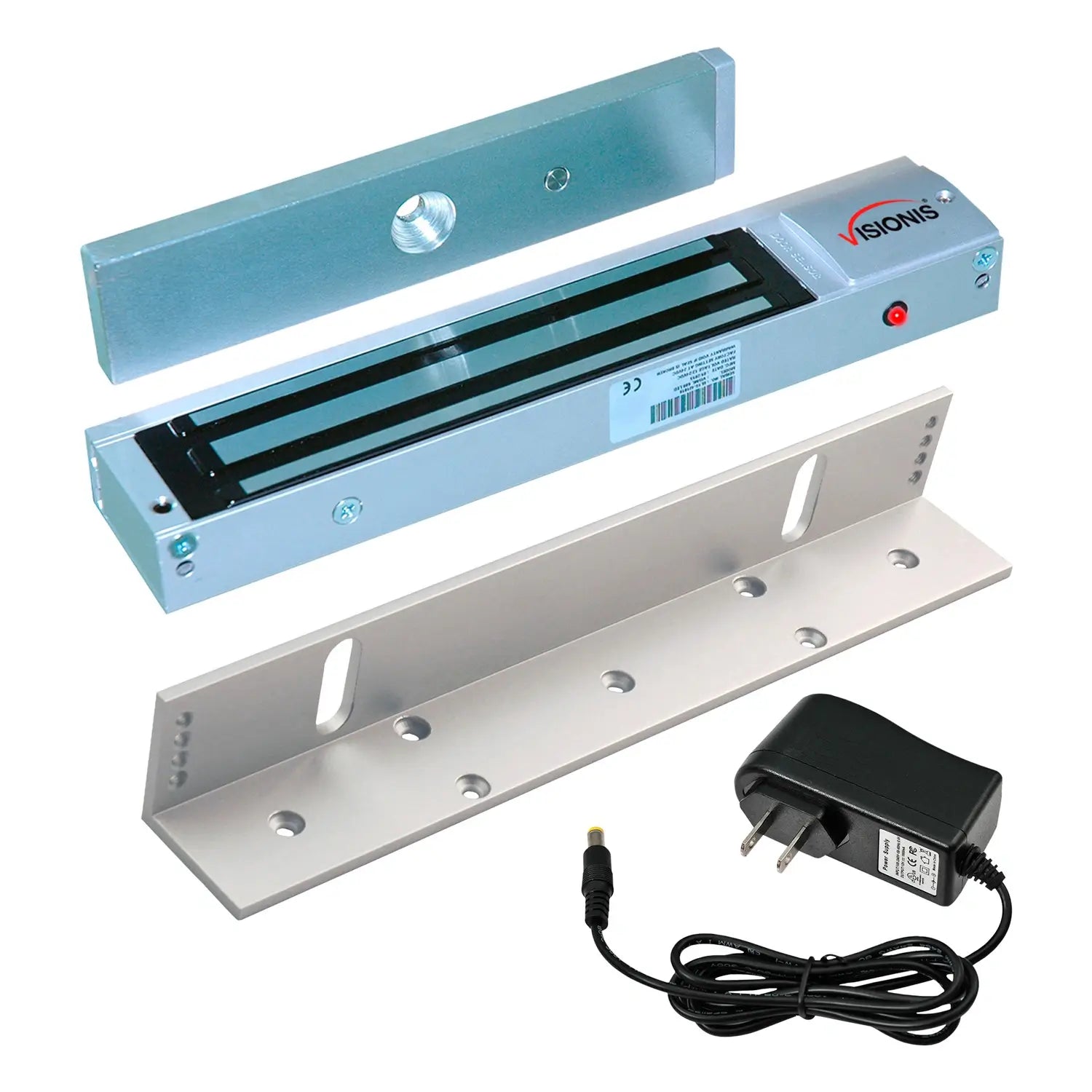

The FPC-5692 kit is a complete access control solution for narrow outswinging doors, featuring a 600lbs magnetic door lock (VIS-ML600LED), a VIS-LS600 mounting bracket, and a 12V power supply for easy installation.

The VIS-ML600LED maglock delivers up to 600lbs of holding force, providing strong protection against forced entry. It installs securely beneath the top of the door frame to ensure the door remains tightly closed. A built-in LED indicator clearly displays lock status: red when locked and green when unlocked.

The included VIS-LS600 bracket is designed specifically for narrow outswinging doors, ensuring proper alignment and optimal performance. The power supply is included, eliminating the need for separate purchases.

Perfect for residential, office, or light commercial applications, the 5692 kit offers a reliable, easy-to-install magnetic locking solution for secure door control.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model VIS-ML600LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)
Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The FPC-5692 kit is a complete access control solution for narrow outswinging doors, featuring a 600lbs magnetic door lock (VIS-ML600LED), a VIS-LS600 mounting bracket, and a 12V power supply for easy installation.

The VIS-ML600LED maglock delivers up to 600lbs of holding force, providing strong protection against forced entry. It installs securely beneath the top of the door frame to ensure the door remains tightly closed. A built-in LED indicator clearly displays lock status: red when locked and green when unlocked.

The included VIS-LS600 bracket is designed specifically for narrow outswinging doors, ensuring proper alignment and optimal performance. The power supply is included, eliminating the need for separate purchases.

Perfect for residential, office, or light commercial applications, the 5692 kit offers a reliable, easy-to-install magnetic locking solution for secure door control.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Download Datasheets and Manuals of this product

VIS-ML600LED

VIS-LS600

Datasheet

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Indoor Magnetic Door Lock VIS-ML600LED. Up to 600 lbs (272 kg) of Holding Force. 12 VDC / 24 VDC + LS Bracket for Narrow Doors - FPC-5692 Visionis

Translation missing: en.products.product.sku:FPC-5692

UPC Code: 614961171770 Weight: 6.0 lb

Regular price: $61.19
Sale price: $61.19
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
