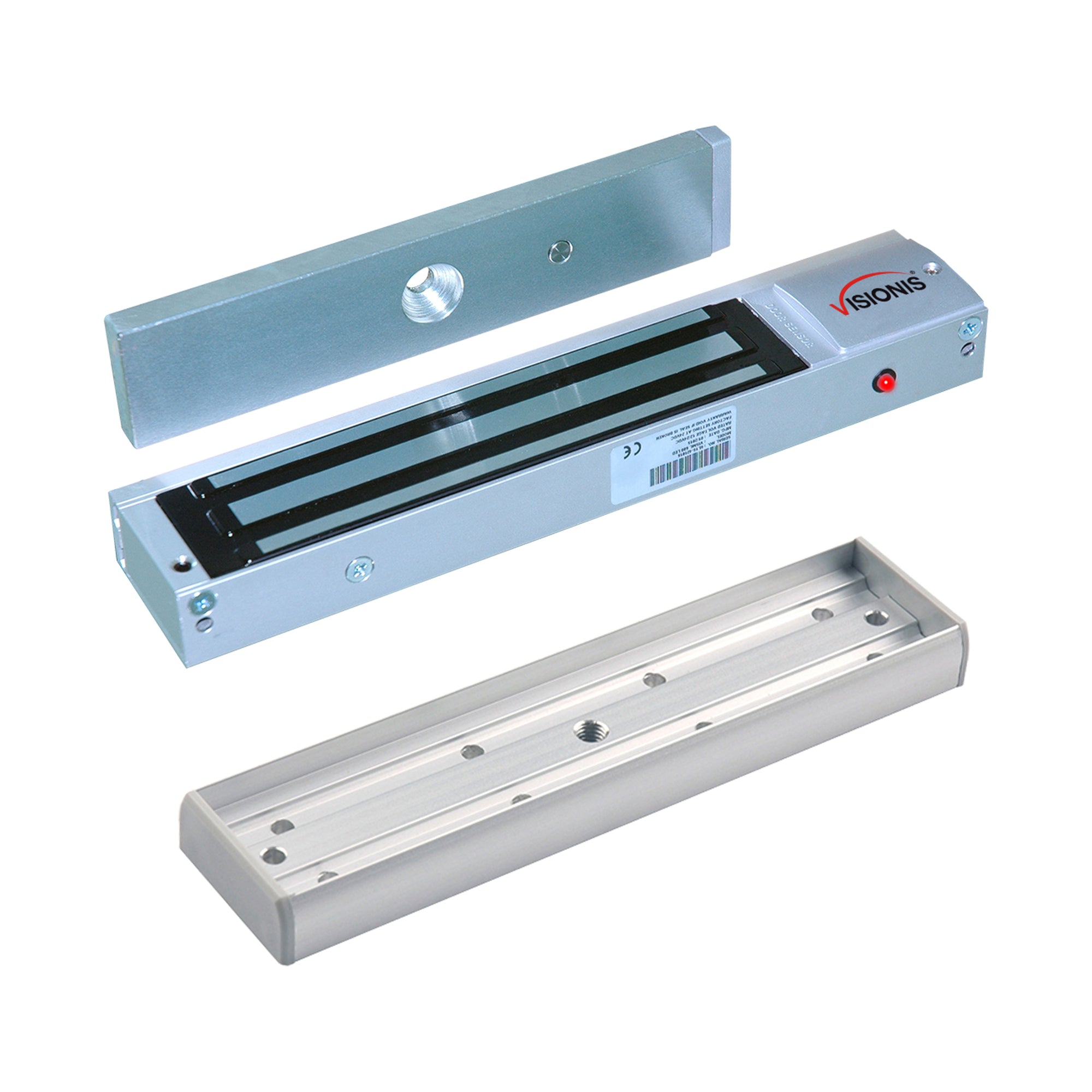

The VISIONIS FPC-5700 Magnetic Door Lock Kit is a secure and professional-grade solution designed for clean installations on various door types, including fire-rated doors. This kit includes the VIS-ML600LED electromagnetic door lock with 600 lbs of holding force and the VIS-AH600 armature plate housing, offering a cleaner look and easier installation process.

The door magnetic lock mounts at the top of the frame and locks when energized. It features a built-in LED status indicator—red means locked, green means unlocked—so users can quickly confirm the door status. The VIS-AH600 housing simplifies installation and improves aesthetics by eliminating the need to drill large holes through the door.

This magnetic door lock kit is ideal for commercial, fire-rated, or modern office doors where access control locks must combine security, durability, and professional finish.

Key Features:

• 600 lb maglock (VIS-ML600LED)

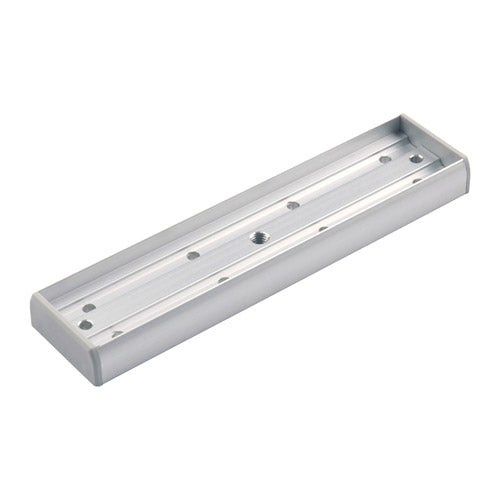

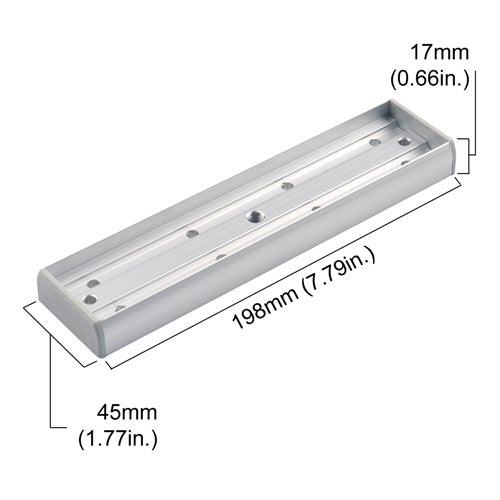

• Includes VIS-AH600 armature plate housing for cleaner installations
• LED indicator: Red = Locked, Green = Unlocked
• Designed for fire doors and various door materials
• Compatible with 12VDC / 24VDC systems
• No need for large hole drilling—ideal for faster, vandal-resistant setup
• Perfect for access control locks in commercial or fire-rated doors

IMPORTANT: This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
