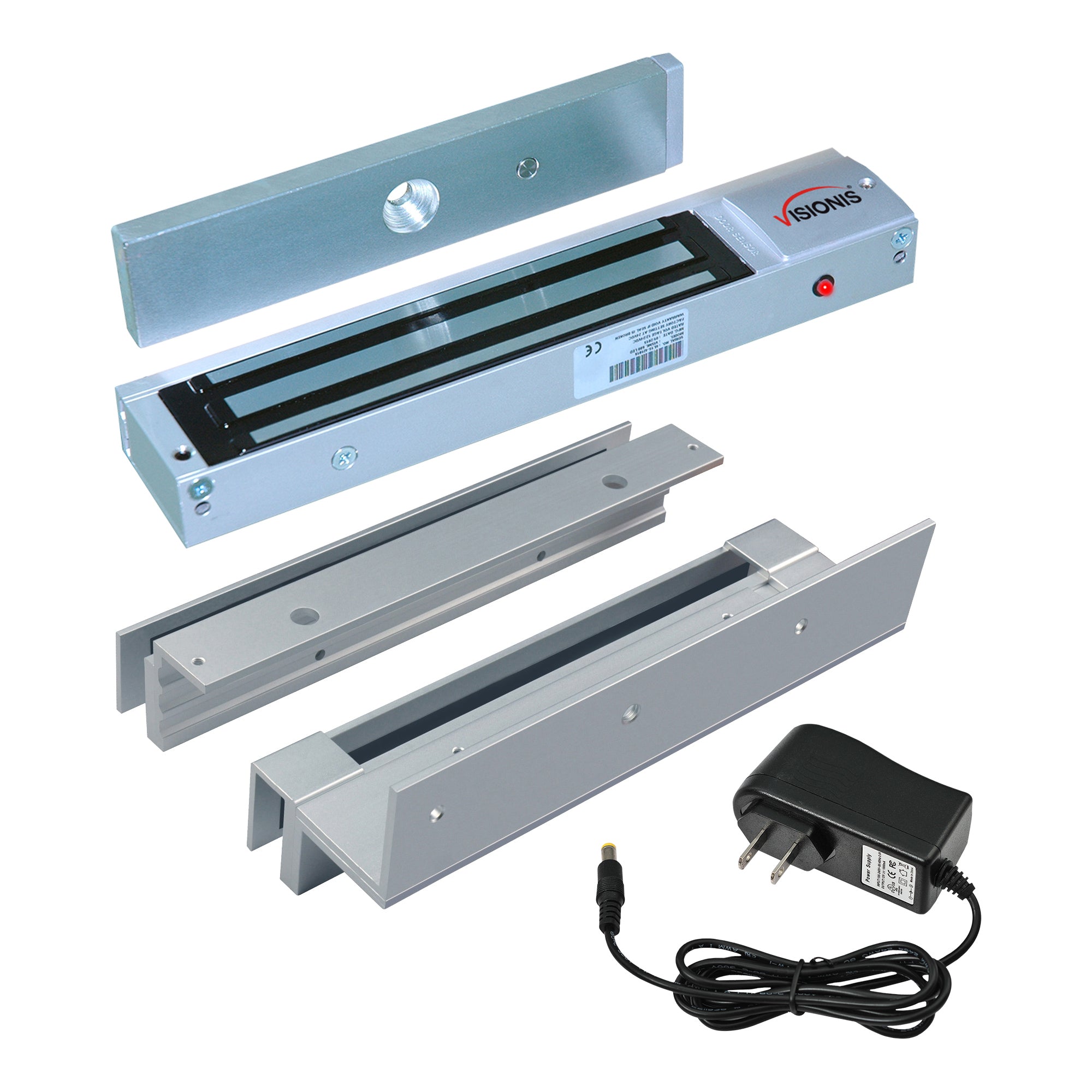

The VISIONIS FPC-5697-B Magnetic Door Lock Kit is a complete access control solution for glass doors with glass frames. This kit includes the powerful VIS-ML600LED electromagnetic door lock, the VIS-DSU600 bracket for proper installation on glass-to-glass surfaces, and a 12V power supply—everything needed for fast and reliable setup.

The VIS-ML600LED delivers 600 lbs of holding force, securing the door against forced entry when powered. It features a built-in LED indicator that clearly shows lock status—red means locked, green means unlocked—making it easy to monitor door security at a glance.

The included DSU bracket is specially designed to support the lock on glass door and frame setups without drilling into the glass, ensuring stability and safety. This magnetic door lock kit is ideal for modern office buildings, storefronts, and glass-walled interior rooms that demand clean design and dependable security.

Key Features:

• Complete magnetic door lock kit for glass doors with glass frames
• Includes 600 lb electromagnetic lock (VIS-ML600LED)

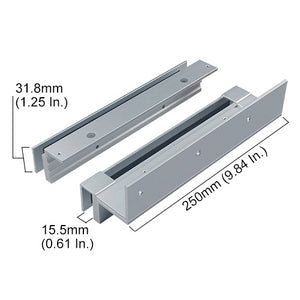

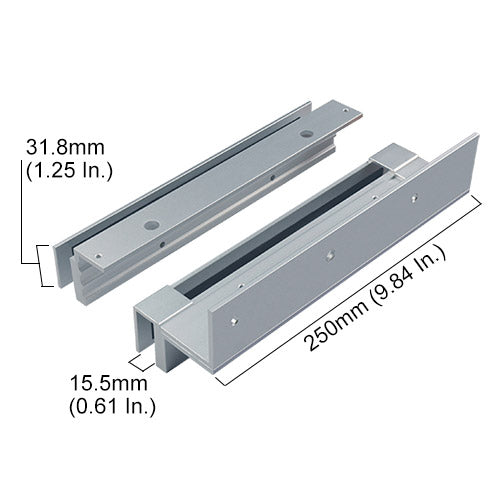

• VIS-DSU600 bracket for glass-to-glass installation
• LED status indicator: red = locked, green = unlocked
• Includes 12VDC power supply
• Supports 12VDC and 24VDC systems
• Blue zinc anti-rust finish for long-term durability
• Ideal for access control locks in commercial or modern office spaces



NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
