Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

600lb magnetic door lock kit with LED, ZL bracket, and power supply for inswing doors. VIS-ML600LED - FPC-5364 VISIONIS

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

600 lbs magnetic door locks with LED Sensor VIS-ML600LED

600lb Indoor Magnetic Lock with LED Sensor VIS-ML600LED

Dimensions 600lb Indoor Magnetic Lock with LED Sensor VIS-ML600LED

L and Z Bracket For 600lbs Electromagnetic Lock VIS-ZL600

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

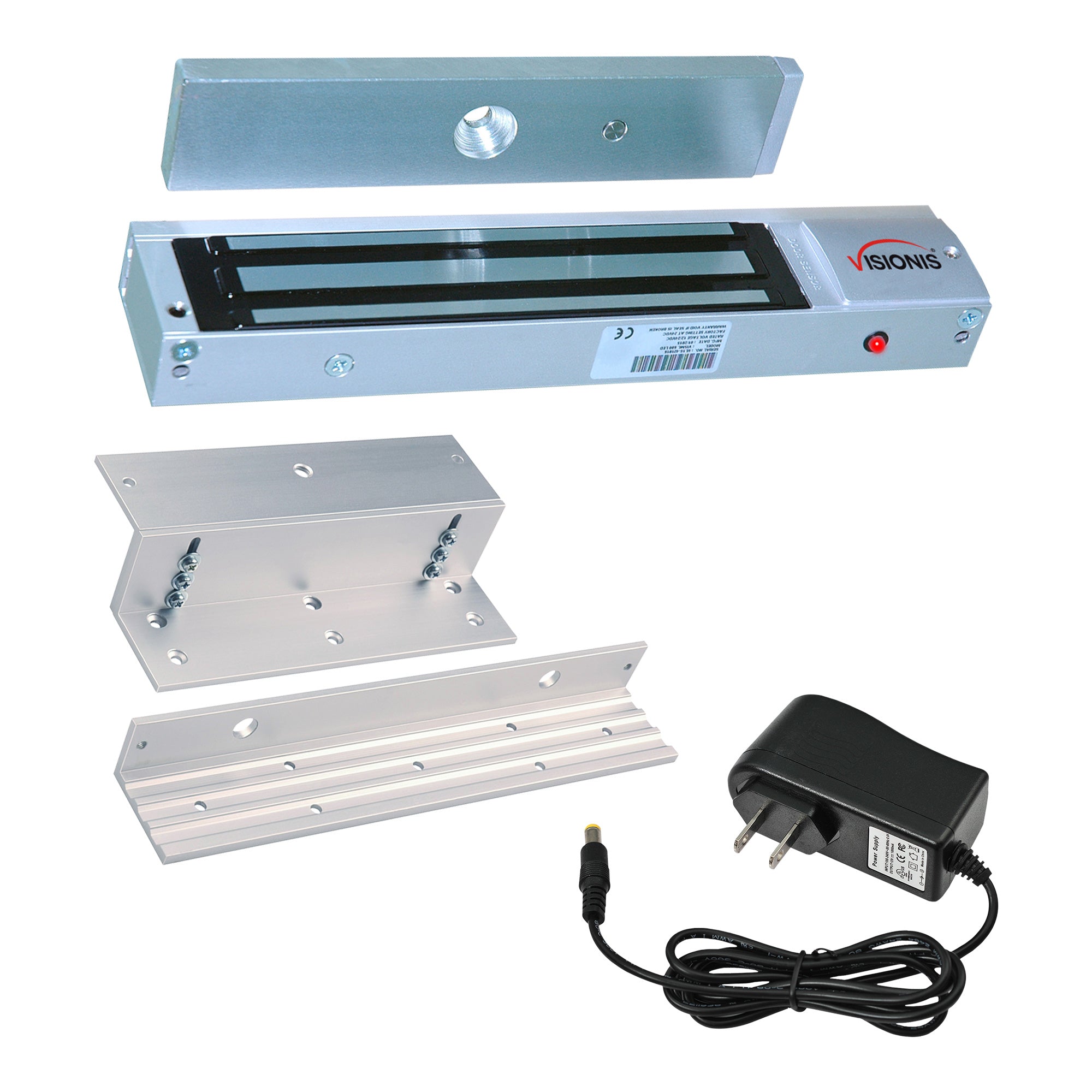

Kit Includes:

(1)

VIS-ML600LED: 600lbs Indoor Electromagnetic Lock with LED Sensor

VIS-ZL600: L and Z Bracket For 600lbs Electromagnetic Lock

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The VISIONIS FPC-5364 Magnetic Door Lock Kit is a dependable access control solution designed for inswinging doors. This all-in-one package includes a 600 lb electromagnetic door lock (VIS-ML600LED), an inswing-compatible ZL bracket (VIS-ZL600), and a 12V 1A power supply, providing a complete and efficient setup for indoor door security.

Mounted beneath the top of the door frame, the door magnetic lock secures the door when energized, delivering up to 600 lbs of holding force. Its built-in LED status light offers real-time visual confirmation—red indicates locked, green indicates unlocked—making it ideal for high-traffic environments where visibility and reliability are critical.

The VIS-ZL600 bracket ensures stable mounting on doors that open inward, while the included power supply eliminates the need for separate purchases, streamlining the installation process.

Key Features:

Complete maglock kit for inswinging doors
Includes 600 lb electromagnetic lock (VIS-ML600LED)
Built-in LED: Red = Locked, Green = Unlocked
Includes VIS-ZL600 bracket for correct inswing door installation
Includes 12V 1A power supply for immediate setup
Compatible with 12VDC and 24VDC access control systems
Ideal for offices, residences, and light commercial interiors
Blue zinc-plated finish for rust resistance

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model VIS-ML600LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)
Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL600:

L and Z bracket for 600lbs electromagnetic lock

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The VISIONIS FPC-5364 Magnetic Door Lock Kit is a dependable access control solution designed for inswinging doors. This all-in-one package includes a 600 lb electromagnetic door lock (VIS-ML600LED), an inswing-compatible ZL bracket (VIS-ZL600), and a 12V 1A power supply, providing a complete and efficient setup for indoor door security.

Mounted beneath the top of the door frame, the door magnetic lock secures the door when energized, delivering up to 600 lbs of holding force. Its built-in LED status light offers real-time visual confirmation—red indicates locked, green indicates unlocked—making it ideal for high-traffic environments where visibility and reliability are critical.

The VIS-ZL600 bracket ensures stable mounting on doors that open inward, while the included power supply eliminates the need for separate purchases, streamlining the installation process.

Key Features:

Complete maglock kit for inswinging doors
Includes 600 lb electromagnetic lock (VIS-ML600LED)
Built-in LED: Red = Locked, Green = Unlocked
Includes VIS-ZL600 bracket for correct inswing door installation
Includes 12V 1A power supply for immediate setup
Compatible with 12VDC and 24VDC access control systems
Ideal for offices, residences, and light commercial interiors
Blue zinc-plated finish for rust resistance

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.
Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.
Does it have a time delay or timer function?

No, it doesn't.
Is this magnetic door lock kit weatherproof?

This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.
