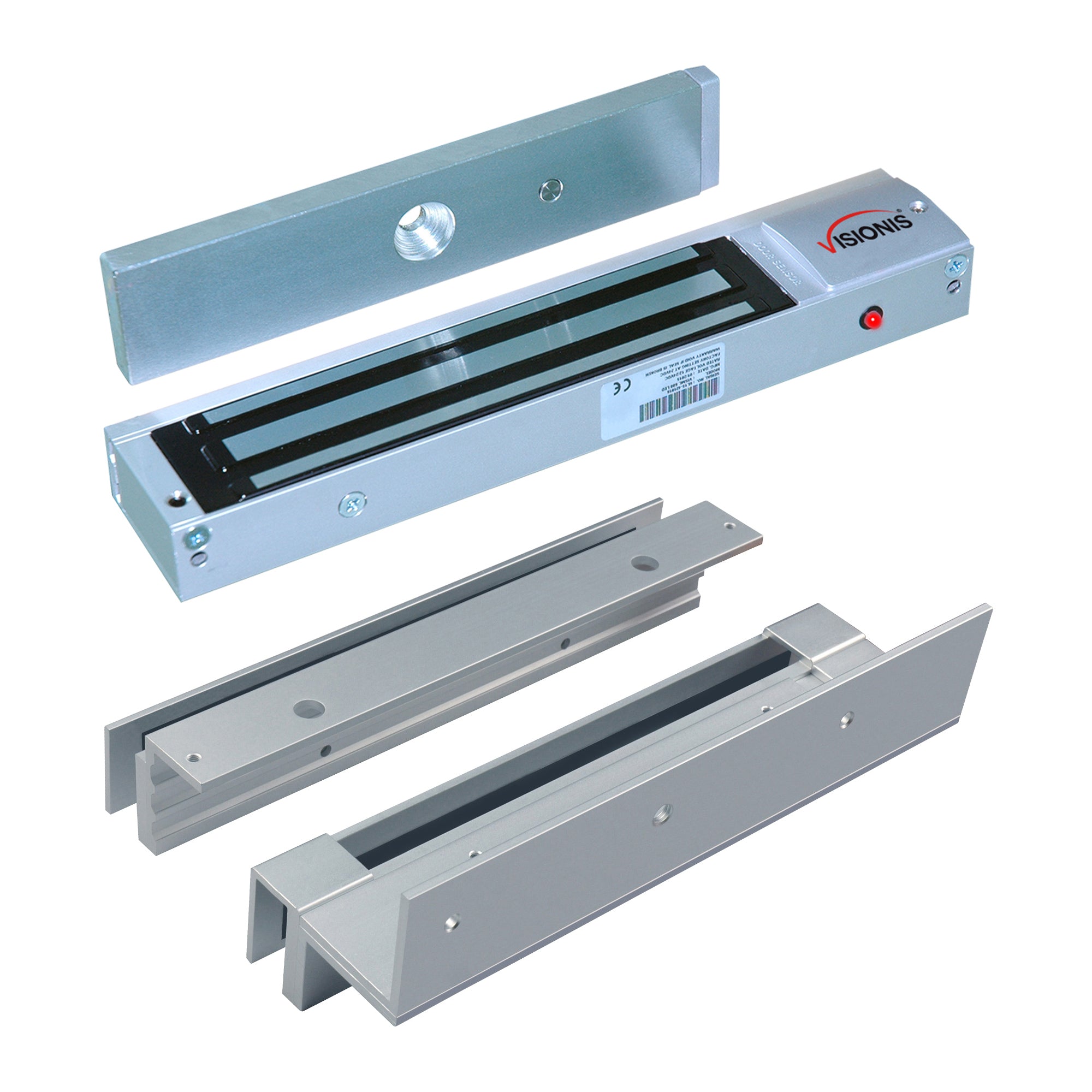

The VISIONIS FPC-5697 Magnetic Door Lock Kit is built for glass doors with glass frames, offering a secure and professional-grade solution for access control systems. This kit includes the VIS-ML600LED electromagnetic door lock, which provides up to 600 lbs of holding force, and the VIS-DSU600 bracket, specially designed for proper alignment on glass-to-glass installations.

The door magnetic lock is installed at the top of the door frame and activates when powered, keeping the door firmly locked. The LED indicator provides quick status visibility—red means locked, green means unlocked—ideal for office and commercial environments where door status must be easily monitored.

With dual voltage support and a corrosion-resistant finish, this magnetic door lock kit is a dependable choice for securing indoor glass door entries in modern office spaces, retail stores, and controlled access areas.

Key Features:

• 600 lb electromagnetic door lock (VIS-ML600LED)

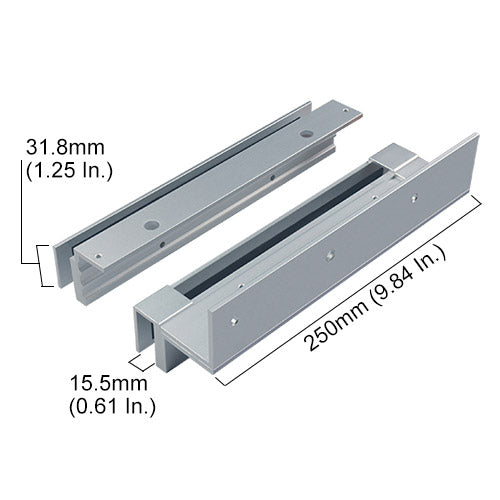

• DSU600 bracket for glass door with glass frame installations
• LED indicator shows Red = Locked, Green = Unlocked
• Compatible with 12VDC and 24VDC power systems
• Includes mounting hardware for glass-to-glass setups
• Blue zinc-plated anti-rust surface
• Ideal for access control locks in retail, office, or indoor environments

IMPORTANT: This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close maglock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
