This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

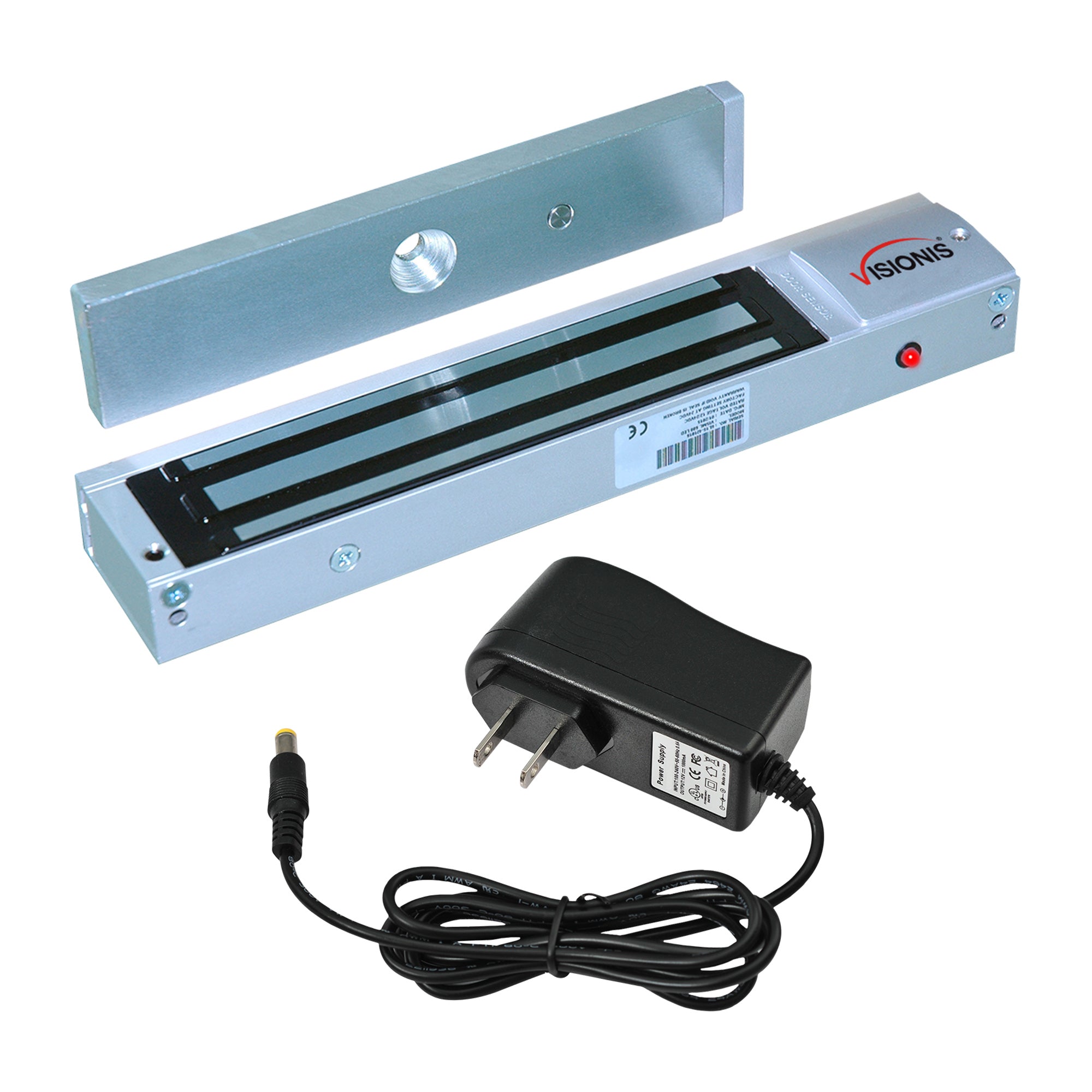

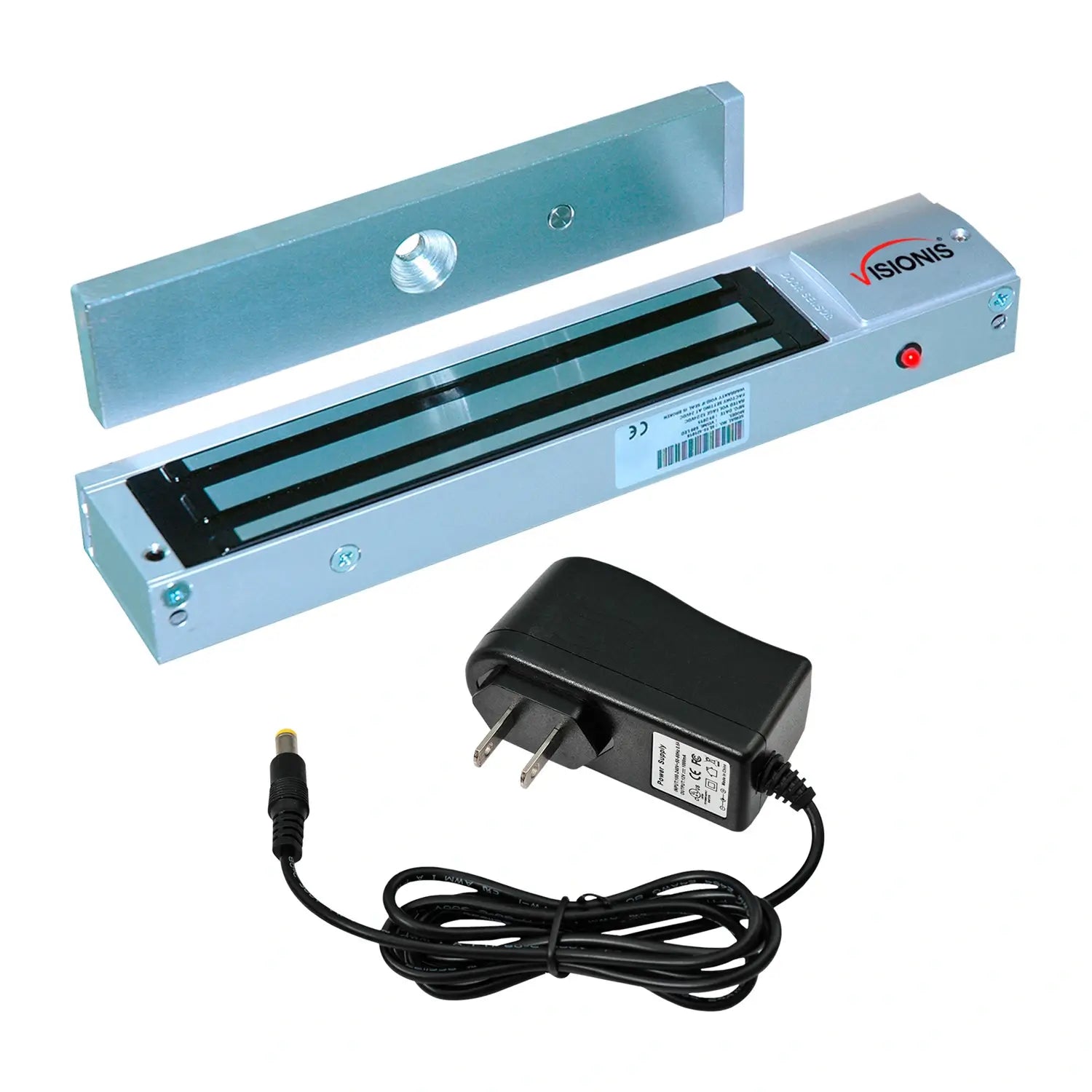

The VISIONIS FPC-5361 Magnetic Door Lock Kit is a reliable and easy-to-install solution for outswinging doors, offering enhanced indoor security with a powerful 600 lb electromagnetic door lock (VIS-ML600LED) and a 12V 1A power supply included in the package.

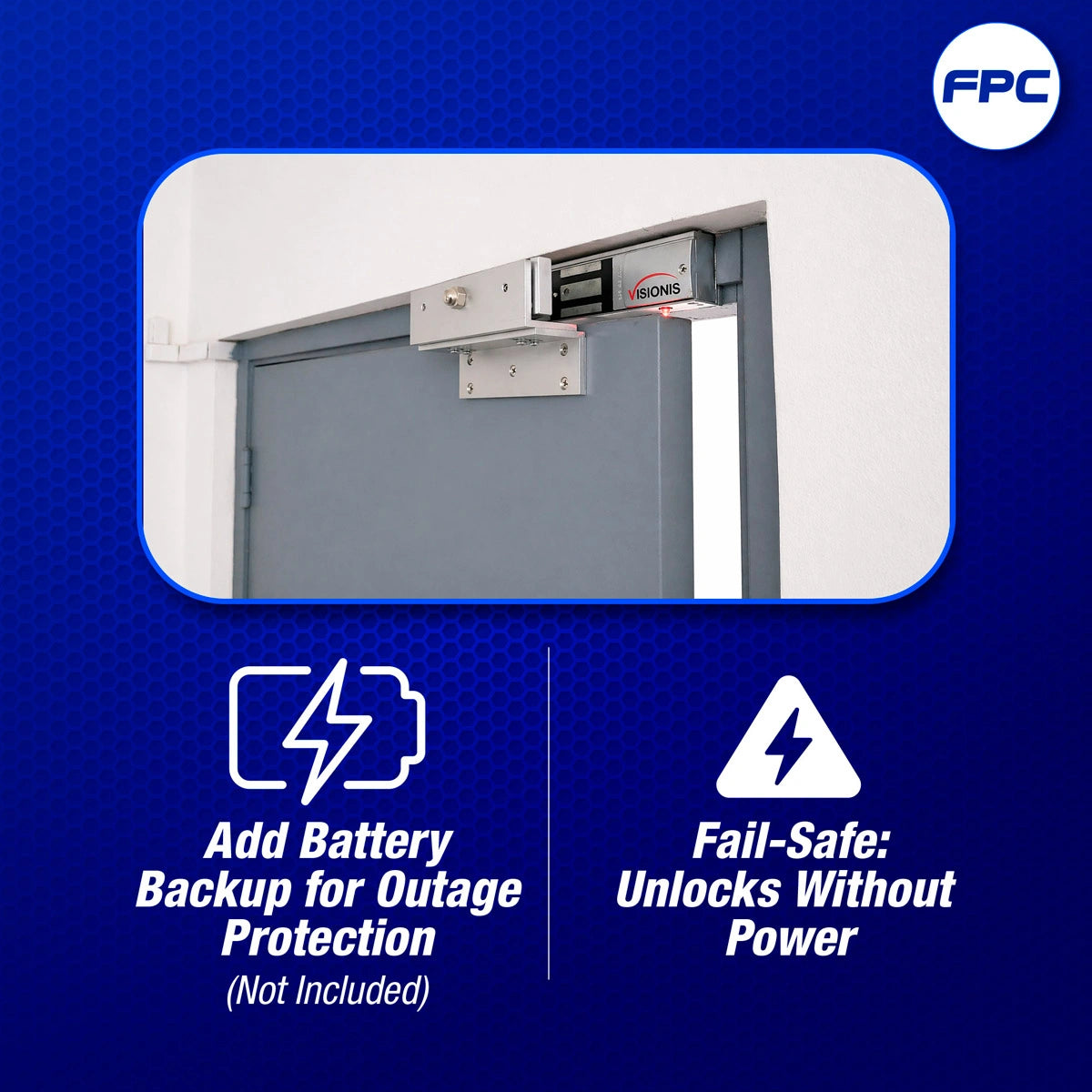

The VIS-ML600LED maglock is installed beneath the top of the door frame and delivers up to 600 lbs of holding force, keeping the door securely closed when energized. An integrated LED status light provides immediate visual feedback—red means locked, green means unlocked—making it ideal for access control systems where lock visibility matters.

With dual voltage support and a corrosion-resistant zinc finish, this magnetic door lock kit is perfect for offices, storage rooms, and light commercial doors that require dependable access control.

Key Features:

  • Complete magnetic door lock kit for outswinging doors
  • Includes 600 lb electromagnetic door lock (VIS-ML600LED)
  • Built-in red/green LED status light for lock monitoring
  • Includes 12VDC 1A power supply—ready for plug-and-play use
  • Dual voltage: 12VDC or 24VDC compatible
  • Ideal for access control locks in indoor commercial and residential spaces
  • Rust-resistant blue zinc plating for durability

NOTES:

  • For doors that open inward (inswing), a ZL bracket is required and sold separately.
  • This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Characteristics

Model VIS-ML600LED:

  • Voltage Input: 12 VDC / 24 VDC
  • Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
  • Holding Force: Up to 600 lbs (272 kg)
  • Hall Effect Contact: SPDT rated 2A at 24 VDC
  • Magnetic Contact Rating: 28 VDC, 0.5A, 10W
  • Anti-Rust Surface Treatment: Blue Zinc Plating
  • Operating Temperature: 0~55° C (32~131° F)
  • Weight (Magnet): 1.1 kg (±1%)
  • Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
  • Green/Red LED Indication for EM Lock Status
Packaging of this product

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The VISIONIS FPC-5361 Magnetic Door Lock Kit is a reliable and easy-to-install solution for outswinging doors, offering enhanced indoor security with a powerful 600 lb electromagnetic door lock (VIS-ML600LED) and a 12V 1A power supply included in the package.

The VIS-ML600LED maglock is installed beneath the top of the door frame and delivers up to 600 lbs of holding force, keeping the door securely closed when energized. An integrated LED status light provides immediate visual feedback—red means locked, green means unlocked—making it ideal for access control systems where lock visibility matters.

With dual voltage support and a corrosion-resistant zinc finish, this magnetic door lock kit is perfect for offices, storage rooms, and light commercial doors that require dependable access control.

Key Features:

  • Complete magnetic door lock kit for outswinging doors
  • Includes 600 lb electromagnetic door lock (VIS-ML600LED)
  • Built-in red/green LED status light for lock monitoring
  • Includes 12VDC 1A power supply—ready for plug-and-play use
  • Dual voltage: 12VDC or 24VDC compatible
  • Ideal for access control locks in indoor commercial and residential spaces
  • Rust-resistant blue zinc plating for durability

NOTES:

  • For doors that open inward (inswing), a ZL bracket is required and sold separately.
  • This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
  • Do these locks work with both 12V and 24V power supplies?

    Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

  • Will I be able to tell if the magnetic lock is working by looking at it?

    Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

    Green = Locked
    Red = Released
    Off = No input

  • Can these magnetic locks be installed on glass/sliding doors?

    Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

  • What happens to the maglock when the power goes out?

    This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

  • Does the magnetic lock make a noise when unlocking?

    The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.

  • Does it have a time delay or timer function?

    No, it doesn't.

  • Is this magnetic door lock kit weatherproof?

    This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.
