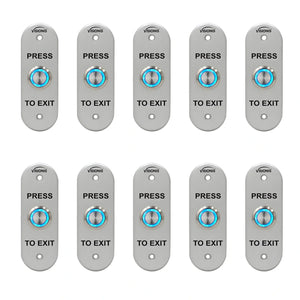

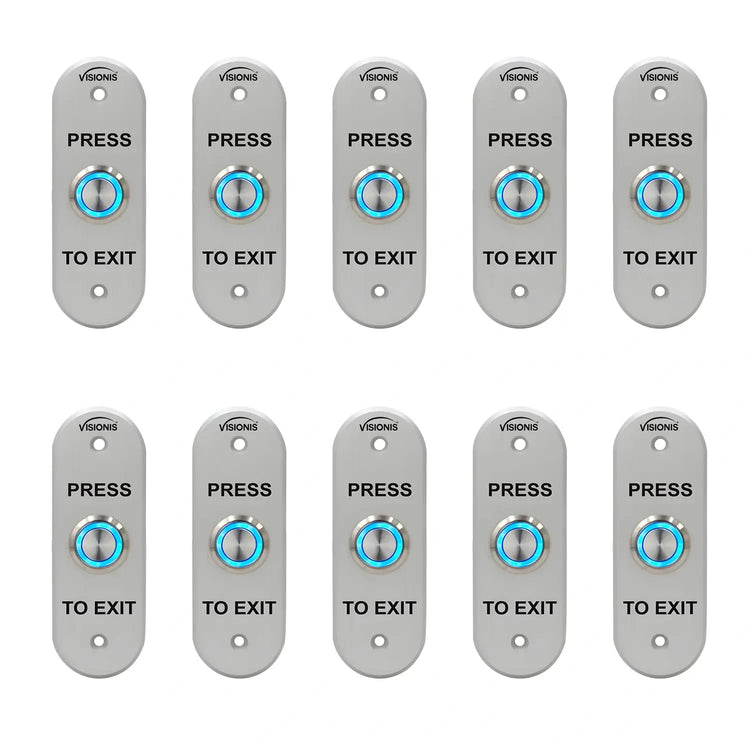

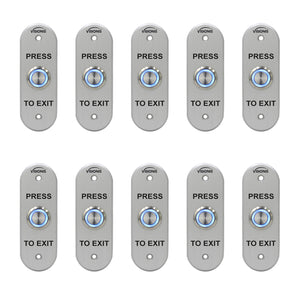

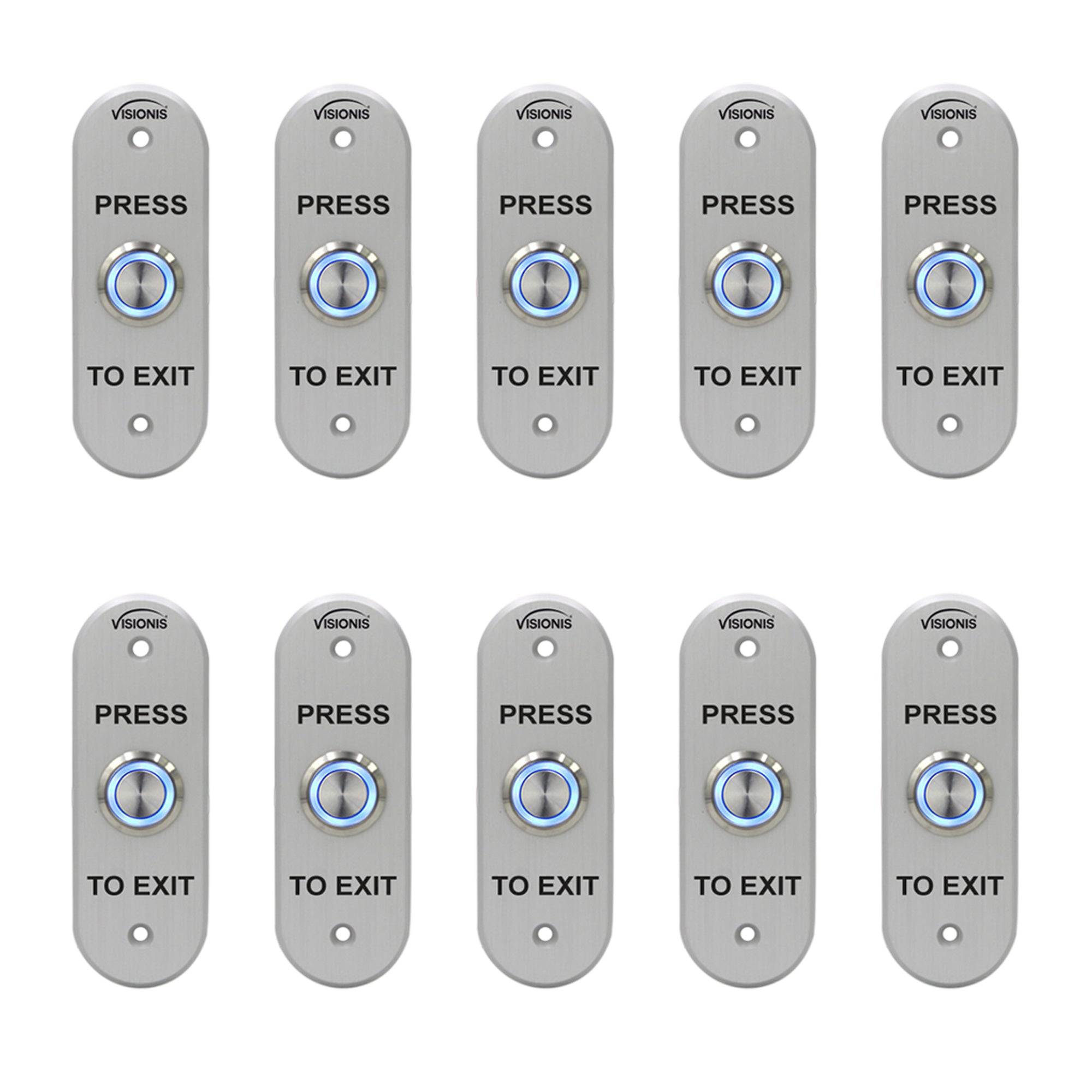

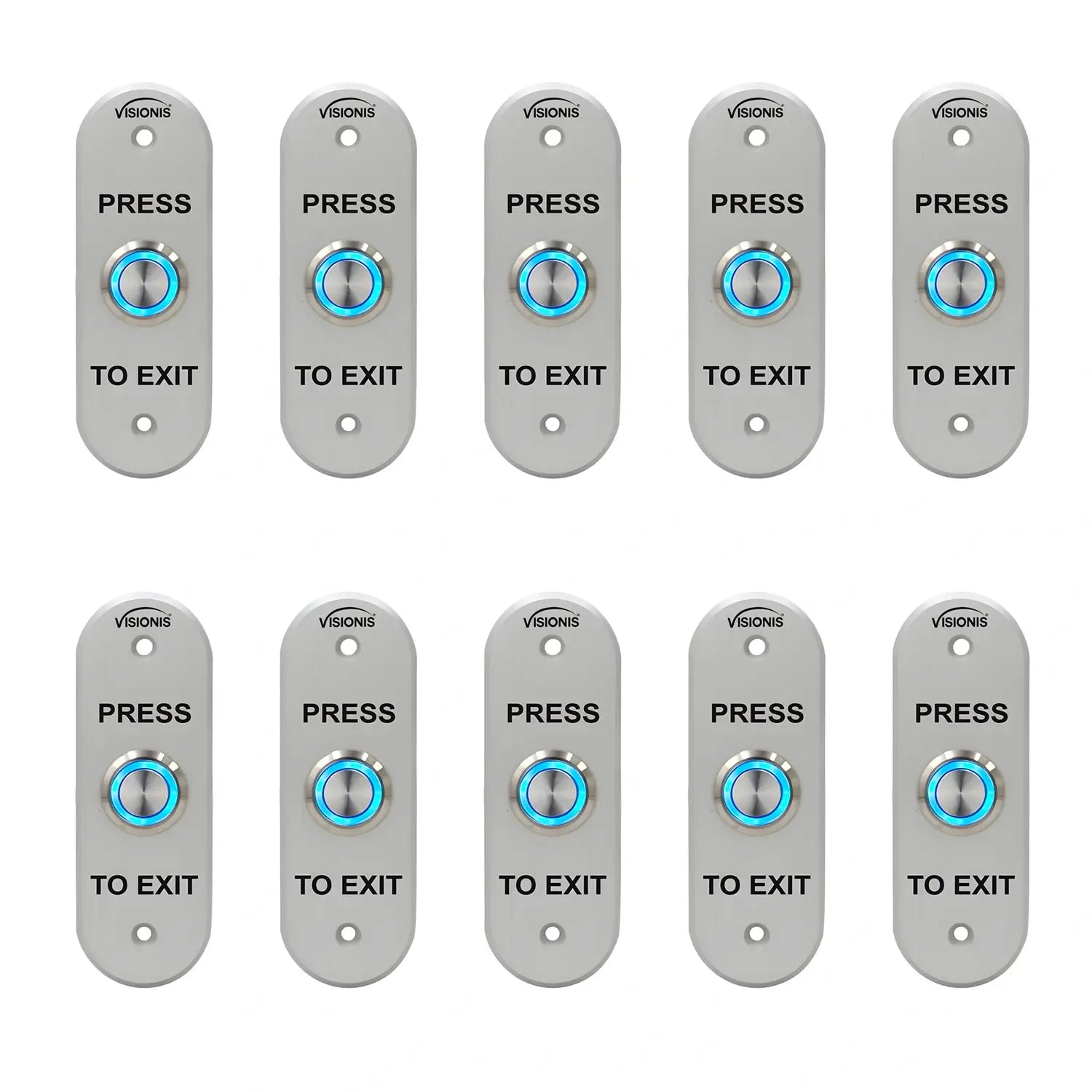

Pack of 10 push to exit button with LED Light

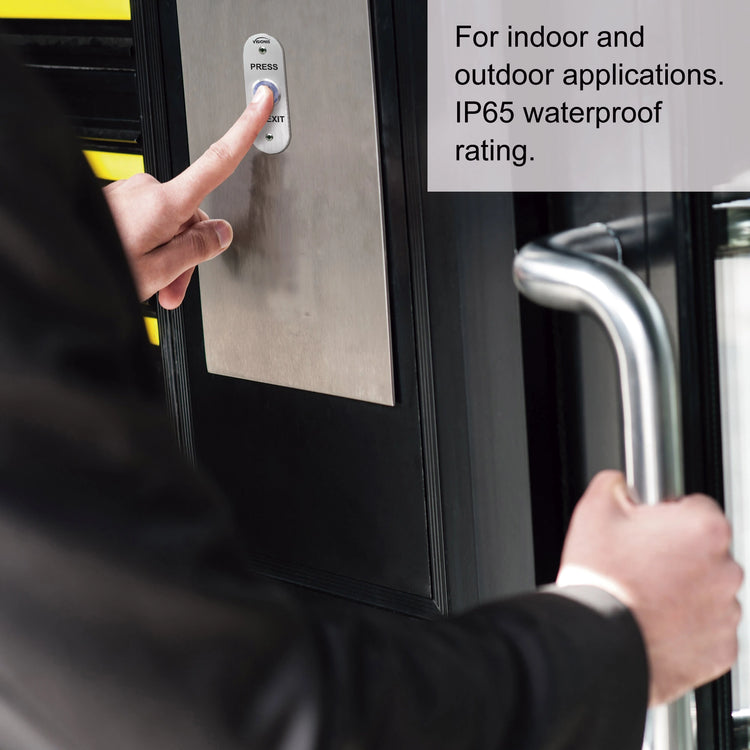

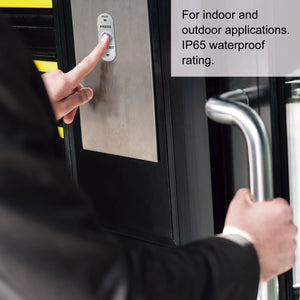

Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis

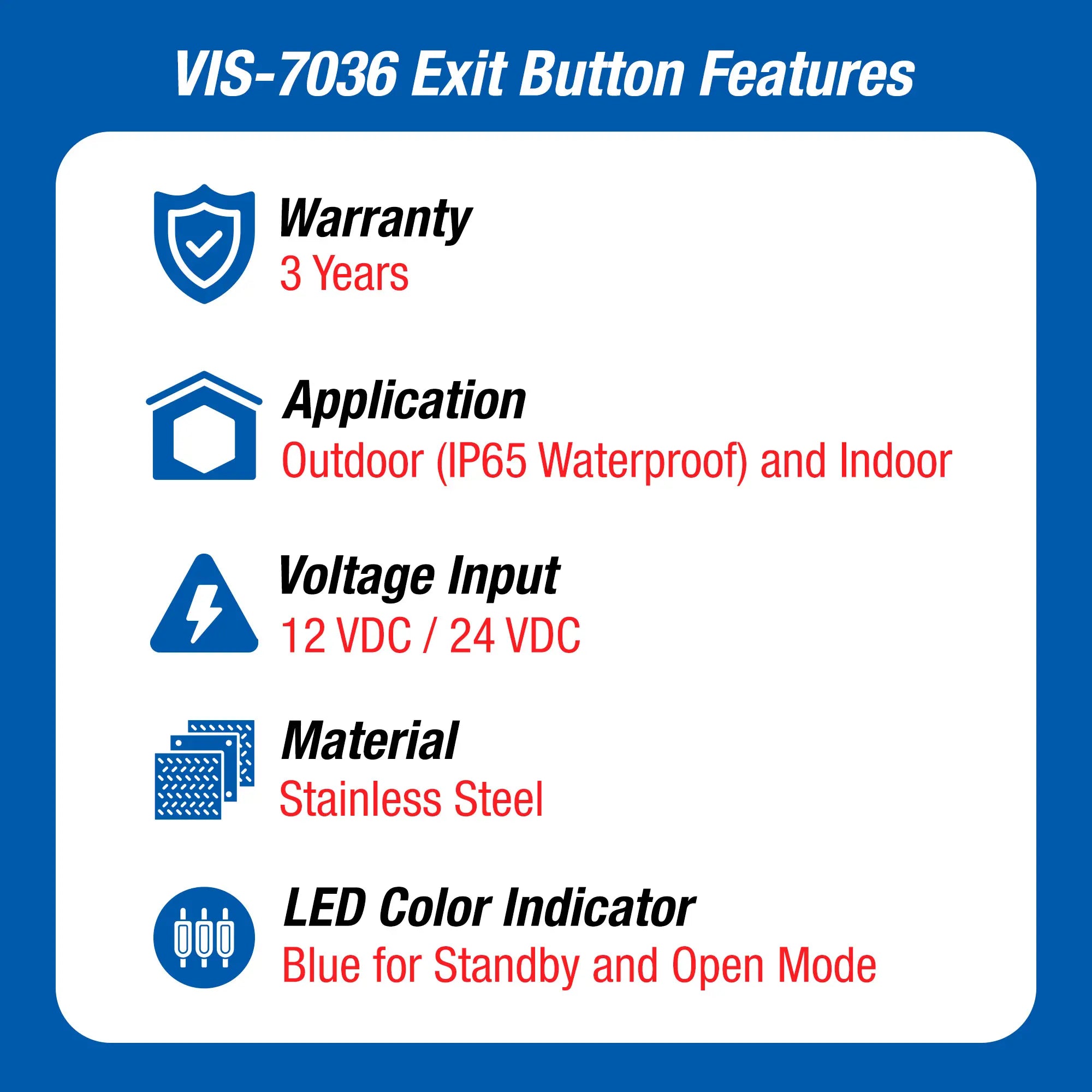

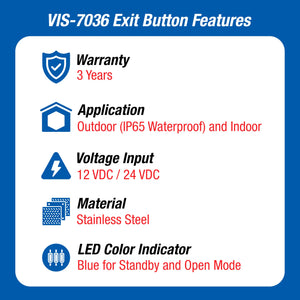

Push to exit button features - VIS-7036 Visionis

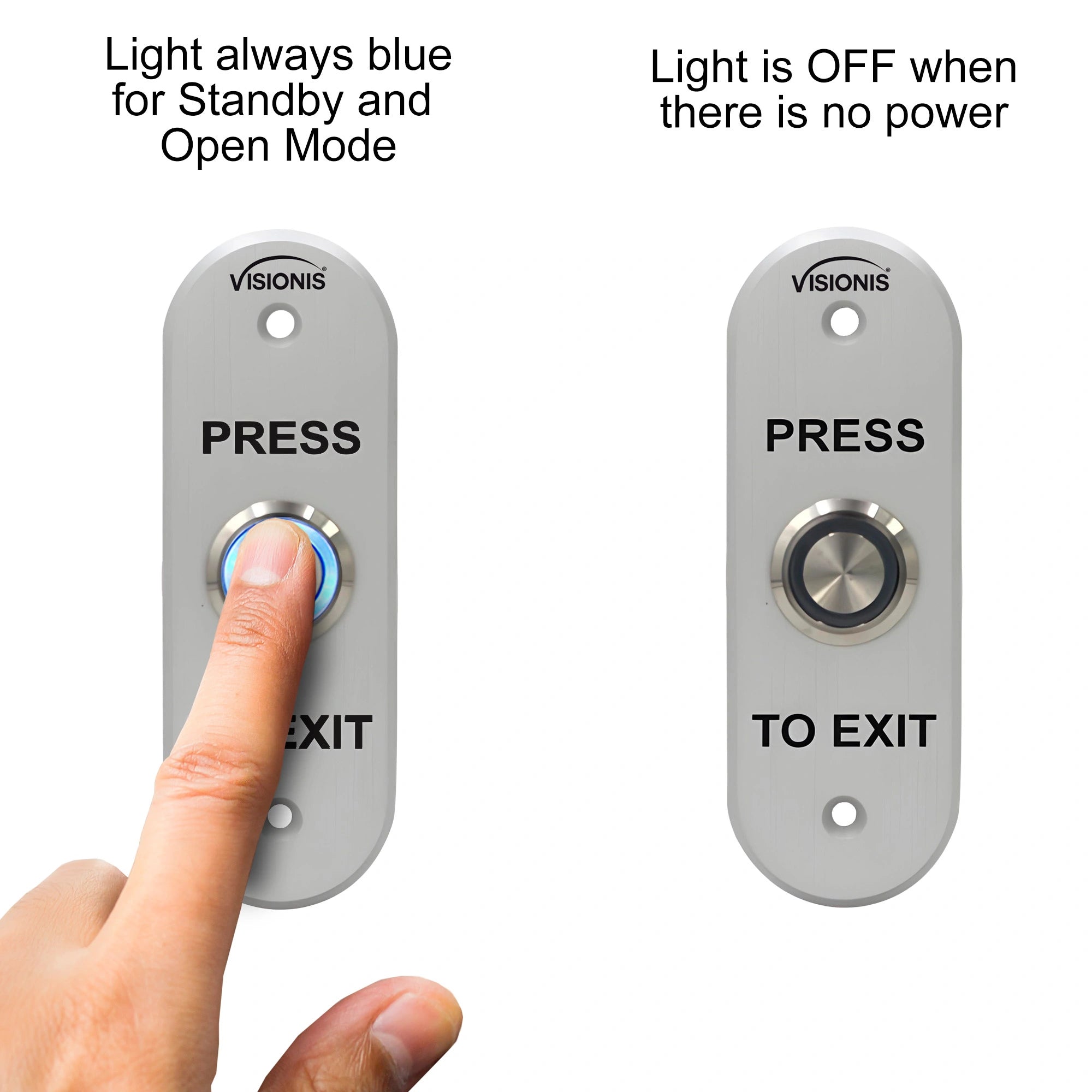

Request to exit button LED modes VIS-7036 Visionis

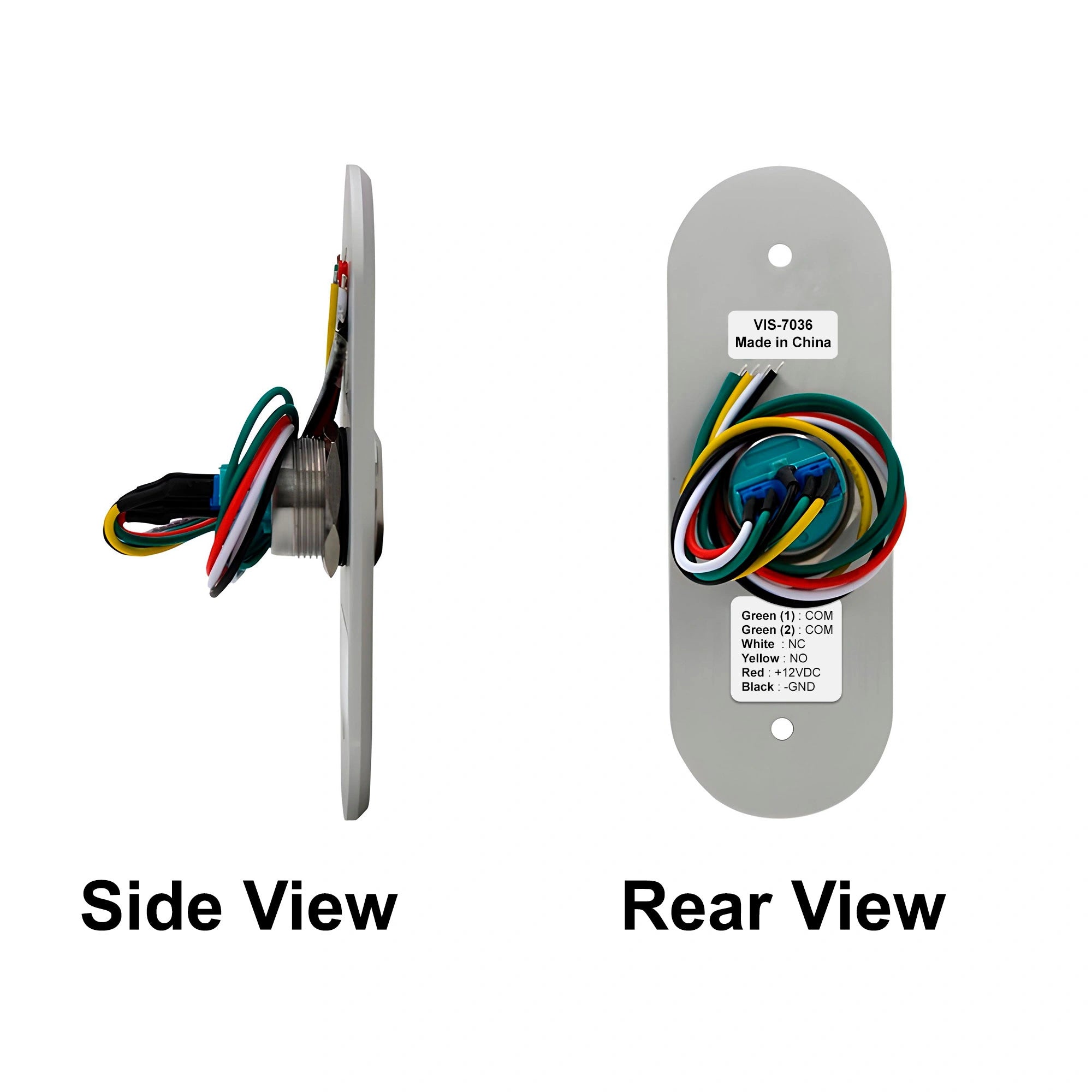

Push to exit button side an rear view VIS-7036

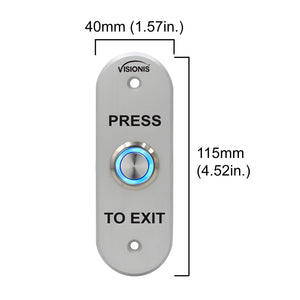

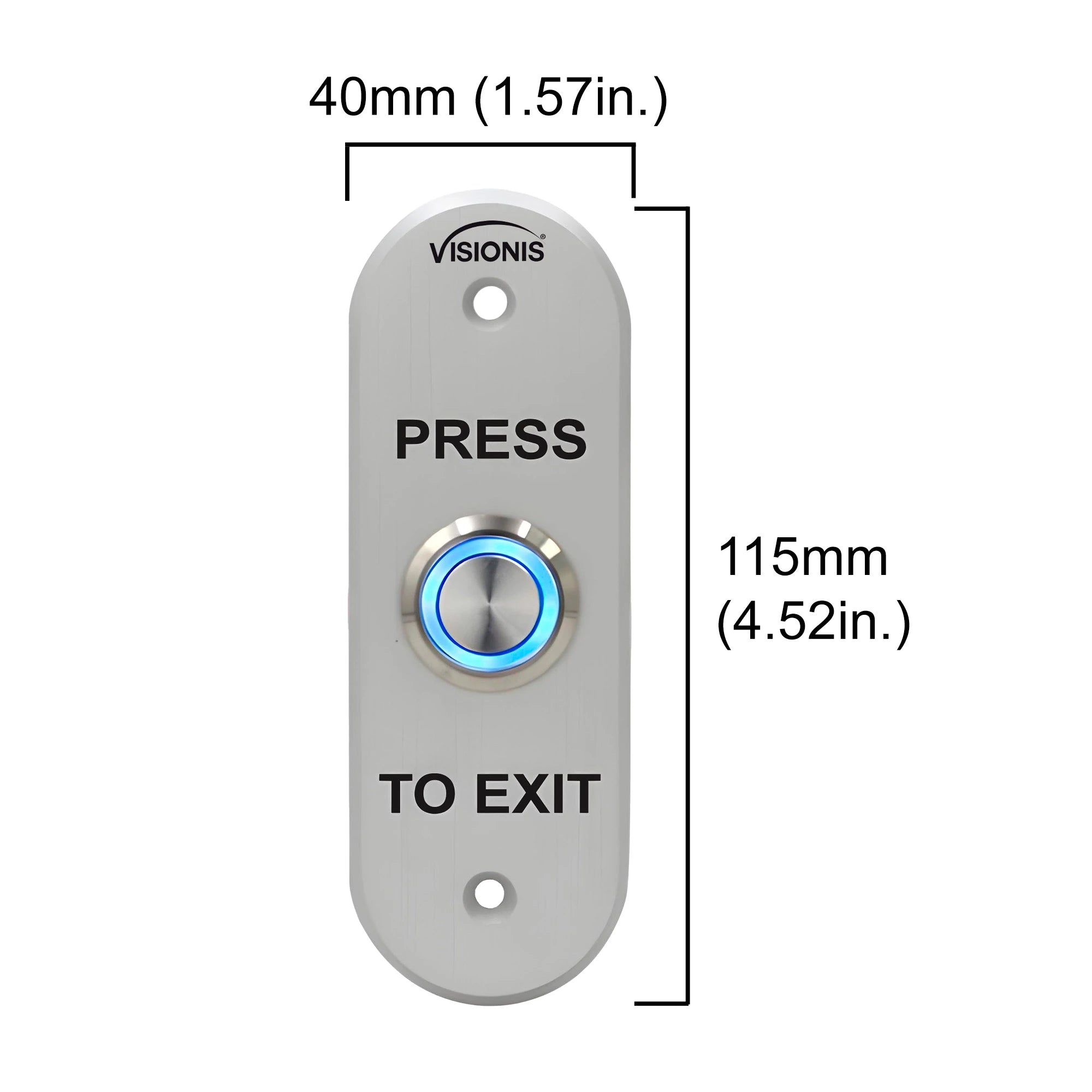

Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
    Pack of 10 push to exit button with LED Light
    Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
    Push to exit button features - VIS-7036 Visionis
    Request to exit button LED modes VIS-7036 Visionis
    Push to exit button side an rear view VIS-7036
    Push to exit button dimensions VIS-7036
    Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 10 push to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 10 push to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
    Pack of 10 push to exit button with LED Light
    Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
    Push to exit button features - VIS-7036 Visionis
    Request to exit button LED modes VIS-7036 Visionis
    Push to exit button side an rear view VIS-7036
    Push to exit button dimensions VIS-7036
    Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 10 push to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
Kit Includes:
(10)
VIS-7036: Outdoor Weather and Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request to Exit Button Oval Shape
Description

Outfit your entire facility with this comprehensive 10-pack of push to exit buttons, engineered for industrial-scale deployment.

These request to exit buttons feature rugged construction, dual-voltage compatibility, and LED indicators for secure, user-friendly operation.

Whether you're managing multiple entry points or standardizing your access control setup, this pack delivers unmatched reliability and value.

Characteristics

Model No. VIS-7036:

  • Contact Rating: 3A/125-250VAC
  • Output Contact: NO/NC/COM
  • Waterproof Grade: IP65
  • Power: 12VDC or 24VDC
  • Button: Stainless Steel
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Button Installation: Diameter 19mm (0.74in.)
  • Panel: 1.7mm (0.06in.) Thick 304 Stainless Steel
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.12kg
  • Dimensions: 115L × 40W × 40H mm - 4.52L x 1.57W x 1.57H in.
Description

Outfit your entire facility with this comprehensive 10-pack of push to exit buttons, engineered for industrial-scale deployment.

These request to exit buttons feature rugged construction, dual-voltage compatibility, and LED indicators for secure, user-friendly operation.

Whether you're managing multiple entry points or standardizing your access control setup, this pack delivers unmatched reliability and value.

  • What material is this exit button made of?

    The Visionis VIS-7036 Waterproof Exit Button is made of:

    • Button: Stainless Steel (19mm / 0.74" diameter)
    • Panel/Faceplate: 1.7mm thick 304 Stainless Steel

  • Is the VIS-7036 suitable for outdoor use?

    Yes! The it is specifically designed for both indoor and outdoor use.

    • IP65 weatherproof rating — protected against dust and water jets from any direction
    • Stainless steel construction — resists corrosion and harsh weather conditions
    • Operating Temperature: -20°C to +55°C (14°F to 131°F)
    • Operating Humidity: 0–95% relative humidity

  • Does this request to exit button light up?

    Yes! The Visionis VIS-7036 Waterproof Exit Button is illuminated with a dual-color LED:
    Blue – Standby mode (when the door is secured)
    Green – Active/Open mode (when the button is pressed)

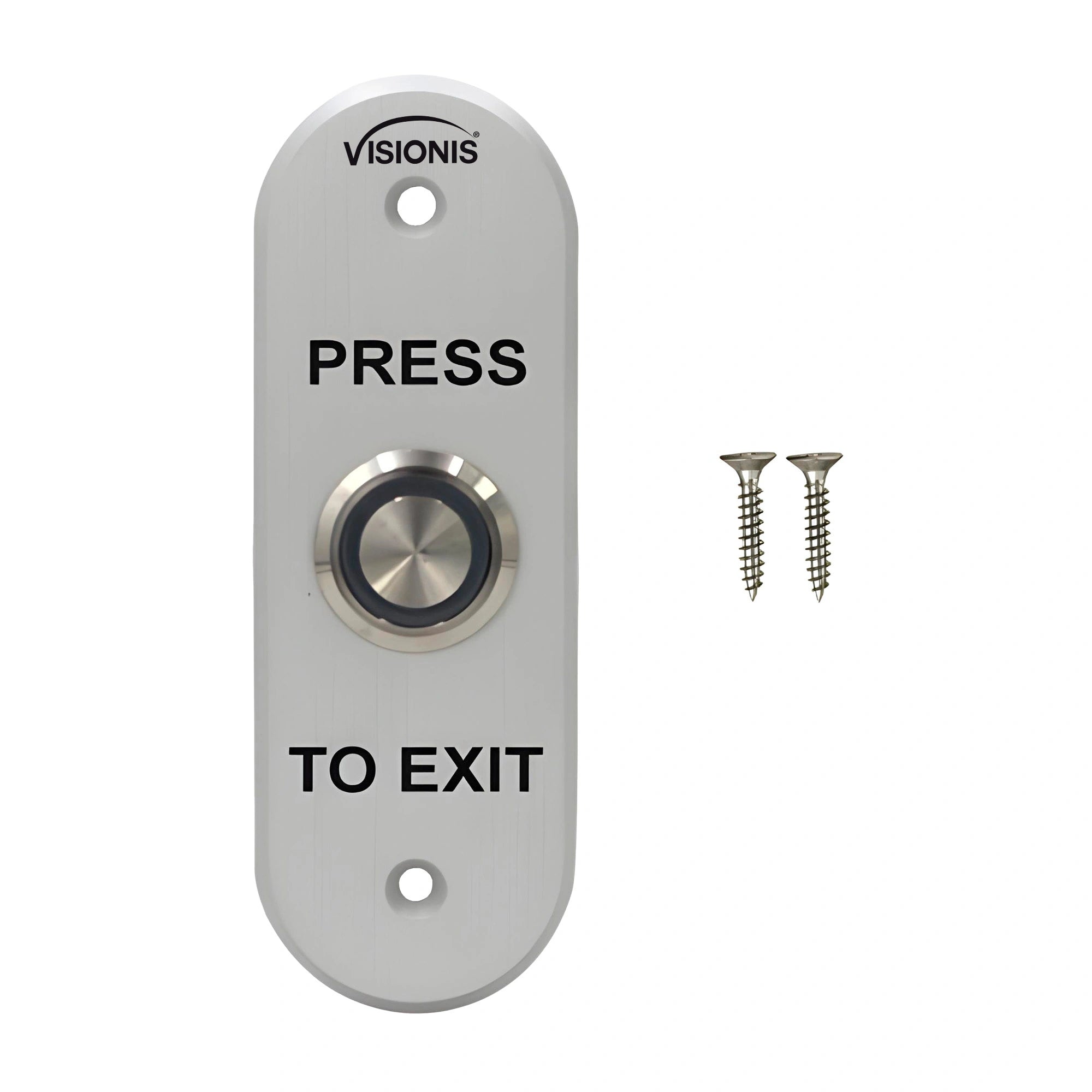

  • Does it come with mounting hardware?

    The VIS-7036 push to exit button only comes with 2 screws included for mounting. It doesn't include a gang box.

Download Datasheets and Manuals of this product

VIS-7036

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

10 Pack Push to Exit Button for Door Access Control VIS-7036. Indoor + Outdoor Waterproof Rated IP65 Stainless Steel Door Bell Type Round Oval Shape. LED Light. NC, COM and NO Outputs - FPC-7600

UPC Code: 793811572995

Certifications:

  • CE Certificate
⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

$199.80
