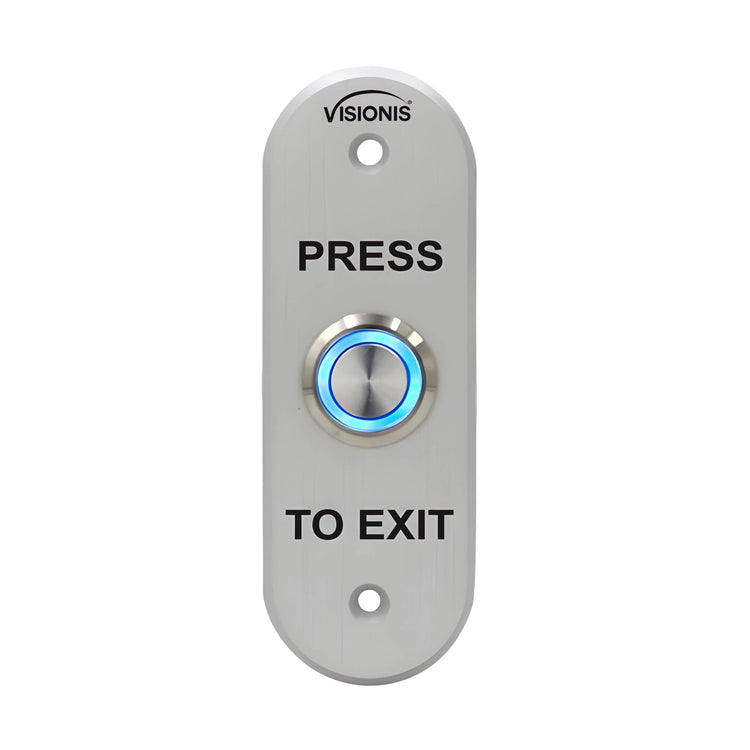

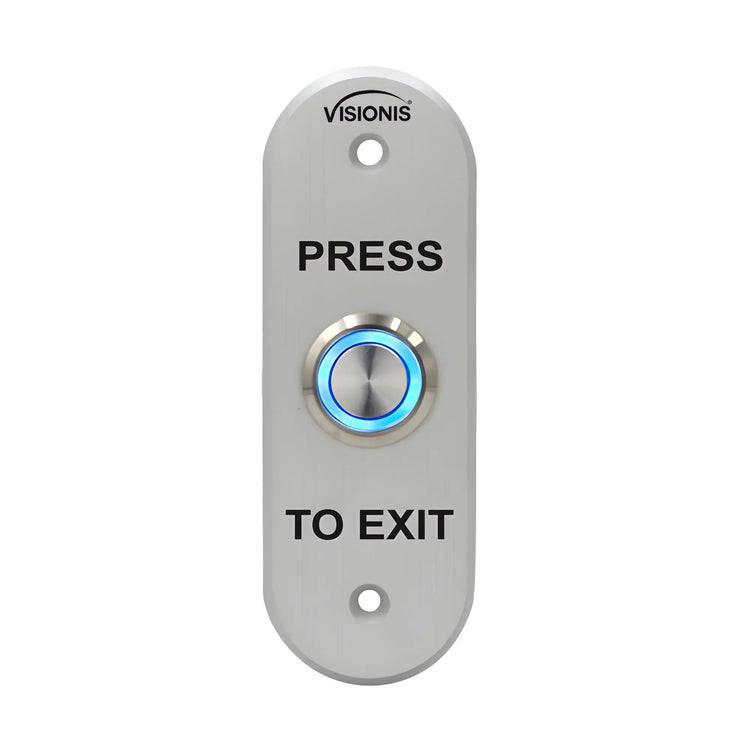

request to exit button waterproof VIS-7036 Visionis

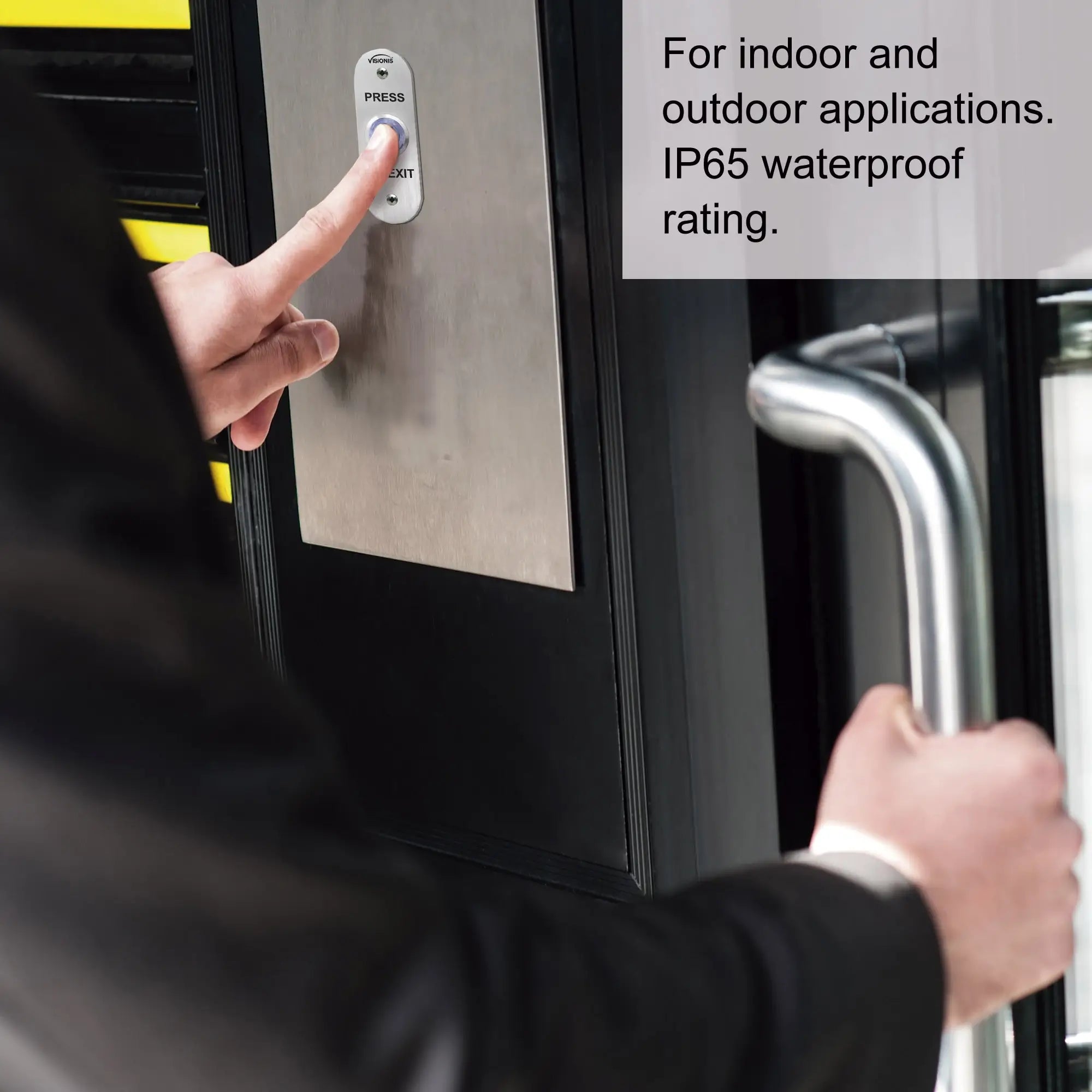

Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis

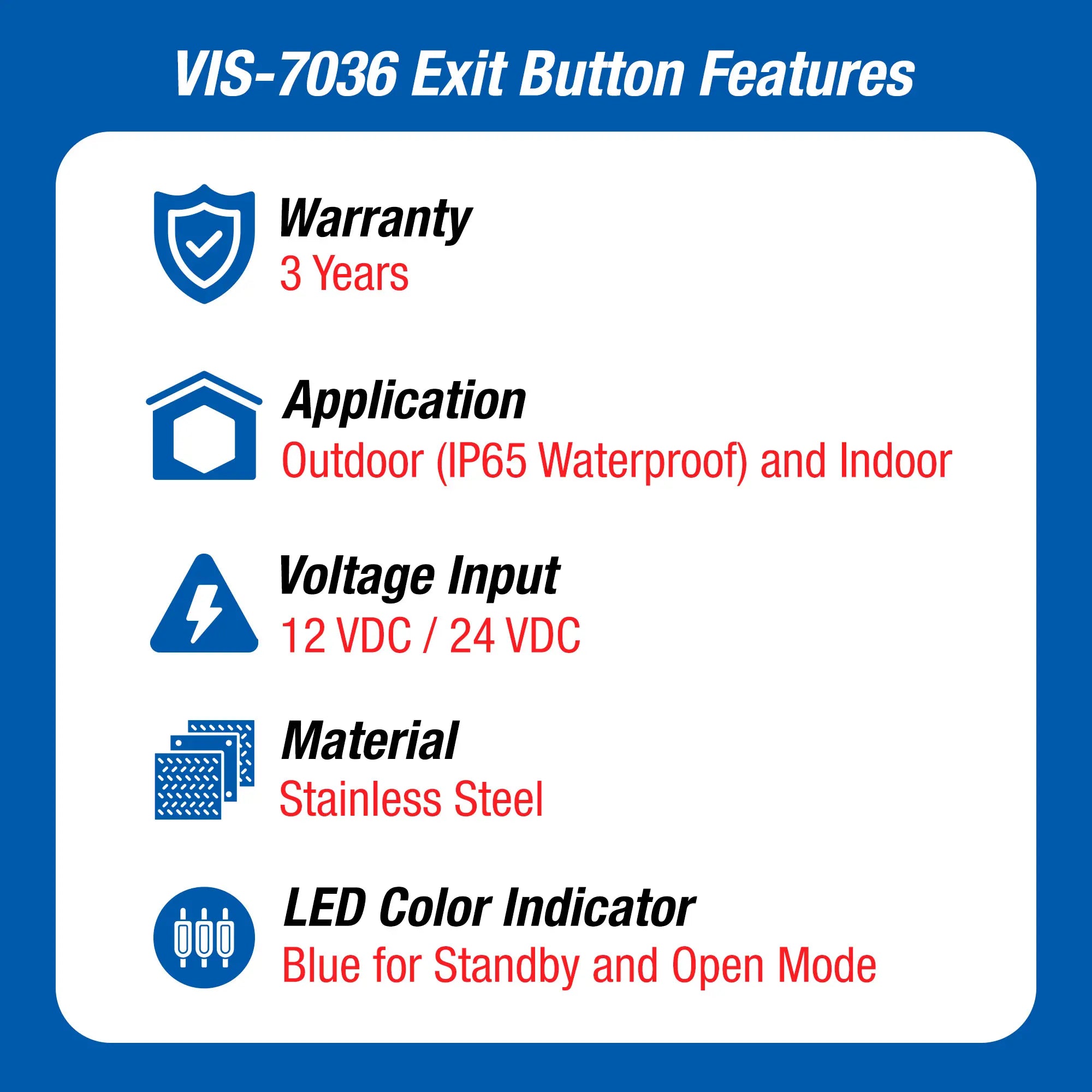

Push to exit button features - VIS-7036 Visionis

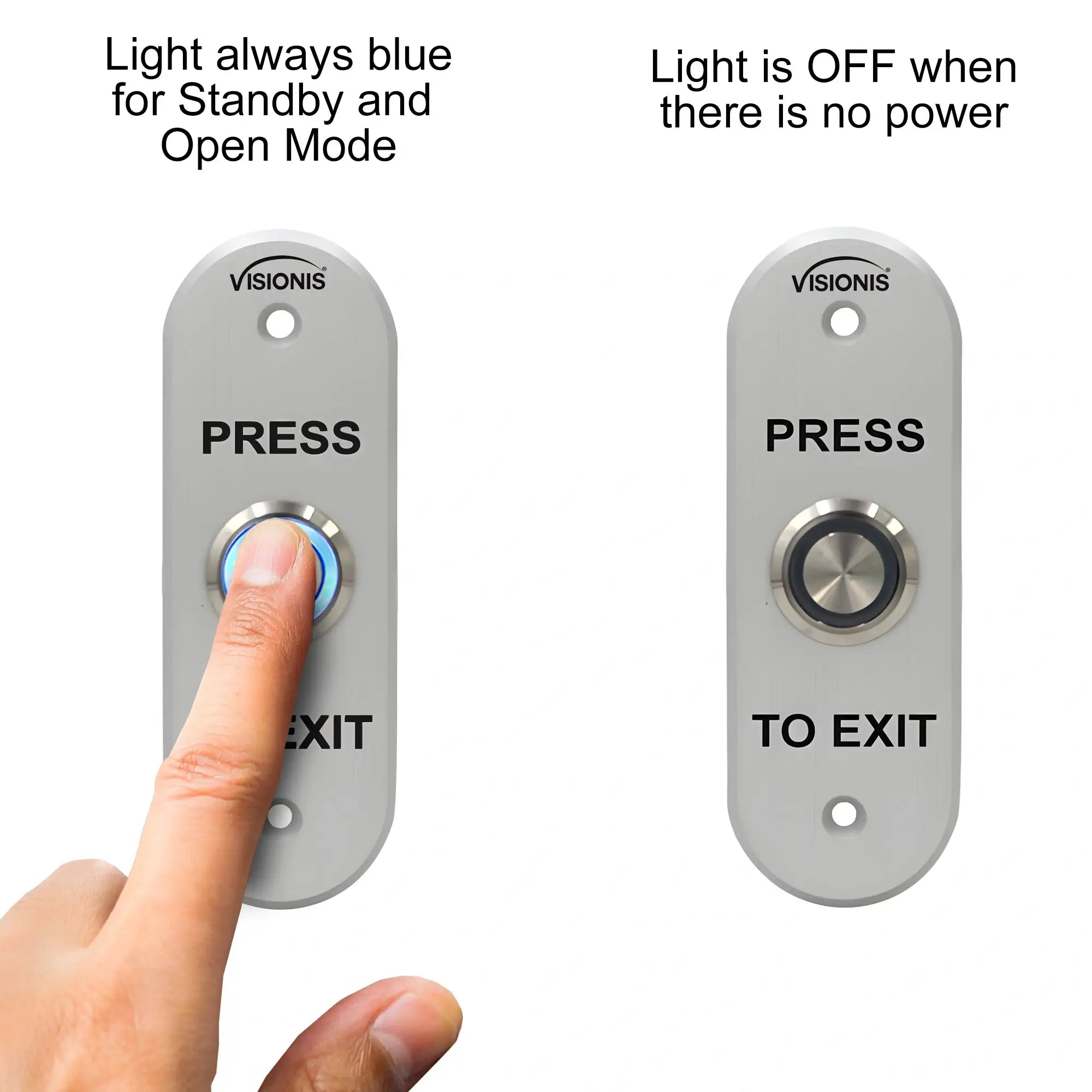

Request to exit button LED modes VIS-7036 Visionis

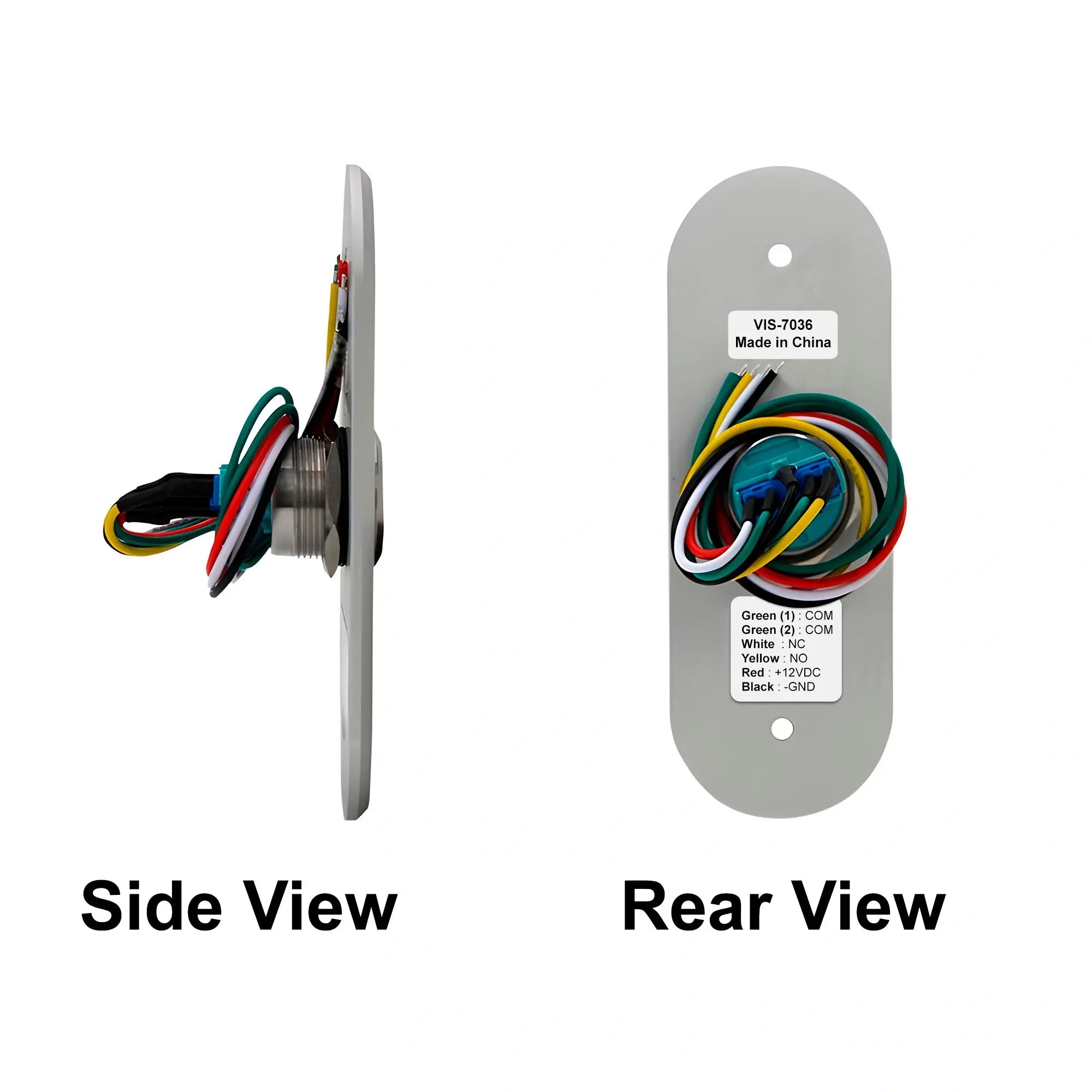

Push to exit button side an rear view VIS-7036

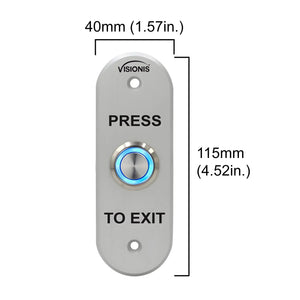

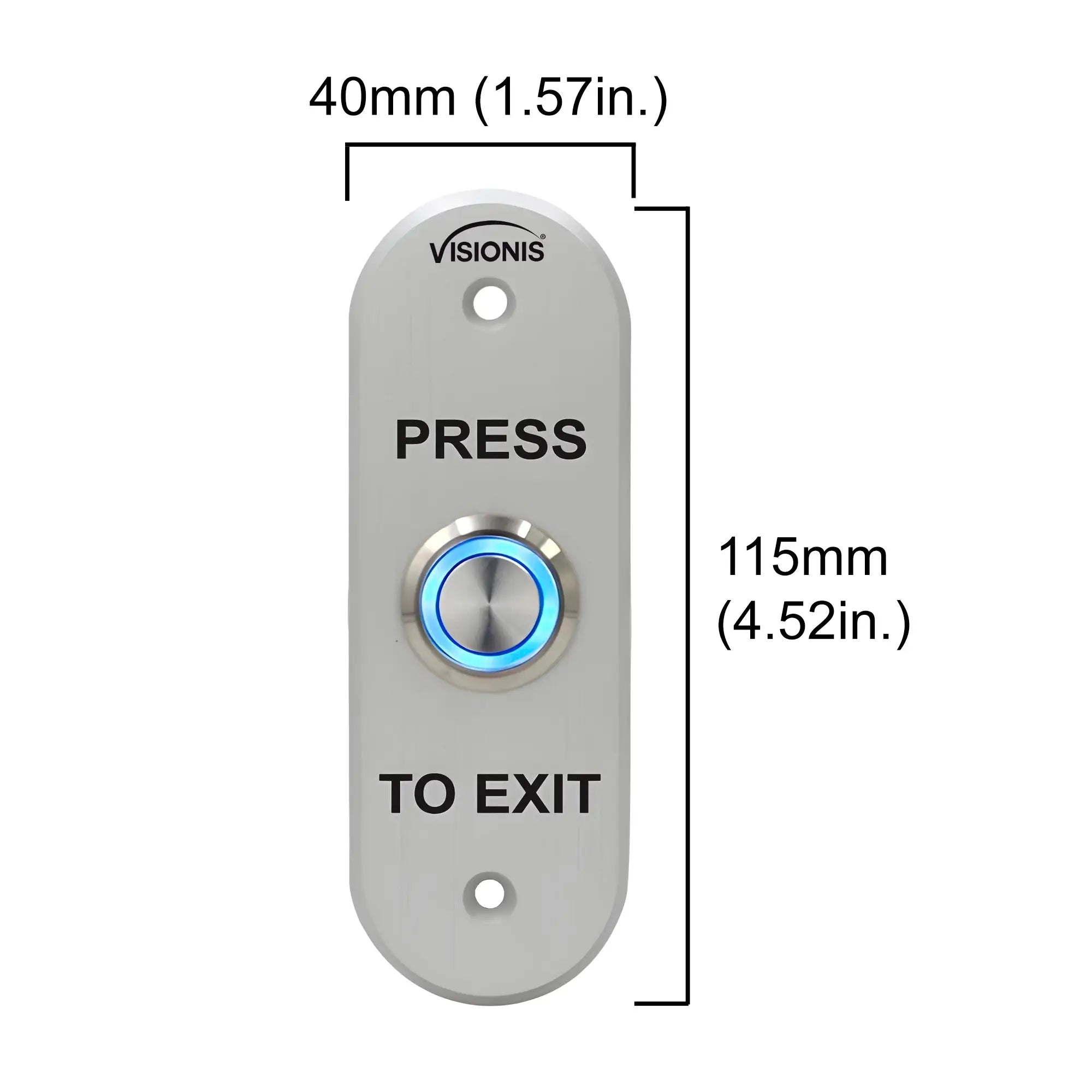

Push to exit button dimensions VIS-7036

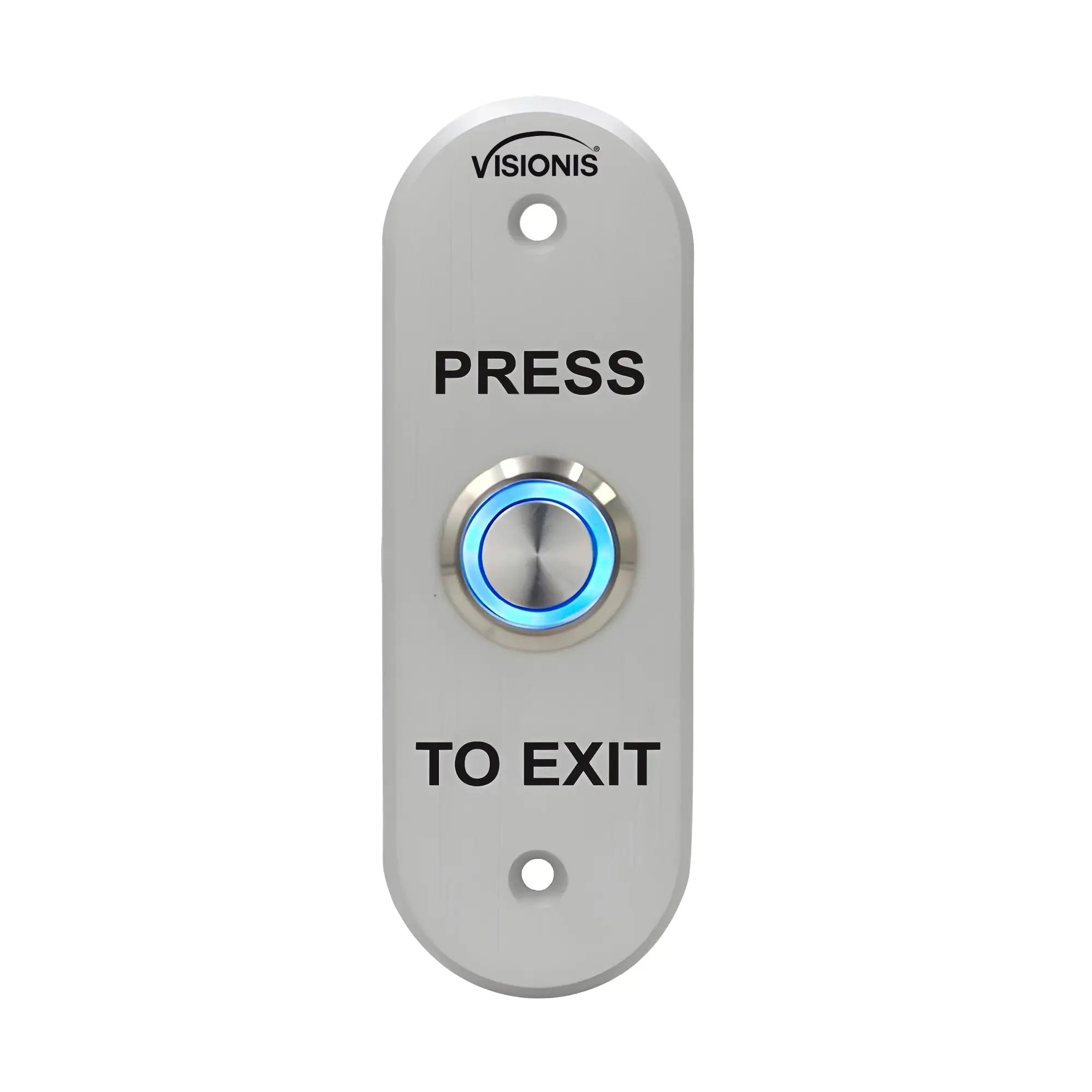

Request to exit button waterproof with LED light VIS-7036 Visionis
    request to exit button waterproof VIS-7036 Visionis
    Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
    Push to exit button features - VIS-7036 Visionis
    Request to exit button LED modes VIS-7036 Visionis
    Push to exit button side an rear view VIS-7036
    Push to exit button dimensions VIS-7036
    Request to exit button waterproof with LED light VIS-7036 Visionis
request to exit button waterproof VIS-7036 Visionis
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
request to exit button waterproof VIS-7036 Visionis
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
    request to exit button waterproof VIS-7036 Visionis
    Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
    Push to exit button features - VIS-7036 Visionis
    Request to exit button LED modes VIS-7036 Visionis
    Push to exit button side an rear view VIS-7036
    Push to exit button dimensions VIS-7036
    Request to exit button waterproof with LED light VIS-7036 Visionis
request to exit button waterproof VIS-7036 Visionis
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
Description

The VISIONIS Push-to Exit Buttons and Switches offer a variety of options to fit several applications’ needs. The VISIONIS line is designed to provide a reliable source of egress access-controlled opening devices in residential, commercial, and industrial locations.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike Device.

Characteristics

Model No. VIS-7036:

  • Contact Rating: 3A/125-250VAC
  • Output Contact: NO/NC/COM
  • Waterproof Grade: IP65
  • Power: 12VDC or 24VDC
  • Button: Stainless Steel
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Button Installation: Diameter 19mm (0.74in.)
  • Panel: 1.7mm (0.06in.) Thick 304 Stainless Steel
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.12kg
  • Dimensions: 115L Ă— 40W Ă— 40H mm - 4.52L x 1.57W x 1.57H in.
Description

The VISIONIS Push-to Exit Buttons and Switches offer a variety of options to fit several applications’ needs. The VISIONIS line is designed to provide a reliable source of egress access-controlled opening devices in residential, commercial, and industrial locations.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike Device.

Characteristics

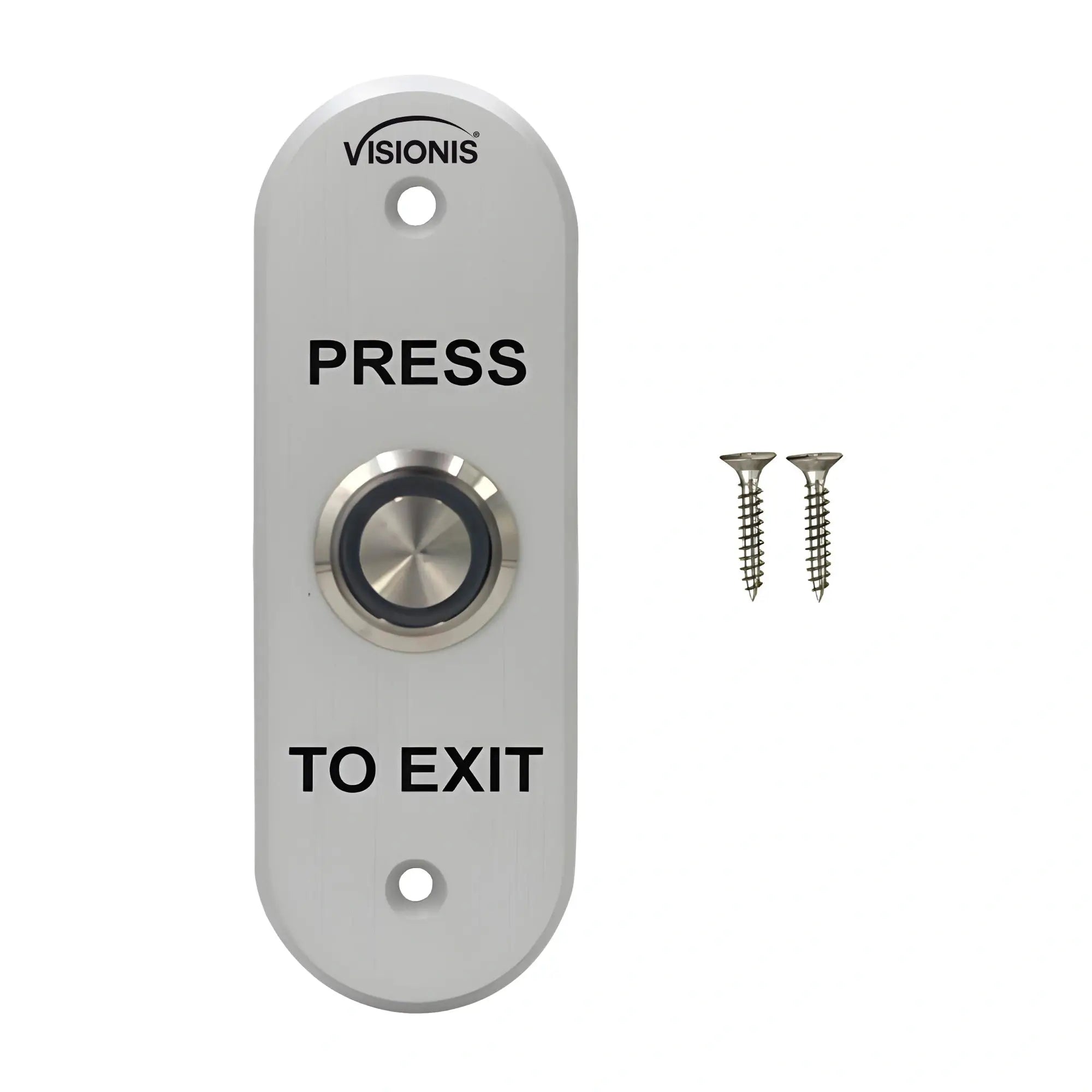

Packaging of this product

Model No. VIS-7036:

  • Contact Rating: 3A/125-250VAC
  • Output Contact: NO/NC/COM
  • Waterproof Grade: IP65
  • Power: 12VDC or 24VDC
  • Button: Stainless Steel
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Button Installation: Diameter 19mm (0.74in.)
  • Panel: 1.7mm (0.06in.) Thick 304 Stainless Steel
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.12kg
  • Dimensions: 115L Ă— 40W Ă— 40H mm - 4.52L x 1.57W x 1.57H in.
Download Datasheets and Manuals of this product

VIS-7036

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

5.0

Push to Exit Button for Door Access Control. Indoor + Outdoor Weather and Waterproof Rated IP65 Stainless Steel Door Bell Type Round Oval Shape with LED Light. NC, COM and NO Outputs - VIS-7036

UPC Code: 680044677118

Certifications:

  • CE Certificate
⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

$21.69
$21.69
Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:
Free Shipping Icon

Free US Shipping
To all 50 states

Product Warranty

3 YEAR Warranty

Return Policy Icon

30-Day Returns
No questions asked

Phone Support Icon

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
