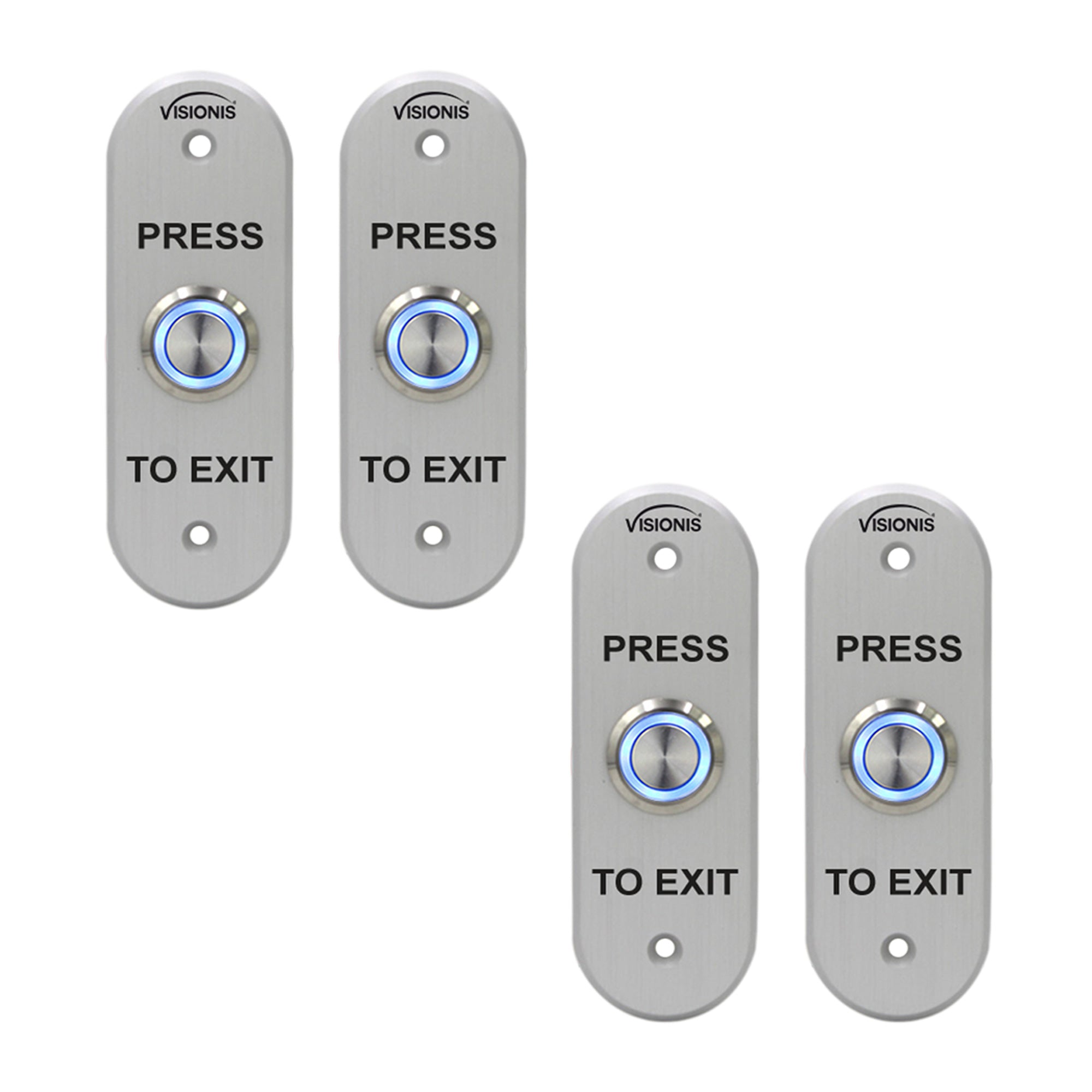

Pack of 4 request to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
    Pack of 4 request to exit button with LED Light
    Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
    Push to exit button features - VIS-7036 Visionis
    Request to exit button LED modes VIS-7036 Visionis
    Push to exit button side an rear view VIS-7036
    Push to exit button dimensions VIS-7036
    Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 4 request to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 4 request to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
    Pack of 4 request to exit button with LED Light
    Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
    Push to exit button features - VIS-7036 Visionis
    Request to exit button LED modes VIS-7036 Visionis
    Push to exit button side an rear view VIS-7036
    Push to exit button dimensions VIS-7036
    Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 4 request to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
Kit Includes:
(4)
VIS-7036: Outdoor Weather and Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request to Exit Button Oval Shape
Description

This 4-pack of push to exit buttons offers an excellent balance of coverage and value for mid-sized buildings or offices.

Each request to exit button is built with durable stainless steel, rated IP65 for outdoor and indoor use, and includes LED feedback for real-time door status. A great solution for expanding your access control points efficiently and securely.

Characteristics

Model No. VIS-7036:

  • Contact Rating: 3A/125-250VAC
  • Output Contact: NO/NC/COM
  • Waterproof Grade: IP65
  • Power: 12VDC or 24VDC
  • Button: Stainless Steel
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Button Installation: Diameter 19mm (0.74in.)
  • Panel: 1.7mm (0.06in.) Thick 304 Stainless Steel
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.12kg
  • Dimensions: 115L × 40W × 40H mm - 4.52L x 1.57W x 1.57H in.
Description

This 4-pack of push to exit buttons offers an excellent balance of coverage and value for mid-sized buildings or offices.

Each request to exit button is built with durable stainless steel, rated IP65 for outdoor and indoor use, and includes LED feedback for real-time door status. A great solution for expanding your access control points efficiently and securely.

  • What material is this exit button made of?

    The Visionis VIS-7036 Waterproof Exit Button is made of:

    • Button: Stainless Steel (19mm / 0.74" diameter)
    • Panel/Faceplate: 1.7mm thick 304 Stainless Steel

  • Is the VIS-7036 suitable for outdoor use?

    Yes! The it is specifically designed for both indoor and outdoor use.

    • IP65 weatherproof rating — protected against dust and water jets from any direction
    • Stainless steel construction — resists corrosion and harsh weather conditions
    • Operating Temperature: -20°C to +55°C (14°F to 131°F)
    • Operating Humidity: 0–95% relative humidity

  • Does this request to exit button light up?

    Yes! The Visionis VIS-7036 Waterproof Exit Button is illuminated with a dual-color LED:
    Blue – Standby mode (when the door is secured)
    Green – Active/Open mode (when the button is pressed)

  • Does it come with mounting hardware?

    The VIS-7036 push to exit button only comes with 2 screws included for mounting. It doesn't include a gang box.

Download Datasheets and Manuals of this product

VIS-7036

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

4 Pack Push to Exit Button for Door Access Control VIS-7036. Indoor + Outdoor Waterproof Rated IP65 Stainless Steel Door Bell Type Round Oval Shape. LED Light. NC, COM and NO Outputs - FPC-7597

UPC Code: 793811572964

Certifications:

  • CE Certificate
⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

$84.00
$84.00
Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:
Free Shipping Icon

Free US Shipping
To all 50 states

Product Warranty

3 YEAR Warranty

Return Policy Icon

30-Day Returns
No questions asked

Phone Support Icon

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
