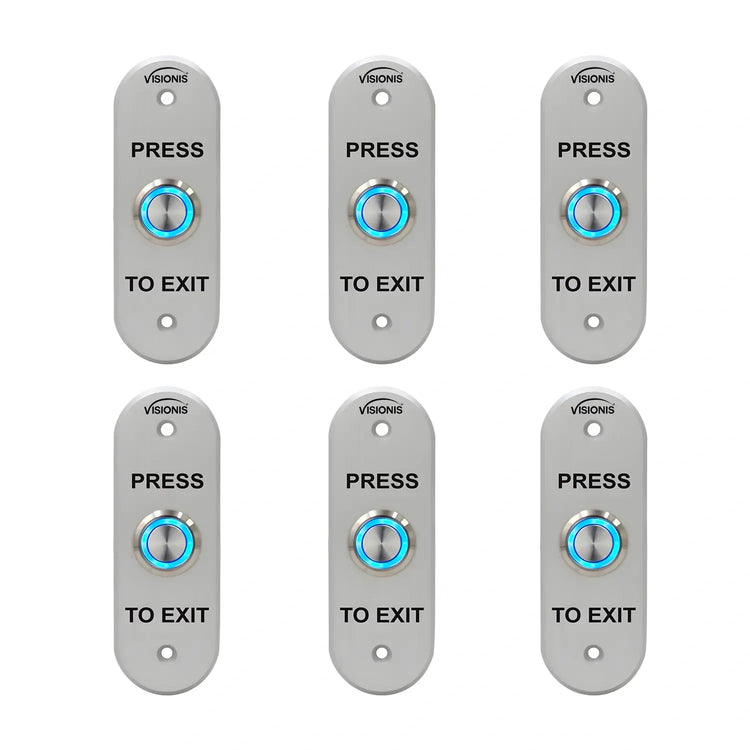

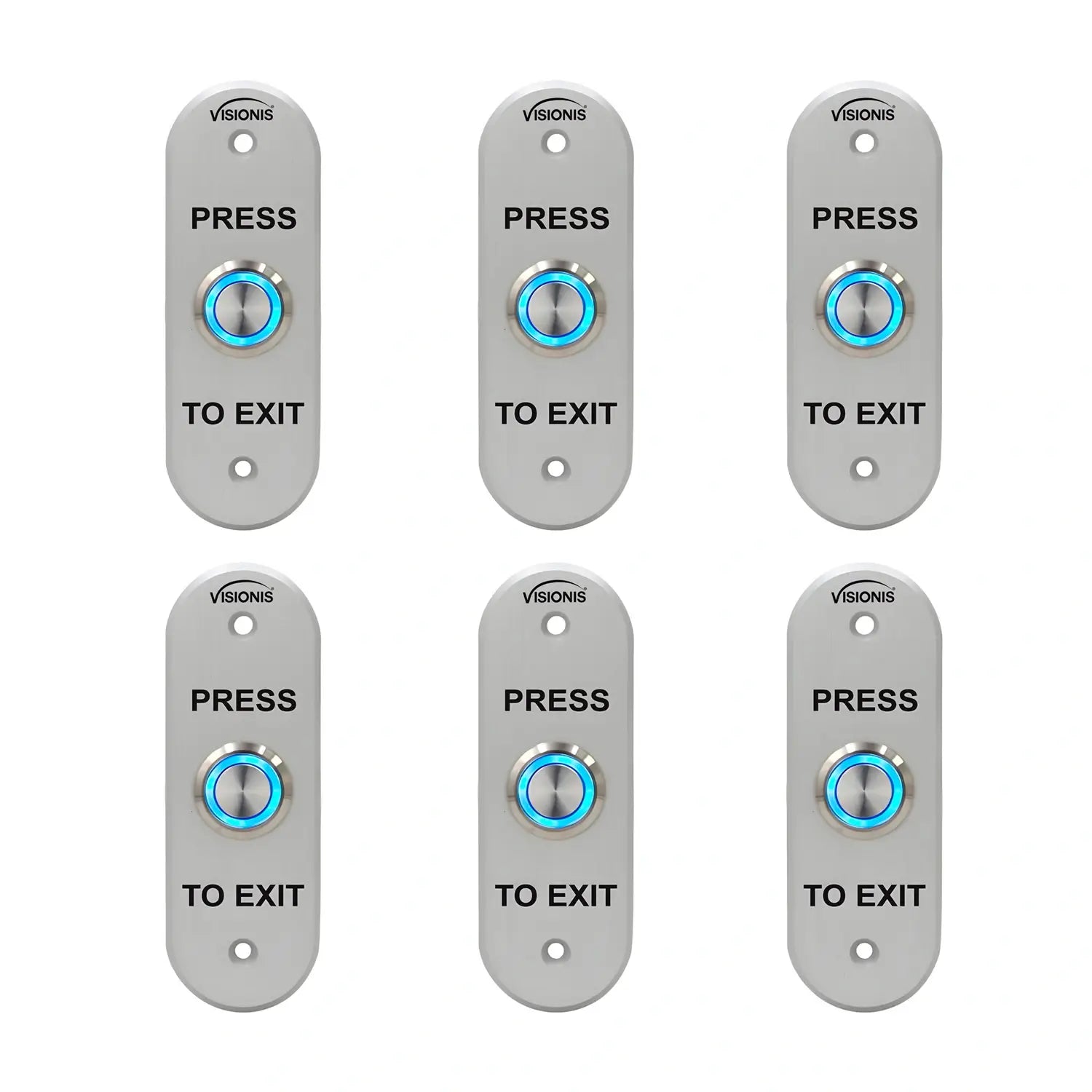

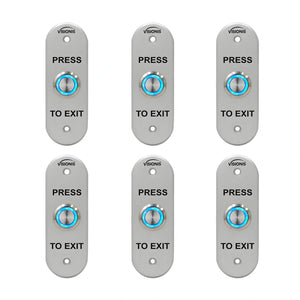

Pack of 6 push to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
    Pack of 6 push to exit button with LED Light
    Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
    Push to exit button features - VIS-7036 Visionis
    Request to exit button LED modes VIS-7036 Visionis
    Push to exit button side an rear view VIS-7036
    Push to exit button dimensions VIS-7036
    Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 6 push to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 6 push to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
    Pack of 6 push to exit button with LED Light
    Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
    Push to exit button features - VIS-7036 Visionis
    Request to exit button LED modes VIS-7036 Visionis
    Push to exit button side an rear view VIS-7036
    Push to exit button dimensions VIS-7036
    Request to exit button waterproof with LED light VIS-7036 Visionis
Pack of 6 push to exit button with LED Light
Push to exit button for outdoor applications. IP65 Waterproof - VIS-7036 Visionis
Push to exit button features - VIS-7036 Visionis
Request to exit button LED modes VIS-7036 Visionis
Push to exit button side an rear view VIS-7036
Push to exit button dimensions VIS-7036
Request to exit button waterproof with LED light VIS-7036 Visionis
Kit Includes:
(6)
VIS-7036: Outdoor Weather and Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request to Exit Button Oval Shape
Description

Expand your access control infrastructure with this 6-pack of push to exit buttons, designed for larger installations like multi-floor offices or commercial sites.

Each request to exit button supports both 12VDC and 24VDC systems and includes NO, NC, and COM outputs for full integration flexibility.

With rugged stainless steel construction and LED status lights, security and durability come standard.

Characteristics

Model No. VIS-7036:

  • Contact Rating: 3A/125-250VAC
  • Output Contact: NO/NC/COM
  • Waterproof Grade: IP65
  • Power: 12VDC or 24VDC
  • Button: Stainless Steel
  • LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
  • Button Installation: Diameter 19mm (0.74in.)
  • Panel: 1.7mm (0.06in.) Thick 304 Stainless Steel
  • Suitable for: Hollow Door
  • Mechanical Life: 100.000 tests
  • Operating Temperature: -20°C~+55°C (14°F-131°F)
  • Operating Humidity: 0-95% (relative humidity)
  • Weight: 0.12kg
  • Dimensions: 115L × 40W × 40H mm - 4.52L x 1.57W x 1.57H in.
Description

Expand your access control infrastructure with this 6-pack of push to exit buttons, designed for larger installations like multi-floor offices or commercial sites.

Each request to exit button supports both 12VDC and 24VDC systems and includes NO, NC, and COM outputs for full integration flexibility.

With rugged stainless steel construction and LED status lights, security and durability come standard.

Download Datasheets and Manuals of this product

VIS-7036

Contact Us for Support
LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

6 Pack Push to Exit Button for Door Access Control VIS-7036. Indoor + Outdoor Waterproof Rated IP65 Stainless Steel Door Bell Type Round Oval Shape. LED Light. NC, COM and NO Outputs - FPC-7598

UPC Code: 793811572971

Certifications:

  • CE Certificate
⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

$126.60
$126.60
Shipping calculated at checkout.

Looking for something slightly different? Check out these variations:
Free Shipping Icon

Free US Shipping
To all 50 states

Product Warranty
Return Policy Icon

30-Day Returns
No questions asked

Phone Support Icon

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:
Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
