800lbs Outdoor Electromagnetic Locks VIS-SS800-G

outdoor weatherproof push to exit button with blue LED indicator for access control systems. VISIONIS VIS-7008

outdoor push to exit button for access control systems. VISIONIS VIS-7008

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Below are more variations of this product:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

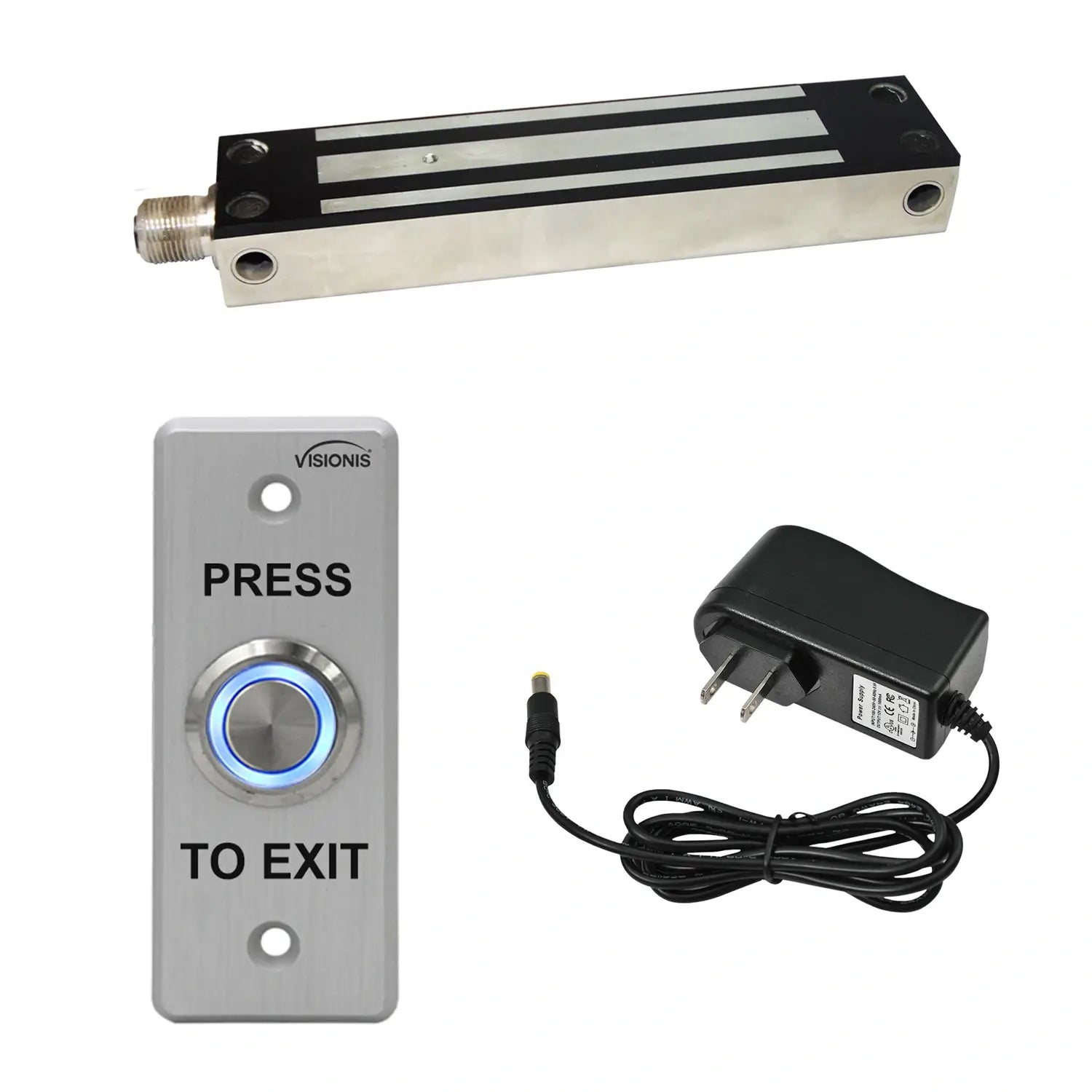

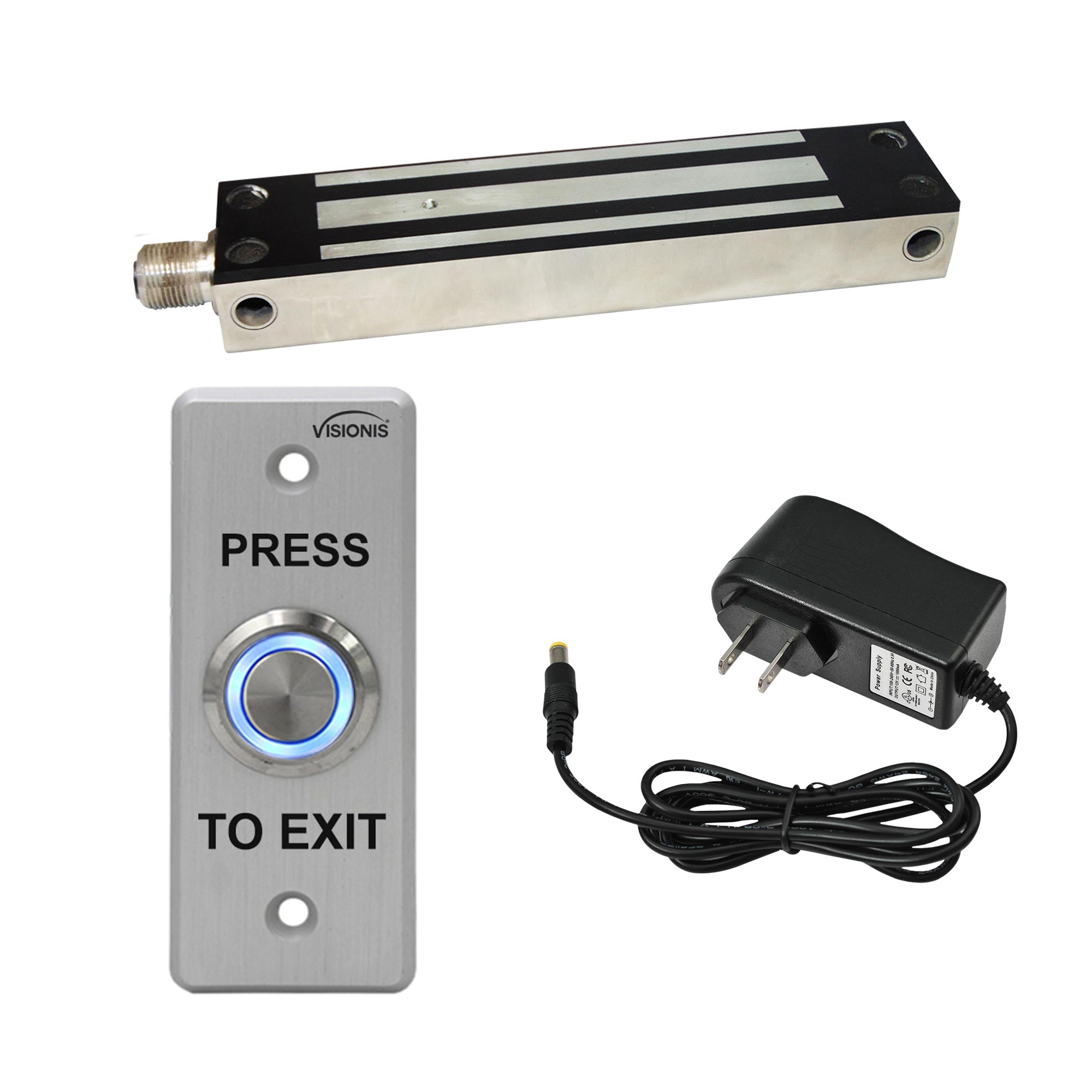

Kit Includes:

(1)

VIS-SS800-G: 800 lbs Outdoor and Gate Electromagnetic Lock

VIS-7008: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request to Exit Button Slim Size for Door Access Control with LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-SS800-G:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 480mA; 24V / 240mA (±5%)
Holding Force: Up to 800 lbs (362 kg)
Hall Effect Contact: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 1.5 kg (±1%)
Dimensions:
Magnet - (L)220x(W)46x(T)28 mm
Armature - (L)182x(W)44x(T)12 mm

Model No. VIS-7008:

Contact Rating: 3A/125-250VAC
Output Contact: NO/NC/COM
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
LED Color: Blue
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.06in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.1kg
Dimensions: 90L × 35W × 40H mm – 3.54L x 1.37W x 1.57H in.

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Download Datasheets and Manuals of this product

Visionis by Visionis

Visionis FPC-7328 VIS-SS800-G Outdoor Electromagnetic Lock 800lbs With VIS-7008 Weatherproof With LED Push To Exit Button NO, NC, COM Outputs For Access Control, 2 Amp Power Supply

Name: Visionis FPC-7328 VIS-SS800-G Outdoor Electromagnetic Lock 800lbs With VIS-7008 Weatherproof With LED Push To Exit Button NO, NC, COM Outputs For Access Control, 2 Amp Power Supply
Brand: Visionis
SKU: FPC-7328
Price: 131.82 USD
Availability: InStock

Translation missing: en.products.product.sku:FPC-7328

UPC Code: 750958783530

Product Weight: 8.0 lb

Regular price: $131.82
Sale price: $131.82
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
