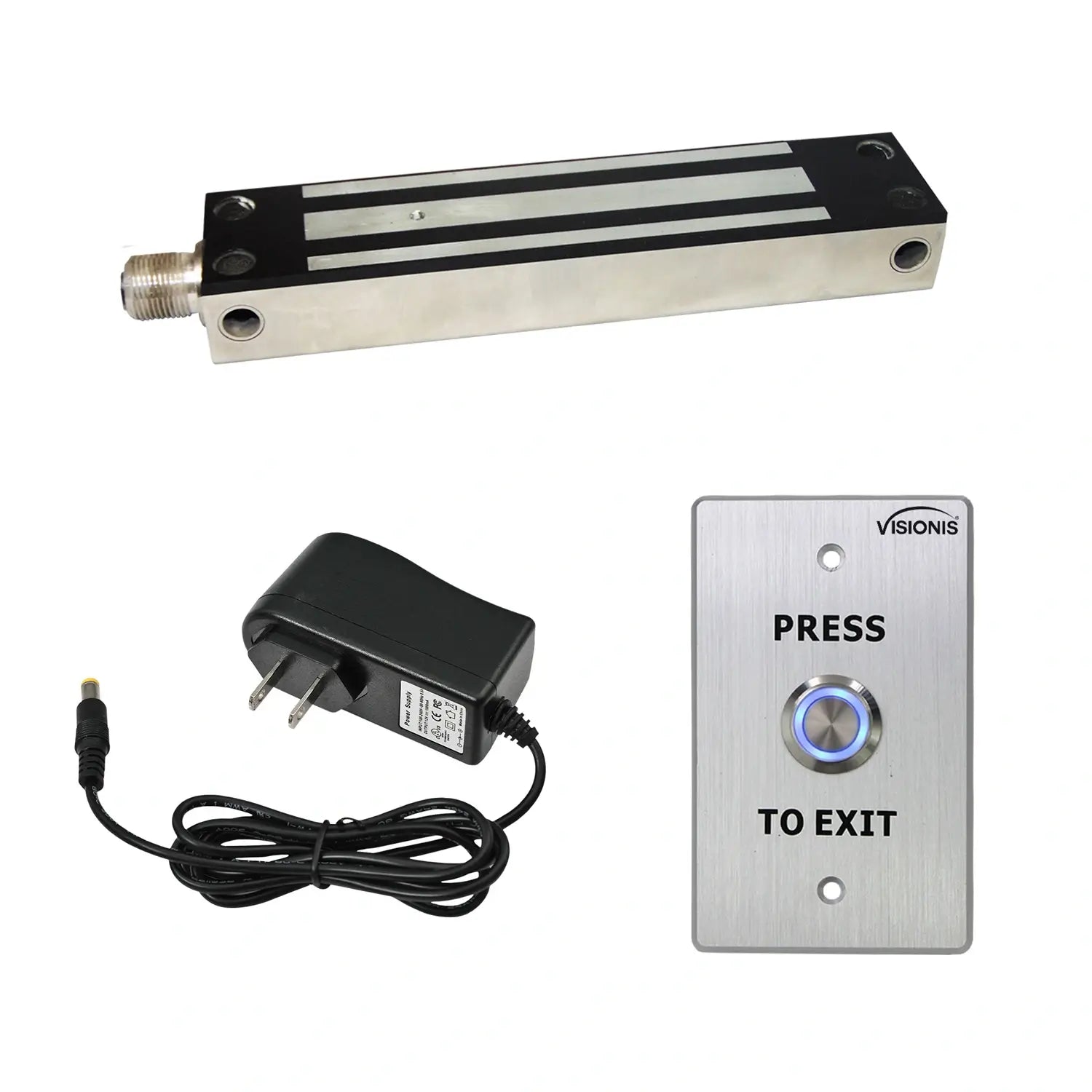

800 lbs gate maglock kit with push to exit button - FPC-7329

800lbs Outdoor and Gate Maglock with Weatherproof Exit Button Kit for Access Control

waterproof lock for outdoor gate VIS-SS800-G, VIS-SS1500-G unboxing

Gate maglock waterproof lock for outdoor gate security systems. VIS-SS800-G VISIONIS

waterproof lock for outdoor gate 800lbs dimensions- VIS-SS800-G Visionis

waterproof lock for outdoor gate 800lbs - VIS-SS800-G Visionis

Dimensions VIS-7001 outdoor push to exit button with stainless steel and LED indicator

outdoor push to exit button with stainless steel and LED indicator - VIS-7001 Visionis

weatherproof request to exit button with stainless steel and LED indicator - VIS-7001 Visionis

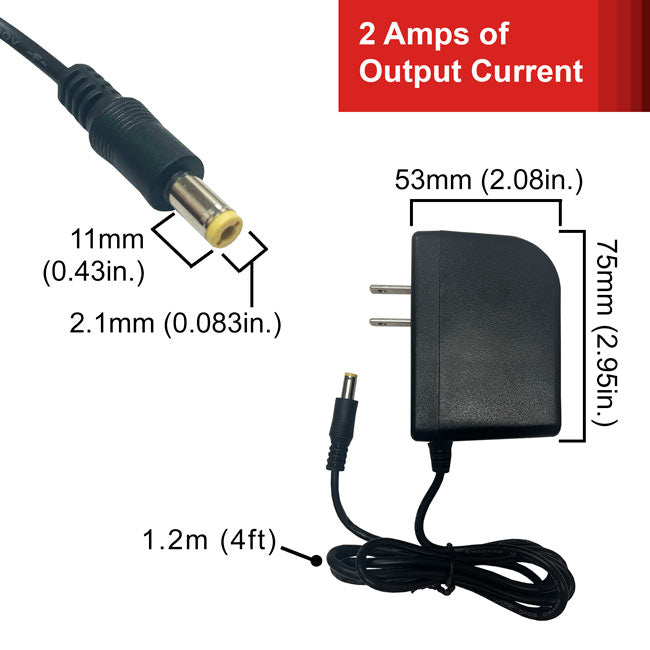

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

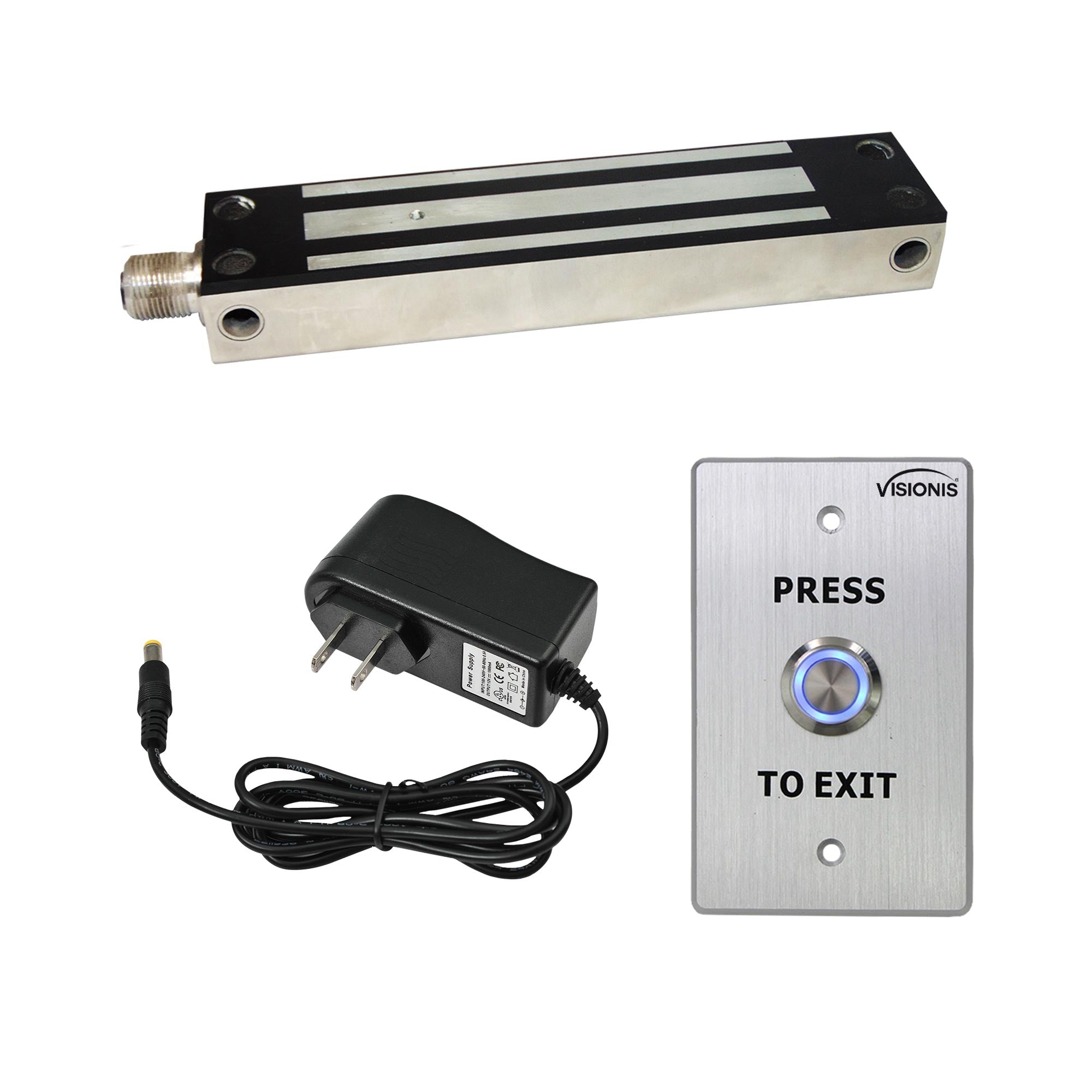

Kit Includes:

(1)

VIS-SS800-G: 800 lbs Outdoor and Gate Electromagnetic Lock

VIS-7001: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request To Exit Button Standard Size w/ LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-SS800-G:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 480mA; 24V / 240mA (±5%)
Holding Force: Up to 800 lbs (362 kg)
Hall Effect Contact: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Operating Humidity: 0~95% (non condensing)
Weight (Magnet): 1.5 kg (±1%)
Dimensions:
Magnet - (L)220x(W)46x(T)28 mm
Armature - (L)182x(W)44x(T)12 mm

Model No. VIS-7001:

Contact Rating: 3A/125-250VAC
Output Contact: NC, COM, NO
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.12kg
Dimension Of Plate: 115L × 70W × 40H mm - 4.52L x 2.75W x 1.57H in.
LED Color Indicator: Blue

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Download Datasheets and Manuals of this product

FPC-7329, FPC-7331, FPC-7333, FPC-7335

Installation Diagram

VIS-SS800-G

VIS-7001

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Outdoor Magnetic Lock VIS-SS800-G 800lbs (362 kg) Holding Force + VIS-7001 Weatherproof With LED Push To Exit Button NO, NC, COM Outputs For Access Control, 2 Amp Power Supply - FPC-7329 Visionis

Translation missing: en.products.product.sku:FPC-7329

UPC Code: 750958783547 Weight: 8.0 lb

Regular price: $136.08
Sale price: $136.08
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
