Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

Below are more variations of this product:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

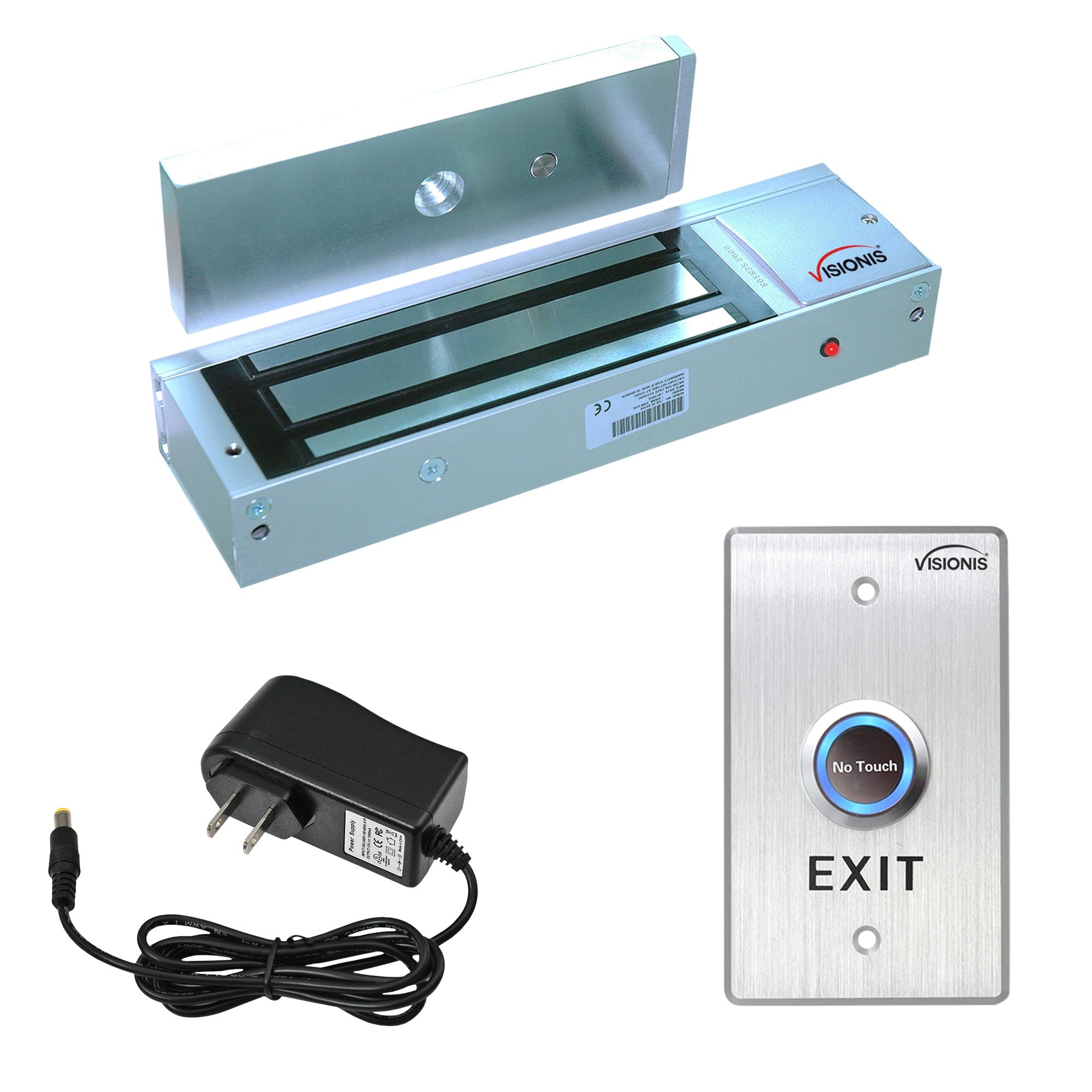

Kit Includes:

(1)

VS-VISML1200LED: 1200lb Indoor Electromagnetic Lock with LED Sensor

VIS-7013: Indoor Stainless Steel No Touch Request to Exit Button with Time Delay Standard Size with LED Light NC COM and NO Outputs

VS-VISCP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-ML1200LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 1200 lbs (545 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 2.5 kg (±1%)
Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-7013:

Contact Rating: 12-24V, 3A
Output Contact: NO/NC/COM
Detection Range: 5-15cm (1.96 - 5.90in.), Adjustable
Power: 12VDC or 24VDC
LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
Time Delay: 0.5~22s
Panel: 4mm (0.15) Thick Aluminium Alloy (CNC)
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.105kg
Dimensions: 115L × 70W × 25H mm - 4.52L x 2.75W x 0.98H in.

Model No. VISCP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Download Datasheets and Manuals of this product

Visionis by Visionis

Visionis FPC-7324 VIS-ML1200LED Indoor Electromagnetic Lock 1200lbs For Out Swinging Door With VIS-7013 No Touch With Delay Push To Exit Button NC, COM, NO Outputs For Access Control, 2 Amp Power Supply

Name: Visionis FPC-7324 VIS-ML1200LED Indoor Electromagnetic Lock 1200lbs For Out Swinging Door With VIS-7013 No Touch With Delay Push To Exit Button NC, COM, NO Outputs For Access Control, 2 Amp Power Supply
Brand: Visionis
SKU: FPC-7324
Price: 121.78 USD
Availability: InStock

Translation missing: en.products.product.sku:FPC-7324

UPC Code: 750958783493

Product Weight: 12.0 lb

Regular price: $121.78
Sale price: $121.78
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
