What type of doors is it compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).

Does this magnetic door lock kit come with an installation manual?

Yes, it does. A printed installation guide is included in the box, or you can download the digital version.

Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.

Can this electromagnetic lock be used for outdoor gates?

No, it can't. Check these outdoor gate maglocks.

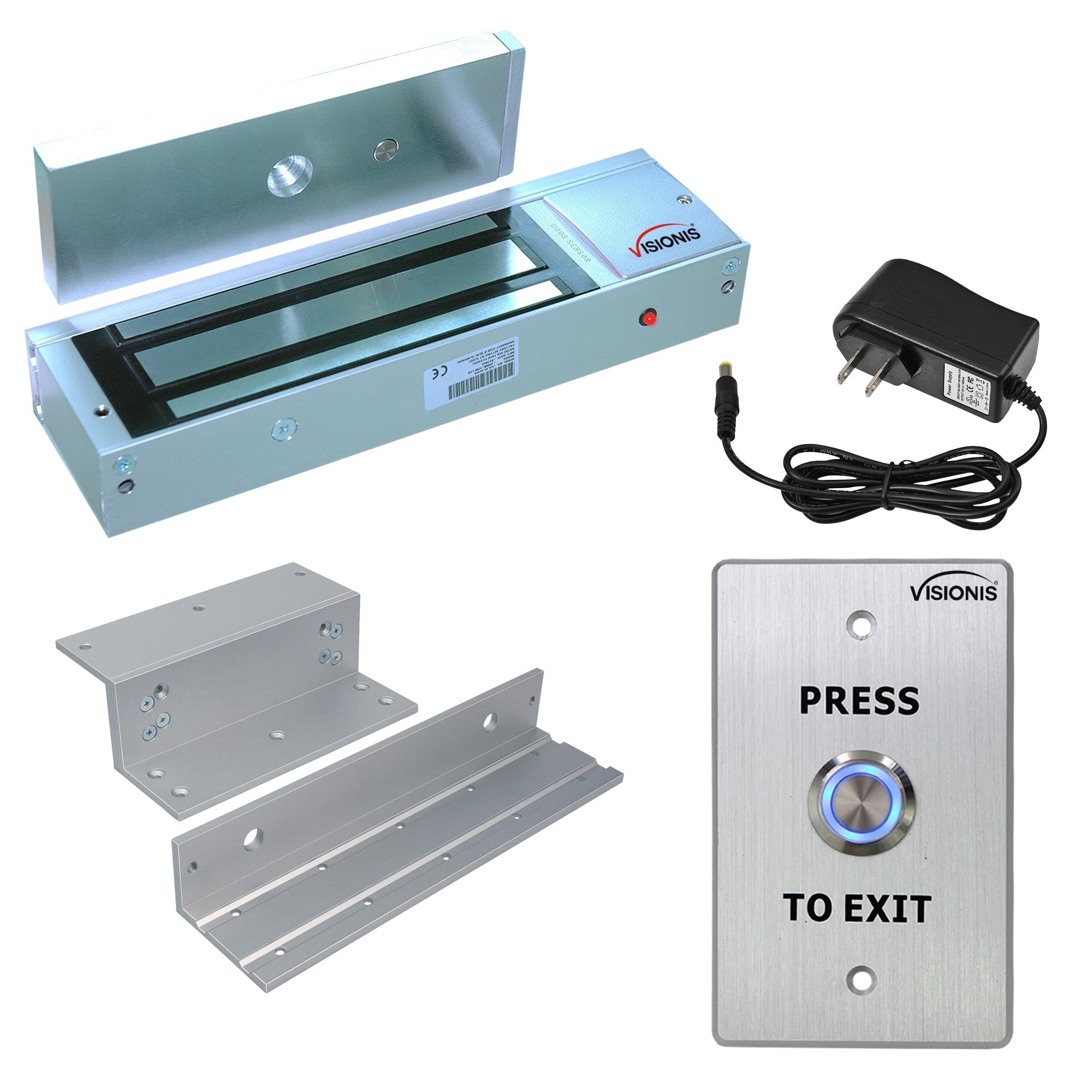

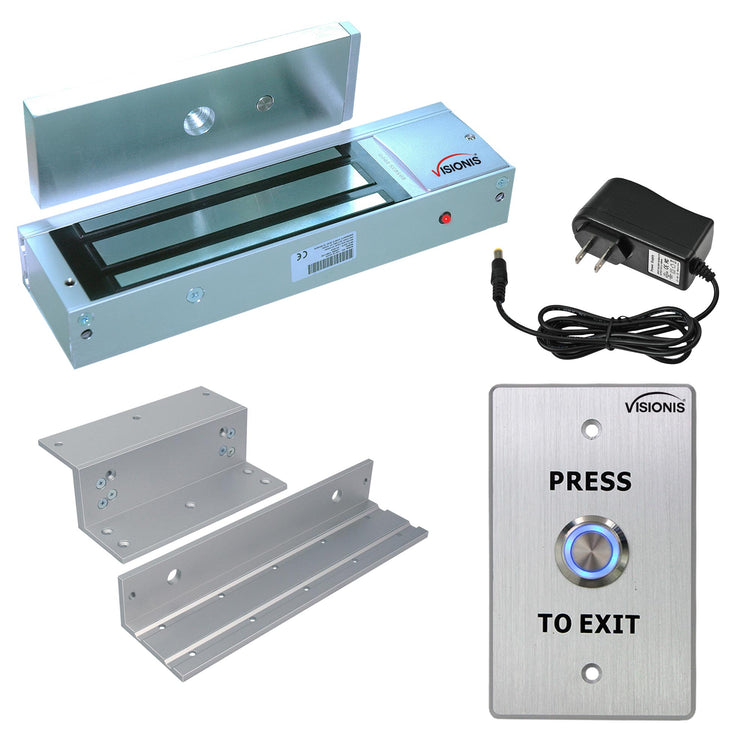

1200 lbs magnetic door lock kit with push to exit button - FPC-7326

1200lbs Magnetic Door Lock with Push to Exit Button Kit for Access Control

Indoor Maglock Installation (VIS-ML300LED, VIS-ML600LED, VIS-ML1200LED) - FPC Security

1200 lbs Magnetic door lock for access control - VIS-ML1200LED Visionis

1200 lbs Magnetic door lock with LED Sensor - VIS-ML1200LED Visionis

Dimensions 1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

L And Z Bracket For 1200lbs Electromagnetic Lock VIS-ZL1200

Dimensions VIS-7001 outdoor push to exit button with stainless steel and LED indicator

outdoor push to exit button with stainless steel and LED indicator - VIS-7001 Visionis

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Kit Includes:

(1)

VIS-ML1200LED: 1200lb Indoor Electromagnetic Lock with LED Sensor

VIS-ZL1200: L and Z Bracket for 1200lbs Electromagnetic Lock

VIS-7001: Indoor + Outdoor Weather, Waterproof Rated IP65 Stainless Steel Door Bell Type Round Request To Exit Button Standard Size w/ LED Light

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

What is the holding force of this maglock?

This maglock provides 1200 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-ML1200LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 1200 lbs (545 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 2.5 kg (±1%)
Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL1200:

L and Z bracket for 1200lbs electromagnetic lock

Model No. VIS-7001:

Contact Rating: 3A/125-250VAC
Output Contact: NC, COM, NO
Waterproof Grade: IP65
Power: 12VDC or 24VDC
Button: Stainless Steel
Button Installation Diameter: 19mm (0.74in.)
Panel: 1.7mm (0.07in.) Thick 304 Stainless Steel
Suitable for: Hollow Door
Mechanical Life: 100.000 tests
Operating Temperature: -20°C~+55°C (14°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Weight: 0.12kg
Dimension Of Plate: 115L × 70W × 40H mm - 4.52L x 2.75W x 1.57H in.
LED Color Indicator: Blue

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

What is the holding force of this maglock?

This maglock provides 1200 lbs of holding force.

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Product FAQs

What type of doors is it compatible with?

This maglock can be used with wood, metal, or glass doors (with the proper brackets).
Does this magnetic door lock kit come with an installation manual?

Yes, it does. A printed installation guide is included in the box, or you can download the digital version.
Is the magnetic door lock weather resistant?

No, it is not. Check these waterproof maglocks.
Can this electromagnetic lock be used for outdoor gates?

No, it can't. Check these outdoor gate maglocks.
Does the maglock have an auto-lock feature?

Yes, it locks automatically once power is restored.
Does the maglock make an audible sound when unlocked? Does it open the door slightly? How will customers know the door has been unlocked?

The lock makes a sound when unlocking, but it may not be very noticeable in noisy areas. It also has an LED indicator: the light turns off when unlocked and green when locked. Some users add a buzzer for a clearer sound.
Does this magnetic door lock kit come with a power supply?

Yes, it does come with a 12 Volt 2Amp Power Supply.

Download Datasheets and Manuals of this product

FPC-7311, FPC-7314, FPC-7317, FPC-7320, FPC-7323, FPC-7326

Installation Diagram

VIS-ML1200LED

VIS-ZL1200

Datasheet

VIS-7001

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Indoor Magnetic Lock VIS-ML1200LED 1200lbs For In Swinging Door With VIS-7001 Door Bell Type Push To Exit Button NC, COM, NO Outputs For Access Control, 2 Amp Power Supply - FPC-7326 Visionis

Translation missing: en.products.product.sku:FPC-7326

UPC Code: 750958783516 Weight: 15.0 lb

Regular price: $133.04
Sale price: $133.04
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
