VIS-ML1200LED - 1200lb Indoor Electromagnetic Lock with LED Sensor

Dimensions 1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

1200lb Indoor Electromagnetic Lock with LED Sensor VIS-ML1200LED

L And Z Bracket For 1200lbs Electromagnetic Lock VIS-ZL1200

Dimensions green push to exit button - Visionis VIS-7000

Green push to exit button SIDE VIEW - Visionis VIS-7000

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

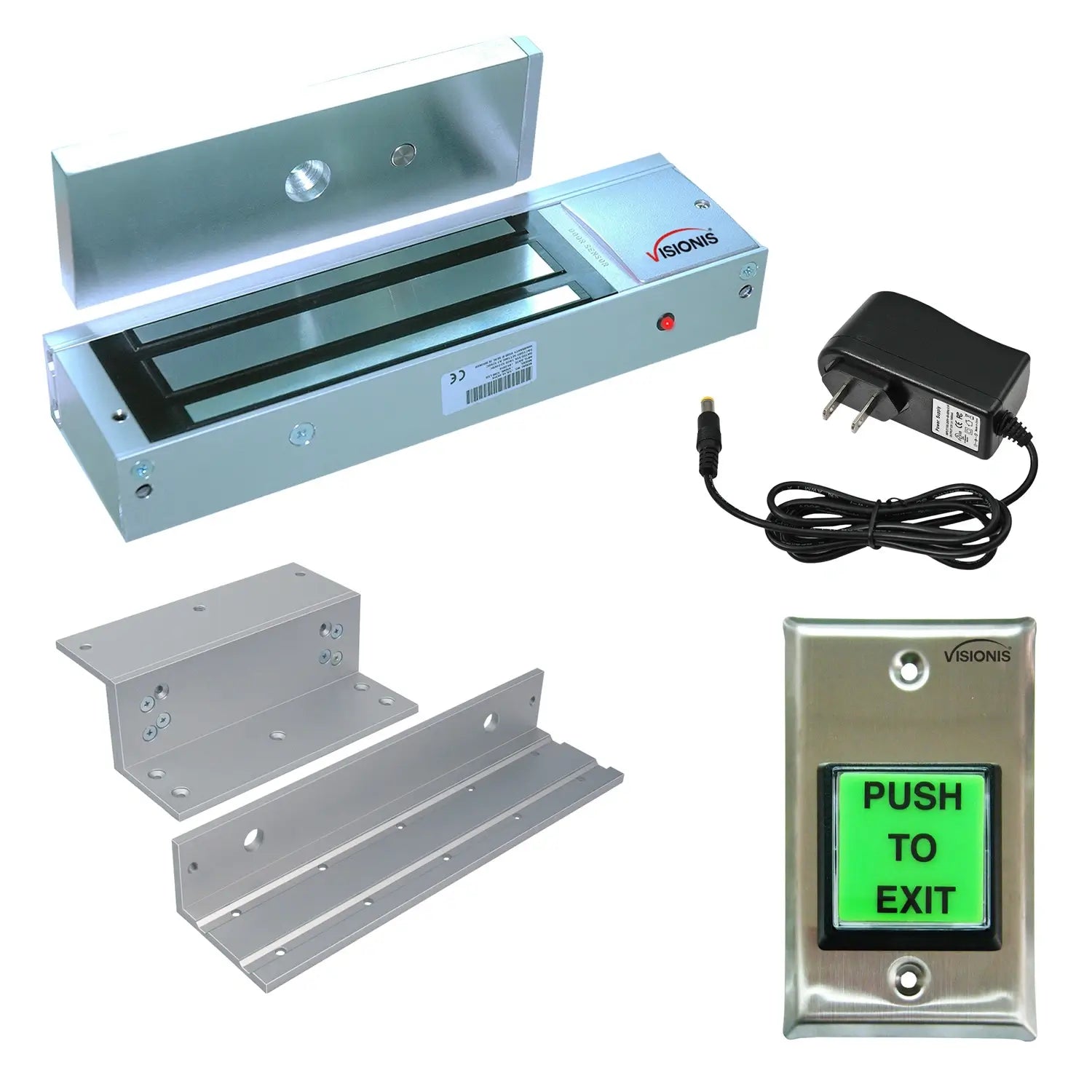

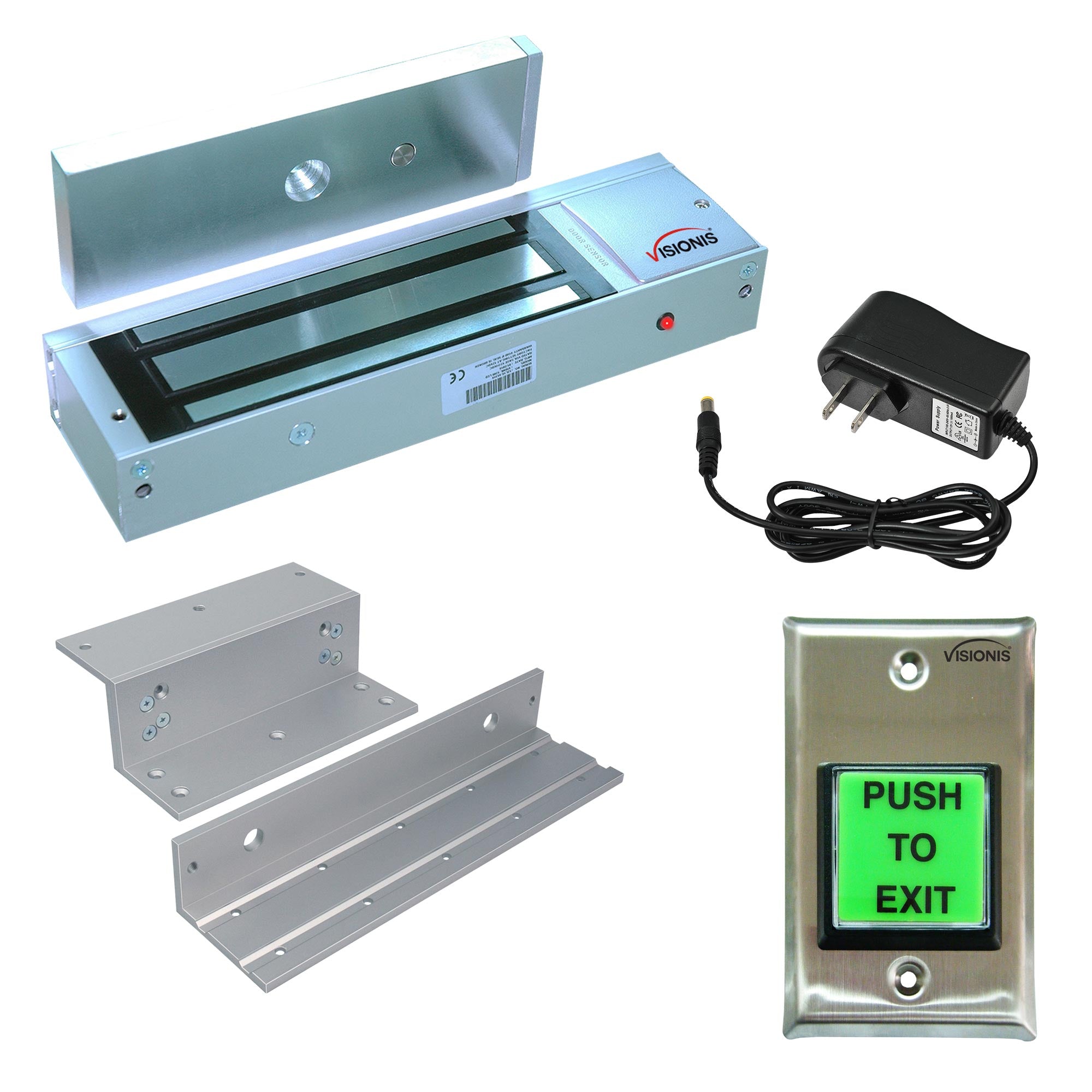

Kit Includes:

(1)

VIS-ML1200LED: 1200lb Indoor Electromagnetic Lock with LED Sensor

VIS-ZL1200: L and Z Bracket for 1200lbs Electromagnetic Lock

VIS-7000: Green Square Push to Exit Button for Door Access Control with LED Light, NC, COM and NO Outputs

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Characteristics

Model No. VIS-ML1200LED:

Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 1200 lbs (545 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.2A, 5W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 2.5 kg (±1%)
Dimensions: Magnet - (L)266x(W)67x(T)39 mm Armature - (L)185x(W)61x(T)16.5 mm
Green/Red LED Indication for EM Lock Status

Model No. VIS-ZL1200:

L and Z bracket for 1200lbs electromagnetic lock

Model No. VIS-7000:

Output Contact: NC, COM, NO
Power: 12 VDC / 24 VDC
LED Indicator: Green LED (Standby)
Mechanical Life: 500,000 tests
Panel Hole Diameter: 25mm
Panel: Stainless steel 0.9mm thickness
Switch Material: Plastic
Operating Temperature: -20°C~+55°C (-4°F-131°F)
Operating Humidity: 0-95% (relative humidity)
Dimension Of Plate: 115L × 70W × 70H mm - 4.52L x 2.75W x 2.75H in.
Weight: 0.118kg
Attention: This exit button is meant for indoor use. This Exit button does not have a delay.

Model No. VIS-CP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

Attention Notes:

This Bundle might not be all you need for your install please check all your specs accordingly before you purchase. Please ask any questions that you might have before ordering.

Download Datasheets and Manuals of this product

FPC-7310, FPC-7313, FPC-7316, FPC-7319, FPC-7322, FPC-7325

Installation Diagram

VIS-ML1200LED

VIS-ZL1200

Datasheet

VIS-7000
