Below are more variations of this product:
- FPC-6149: Black 300lbs Outswing Kit - $596.91
- FPC-6150: Black 300lbs Inswing Kit - $626.67
- FPC-6151: Black 600lbs Outswing Kit - $596.91
- FPC-6152: Black 600lbs Inswing Kit - $646.31
- FPC-6153: Black 1200lbs Outswing Kit - $715.95
- FPC-6154: Black 1200lbs Inswing Kit - $781.43
- FPC-6495: White 300lbs Outswing Kit - $596.91
- FPC-6496: White 300lbs Inswing Kit - $626.67
- FPC-6497: White 600lbs Outswing Kit - $617.74
- FPC-6498: White 600lbs Inswing Kit - $646.31
- FPC-6499: White 1200lbs Outswing Kit - $715.95
- FPC-6500: White 1200lbs Inswing Kit - $781.43
This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!
Kit Includes:

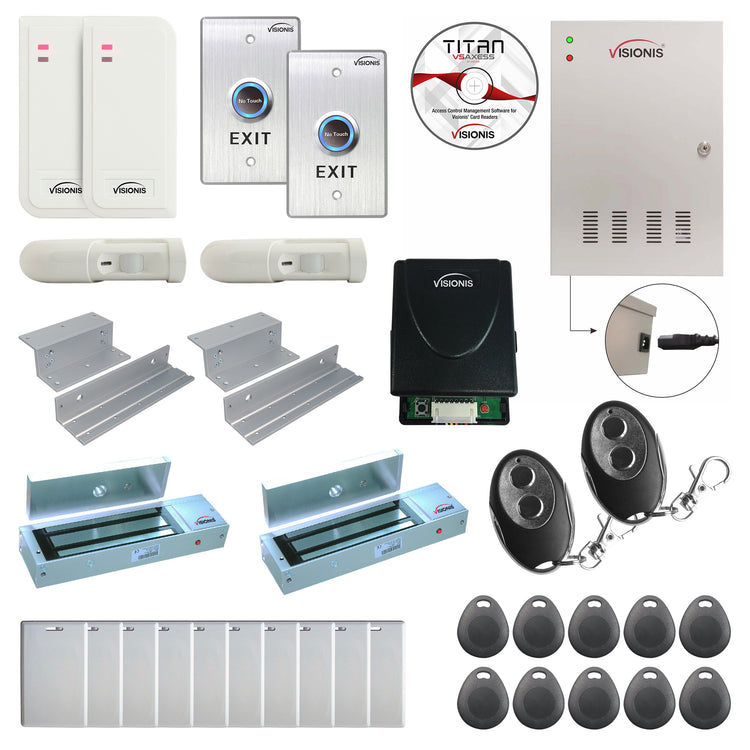

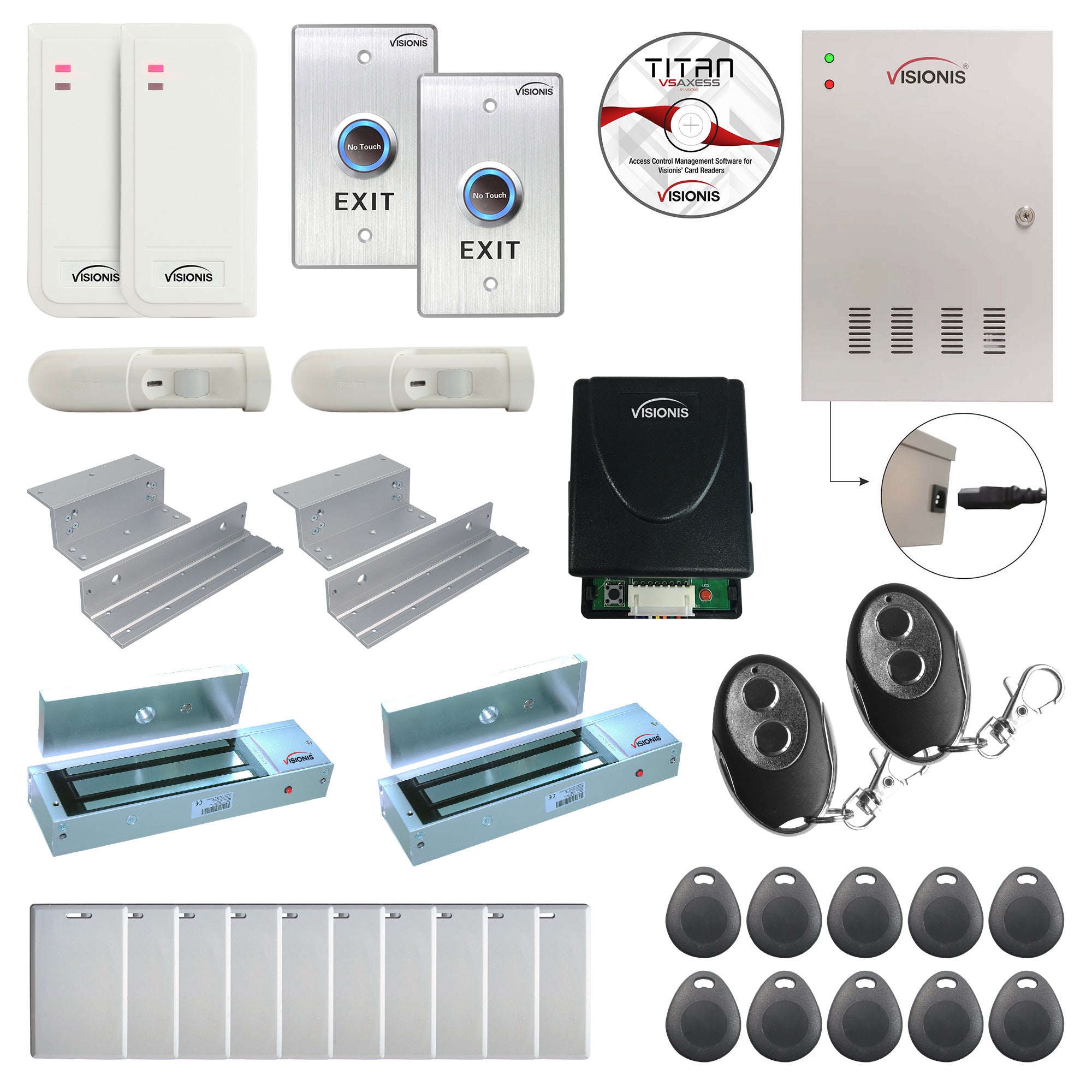

The 6500 kit is a two-door access control system with time and attendance. The kit comes with an outdoor IP66 Wiegand only reader, maglock, bracket, request to exit motion sensor, and a no-touch exit button for each door. Plus, a two-door network access control TCP/IP controller, RF receiver, RF remotes, proximity cards, and key tags. The controller comes with software that provides time and attendance, real time of who came in and who came out, a reporting system to view all events and a door restriction system.
The controller works through TCP/IP network communication. It supports Wiegand interface for accessing card reader and supports W26/W34. The system supports various card types such as normal, disabled, blacklist, patrol, visitor, duress, super card, and more. It has a tamper proof alarm for the reader and several alarms for unsecured door, forced entry, door opening, duress, and invalid card attempts. In addition, it supports online and offline operating mode with time synchronization via NTP, manual or automatic method.
The electromagnetic lock (commonly referred to as a “maglock”) is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML1200LED, you have up to 1200lbs of force protecting the door, which means it would take above 1200lbs of force to open the door if someone wanted to force entry. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When the light is green, the maglock is unlocked.
The reader is a slim Wiegand output proximity reader. It is waterproof and works with IP66. It has Wiegand 26-37 bits output with a default of 26 bits. You can only use EM cards with this product. Mifare cards and other types of cards may not be compatible. It has reading range of 7cm (2.75 in.) and a working temperature ranging from -40F to 140F. The proximity cards and key tags in this kit can be programmed to the reader quickly to use right away. If you need more, you can always order extra cards or tags.
The RF wireless Receiver was built to feed the demand for a device that can meet multiple functions. The VIS-8007 RF receiver can be used to control the locks. The model VIS-8008 is a 2-Channel 315MHz charcoal and silver remote supplied with a quick-disconnect key ring. This transmitter (remote) is designed for use with the 2-channel receiver. This transmitter (remote) has over 1,048,576 codes of programming which makes it virtually impossible of the codes being duplicated. The receiver programs each specific code; no unauthorized person can gain access to the system by reprogramming or duplicating the Transmitter (remote). This transmitter (remote) can be programmed locally into the memory of the receiver (VIS-8007).
The no touch request to exit button (VIS-7013) is for indoor use. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5-22 seconds. The LED light on the button helps you recognize when it is on standby (blue), sensation (green), or off. It has an adjustable range of 5-15cm (1.96 – 5.90in.) so you can pick your distance of detection.
The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.
Attention:
- IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
- Includes CD software
- Power supply and power cord included
- Install wires are not included
- This software is not compatible with MAC computers, only with Microsoft.
The 6500 kit is a two-door access control system with time and attendance. The kit comes with an outdoor IP66 Wiegand only reader, maglock, bracket, request to exit motion sensor, and a no-touch exit button for each door. Plus, a two-door network access control TCP/IP controller, RF receiver, RF remotes, proximity cards, and key tags. The controller comes with software that provides time and attendance, real time of who came in and who came out, a reporting system to view all events and a door restriction system.
The controller works through TCP/IP network communication. It supports Wiegand interface for accessing card reader and supports W26/W34. The system supports various card types such as normal, disabled, blacklist, patrol, visitor, duress, super card, and more. It has a tamper proof alarm for the reader and several alarms for unsecured door, forced entry, door opening, duress, and invalid card attempts. In addition, it supports online and offline operating mode with time synchronization via NTP, manual or automatic method.
The electromagnetic lock (commonly referred to as a “maglock”) is installed beneath the top of the door frame to make sure that the door remains closed and locked. With the VISML1200LED, you have up to 1200lbs of force protecting the door, which means it would take above 1200lbs of force to open the door if someone wanted to force entry. The LED light on the maglock helps you identify when the maglock is locked and unlocked. When the light is red, the maglock is locked. When the light is green, the maglock is unlocked.
The reader is a slim Wiegand output proximity reader. It is waterproof and works with IP66. It has Wiegand 26-37 bits output with a default of 26 bits. You can only use EM cards with this product. Mifare cards and other types of cards may not be compatible. It has reading range of 7cm (2.75 in.) and a working temperature ranging from -40F to 140F. The proximity cards and key tags in this kit can be programmed to the reader quickly to use right away. If you need more, you can always order extra cards or tags.
The RF wireless Receiver was built to feed the demand for a device that can meet multiple functions. The VIS-8007 RF receiver can be used to control the locks. The model VIS-8008 is a 2-Channel 315MHz charcoal and silver remote supplied with a quick-disconnect key ring. This transmitter (remote) is designed for use with the 2-channel receiver. This transmitter (remote) has over 1,048,576 codes of programming which makes it virtually impossible of the codes being duplicated. The receiver programs each specific code; no unauthorized person can gain access to the system by reprogramming or duplicating the Transmitter (remote). This transmitter (remote) can be programmed locally into the memory of the receiver (VIS-8007).
The no touch request to exit button (VIS-7013) is for indoor use. With just the wave of your hand, the sensor will unlock the door. This exit button also has a release that can be programmed between 0.5-22 seconds. The LED light on the button helps you recognize when it is on standby (blue), sensation (green), or off. It has an adjustable range of 5-15cm (1.96 – 5.90in.) so you can pick your distance of detection.
The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.
Attention:
- IMPORTANT: These access control panels (Version 2.0) are only compatible with access control panels (Version 2.0) and with the Titan VSAxess software. They are not compatible with access control panels (Version 1.0) nor with VSAxess software.
- Includes CD software
- Power supply and power cord included
- Install wires are not included
- This software is not compatible with MAC computers, only with Microsoft.
Compatible Software
DOWNLOAD SOFTWAREScreenshots Examples of the Software
Click the image to open a bigger version
Download Datasheets and Manuals of this product
