Description

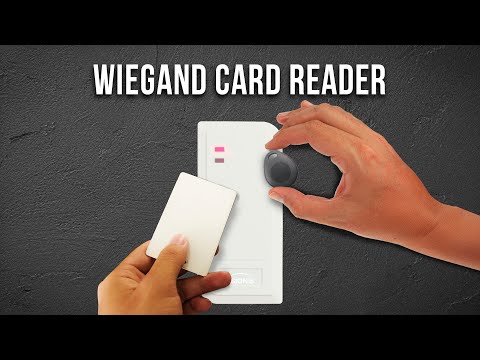

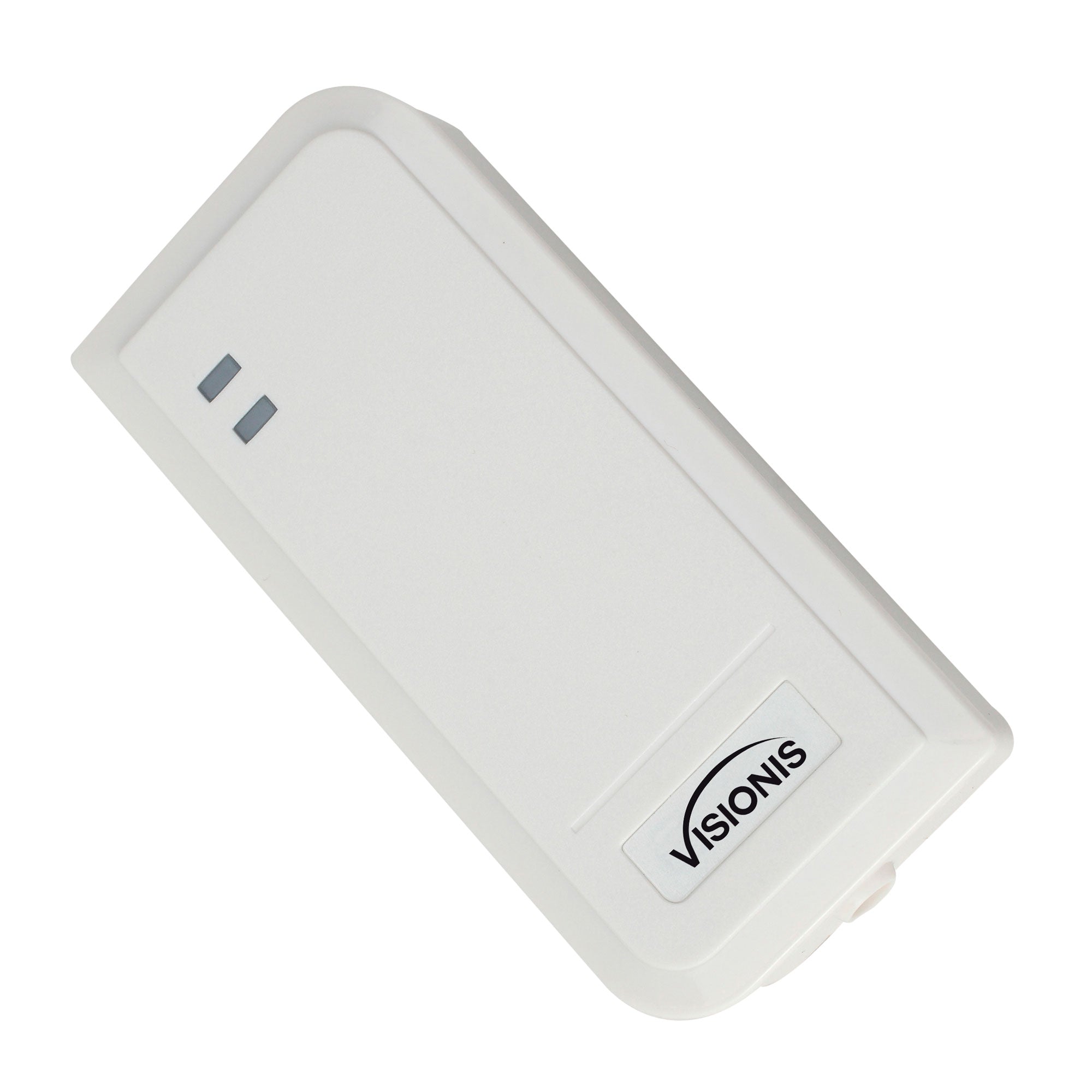

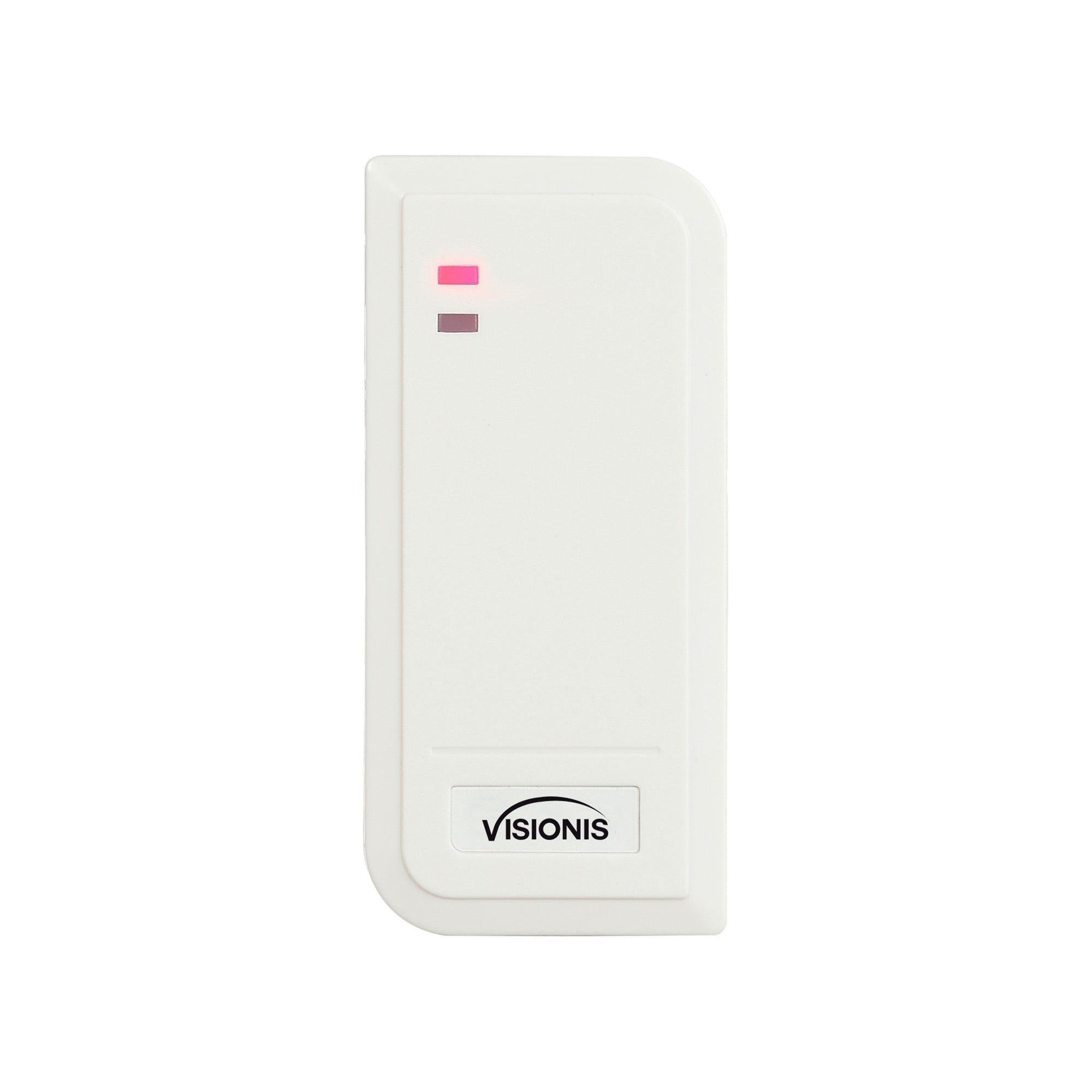

The Visionis 3101 is a white weather-proof reader that is hardwired and ONLY for use with a wiegand controller system. The readers users are determined by the controller that is being used. This IP66 card reader works specifically with wiegand 26 bit. The reader is designed for easy operation and high reliability for your access control system. It is built to withstand extreme temperatures, which allows it to work both indoor and outdoor.

Attention:

  • 12V 1Amp power supply IS NOT INCLUDED, SOLD SEPARATELY .
  • Proximity cards Model Number: VIS-APRXCARD/26TH and Key Tags Model Number: VIS-AKEYTAG, ARE NOT INCLUDED, SOLD SEPARATELY .
  • This reader will only work with Wiegand Protocol Access Controllers. This will not work by itself.
  • You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
  • This is a hardwire reader.
Characteristics

Model No. VIS-3101:

  • Color: White
  • Operating Voltage: 9~24V DC
  • Frequency: 125KHz
  • Card Type: EM card
  • Reading Distance: 7 cm (2.75 in.)
  • Output Format: Wiegand 26 bits (26~37 bits available upon request)
  • Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Standby Current: < 25mA
  • Operating Humidity: 10%~95% RH
  • Index of Protection: IP66
  • Dimensions: 102L x 48W x 20H (mm) – 4.01L x 1.88W x 0.78H (in.)
Description

The Visionis 3101 is a white weather-proof reader that is hardwired and ONLY for use with a wiegand controller system. The readers users are determined by the controller that is being used. This IP66 card reader works specifically with wiegand 26 bit. The reader is designed for easy operation and high reliability for your access control system. It is built to withstand extreme temperatures, which allows it to work both indoor and outdoor.

Attention:

  • 12V 1Amp power supply IS NOT INCLUDED, SOLD SEPARATELY .
  • Proximity cards Model Number: VIS-APRXCARD/26TH and Key Tags Model Number: VIS-AKEYTAG, ARE NOT INCLUDED, SOLD SEPARATELY .
  • This reader will only work with Wiegand Protocol Access Controllers. This will not work by itself.
  • You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
  • This is a hardwire reader.
Characteristics
Packaging of this product

Model No. VIS-3101:

  • Color: White
  • Operating Voltage: 9~24V DC
  • Frequency: 125KHz
  • Card Type: EM card
  • Reading Distance: 7 cm (2.75 in.)
  • Output Format: Wiegand 26 bits (26~37 bits available upon request)
  • Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Standby Current: < 25mA
  • Operating Humidity: 10%~95% RH
  • Index of Protection: IP66
  • Dimensions: 102L x 48W x 20H (mm) – 4.01L x 1.88W x 0.78H (in.)

Download Datasheets and Manuals of this product

VIS-3100 / VIS-3101

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

Visionis VIS-3101 - Access Control White Outdoor IP66 Card Reader Only Compatible with Wiegand 26 Bit

VIS-3101

UPC Code: 714131717910
Product Weight: 1.0 lb
  • CE Certificate
$23.16
