Dimensions Visionis VIS-3100 Proximity Reader with Wiegand, black waterproof card reader for access control

Waterproof card reader, Visionis VIS-3100, black proximity reader compatible with Wiegand 26 bit

Card reader for access control, Visionis VIS-3100, prox card reader, IP66-rated for outdoor use

Card reader with wiegand protocol for access control panels VIS-3100 Visionis

Below are more variations of this product:

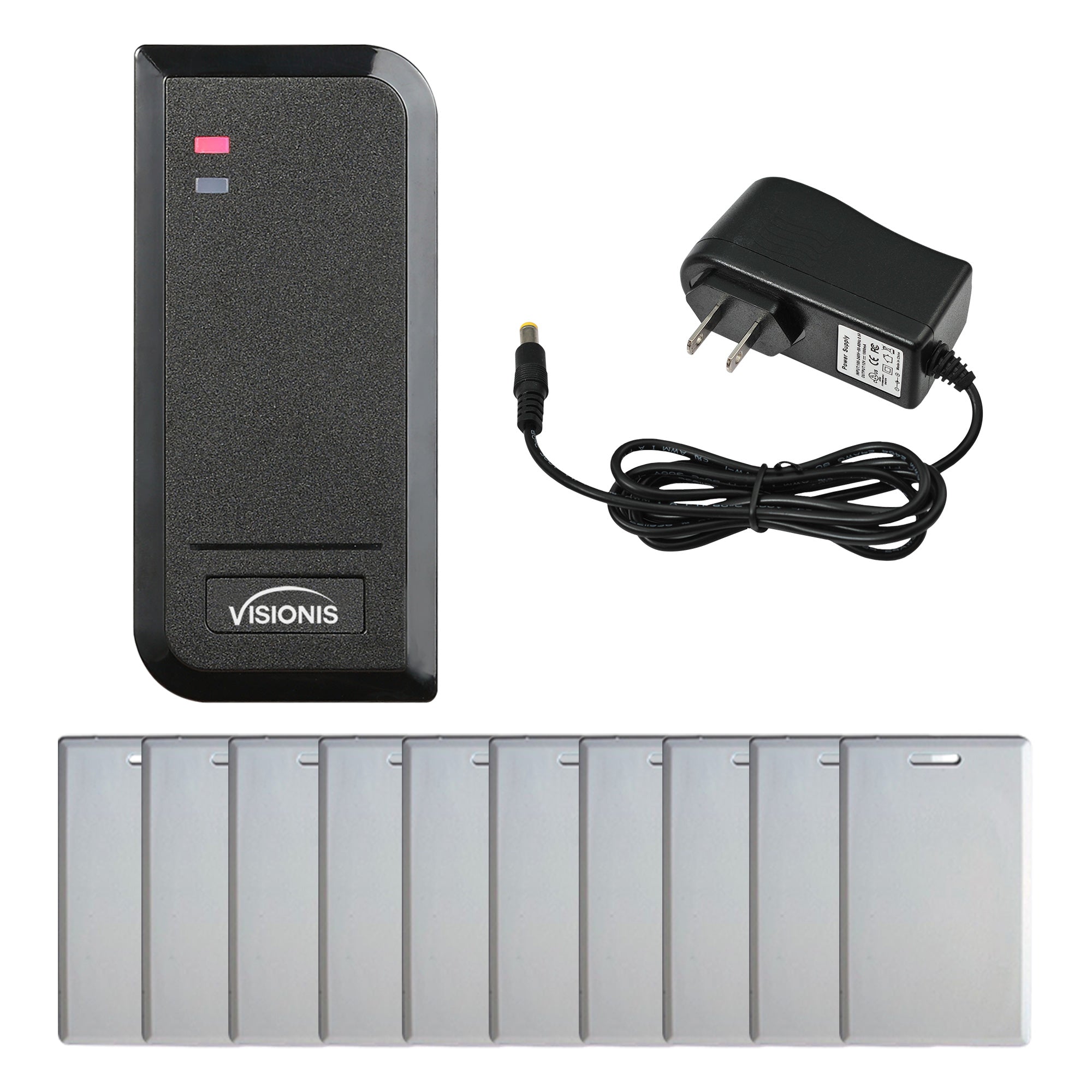

Kit Includes:

(1)

(10)

(1)

VIS-3100: Access Control Black Outdoor IP66 Card Reader Only Compatible With Wiegand 26 Bit

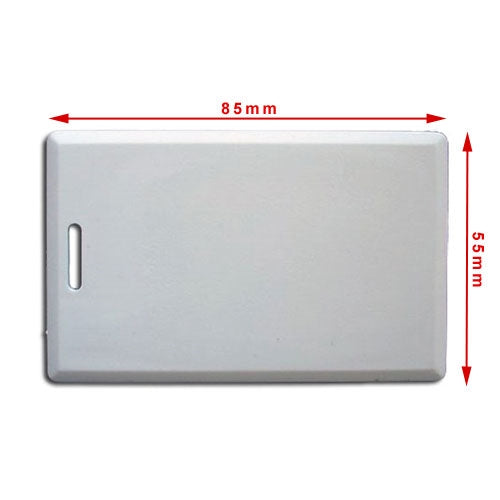

VS-VIS-APROXCARD/26: Access Control Proximity Contactless Smart Entry Card 1.8mm Thick 26 Bit 125khz

VS-VISCP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

The 6433 kit has a Visionis 3100 black weather-proof reader that is hardwired and ONLY for use with a Wiegand controller system plus 10 proximity cards and a power supply. The readers users are determined by the controller that is being used. This IP66 card reader works specifically with Wiegand 26 bit. The reader is designed for easy operation and high reliability for your access control system. It is built to withstand extreme temperatures, which allows it to work both indoor and outdoor.

Attention:

This reader will only work with Wiegand Protocol Access Controllers. This will not work by itself.
You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
This is a hardwire reader.

Characteristics

Model No. VIS-3100:

Color: Black
Operating Voltage: 9~24V DC
Frequency: 125KHz
Card Type: EM card
Reading Distance: 7 cm (2.75 in.)
Output Format: Wiegand 26 bits (26~37 bits available upon request)
Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Standby Current: < 25mA
Operating Humidity: 10%~95% RH
Index of Protection: IP66
Dimensions: 102L x 48W x 20H (mm) – 4.01L x 1.88W x 0.78H (in.)

Model No. VISCP200:

Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

The 6433 kit has a Visionis 3100 black weather-proof reader that is hardwired and ONLY for use with a Wiegand controller system plus 10 proximity cards and a power supply. The readers users are determined by the controller that is being used. This IP66 card reader works specifically with Wiegand 26 bit. The reader is designed for easy operation and high reliability for your access control system. It is built to withstand extreme temperatures, which allows it to work both indoor and outdoor.

Attention:

This reader will only work with Wiegand Protocol Access Controllers. This will not work by itself.
You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
This is a hardwire reader.

Download Datasheets and Manuals of this product

VIS-3100 / VIS-3101

Visionis by Visionis

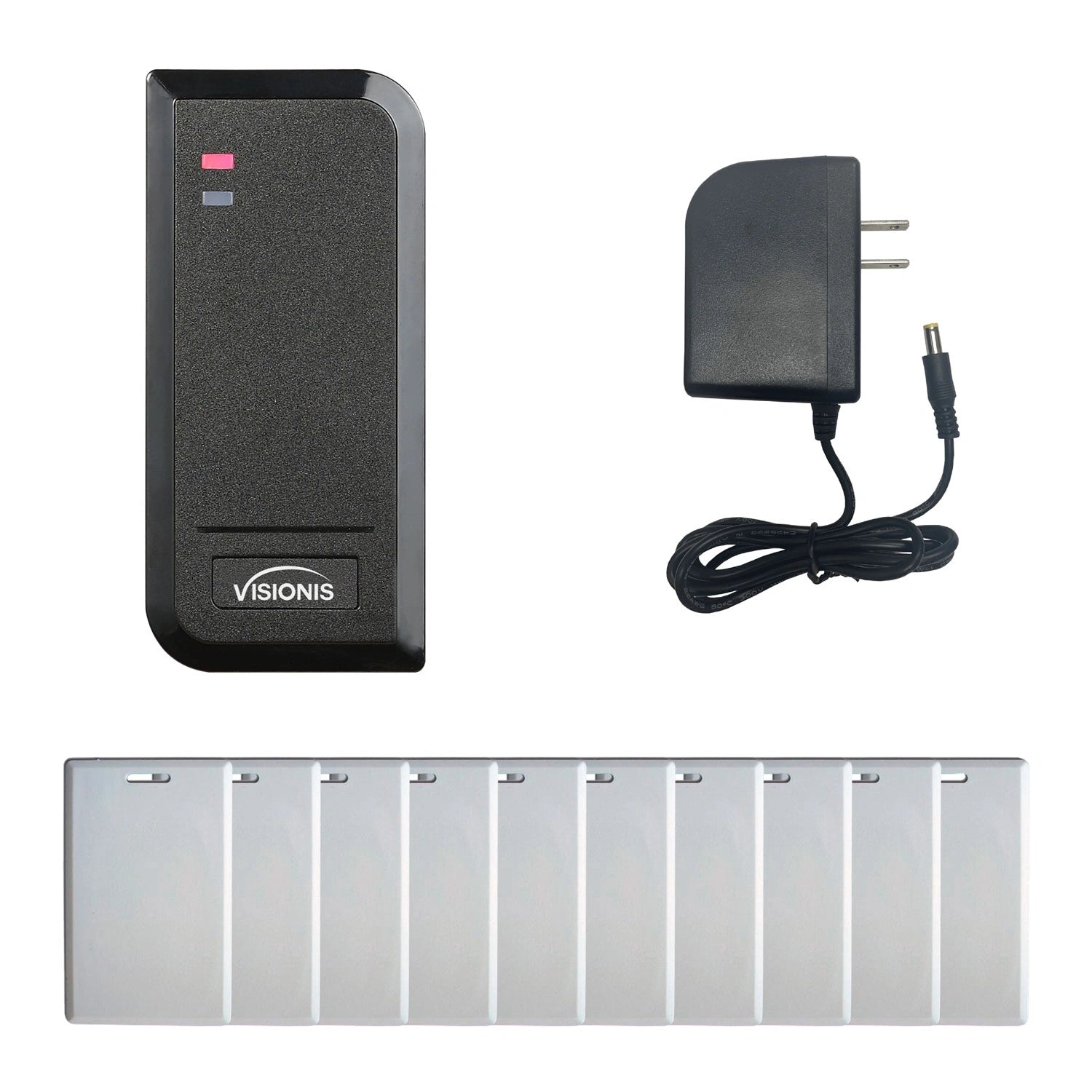

FPC-6433 VIS-3100 Access Control Black Outdoor IP66 Card Reader Only Compatible With Wiegand 26 Bit And A Power Supply Included With A Pack Of 10 Proximity Cards

Name: FPC-6433 VIS-3100 Access Control Black Outdoor IP66 Card Reader Only Compatible With Wiegand 26 Bit And A Power Supply Included With A Pack Of 10 Proximity Cards
Brand: Visionis
SKU: FPC-6433
Price: 41.23 USD
Availability: OutOfStock

Translation missing: en.products.product.sku:FPC-6433

UPC Code: 714131717484

Product Weight: 2.0 lb
