This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

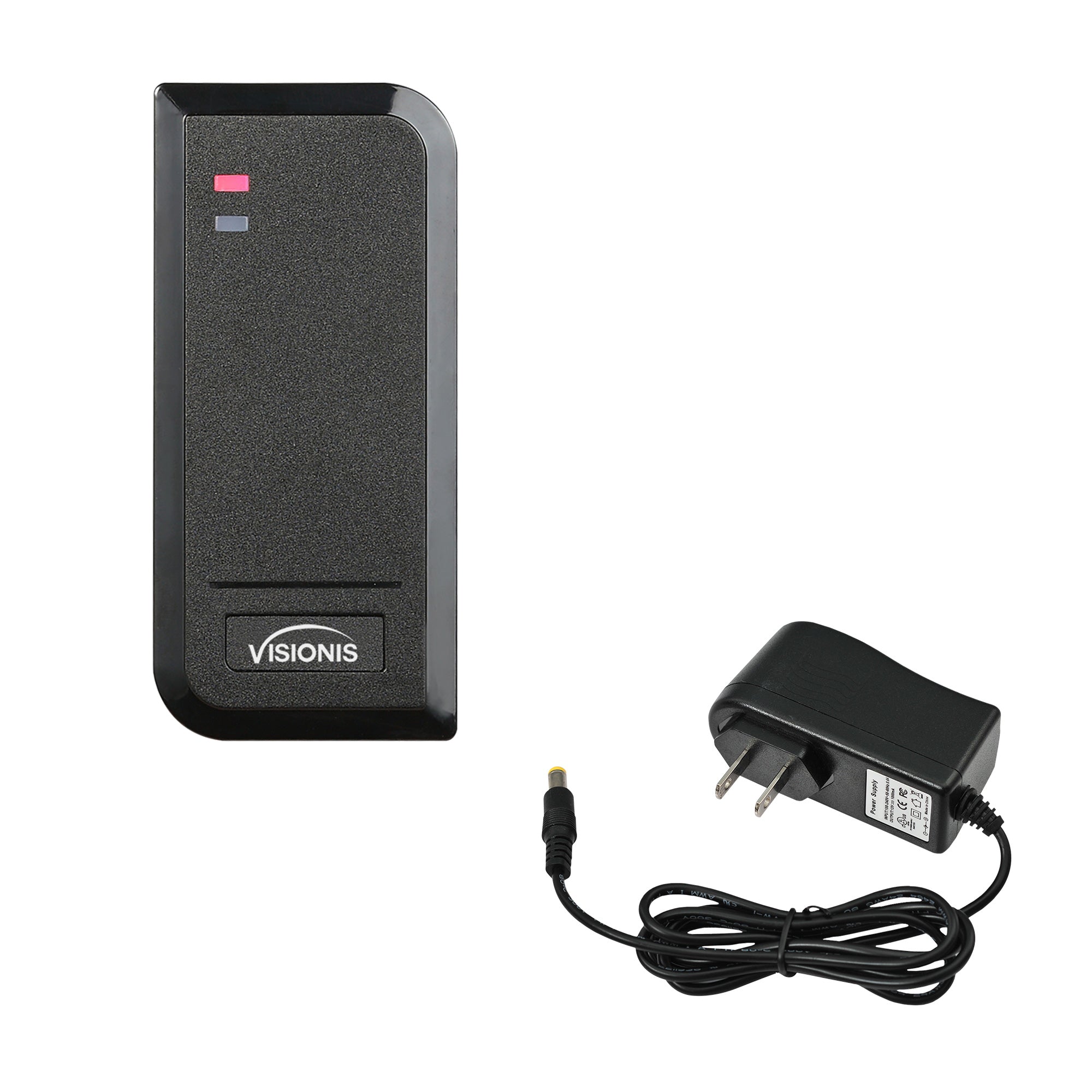

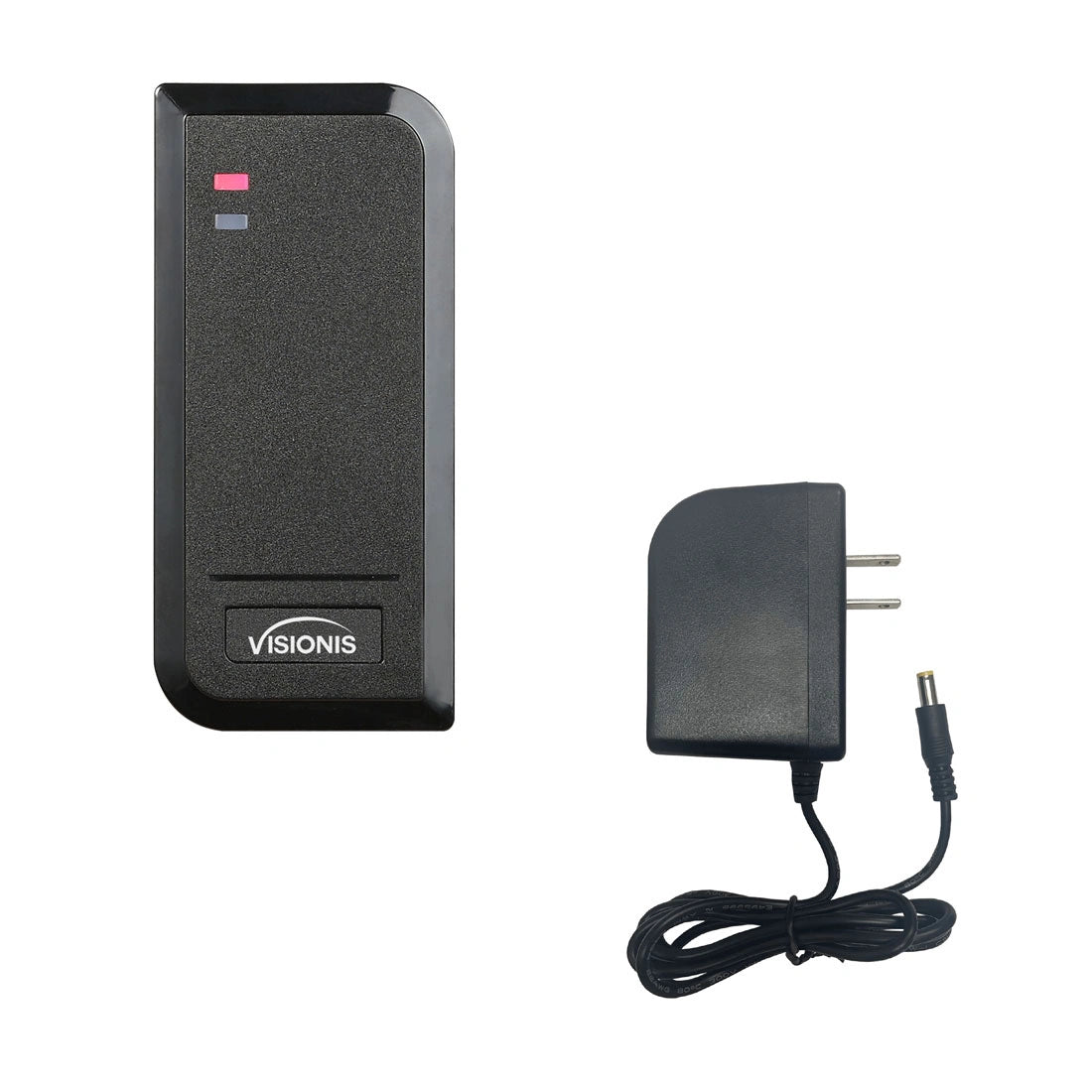

The 6432 kit has a Visionis 3100 black weather-proof reader that is hardwired and ONLY for use with a Wiegand controller system plus a power supply. The readers users are determined by the controller that is being used. This IP66 card reader works specifically with Wiegand 26 bit. The reader is designed for easy operation and high reliability for your access control system. It is built to withstand extreme temperatures, which allows it to work both indoor and outdoor.



Attention:

This reader will only work with Wiegand Protocol Access Controllers. This will not work by itself.
You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
This is a hardwire reader.

Characteristics

Model No. VIS-3100:

  • Color: Black
  • Operating Voltage: 9~24V DC
  • Frequency: 125KHz
  • Card Type: EM card
  • Reading Distance: 7 cm (2.75 in.)
  • Output Format: Wiegand 26 bits (26~37 bits available upon request)
  • Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
  • Standby Current: < 25mA
  • Operating Humidity: 10%~95% RH
  • Index of Protection: IP66
  • Dimensions: 102L x 48W x 20H (mm) – 4.01L x 1.88W x 0.78H (in.)

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The 6432 kit has a Visionis 3100 black weather-proof reader that is hardwired and ONLY for use with a Wiegand controller system plus a power supply. The readers users are determined by the controller that is being used. This IP66 card reader works specifically with Wiegand 26 bit. The reader is designed for easy operation and high reliability for your access control system. It is built to withstand extreme temperatures, which allows it to work both indoor and outdoor.



Attention:

This reader will only work with Wiegand Protocol Access Controllers. This will not work by itself.
You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
This is a hardwire reader.

Download Datasheets and Manuals of this product

VIS-3100 / VIS-3101

Contact Us for Support

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help
Visionis by Visionis

FPC-6432 VIS-3100 Access Control Black Outdoor IP66 Card Reader Only Compatible With Wiegand 26 Bit And A Power Supply Included

Translation missing: en.products.product.sku:FPC-6432

UPC Code: 714131717477
Product Weight: 2.0 lb
