Below are more variations of this product:
- FPC-5576: Electric Drop Bolt Fail Safe - $185.95
- FPC-5577: 2,600lbs Electric Drop Bolt Fail Secure - $296.34
- FPC-5578: Electric Drop Bolt F. Secure, Key Cylinder - $340.39
- FPC-5579: 2,200lbs Electric Drop Bolt F. Safe, Narrow Doors - $297.82
- FPC-5580: 1,700lbs Electric Drop Bolt F. Safe For Glass Door - $291.88
This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!
Kit Includes:

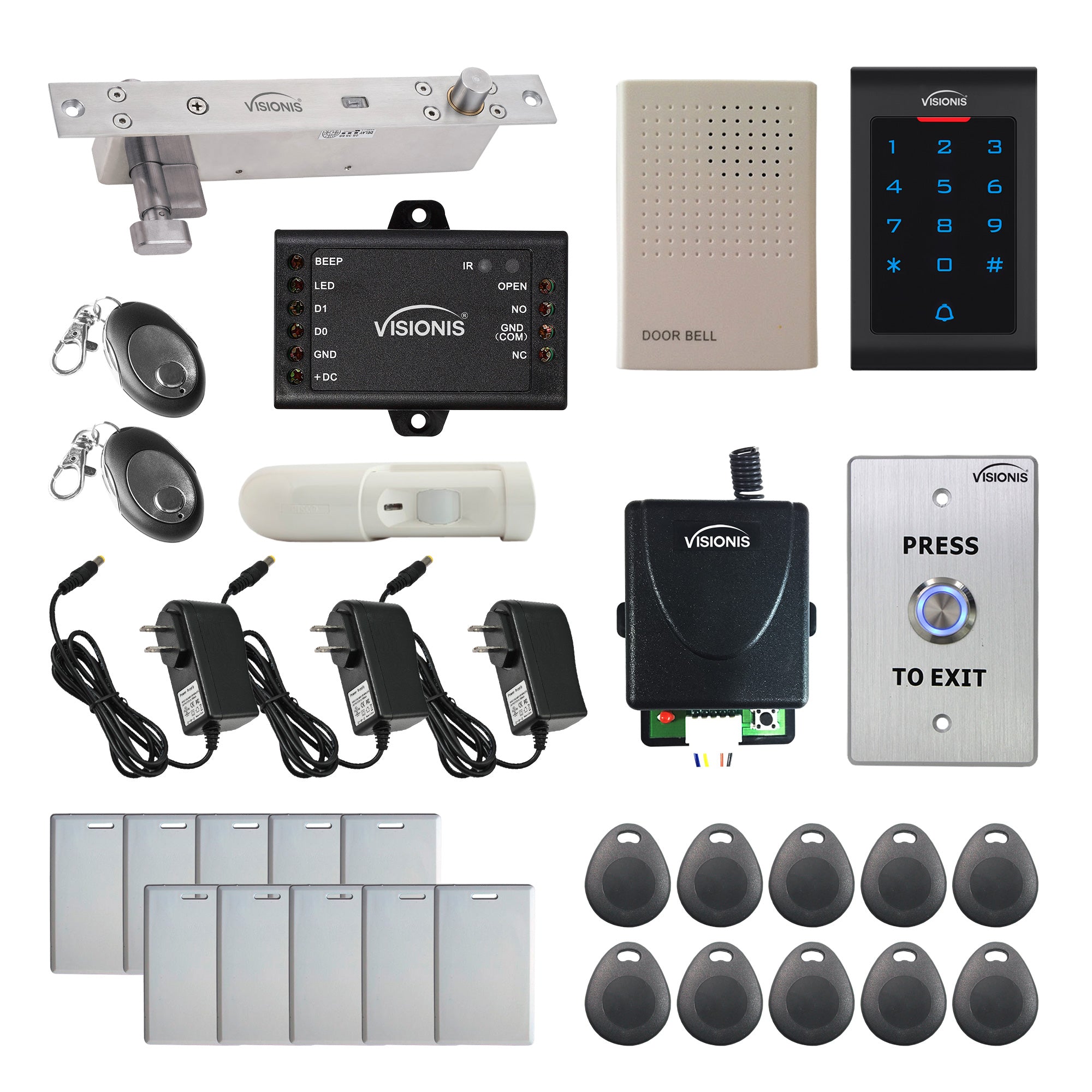

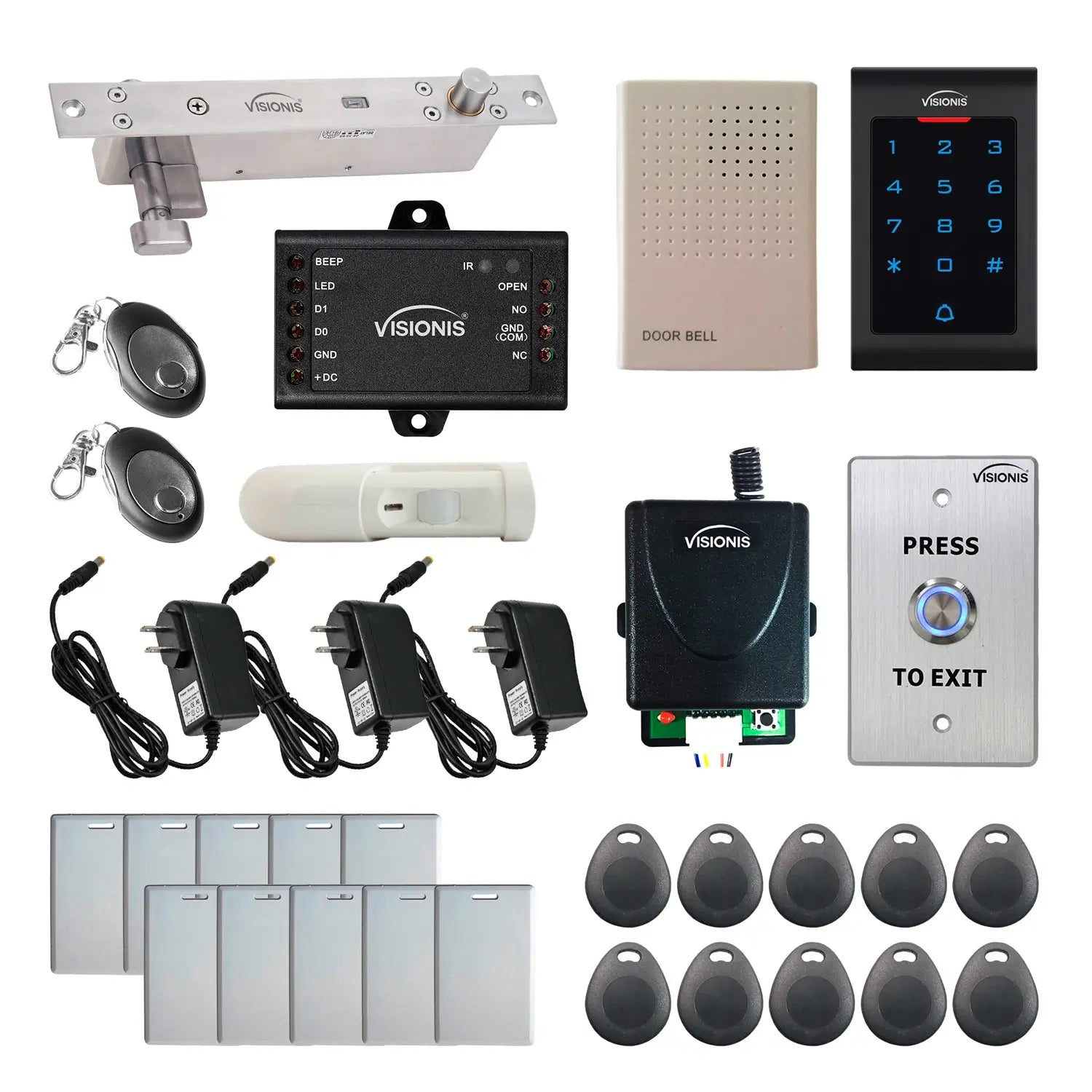

The 5578 kit is a one door dropbolt access control kit with request to exit PIR. This system is mainly used to give access to a certain room, office or building (depending on your application) to certain people. The Visionis DP103WCY-FSE-LED is a quality normally open drop bolt lock that provides 2600lbs of reinforcement with key cylinder, LED, and time delay. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place. This firmly secures the door as long as it has power going to it. With the time delay feature, you can set your delay to either 0, 3, 6, or 9 seconds.
This particular drop bolt is Fail secure; meaning that in the case of a power outage, the bolt will extract and the door will become locked. This particular kit has two ways of access, wireless remote and keypad. You will be able to let people in by clicking on the wireless RF remote, the VIS-8005. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160ft (50m). There are two main features on the receiver that will allow you to program the wireless receiver in two different ways. The default function of the receiver is that when the power is on, the dropbolt of your kit is locked and when you press the remote the dropbolt will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again.
With the indoor keypad, the VIS-3002, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag. This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the right hand side. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the dropbolt will disengage and allow for entrance. The lock will then engage again and remain closed until it is unlocked by one of the three access options.
The VIS-7001 exit button will allow those from within the facility to exit when they push the button. Through the indoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the dropbolt engages again. The popular applications for this kit is for offices, commercial buildings or any room that needs restricted access. The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
IMPORTANT:
- Professional installation is recommended.
- For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
- If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
- The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
The 5578 kit is a one door dropbolt access control kit with request to exit PIR. This system is mainly used to give access to a certain room, office or building (depending on your application) to certain people. The Visionis DP103WCY-FSE-LED is a quality normally open drop bolt lock that provides 2600lbs of reinforcement with key cylinder, LED, and time delay. The drop bolt locks into place, giving the protection needed to secure the door. Depending on how you want the lock installed, you will be able to give that “hidden” appearance, similar to the shear lock. When the drop bolt is given power, the bolt extends and locks into place. This firmly secures the door as long as it has power going to it. With the time delay feature, you can set your delay to either 0, 3, 6, or 9 seconds.
This particular drop bolt is Fail secure; meaning that in the case of a power outage, the bolt will extract and the door will become locked. This particular kit has two ways of access, wireless remote and keypad. You will be able to let people in by clicking on the wireless RF remote, the VIS-8005. The remote communicates with the wireless receiver, which can program up to 50 remotes, and it has a range of 160ft (50m). There are two main features on the receiver that will allow you to program the wireless receiver in two different ways. The default function of the receiver is that when the power is on, the dropbolt of your kit is locked and when you press the remote the dropbolt will unlock temporarily to open the door. The other function that the receiver has is the ON/Off feature. This feature is very similar to a light switch; when you program this option you would press the remote once and the door will unlock and remain unlocked until you press the button again.
With the indoor keypad, the VIS-3002, you can gain access through three different options. You can enter a pin code onto the keypad, use a proximity card, and/or use a proximity key tag. This keypad will allow up to 1000 users through either of the three access options. Since this is a standalone system, meaning that there is no software, it is recommended for you to keep a record of all personnel and their assigned user ID with key code, key card or key tag. On the keypad, you will notice a doorbell towards the right hand side. This will allow people from the outside to ring the doorbell and notify those inside that there is someone wanting to come in. Once someone has entered a programmed code, card, or tag, the dropbolt will disengage and allow for entrance. The lock will then engage again and remain closed until it is unlocked by one of the three access options.
The VIS-7001 exit button will allow those from within the facility to exit when they push the button. Through the indoor keypad, you can program your delay from 0 to 99 seconds. The meaning of having a delay is setting a time until the dropbolt engages again. The popular applications for this kit is for offices, commercial buildings or any room that needs restricted access. The request to exit PIR included in the kit allows for the door to unlock when it senses motion within 2.4m.
The VIS-MINI-CNTRL is a mini single door control panel that can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and it is equipped with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.
IMPORTANT:
- Professional installation is recommended.
- For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
- If the keypad/card reader (entry device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
- The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.
