How many users can be programmed?

The Visionis VIS-3002 Touch Keypad supports up to 2,000 users. If connected to the mini controller VIS-MINI-CNTRL, the capacity is limited to 1,000 users.

Is this keypad weatherproof?

No, it isn't. If you need a weatherproof keypad, check the VIS-3004.

What proximity cards are compatible?

This Wiegand keypad is compatible with 125kHz EM proximity cards and key tags. It is not compatible with 13.56MHz Mifare cards.

Can the indoor keypad change how long the door stays open?

Yes, the relay timer can be adjusted on the keypads. You can program your delay from 0 to 99 seconds.

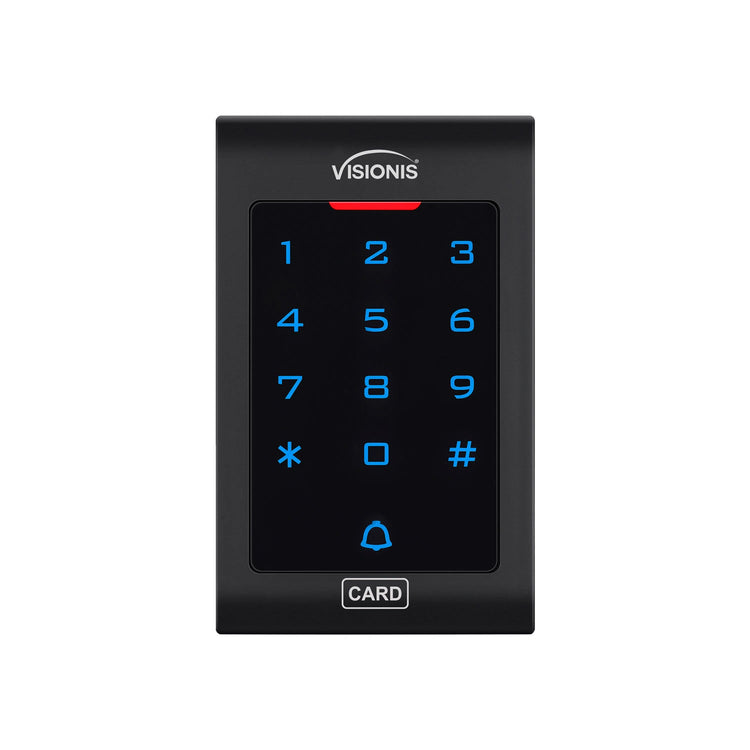

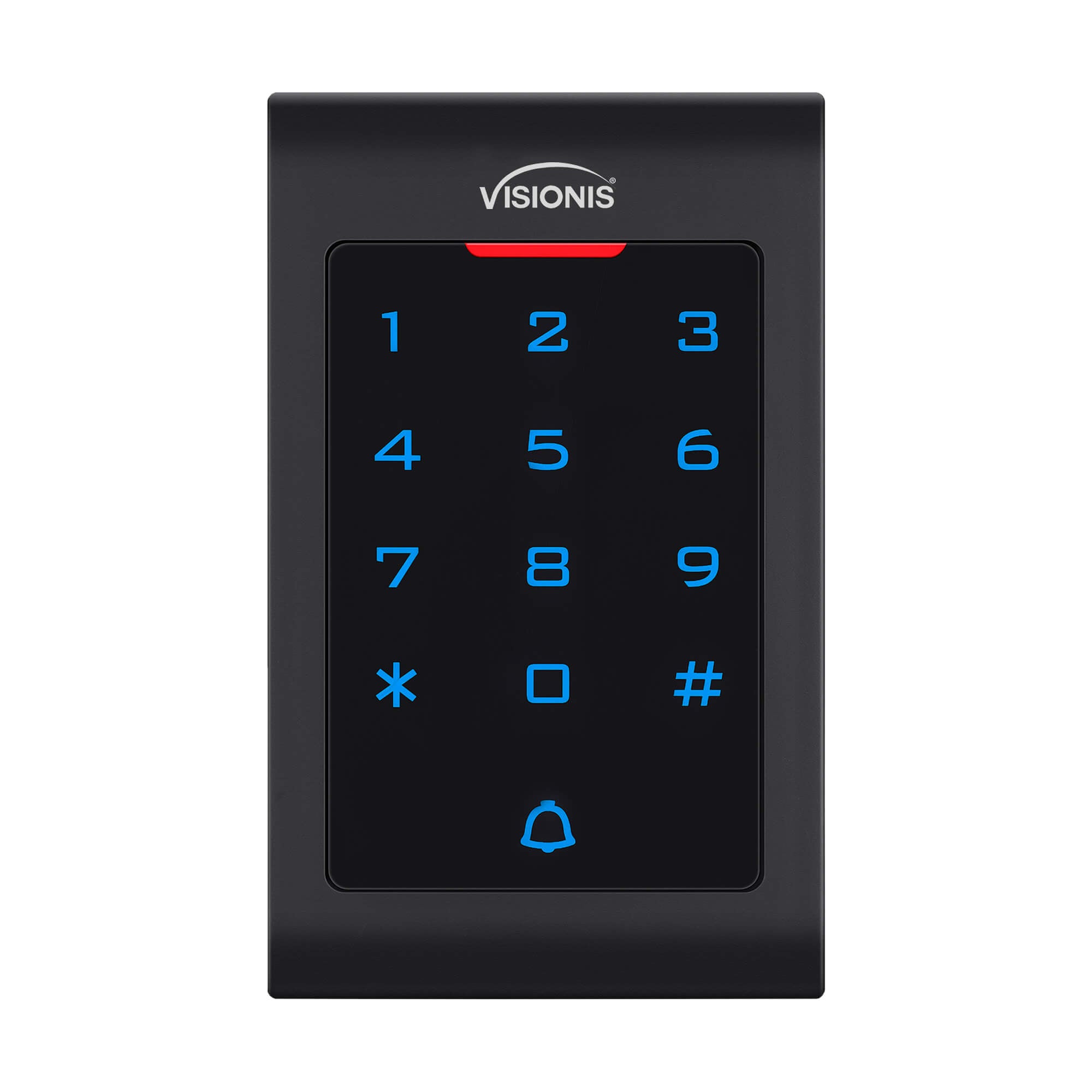

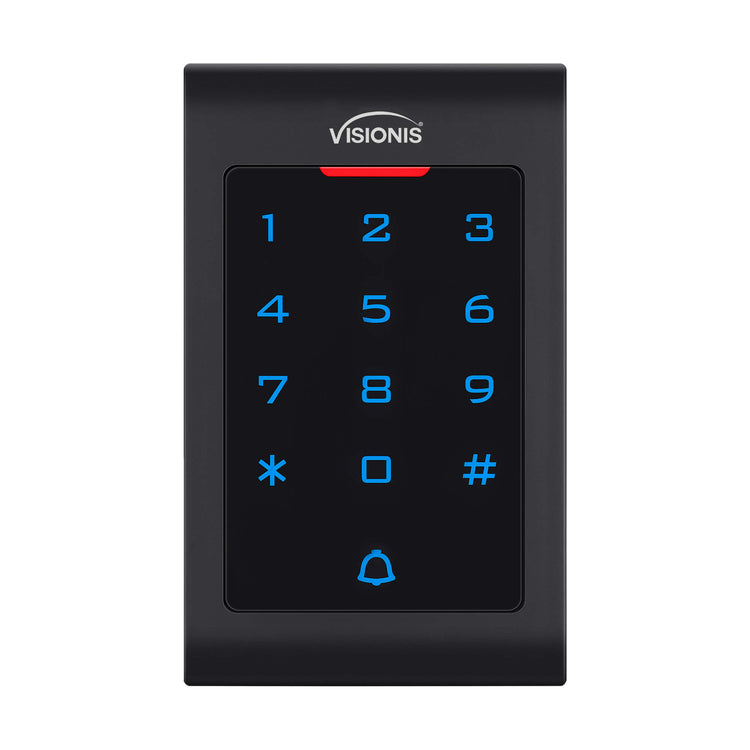

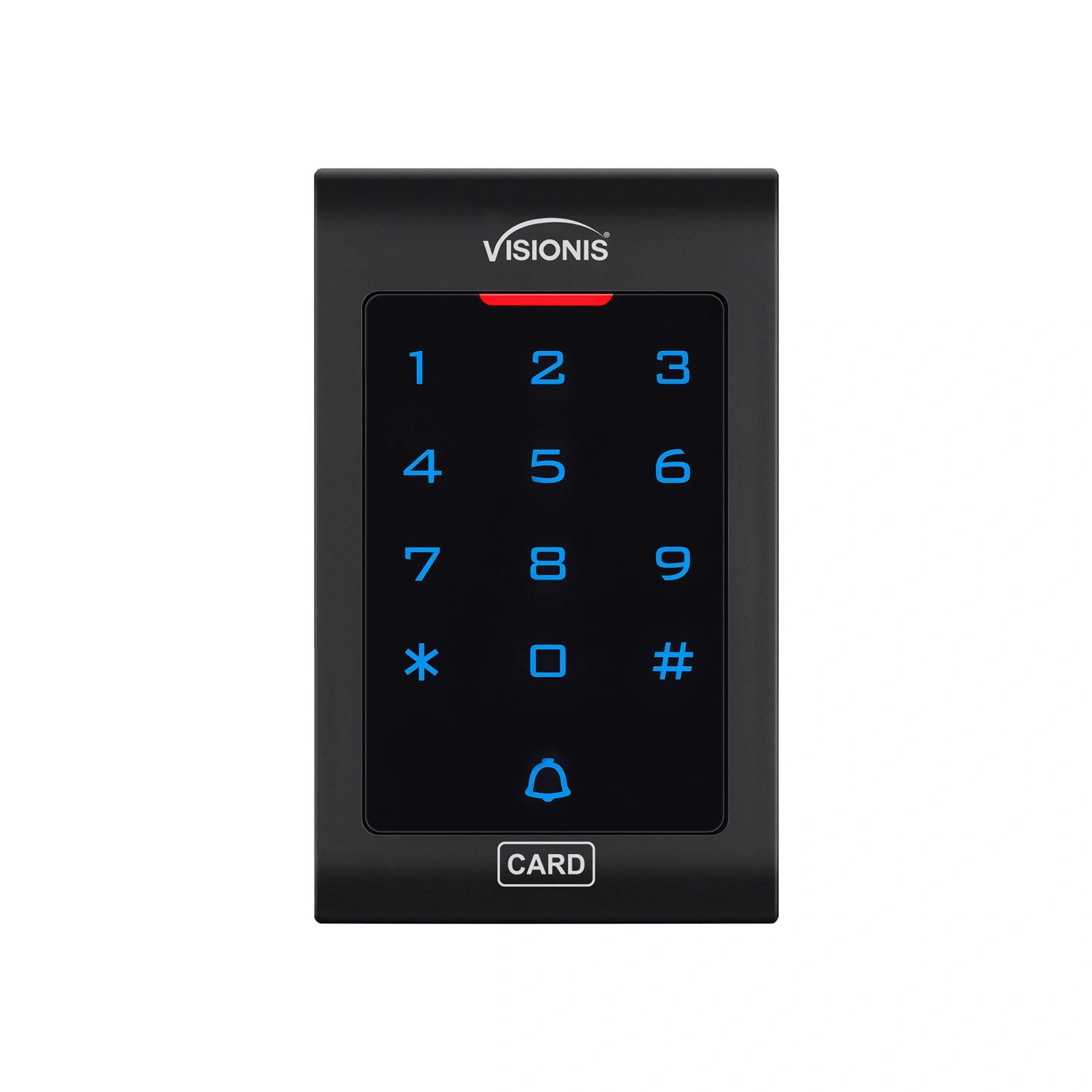

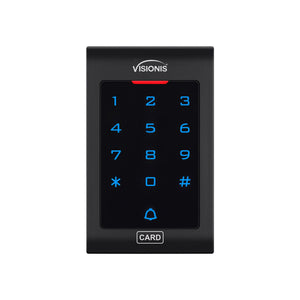

Security access control keypads, Visionis VIS-3002, standalone indoor use, digital touch keypad

Visionis VIS-3002 Security Access Control Keypad, indoor use, standalone design, 1000 users

Standalone access control keypad features - VIS-3002 Visionis

Indoor access control keypad, Visionis VIS-3002, digital touch, standalone, 2000-user capacity

standalone access keypads, Wiegand 26, indoor security keypad for 2000 users - VIS-3002 Visionis

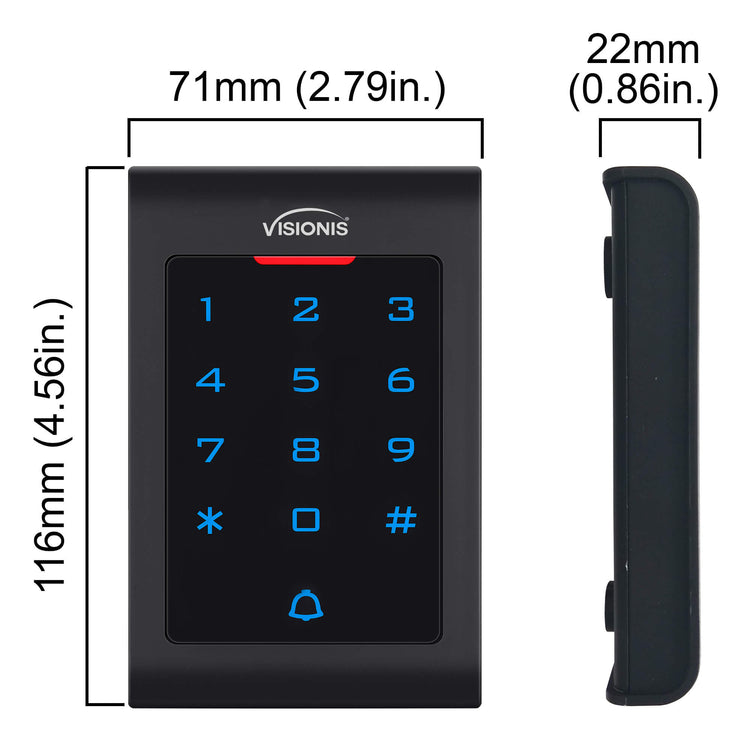

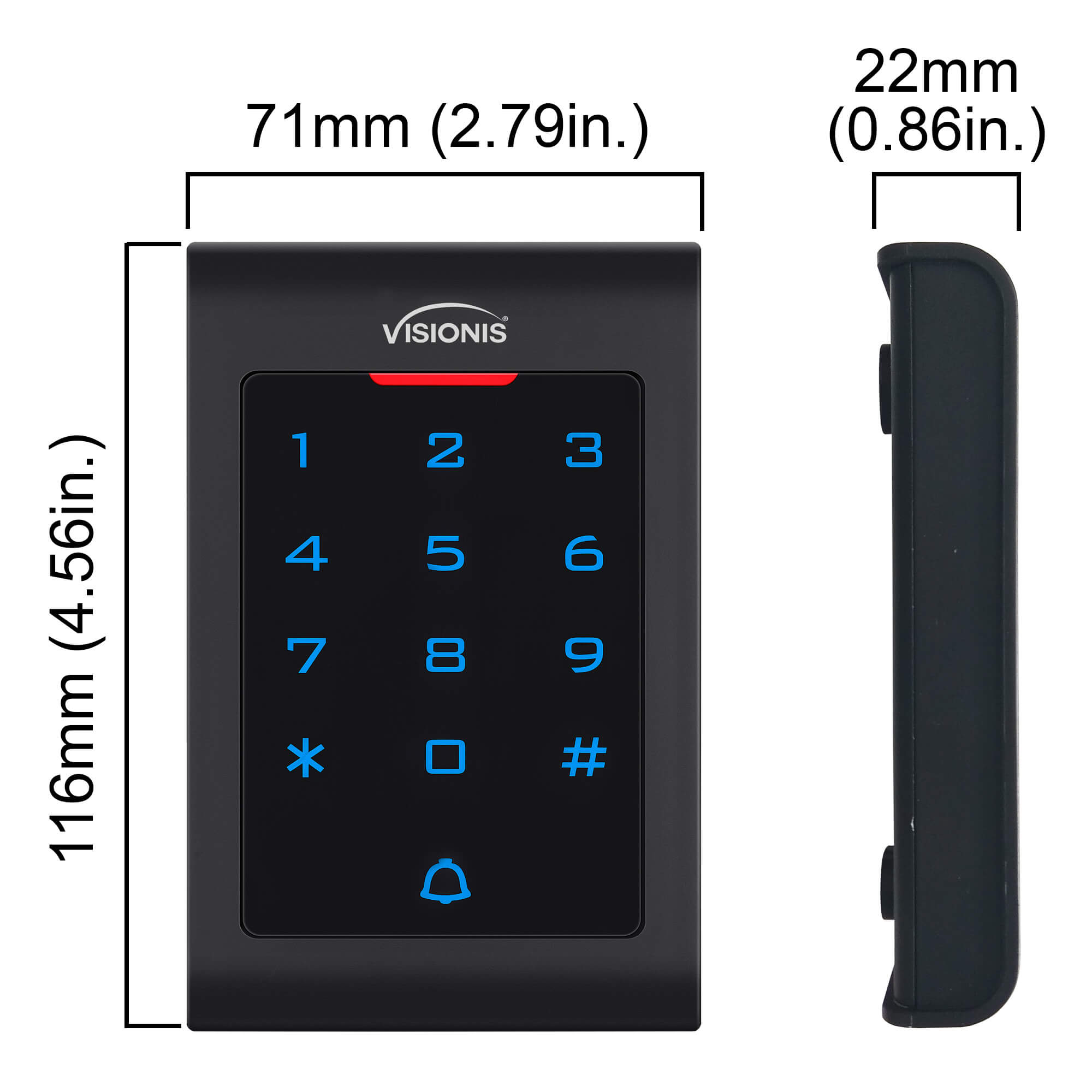

Dimensions Standalone access keypads, Visionis VIS-3002, indoor security, Wiegand 26, no software needed

Standalone access control keypads, Visionis VIS-3002, standard design, indoor security keypad

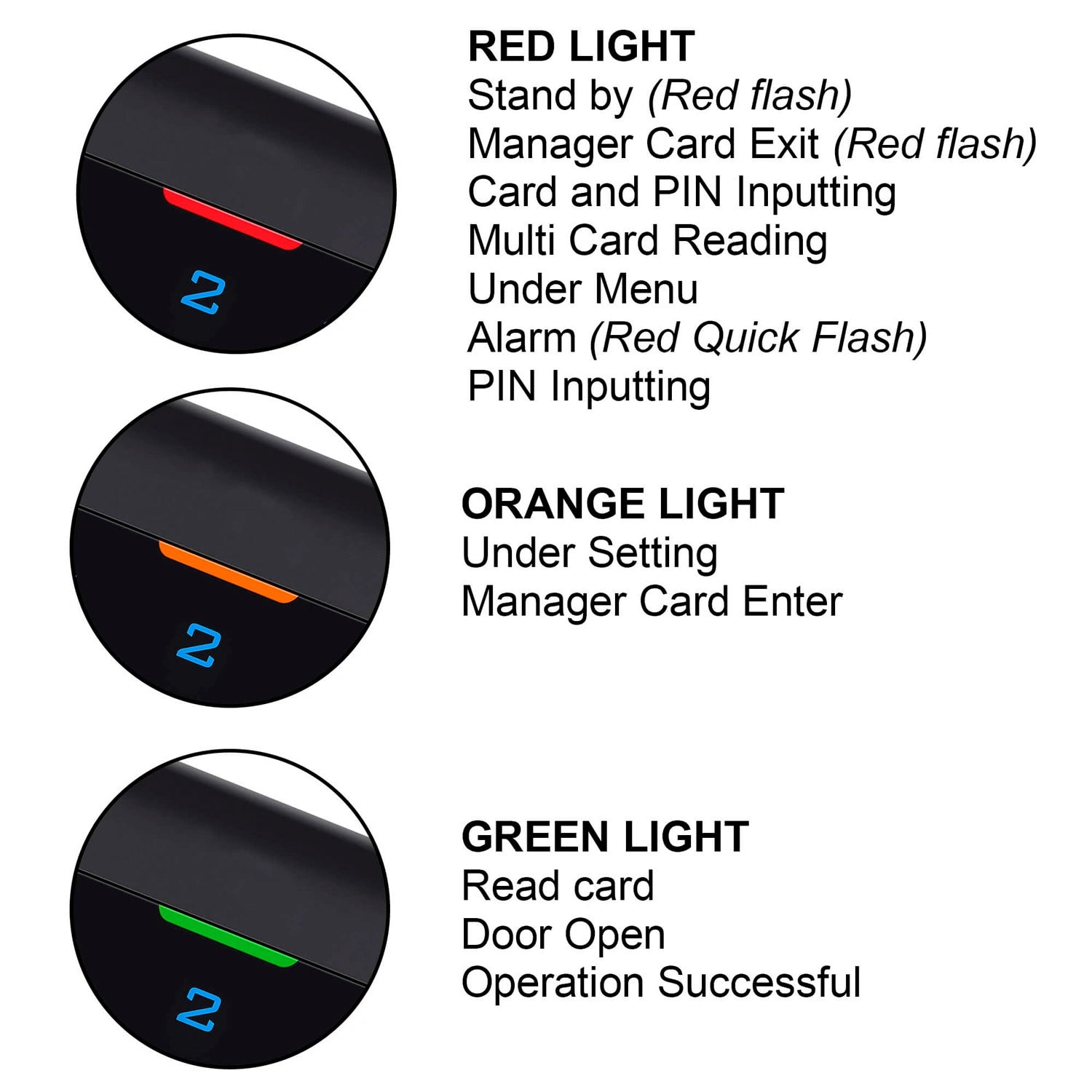

LED indicators Indoor access control keypad, Visionis VIS-3002, standalone digital touch keypad, 1000 users

Visionis VIS-3002 indoor access control keypad, standalone reader, supports 1000 users, EM cards

Description

The Visionis VIS-3002 Indoor Access Control Keypad is a versatile and reliable solution for secure access control in commercial and residential settings. This standalone access control keypad supports up to 2,000 users, allowing entry via card, code, or a combination of both for flexible security. Designed for easy installation and operation, it’s ideal for high-security environments where convenience and protection are essential. The VIS-3002 also features a backlit keypad for visibility in low-light settings, making it practical for any indoor application.

Key Features:

Standalone Access Control Keypad: Operates independently with no software required, supporting various access methods.
Compact Design for Indoor Use: A sleek, standard design that blends well in offices, apartments, and restricted areas.
Energy Efficient: Ultra-low power consumption ensures minimal energy use while maintaining reliable functionality.

The VIS-3002 Indoor Access Control Keypad is a top choice for those seeking a dependable, standalone security access control solution.

Characteristics

Model No. VIS-3002:

Input Voltage: DC 12V ±10%
Standby Current: 25 ±5 mA
Lock Output Load: Max 3 A
Alarm Output Load: Max 20 A
Door Relay Time: 0 ~ 99 s (adjustable)
Material: Plastic case
Product Dimensions: 116L x 71W x 22H mm - (4.56L x 2.79W x 0.86H in)
Access Mode: Card, PIN, Card + PIN
Card Frequency: 125KHz for EM / 13.56MHz for MFR
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Input & Output Format: Wiegand 26 bits
Keypad Transmission Format: 4-bit, 8-bit and Virtual Card Number
User Capacity: 2000
Alarm Time: 0 – 3 minutes (adjustable)
Operating Temperature: -45 °C ~ 60 °C (-49 °F ~ 140 °F)
Operating Humidity: 10% – 90% RH
Usage Environment: Indoor
Wiring Connections: Electric lock, exit button, external doorbell

Description

The Visionis VIS-3002 Indoor Access Control Keypad is a versatile and reliable solution for secure access control in commercial and residential settings. This standalone access control keypad supports up to 2,000 users, allowing entry via card, code, or a combination of both for flexible security. Designed for easy installation and operation, it’s ideal for high-security environments where convenience and protection are essential. The VIS-3002 also features a backlit keypad for visibility in low-light settings, making it practical for any indoor application.

Key Features:

Standalone Access Control Keypad: Operates independently with no software required, supporting various access methods.
Compact Design for Indoor Use: A sleek, standard design that blends well in offices, apartments, and restricted areas.
Energy Efficient: Ultra-low power consumption ensures minimal energy use while maintaining reliable functionality.

The VIS-3002 Indoor Access Control Keypad is a top choice for those seeking a dependable, standalone security access control solution.

Characteristics

Model No. VIS-3002:

Input Voltage: DC 12V ±10%
Standby Current: 25 ±5 mA
Lock Output Load: Max 3 A
Alarm Output Load: Max 20 A
Door Relay Time: 0 ~ 99 s (adjustable)
Material: Plastic case
Product Dimensions: 116L x 71W x 22H mm - (4.56L x 2.79W x 0.86H in)
Access Mode: Card, PIN, Card + PIN
Card Frequency: 125KHz for EM / 13.56MHz for MFR
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Input & Output Format: Wiegand 26 bits
Keypad Transmission Format: 4-bit, 8-bit and Virtual Card Number
User Capacity: 2000
Alarm Time: 0 – 3 minutes (adjustable)
Operating Temperature: -45 °C ~ 60 °C (-49 °F ~ 140 °F)
Operating Humidity: 10% – 90% RH
Usage Environment: Indoor
Wiring Connections: Electric lock, exit button, external doorbell

Product FAQs

How many users can be programmed?

The Visionis VIS-3002 Touch Keypad supports up to 2,000 users. If connected to the mini controller VIS-MINI-CNTRL, the capacity is limited to 1,000 users.
Is this keypad weatherproof?

No, it isn't. If you need a weatherproof keypad, check the VIS-3004.
What proximity cards are compatible?

This Wiegand keypad is compatible with 125kHz EM proximity cards and key tags. It is not compatible with 13.56MHz Mifare cards.
Can the indoor keypad change how long the door stays open?

Yes, the relay timer can be adjusted on the keypads. You can program your delay from 0 to 99 seconds.
Can this card reader be programmed without a computer?

Yes, The Visionis VIS-3002 Keypad is specifically designed to be programmed without a computer or any software. All programming is done directly on the keypad itself.

Download Datasheets and Manuals of this product

VIS-3002

Visionis by Visionis

Standalone Access Control Keypad and Card Reader. Indoor Only Digital Touch Keypad. Wiegand 26. Standard Design. No Software. Compatible with EM Cards. 2000 Users - VIS-3002 Visionis

UPC Code: 701772944362

Certifications:
