Looking for something slightly different? Check out these variations:

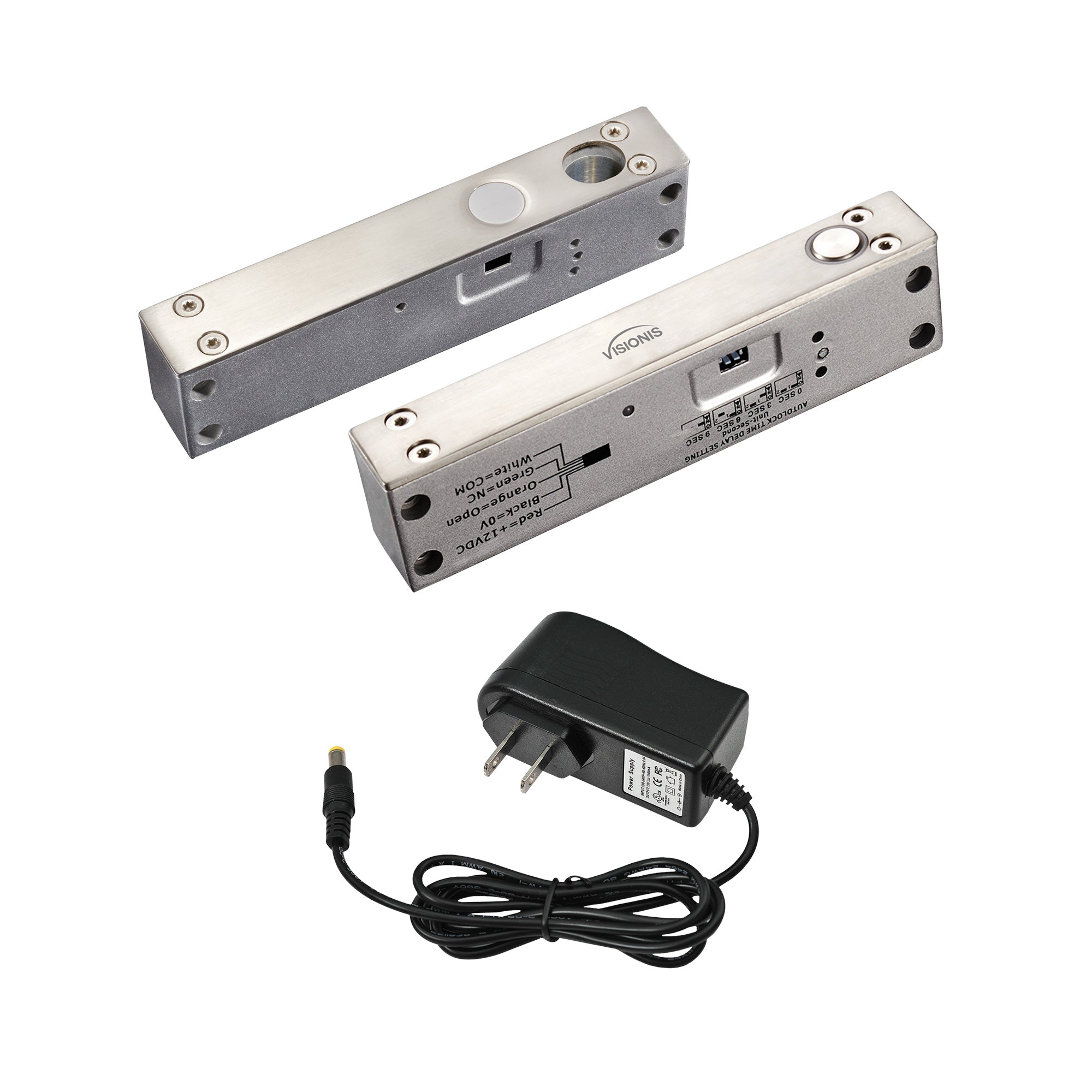

Kit Includes:

(1)
(1)

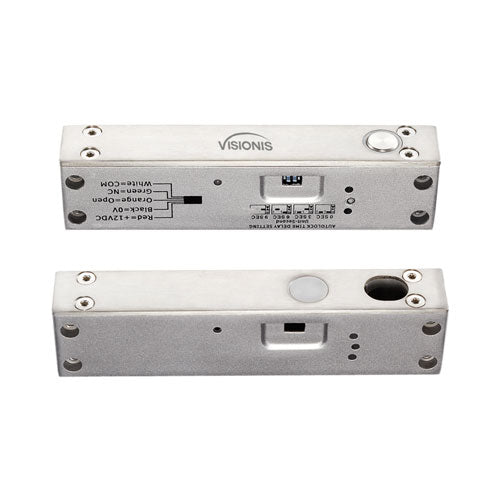

VIS-DP104ND-FSA-LED: Electric Drop Bolt Lock 2,200lbs For Narrow Door With LED and Time Delay Fail Safe Normally Closed Dead Bolt
VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed
Description

The FPC-5388 kit includes the VISIONIS VIS-DP104ND-FSA-LED drop bolt lock, specially designed for narrow doors. This fail-safe, normally closed lock provides an impressive 2,200 lbs of holding force, and features a built-in LED indicator, adjustable time delay, and a power supply for quick installation.

When powered, the drop bolt extends and locks into place, securing the door with strength and reliability. Its sleek design allows for a discreet, flush-mounted appearance—similar to a shear lock—ideal for clean, modern installations.

The time delay function can be customized to 0, 3, 6, or 9 seconds, offering flexible access control. As a fail-safe lock, the bolt automatically retracts during a power outage, unlocking the door to ensure safe egress. The included power supply makes setup fast and hassle-free.

Characteristics

Model No. VIS-DP104ND-FSA-LED:

  • Fail Safe: Unlocks if power is lost

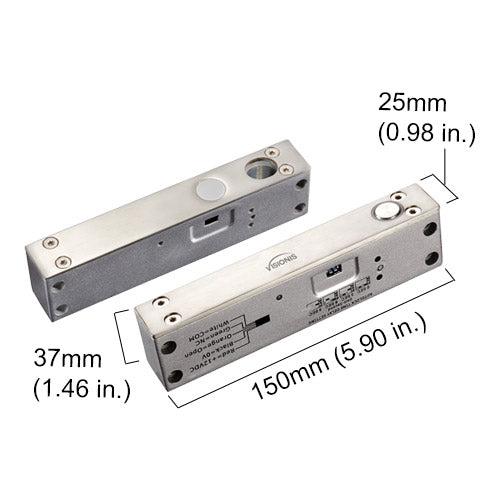

  • Face Plate: 150Lx25Wx37H (mm) – 5.90Lx0.98Wx1.46H (in.)
  • Bolt: 16mm (0.62in.) DIA, stainless steel 13mm (0.51 in.) throw
  • Voltage: DC12V (DC24V)
  • Start Current: 960mA
  • Standby Current: 180mA
  • Solid Bolt: polishing housing, 1000Kg (2200lbs) Holding Force
  • Suitable For: Electric Bolt For Narrow Door
  • Signal Output: Door status Output, NO/COM
  • Surface Temp.: Low Temperature
  • Induction Distance: 8mm (0.31 in.)
  • Operating temp.: -10～+55°C (14~131°F)
  • Operating Humidity: 0～90% (non-condensing)
  • Special Designed: Tested to 500000 operations
  • Face place material: Stainless Steel
  • Weight: 1.06kg (2.33 pounds)

Model No. VIS-CP200:

  • Input Voltage Range: AC90V-264V
  • Input Frequency Range: 50Hz-60Hz
  • Output Voltage Range: DC12V+/-5%
  • Output Current: 2A
  • Output Power: 24 Watts
  • Output Ripple&Noise: ≤46MV
  • Output Efficiency: ≥79%
  • Environment Operating: -30°C~45°C 20%~90%RH
  • Environment Storage Temp.: -40°C~85°C 10%~95%RH
  • Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
  • Product Weight: 116g
  • Certificate: UL, CE, RoHS, FCC
Description

The FPC-5388 kit includes the VISIONIS VIS-DP104ND-FSA-LED drop bolt lock, specially designed for narrow doors. This fail-safe, normally closed lock provides an impressive 2,200 lbs of holding force, and features a built-in LED indicator, adjustable time delay, and a power supply for quick installation.

When powered, the drop bolt extends and locks into place, securing the door with strength and reliability. Its sleek design allows for a discreet, flush-mounted appearance—similar to a shear lock—ideal for clean, modern installations.

The time delay function can be customized to 0, 3, 6, or 9 seconds, offering flexible access control. As a fail-safe lock, the bolt automatically retracts during a power outage, unlocking the door to ensure safe egress. The included power supply makes setup fast and hassle-free.

  • What type of door is the VIS-DP104ND-FSA-LED electric drop bolt lock designed for?

    This drop bolt lock is specifically built for narrow doors, making it ideal for installations where space is limited but high security is still required.

  • Is this lock fail-safe or fail-secure?

    The VIS-DP104ND-FSA-LED is a fail-safe lock, meaning it unlocks automatically when power is lost, allowing free egress during power outages or emergencies.

  • How much force can the electric bolt lock withstand?

    The lock delivers up to 2,200 lbs (1,000 kg) of holding force, thanks to its solid stainless steel construction—providing strong reinforcement for high-security needs.

  • Can I adjust how long these electric deadbolts stays open after it's triggered?

    Yes. The lock includes a time delay feature that can be set to 0, 3, 6, or 9 seconds, giving you flexibility in how quickly the door re-locks if it remains unopened.

  • Does this electric lock offer concealed or surface mounting?

    Depending on your installation preference, the lock can be mounted in a way that provides a “hidden” or flush appearance, similar to that of a shear lock, for a clean and secure look.
